6058-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
transmission), and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
■When it is difficult to free the vehicle
Vehicles with a 3-ring meter
Vehicles with a 2-ring meter
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
Press to turn off TRC.
1
2
3
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 605 ページ ２０１６年６月２７日　月曜日　午後５時４２分

608
UK AURIS_HB_EE (OM12K97E)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4330 mm (170.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11475 mm (58.1 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
1ZR-FAE, 8NR-FTS and 1WW
engines
1525 mm (60.0 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
Gross vehicle mass
1NR-FE engine
1735 kg (3826 lb.)
1ZR-FAE engine
1830 kg (4035 lb.)
*6
1805 kg (3980 lb.)*7
8NR-FTS engine
1845 kg (4068 lb.)
*6
1820 kg (4012 lb.)*7
1ND-TV engine
1820 kg (4012 lb.)
1WW engine
1890 kg (4167 lb.)
UK AURIS_HB_OM_Europe_OM12K97E.book 608 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6099-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with a Multidrive
*7: Vehicles with a manual transmission
Maximum
permissible axle
capacityFront
1NR-FE, 1ZR-FAE, 8NR-FTS
and 1ND-TV engines
1020 kg (2249 lb.)
1WW engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
65 kg (143 lb.)
Towing capacityWith brake
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
1300 kg (2867 lb.)
Without brake 450 kg (992 lb.)
UK AURIS_HB_OM_Europe_OM12K97E.book 609 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6119-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
■Engine number
The engine number is stamped on the engine block as shown.
1NR-FE engine1ZR-FAE engine
8NR-FTS engine1ND-TV engine
1WW engine
UK AURIS_HB_OM_Europe_OM12K97E.book 611 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6129-1. Specifications
UK AURIS_HB_EE (OM12K97E)
1NR-FE and 1ZR-FAE engines
Engine
Model1NR-FE, 1ZR-FAE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
Displacement
1NR-FE engine
1329 cm
3 (81.1 cu. in.)
1ZR-FAE engine
1598 cm
3 (97.5 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft
UK AURIS_HB_OM_Europe_OM12K97E.book 612 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6139-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
8NR-FTS engine
1ND-TV and 1WW engines
Model 8NR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline (with
turbocharger)
Bore and stroke 71.5  74.5 mm (2.82  2.93 in.)
Displacement 1197 cm3 (73.0 cu. in.)
Valve clearance (engine
cold)Automatic adjustment
Drive belt tension Automatic adjustment
Model 1ND-TV, 1WW
Ty p e4-cylinder in line, 4-cycle, diesel (with
turbocharger)
Bore and stroke
1ND-TV engine
73.0  81.5 mm (2.87  3.21 in.)
1WW engine
78.0  83.6 mm (3.07  3.29 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu. in.)
1WW engine
1598 cm
3 (97.52 cu. in.)
Valve clearance (engine
cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1WW engine
Automatic adjustment
Drive belt tension Automatic adjustment
UK AURIS_HB_OM_Europe_OM12K97E.book 613 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6149-1. Specifications
UK AURIS_HB_EE (OM12K97E)
Gasoline engine
Diesel engine

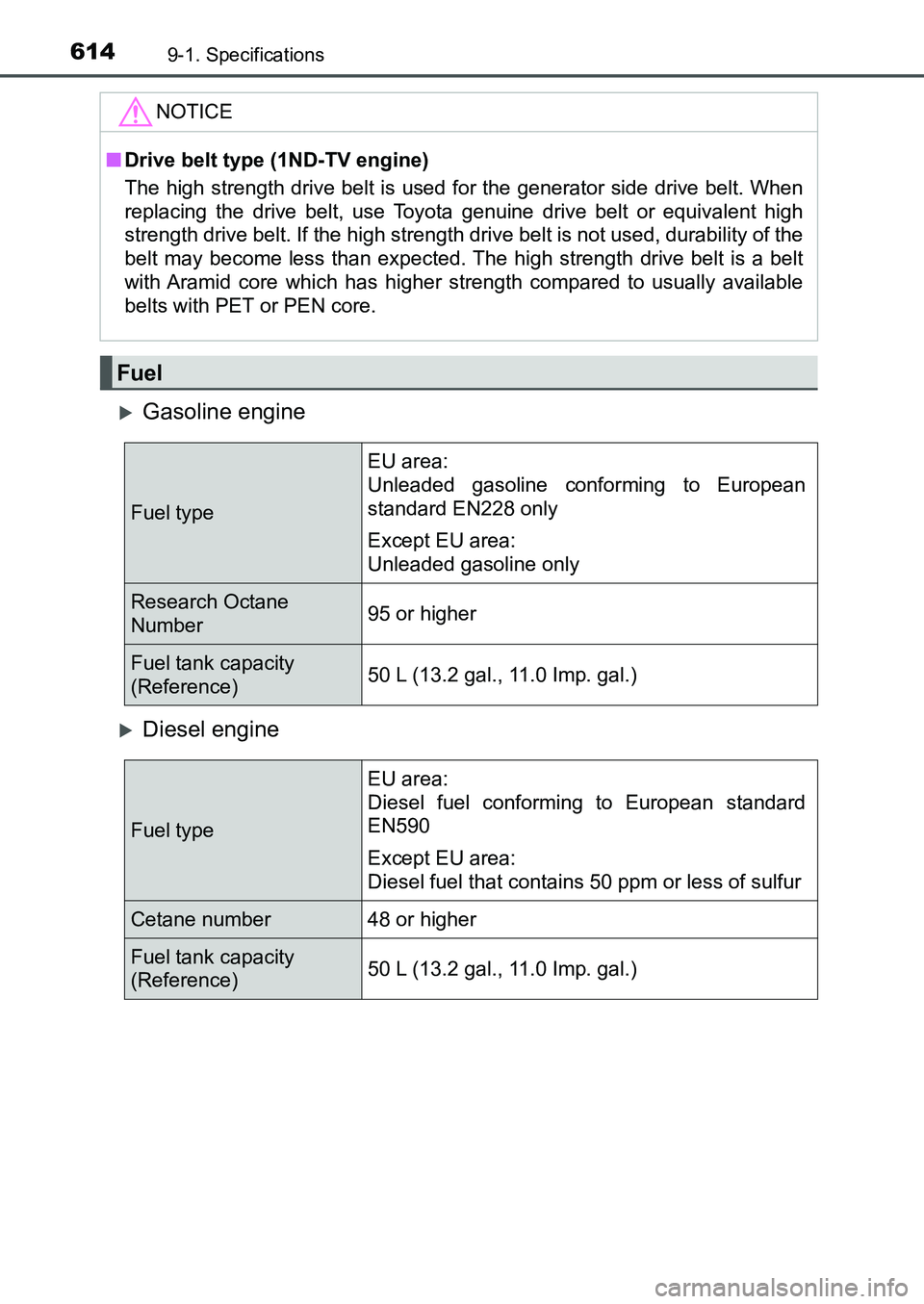

NOTICE
