2017 TOYOTA AURIS engine

6169-1. Specifications
UK AURIS_HB_EE (OM12K97E)

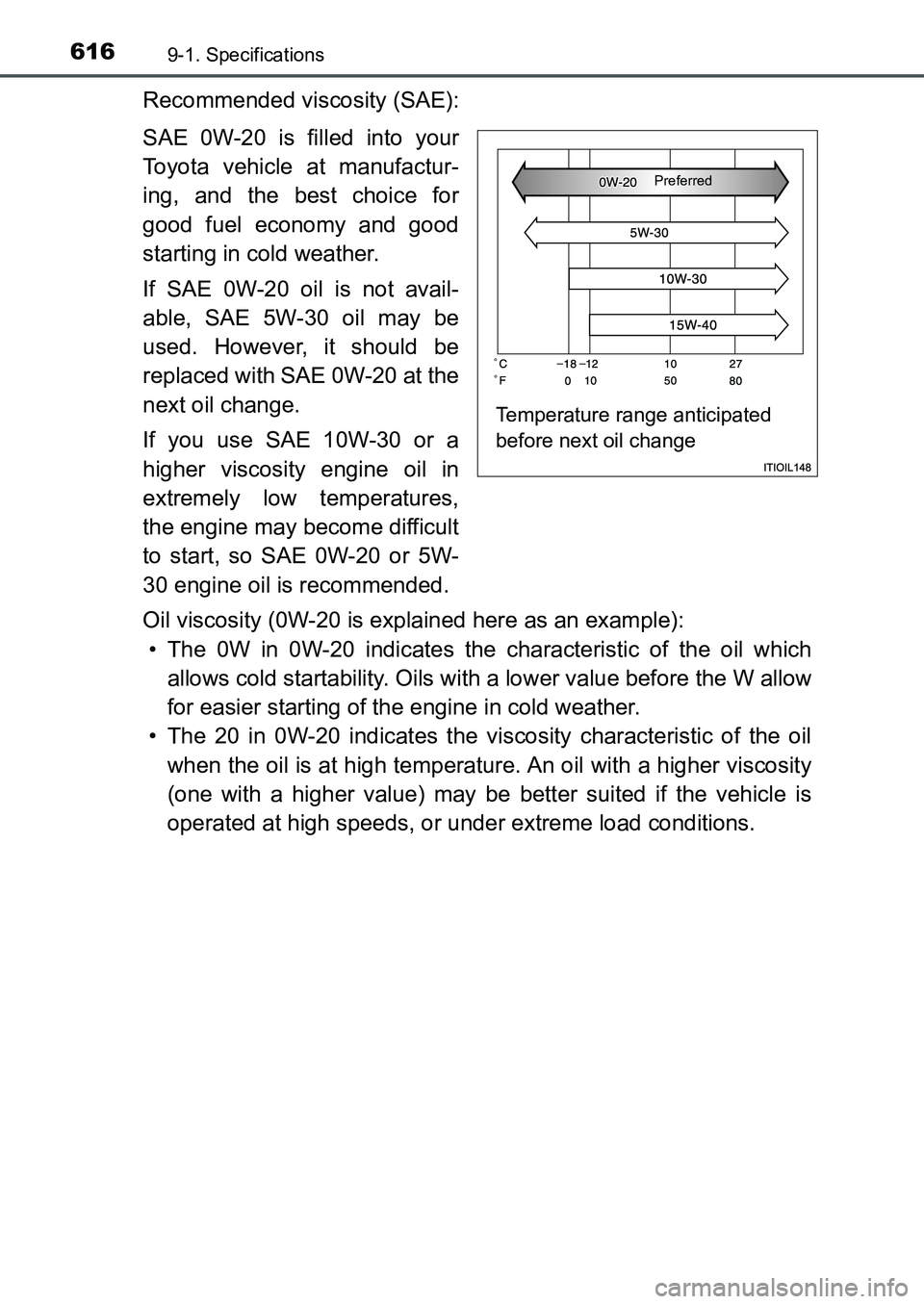

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
UK AURIS_HB_OM_Europe_OM12K97E.book 616 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6179-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
8NR-FTS engine
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” is used in your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or equivalent to satisfy the following grade and vis-
cosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gaso-
line Engines” or API grade SL “Energy-Conserving”, SM “Energy-
Conserving” or SN “Resource-Conserving”; or ILSAC multigrade
engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 617 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6189-1. Specifications
UK AURIS_HB_EE (OM12K97E)
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo
Gasoline Engines” is filled into
your Toyota vehicle at manufac-
turing, and SAE 0W-20 is the
best choice for good fuel econ-
omy and good starting in cold
weather.
If SAE 0W-20 oil is not available, SAE 5W-30 oil may be used.
However, it should be replaced with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
Temperature range anticipated
before next oil change
Preferred
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 618 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6199-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
1ND-TV engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change
Preferred
UK AURIS_HB_OM_Europe_OM12K97E.book 619 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6209-1. Specifications
UK AURIS_HB_EE (OM12K97E)

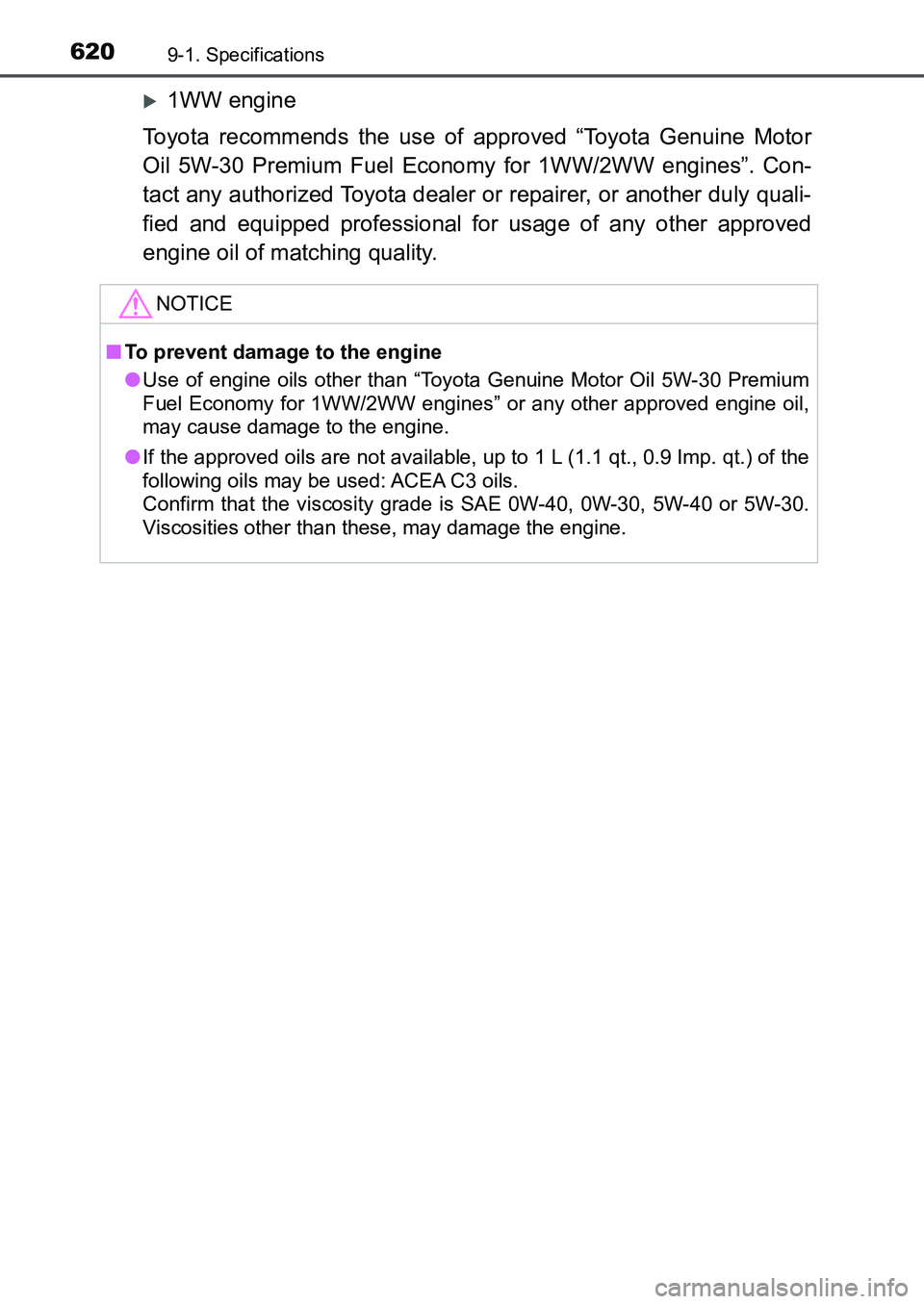

1WW engine
Toyota recommends the use of approved “Toyota Genuine Motor
Oil 5W-30 Premium Fuel Economy for 1WW/2WW engines”. Con-
tact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for usage of any other approved
engine oil of matching quality.
NOTICE
■To prevent damage to the engine
●Use of engine oils other than “Toyota Genuine Motor Oil 5W-30 Premium
Fuel Economy for 1WW/2WW engines” or any other approved engine oil,
may cause damage to the engine.
●If the approved oils are not available, up to 1 L (1.1 qt., 0.9 Imp. qt.) of the
following oils may be used: ACEA C3 oils.
Confirm that the viscosity grade is SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Viscosities other than these, may damage the engine.
UK AURIS_HB_OM_Europe_OM12K97E.book 620 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6219-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
1NR-FE, 1ZR-FAE and 1ND-TV engines
8NR-FTS engine
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Capacity (reference)
Gasoline engine
IntercoolerVehicles with a Multidrive
6.4 L (6.8 qt., 5.6 Imp. qt.)
Vehicles with a manual transmission
6.2 L (6.6 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
UK AURIS_HB_OM_Europe_OM12K97E.book 621 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6229-1. Specifications
UK AURIS_HB_EE (OM12K97E)
1WW engine
Capacity (reference)
With power heater
7.3 L (7.7 qt., 6.4 Imp. qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp. qt.)
Coolant type“Toyota Genuine Premium Long Life Cool-
ant 1WW/2WW” or equivalent. “Toyota
Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs
to be mixed as 50% coolant and 50%
deionized water. Do not use plain water
alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional for usage of any
other approved engine coolant of matching
quality.
Ignition system (gasoline engine)
Spark plug
Make
1NR-FE engine
DENSO SC16HR11
1ZR-FAE engine
DENSO SC16HR11 or DENSO SC20HR11
8NR-FTS engine
NGK DILKAR8J9G
Gap
1NR-FE and 1ZR-FAE engines
1.1 mm (0.043 in.)
8NR-FTS engine
0.9 mm (0.035 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
UK AURIS_HB_OM_Europe_OM12K97E.book 622 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6239-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
Battery
Open voltage at 20C
(68F):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.
Manual transaxle
Gear oil capacity (Reference)
1WW engine
2.1 L (2.2 qt., 1.8 Imp. qt.)
Except 1WW engine
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
