2017 TOYOTA AURIS engine

5468-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
*1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: The DPF system warning light may not turn off when the engine oil change
reminder light is on. In this event, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*3: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*4: Driver’s and passengers’ seat belt buzzer:
The driver’s and passengers’ seat belt buzzer sounds to alert the driver and
passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of at least 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
(If equipped)
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 549)
• Flat tire (P. 559, 573)
Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system (P. 550)
Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
P. 553
Warning lightWarning light/Details/Actions
UK AURIS_HB_OM_Europe_OM12K97E.book 546 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5478-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart entry &
start system and with a 3-ring meter)
Interior
buzzerExterior
buzzerWarning
lightWarning light/Details/Action
Continuous Continuous
(Flashes in
yellow)
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while any shift position other than
P was selected without turning off the engine
switch.
Change the shift position to P.
Bring the electronic key back into the
vehicle.
Once3 times
(Flashes in
yellow)
Smart entry & start system indicator (vehi-
cles with a Multidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while the shift position P was
selected without turning off the engine
switch.
Turn the engine switch off or bring the
electronic key back into the vehicle.
Once3 times
(Flashes in
yellow)
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off and
the electronic key outside of the detection
area.
Confirm the location of the electronic
key.
UK AURIS_HB_OM_Europe_OM12K97E.book 547 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5488-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
OnceContinuous
(5 seconds)
(Flashes in
yellow)
Smart entry & start system indicator
An attempt was made to exit the vehicle with
the electronic key and lock the doors without
first turning the engine switch off.
Turn the engine switch off and lock the
doors again.
Once
(Flashes in
yellow for 15
seconds)
Smart entry & start system indicator
Indicates that the electronic key is not pres-
ent when attempting to start the engine.
Confirm the location of the electronic
key.
9 times
(Flashes in
yellow)
Smart entry & start system indicator
An attempt was made to drive when the reg-
ular key was not inside the vehicle.
Confirm that the electronic key is inside
the vehicle.
Once(Flashes in
yellow for 15
seconds)
Smart entry & start system indicator
Indicates that the electronic key battery is
low.
Replace the battery.
(P. 505)
Once(Flashes
quickly in
green for 15
seconds)
Smart entry & start system indicator
Indicates that the steering lock has not been
released.
Release the steering lock. (P. 219)
Once(Flashes in
yellow for 30
seconds)
Smart entry & start system indicator
• When the doors were unlocked with the
mechanical key and then the engine switch
was pressed, the electronic key could not
be detected in the vehicle.
• The electronic key could not be detected in
the vehicle even after the engine switch
was pressed two consecutive times.
Vehicles with a Multidrive: Touch the
electronic key to the engine switch while
depressing the brake pedal.
Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/Details/Action
UK AURIS_HB_OM_Europe_OM12K97E.book 548 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5508-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)■If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
Vehicles without a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the “ON” position, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Vehicles with a smart entry & start system
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to IGNITION ON mode, have it
checked by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■If the engine oil change reminder light flashes (diesel engine)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
■Engine oil change reminder light comes on (diesel engine)
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
UK AURIS_HB_OM_Europe_OM12K97E.book 550 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5518-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
■If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
●Vehicles with a spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
●Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
UK AURIS_HB_OM_Europe_OM12K97E.book 551 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5528-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

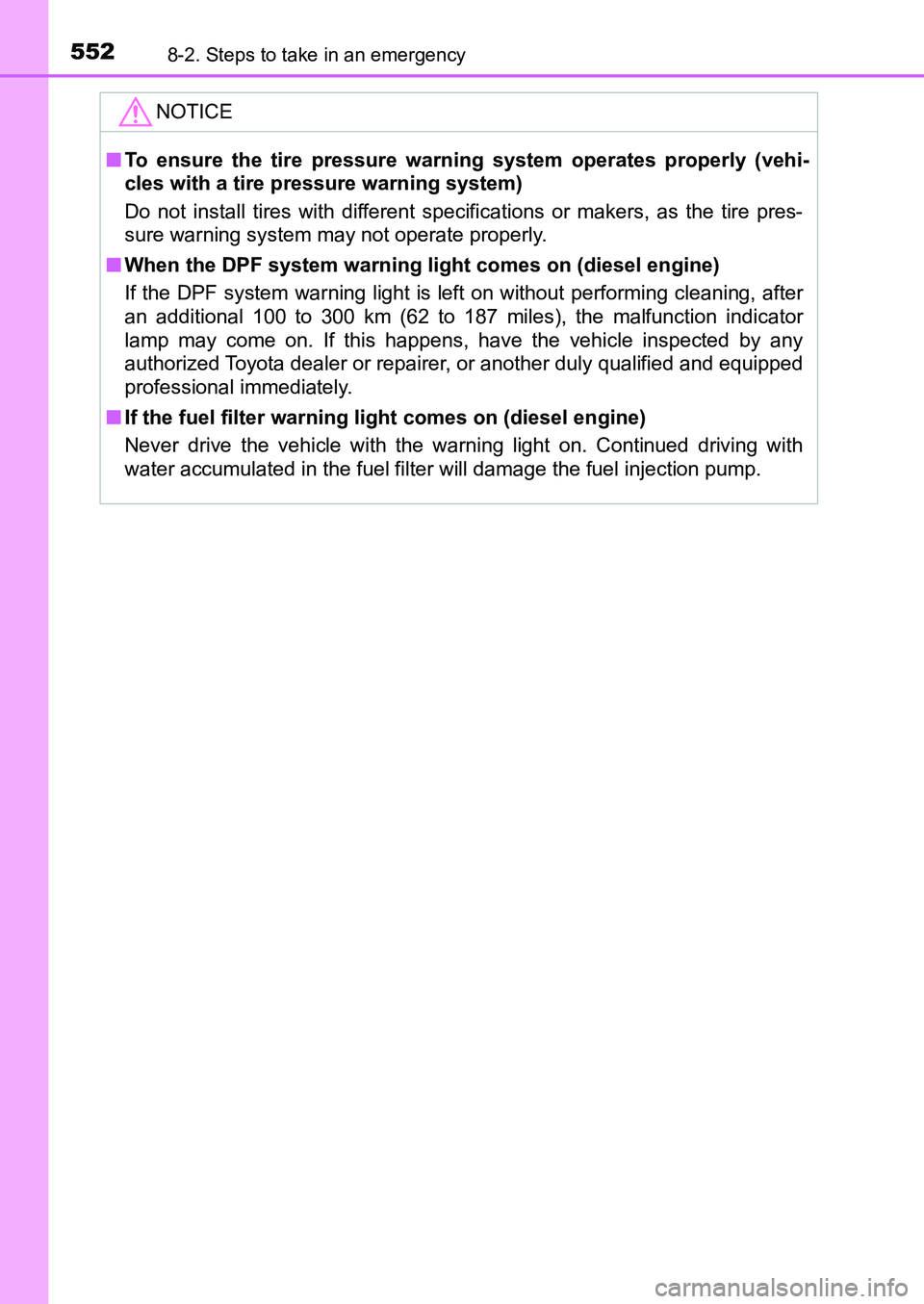

NOTICE
■To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
■When the DPF system warning light comes on (diesel engine)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■If the fuel filter warning light comes on (diesel engine)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
UK AURIS_HB_OM_Europe_OM12K97E.book 552 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5548-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display
●If the following message is displayed, take the appropriate actions.
• “DPF full. See owner’s manual.” (diesel engine)
P. 5 5 7
●If the following message is displayed, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
• “Brake effectiveness is reduced due to failure, please stop in a
safe area and check manual.”

Comes
on or
flashesSounds or does
not sound
Indicates an important situation,
such as when the systems shown
on the multi-information display
may be malfunctioning
FlashesSounds
Indicates a situation, such as
when damage to the vehicle or
danger may result
Comes
onDoes not sound
Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance
Does not sound
Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly
If a message instructing to refer to the Owner’s Manual is dis-
played
System
warning
light
Warning buzzer*Warning
UK AURIS_HB_OM_Europe_OM12K97E.book 554 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5558-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■If “Check charging system.” is displayed
Indicates a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
●The LED headlight system
●The automatic headlight leveling system
●Automatic High Beam
■If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
Blocked Clean and Demist Windshield.” is displayed (if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
●PCS (Pre-Crash Safety system)
●LDA (Lane Departure Alert)
●Automatic High Beam
●RSA (Road Sign Assist)
Other messages displayed on the multi-information display
UK AURIS_HB_OM_Europe_OM12K97E.book 555 ページ ２０１６年６月２７日　月曜日　午後５時４２分
