2017 TOYOTA AURIS engine

5087-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
Turn the engine switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 508 ページ ２０１６年６月２７日　月曜日　午後５時４２分

529
8When trouble arises
UK AURIS_HB_EE (OM12K97E)8-1. Essential information
Emergency flashers ........... 530
If your vehicle has to be
stopped in an
emergency....................... 531
8-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 533
If you think something is
wrong ............................... 539
Fuel pump shut off
system ............................. 540
If a warning light turns on
or a warning buzzer
sounds ............................. 541
If a warning message is
displayed ......................... 553
If you have a flat tire
(vehicles with a
spare tire) ........................ 559If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 573
If the engine will
not start............................ 589
If the electronic key does
not operate properly ........ 591
If the vehicle battery is
discharged ....................... 594
If your vehicle
overheats ......................... 600
If you run out of fuel and
the engine stalls............... 604
If the vehicle becomes
stuck ................................ 605
UK AURIS_HB_OM_Europe_OM12K97E.book 529 ページ ２０１６年６月２７日　月曜日　午後５時４２分

530
UK AURIS_HB_EE (OM12K97E)
8-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
UK AURIS_HB_OM_Europe_OM12K97E.book 530 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5318-1. Essential information
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.

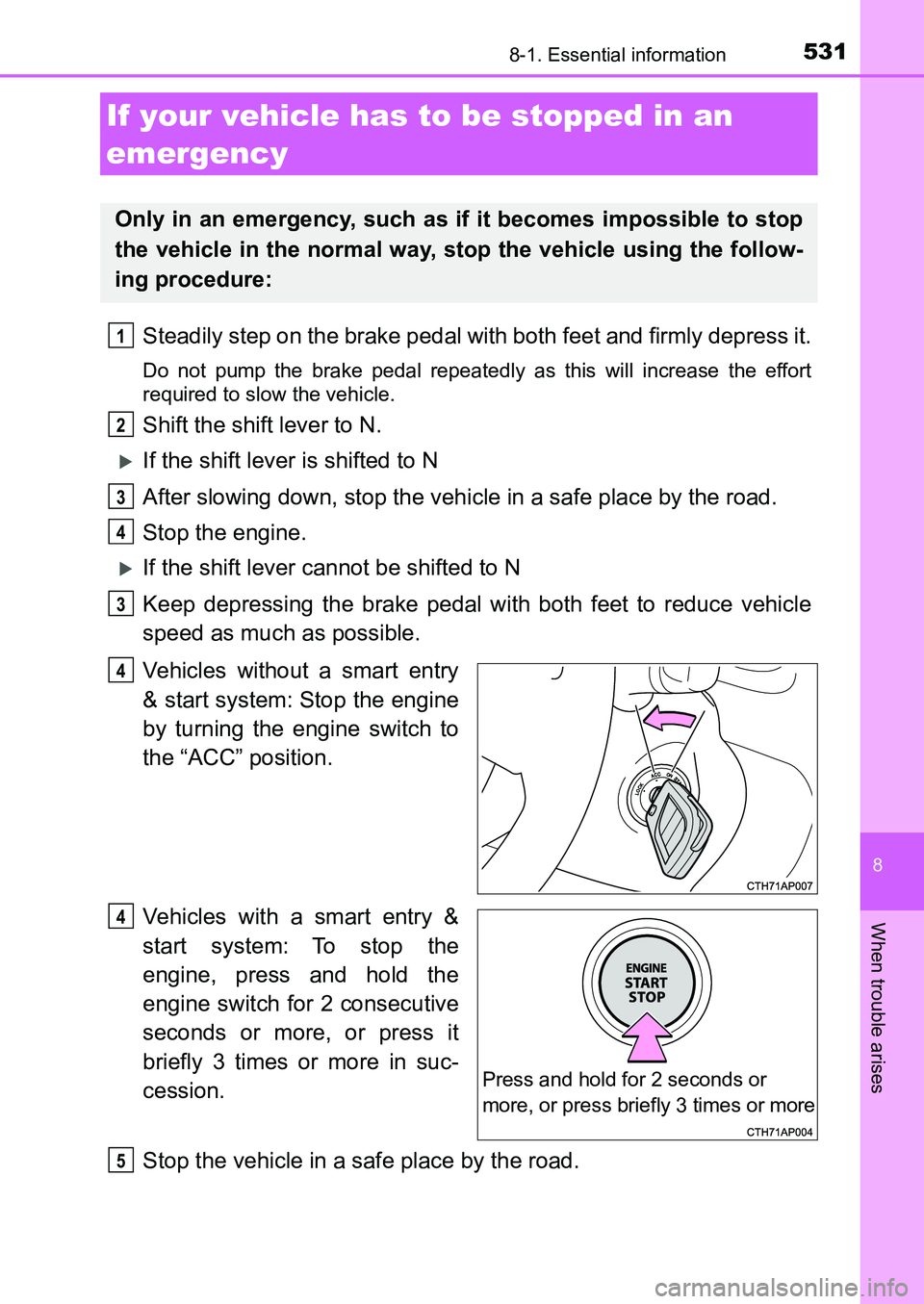

If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 531 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5328-1. Essential information
UK AURIS_HB_EE (OM12K97E)
WARNING
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
●Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
UK AURIS_HB_OM_Europe_OM12K97E.book 532 ページ ２０１６年６月２７日　月曜日　午後５時４２分

533
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or commercial towing service before towing.
●The engine is running but the vehicle does not move.
●The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional or commercial towing
service, using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck
UK AURIS_HB_OM_Europe_OM12K97E.book 533 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5348-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Apply the parking brake and turn the engine switch off.
Use wheel chocks for all 4 wheels to prevent the vehicle from rolling.
Secure the vehicle by strapping
the tires to the deck of the tow
truck as shown.
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 534 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5368-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Vehicles without a smart entry & start system: Enter the vehicle
being towed and start the engine.
If the engine does not start, turn the engine switch to the “ON” position.
Vehicles with Stop & Start system: Before towing the vehicle, turn the
engine switch off once, and then start the engine.
Vehicles with a smart entry & start system: Enter the vehicle being towed
and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Vehicles with Stop & Start system: Before towing the vehicle, turn the
engine switch off once, and then start the engine.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 2 2 8
■While towing
If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
■Wheel nut wrench
Vehicles without a wheel nut wrench: Wheel nut wrench can be purchased at
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Vehicles with a wheel nut wrench: Wheel nut wrench is installed in the lug-
gage compartment. (P. 560)
5
6
7
