2017 SUBARU IMPREZA bluetooth

WARNING
lDo not operate the player’s controls or connect to the Bluetooth audio system while driving.
lThis system is

CONNECTING A Bluetooth DEVICE
To use the Bluetooth audio system, it is necessary to
register a Bluetooth device with the system.
XRegistering an additional device
1. Select (Change Device) on the
Bluetooth audio control screen.
2. For more information:
WP.56
XSelecting a registered device
1. Select (Change Device) on the
Bluetooth audio control screen.
2. Select the Bluetooth device to be connected.
AUX
OVERVIEW
The AUX operation screen can be accessed with the
following methods:

AUDIO REMOTE CONTROLS
STEERING WHEEL CONTROLS
Some parts of the audio system can be controlled using the
steering wheel controls.
No.Switch
“VOL +/VOL -” switch
“/” switch
“Source” switch
X“VOL +/VOL -” switch
Mode OperationFunction
VolumePressVolume up/down
Press and hold Volume up/down continuously
X“/” switch
Mode OperationFunction
AM/FM Radio, SiriusXM®*1
PressPreset channel up/down
Press and hold Seek up/down continuously
ahaPressContent up/down
Audio CD*1,MP3/WMA/AAC disc*1,USB, iPod, Bluetooth audio
PressSelect a track
Press and hold Fast forward/rewind
Pandora*2PressTrack up (“”only)
*1: 8-inch with Navi system/8-inch system only
*2: Pandora is only available in certain countries. Please visit pandora.com/legal for more information.
AUDIO REMOTE CONTROLS
149
Audio
6
docstructure.indb 1492016/10/27 15:28:26

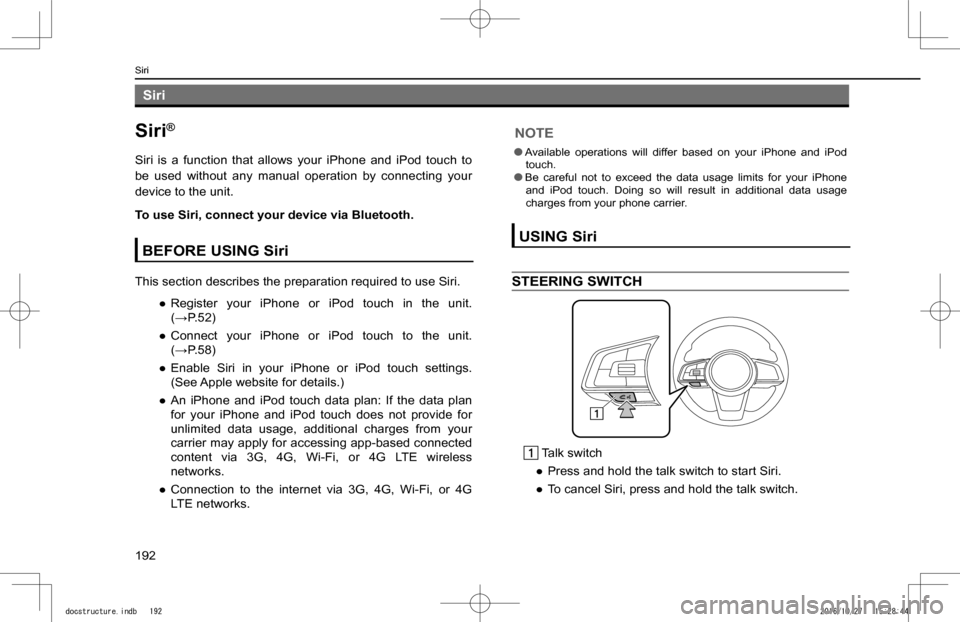

Siri
Siri®
Siri is a function that allows your iPhone and iPod touch to
be used without any manual operation by connecting your
device to the unit.
To use Siri, connect your device via Bluetooth.
BEFORE USING Siri
This section describes the preparation required to use Siri.

Voice commandFunction
Set Fan Speed to [1-7]Sets the fan speed to the spoken fan speed
Set Temperature to [Number]Sets the temperature to the spoken temperature
Change Source to (AM/FM/USB/ iPod/Bluetooth/ Auxiliary)
Changes source to AM/FM/USB/iPod/Bluetooth/Auxiliary
Go to (Radio/Media/Phone/CarPlay/Android Auto/Home/Settings/Apps)
Changes screen to Radio/Media/Phone/CarPlay/Android Auto/Home/Settings/Apps
HelpChanges to help screen
*: 8-inch with Navi system only
XNavigation commands*
*: 8-inch with Navi system only
Voice commandFunction
Enter an AddressEnables setting a destination by saying the address
Navigate to [House Number, Street, City, State]
Enables setting a destination by saying the address with city and state
Drive HomeDisplays the route to home
Drive to Work Displays the route to work
Find Nearest [POI]Displays a list of POI category near the current position
Find Gas StationDisplays the list of gas station near the current position
Find Parking LotDisplays the list of parking lot near the current position
Show MapDisplays the map screen
Stop RouteCancels route guidance
Where am IDisplays current location on map
Navigation HelpDisplays a list of voice commands related to navigation
VOICE RECOGNITION SYSTEM OPERATION
198
docstructure.indb 1982016/10/27 15:28:45

XClimate commands*
*: 8-inch with Navi system/8-inch system only
Voice commandFunction
Auto AC OnSwitches on the Auto AC mode on
Set Fan Speed to [1-7]Sets the fan speed to the spoken fan speed
Set Driver Temperature to [Number]
Sets the driver temperate to the spoken temperature
Set Passenger Temperature to [Number]
Sets the passenger temperature to the spoken temperature
Set Temperature to [Number]Sets the temperature to the spoken temperature
Set Both Temperatures to [Number]
Sets the both temperature to the spoken temperature
XMore commands
Voice commandFunction
Change Source to (AM/FM/USB/ iPod/Bluetooth/ Auxiliary)
Changes source to AM/FM/USB/ iPod/Bluetooth/ Auxiliary
Go to (Radio/Media/Phone/CarPlay/Android Auto/Home/Settings/Apps)
Changes screen to Radio/Media/Phone/CarPlay/Android Auto/Home/Settings/Apps
Gas Prices*1Changes screen to SiriusXM Travel Link Fuel Prices
Sports Scores*1Changes screen to SiriusXM Travel Link Sports Scores
Stocks*1Changes screen to SiriusXM Travel Link Stock Prices
Weather*1Changes screen to SiriusXM Travel Link Weather
Go to AhaChanges screen to Aha
Go to Pandora*2Changes screen to Pandora
Go to CarPlayChanges screen to carplay auto projection mode
Go to Android AutoChanges screen to android auto projection mode
Go to STARLINK*1Changes screen to SUBARU STARLINK
VOICE RECOGNITION SYSTEM OPERATION
201
Siri/Voice Recognition System
8
docstructure.indb 2012016/10/27 15:28:45

203
Appendix/What To
Do If/Index
Certification SiriusXM® Satellite Radio SiriusXM Data Service Radio Wave Communications Gracenote Bluetooth iPod Pandora Google
Troubleshooting SUBARU STARLINK Radio Operation Phone
End User License Agreement
Certification
What To Do If
How To Get The Source CodeUsing The Open Source
Index
204
206
206206206206208209210210210
211
212
212212212214
219
Appendix/What To Do If/Index
docstructure.indb 2032016/10/27 15:28:45

Bluetooth
