4-3. Do-it-yourself maintenance
4
Maintenance and care

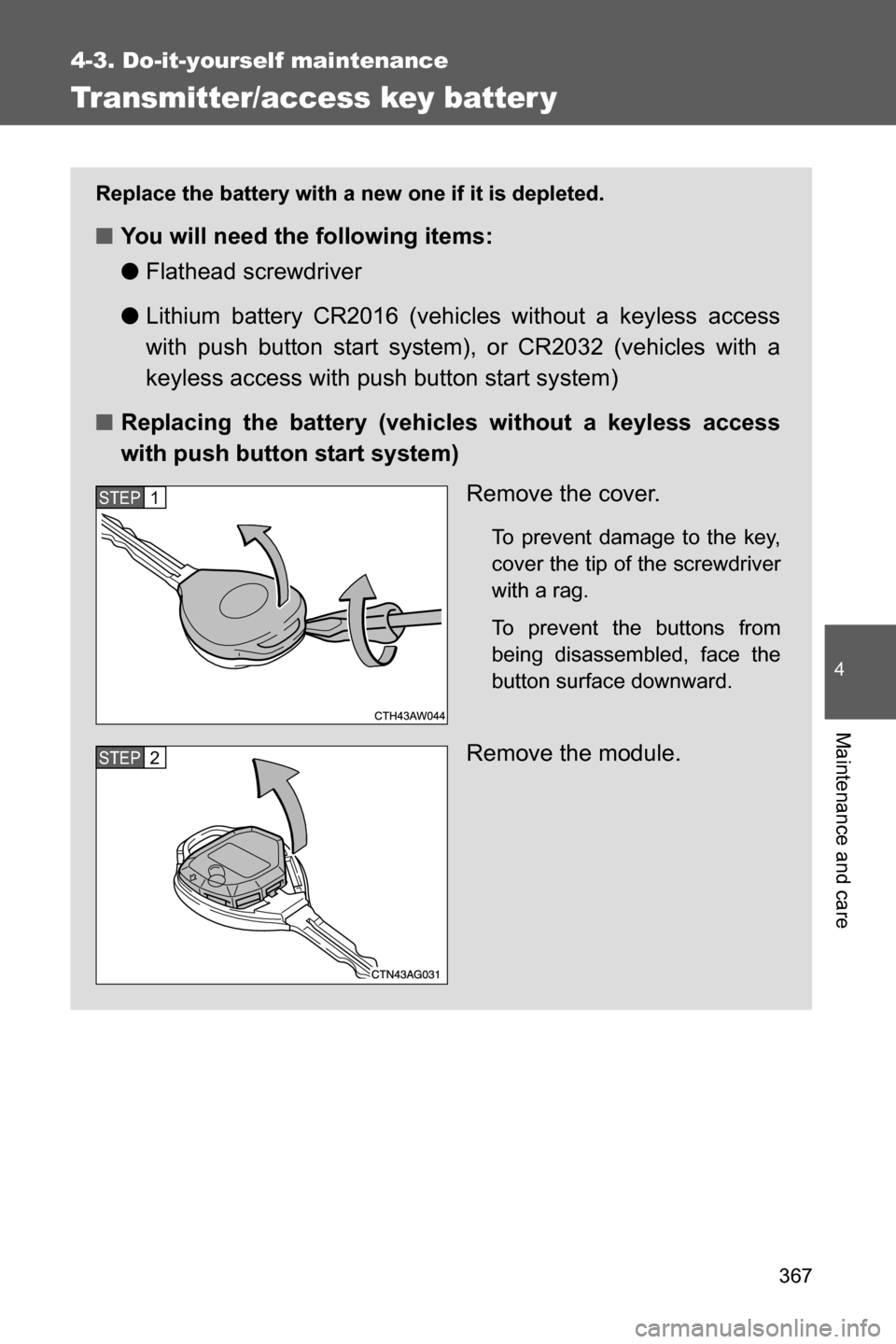

Transmitter/access key batter y
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
●Lithium battery CR2016 (vehicles without a keyless access
with push button start system), or CR2032 (vehicles with a
keyless access with push button start system)
■Replacing the battery (vehicles without a keyless access
with push button start system)
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
To prevent the buttons from
being disassembled, face the
button surface downward.
Remove the module.
STEP1
STEP2

368 4-3. Do-it-yourself maintenance
Open the case cover using a
coin protected with tape and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.

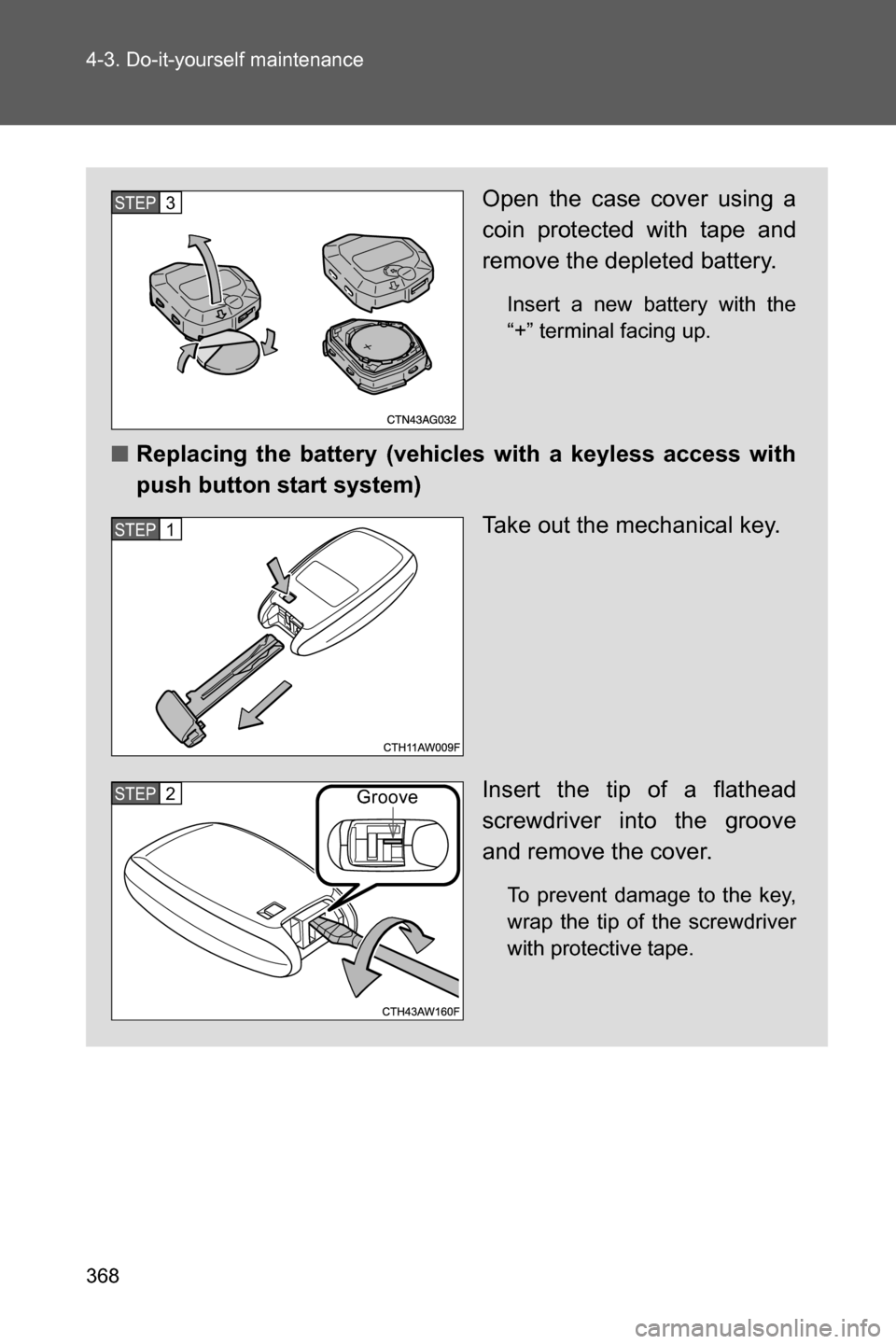

■Replacing the battery (vehicles with a keyless access with
push button start system)
Take out the mechanical key.
Insert the tip of a flathead
screwdriver into the groove
and remove the cover.
To prevent damage to the key,
wrap the tip of the screwdriver
with protective tape.
STEP3
STEP1
STEP2Groove

369 4-3. Do-it-yourself maintenance
4
Maintenance and care

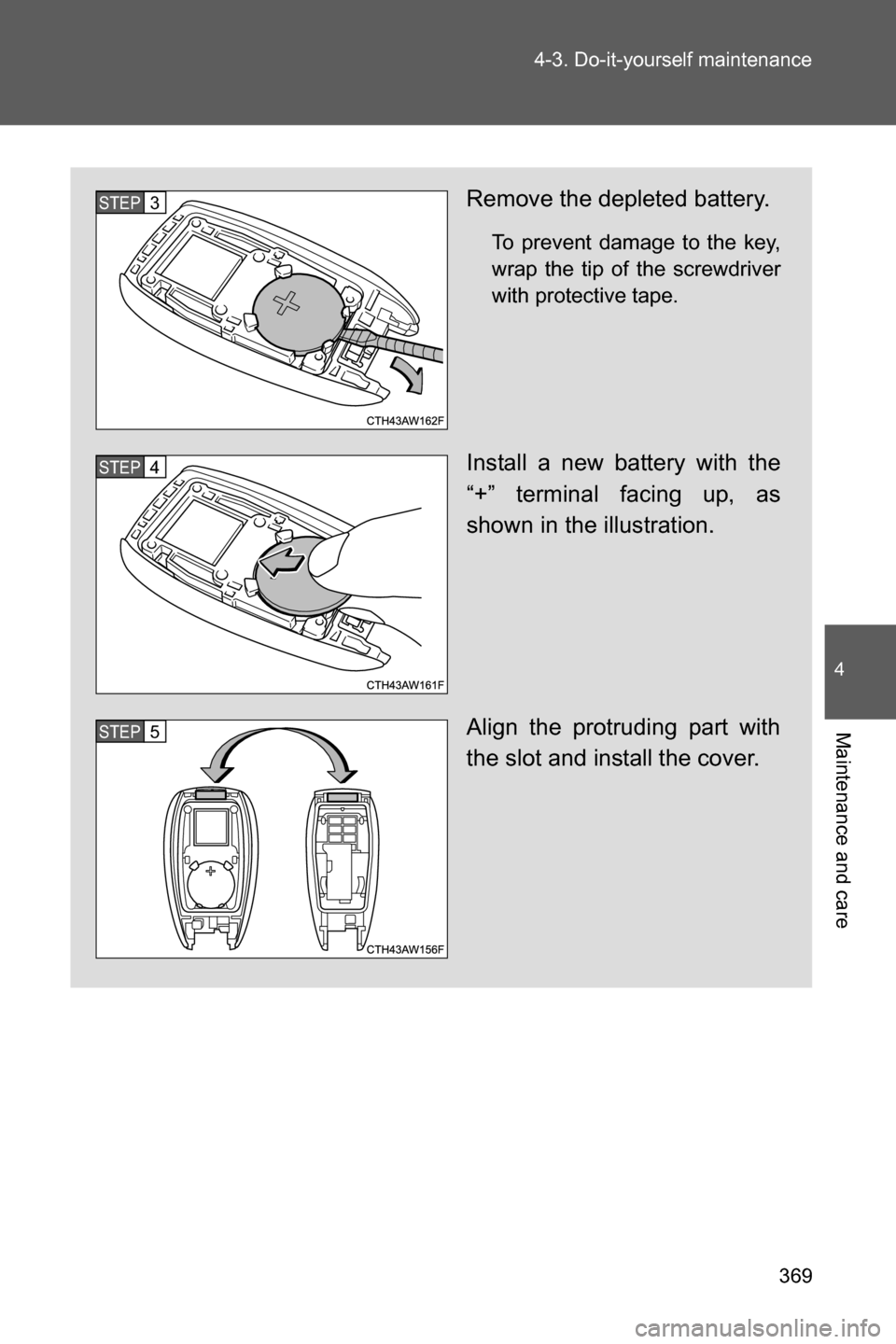

Remove the depleted battery.
To prevent damage to the key,
wrap the tip of the screwdriver
with protective tape.
Install a new battery with the
“+” terminal facing up, as
shown in the illustration.
Align the protruding part with
the slot and install the cover.
STEP3
STEP4
STEP5

370 4-3. Do-it-yourself maintenance
■Use a CR2016 (vehicles without a keyless access with push button
start system) or CR2032 (vehicles with a keyless access with push but-
ton start system) lithium battery
●Batteries can be purchased at your SUBARU dealer, local electrical
appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the
manufacturer.
●Dispose of used batteries according to local laws.
■If the key battery is depleted
The following symptoms may occur:
●The keyless access with push button start system (if equipped) and
remote keyless entry system will not function properly.
●The operational range will be reduced.

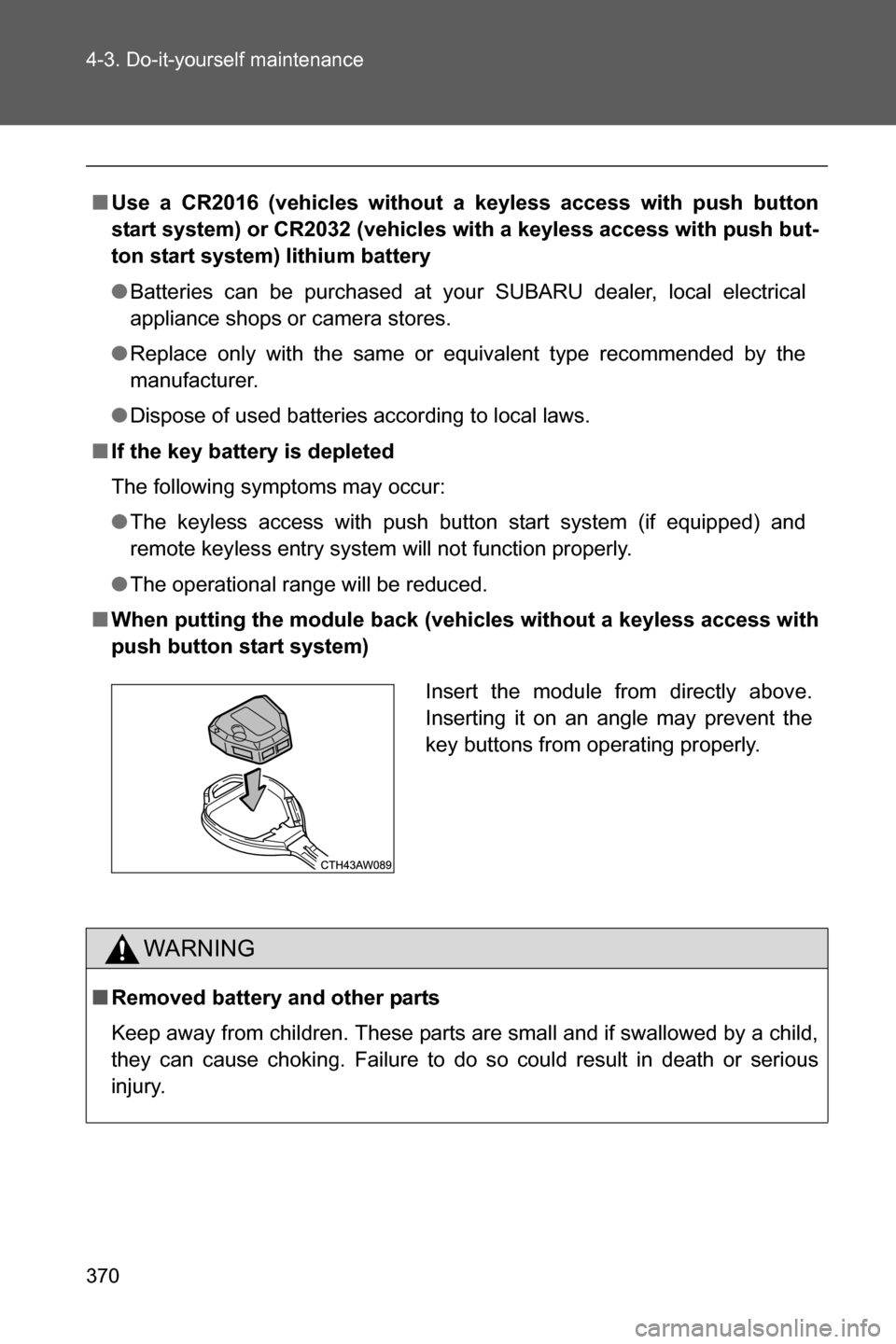

■When putting the module back (vehicles without a keyless access with
push button start system)
WARNING
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
Insert the module from directly above.
Inserting it on an angle may prevent the
key buttons from operating properly.

371 4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

372
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a keyless access with push button
start system
Turn the engine switch off.
Vehicles with a keyless access with push button start
system
Turn the push-button ignition switch off.
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Instrument panel
Remove the lid.STEP 1
STEP 2

373 4-3. Do-it-yourself maintenance
4
Maintenance and care
After a system failure, see “Fuse layout and amperage rat-
ings” (oP. 375) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP 3
STEP 4
STEP 5

374 4-3. Do-it-yourself maintenance

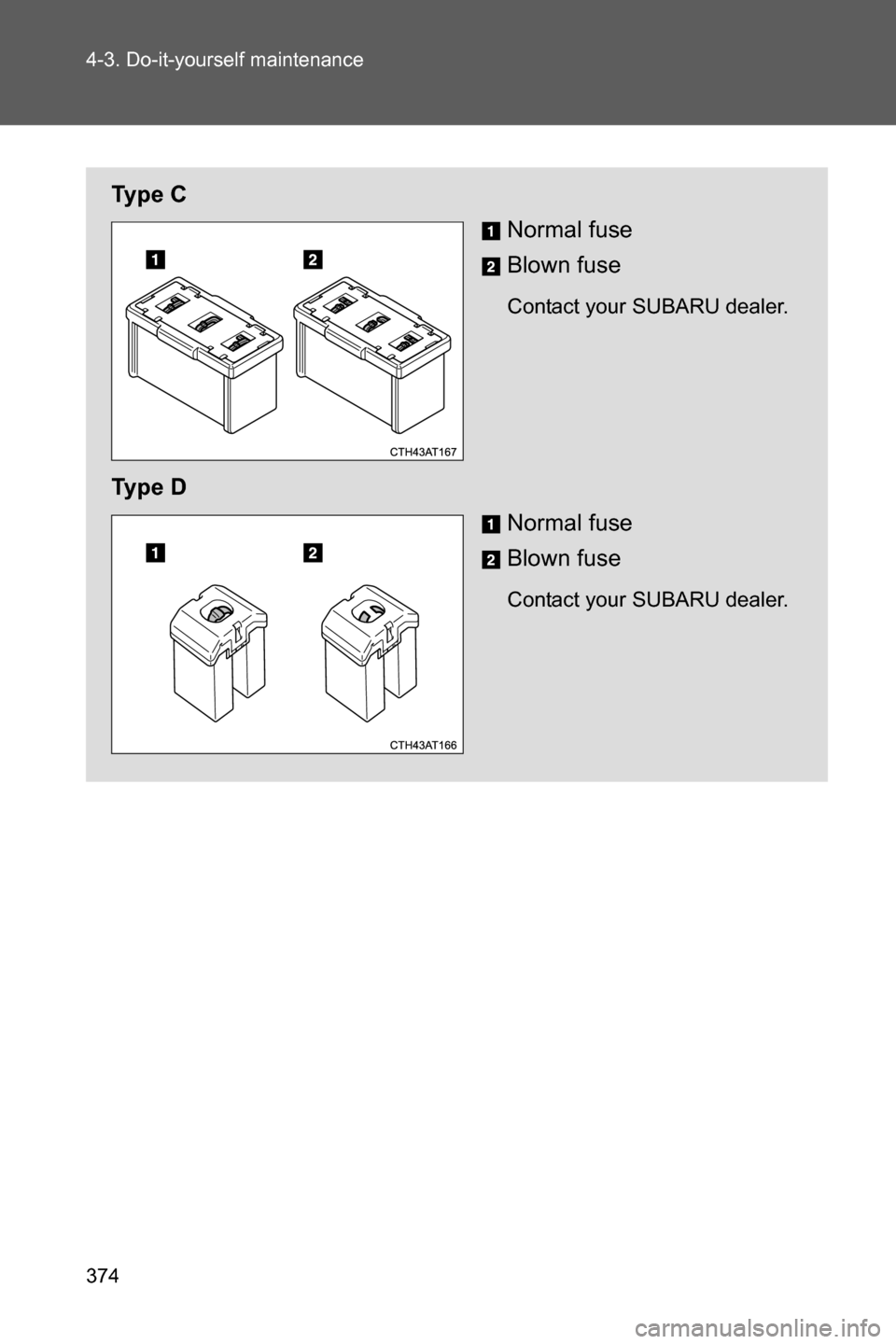

Ty p e C
Normal fuse
Blown fuse
Contact your SUBARU dealer.
Ty p e D
Normal fuse
Blown fuse
Contact your SUBARU dealer.
