2017 SUBARU BRZ Owners Manual

71 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
WARNING
■When driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

72

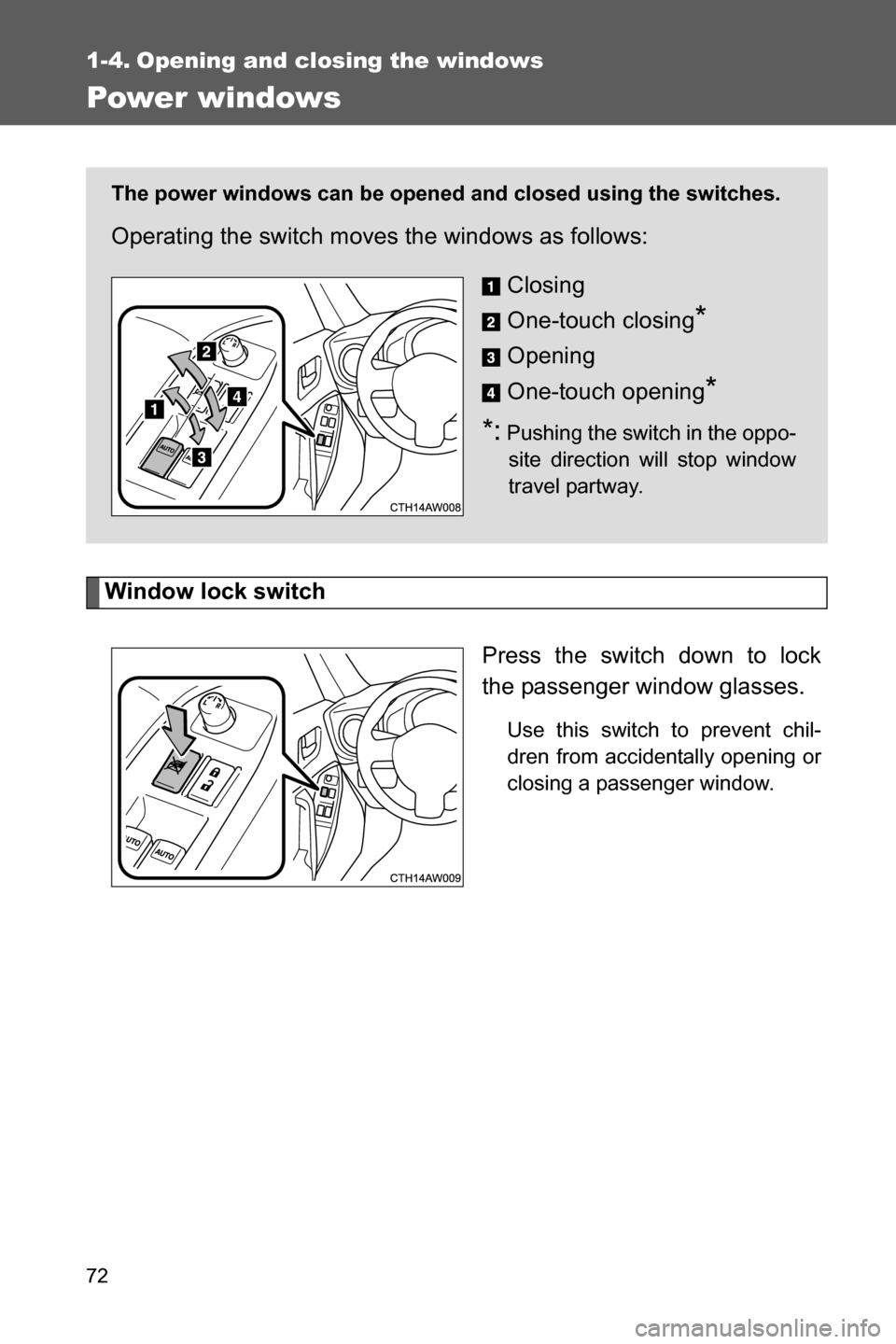

1-4. Opening and closing the windows
Power windows
Window lock switch
Press the switch down to lock
the passenger window glasses.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in the oppo-
site direction will stop window
travel partway.

73 1-4. Opening and closing the windows
1
Before driving
■The power windows can be operated when
Vehicles without a keyless access with push button start system
The engine switch is in the “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ON” mode.
■Operating the power windows after turning the engine off
Vehicles without a keyless access with push button start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either door is opened.
Vehicles with a keyless access with push button start system
The power windows can be operated for approximately 45 seconds even
after the push-button ignition switch is turned to “ACC” mode or turned off.
They cannot, however, be operated once either door is opened.
■Jam protection function
If an object becomes caught between the window and the body, window
travel is stopped and the window is opened slightly.

74 1-4. Opening and closing the windows
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, close all the doors perform the following operations using the
power window switch on the relevant door.
Vehicles without a keyless access with push button start system:
After stopping the vehicle, the engine switch is turned to the “ON”
position.
Vehicles with a keyless access with push button start system: After
stopping the vehicle, the push-button ignition switch is turned to
“ON” mode.
Hold the power window switch in the one-touch closing position two
consecutive times.
Hold the power window switch in the one-touch closing position
once again and continue holding for 1 second or more after the win-
dow closes completely.
If you push the power window switch to the opening position while the win-
dow is moving, start again from the beginning. If the window continues to
close but then re-open slightly even after performing the above procedure
correctly, we recommend that you have your SUBARU dealer.
STEP 1
STEP 2
STEP 3

75 1-4. Opening and closing the windows
1
Before driving
WARNING
■Closing the windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power
windows.
●Vehicle without a keyless access with push button start system: Before
leaving the vehicle, always remove the key from the engine switch for
safety and never allow an unattended child to remain in the vehicle. Fail-
ure to follow this procedure could result in injury to a child operating the
power window.
●Vehicle with a keyless access with push button start system: Before leav-
ing the vehicle, always remove the key from the push-button ignition
switch for safety and never allow an unattended child to remain in the vehi-
cle. Failure to follow this procedure could result in injury to a child operat-
ing the power window.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
●The jam protection function may not work if something gets caught just
before the window fully closes.

76
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle
●Vehicles without a keyless access with push button start sys-
tem: Turn the engine switch off and ensure that all the doors
and windows are closed.
●Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off and ensure that all the
doors and windows are closed.
●Confirm the type of fuel. (oP. 7 7 )
■Opening the fuel tank cap
Pull up the opener to open the
fuel filler lid.
Turn the fuel tank cap slowly
to open.
STEP 1
STEP 2

77 1-5. Refueling
1
Before driving
Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Hang the fuel tank cap on the
back of the fuel filler lid.STEP 3
■Fuel types
Unleaded gasoline (93 AKI [98 RON] or higher)
If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.

78 1-5. Refueling
WARNING
■Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
●Do not handle fuel indoors.
●After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
●Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
●Do not allow anyone to approach the area of the vehicle near the fuel filler
pipe while refueling is in progress.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
