2017 SKODA KODIAQ Owner´s Manual

Waste container
Replace bags
Ashtray and cigarette lighter
What you should be mindful of
CAUTION
Risk of burning or fire!

Multifunction holder
OverviewA
Cup holder
B
Storage compart-
ment for storing the
cover of the 12-volt
power outlet
C
Storage compart-
ment for the vehicle
key
D
Storage compart-
ment for coins and
card
E
Storage tray
The multifunction holder can be removed or rotated.
Ceiling
Remove and insert
The blanket is in a bag that can be attached to one of
the following locations.

Removal

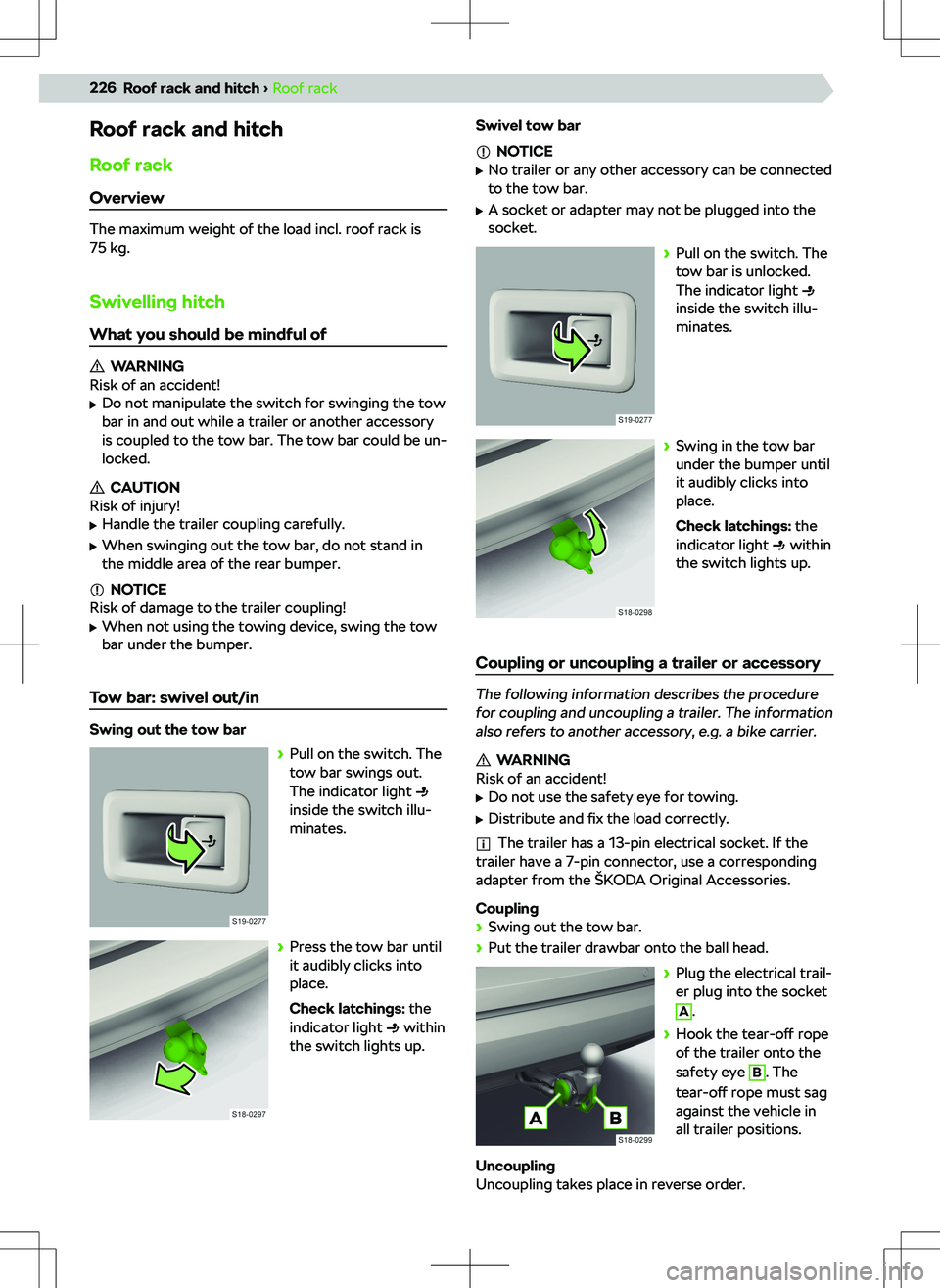

Roof rack and hitchRoof rackOverview
The maximum weight of the load incl. roof rack is
75 kg.
Swivelling hitch
What you should be mindful of
WARNING
Risk of an accident!

Power supply of the trailer power network
In the electrical connection between the vehicle and
trailer, the trailer is powered by the vehicle.
NOTICE
Risk of damage to the vehicle electronics!
The total power consumption of all consumers con-
nected to the trailer power supply must not exceed
max. 350 watts.
Troubleshooting
Trailer coupling error
The indicator light inside the switch does not light
up or flash, or the tow bar does not lock into place.

Maintaining and cleaningService events
Service intervals
Compliance with service intervals is crucial for the
life and value of the vehicle.
The service events symbol
and the corresponding
message on the instrument cluster display indicate
that a service appointment is due.
The specialist garage will inform you of the type of
service interval, the option of changing this and the
scope of service.
All services and the replacement or refilling of op-
erating fluids are chargeable to the customer, even
during the warranty period, unless the

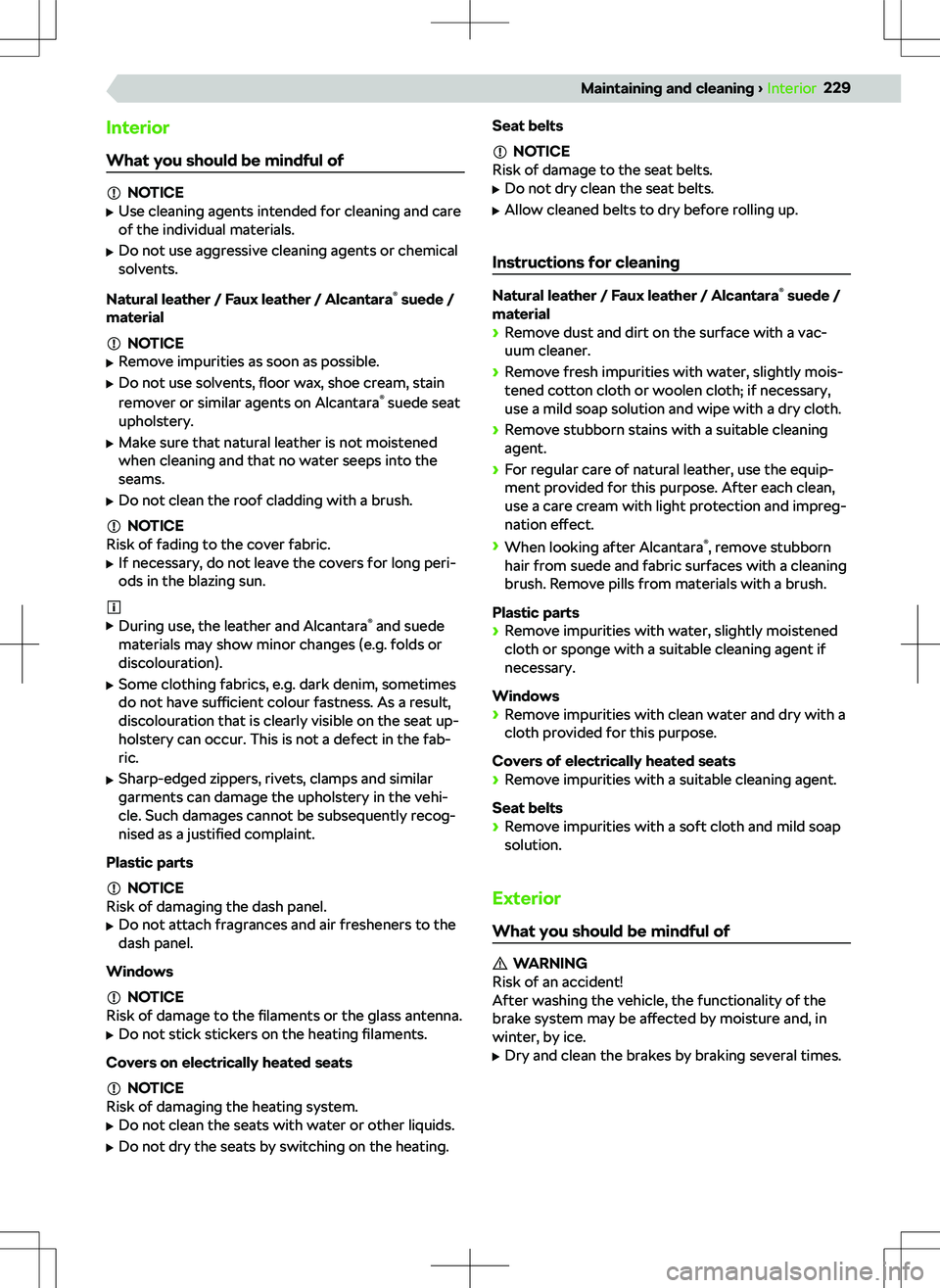

InteriorWhat you should be mindful of
NOTICE

NOTICE
