2017 SKODA KODIAQ ESP

Supported sourcesSourceInterfaceTypeSpecificationFile systemSD cardSD card readerStandard sizeSD
SDHC SDXC
FAT16
FAT32 exFATUSBUSB 1.x

Connection conditions
General connection conditions
q The mobile device supports the following Smar-
tLink connection types: Android Auto. Apple Car- Play and MirrorLink.
q Mobile devices, as well as the type of Smar-
tLinkconnection, are supported in the respective market.
q Some connected mobile devices require the mo-
bile device to be “unlocked”.
Conditions for Android Auto
q The device to be connected must have Android
AutoSupport.
A list of devices, supported regions and applica-
tions that the Android Auto connection supports can be found on the websites of Google Inc..
q The Android Auto application needs to be instal-
led on the mobile device.
q Some applications require the data connection in
the mobile device to be turned on.
Conditions for Apple CarPlay
q The device to be connected must have Apple
CarPlaySupport.
A list of devices, supported regions and applica-
tions that the Apple CarPlay connection supports
can be found on the websites of Apple Inc..
q Siri voice control is on.
q The data connection is switched on in the mobile
device.
Conditions for MirrorLink
q The device to be connected must have Mirror-
LinkSupport.
A list of devices and applications that the Mirror- Link connection supports can be found on the
websites of Car Connectivity Consorcium

Supported sourcesSourceInterfaceTypeSpecificationFile systemSD cardSD card readerStandard sizeSD
SDHC SDXC
FAT16
FAT32 exFAT NTFSUSBUSB 1.x

Turn on/off automatic switching from a DAB sta-
tion to the same FM station
Applies to the DAB frequency range.
When the function is switched on and the DAB sta-
tion being listened to is lost, Infotainment automati-
cally changes to the same FM station. The symbol
(FM) is displayed after the station name.
When the corresponding DAB station can be re-
ceived again, the station automatically changes from
FM to DAB.

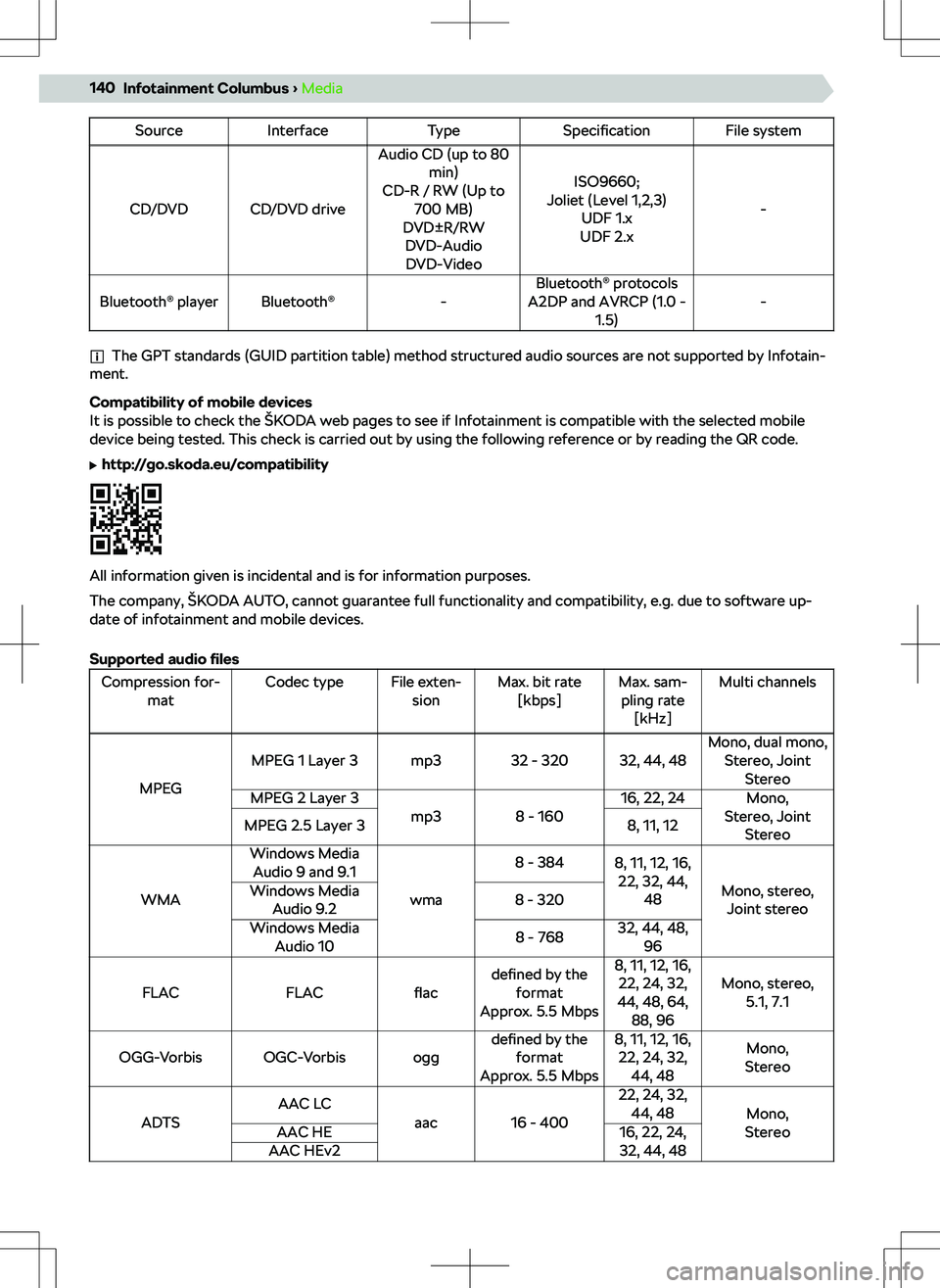

SourceInterfaceTypeSpecificationFile system
CD/DVDCD/DVD drive
Audio CD (up to 80min)
CD-R / RW (Up to 700 MB)
DVD

Pedestrian detection system
Functionality
Pedestrian recognition helps to prevent a collision
with crossing pedestrians by enabling automatic
braking interventions.
Status display in the instrument cluster display or
lights up - Danger of collision
Risk of collision in a speed range of 5-30 km/h
The system triggers automatic braking.
Risk of collision in a speed range of 30-60 km/h
The system warns of a collision hazard first. If the
driver does not respond, the vehicle is automatically
braked.
Operating conditions
q Front Assist activated.
q Driving speed between 5-60 km/h.
Speed limiter Functionality
The speed limiter controls the maximum driving
speed according to the set speed limit.
If the limit is exceeded when driving downhill, brake
the vehicle with the brake pedal.
Status display in the instrument cluster display illuminated - the cruise control is activated.
When the control starts,
is highlighted and the
set limit is displayed.
illuminated - cruise control is active
flashing - the set limit is exceeded
Operating conditions
q The driving speed is higher than 30 km/h.
Operation
Variant without GRA
A Activate limiter (control inactive)
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limit
Variant with GRA
A Activate GRA (condition for the subsequent
activation of the limiter).
To enable the speed limiter , press the key D
and in the instrument cluster choose the menu
item
Speed limit
.
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limitD Show menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
Adjusting the speed limit with the buttons
B
and
C
By pressing in steps of 1 km/h.
By holding in steps of 10 km/h.
1)
If no speed limit is set, the current speed is set as the speed limit.
176Driver assist systems

Park Assist systems
Park Pilot parking aid Functionality
If an obstacle is detected, the Infotainment will dis-
play a visible message and an audible signal will
sound.
The interval between the signals becomes shorter as
the clearance is reduced. At a distance of less than
30 cm from the obstacle, a continuous tone sounds.
If the driver does not respond to the warning, the
system triggers automatic emergency braking at
speeds below 10 km/h in order to reduce the impact.
Automatic braking can be activated and deactivated
in the infotainment.
Display
The recorded areas vary according to the equipment.
ARoute controlled at the current steering angleAcoustic signals on/o

Rear view camera
Functionality
When reversing, the area behind the vehicle is dis-
played in the Infotainment screen complete with ori-
entation lines.
The camera is equipped with a cleaning system.
Cleaning takes place automatically when the rear
window is washed.
Orientation lines and functional surfaces
Orientation lines
ADistance about 40 cmBDistance about 100 cmCDistance about 200 cmDThe lines indicate the track, which is controlled
at the current steering angle. The distance be-
tween the side lines corresponds approximately
to the vehicle width including mirrors.
Function surfaces
AMode for transverse parkingBMode for parallel parkingCMode for driving up to a trailer/distance moni-
toringDMode for monitoring the area behind the vehicle
(wide view)EBrightness, contrast and colour settings of the
screenFParking Assist View
Switch the view on / o
