WARNING!(Continued)
•ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.
NOTE: Do not reposition the head restraint 180 degrees to
the incorrect position in an attempt to gain additional
clearance to the back of the head.
Adjustable Armrests — If Equipped
The seat adjustable armrest can be raised and adjusted for
height. Underneath the front of the armrest is the adjuster
wheel which will adjust the height of the armrest up or
down.
Adjuster Wheel Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71

Turn the adjuster wheel to the right or left to adjust the
height of the armrest up or down.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Open the drivers door to gain access to the hood releaselever. Pull the hood release lever located on the side of
the instrument panel. 2. Move to the outside of the vehicle, reach into the
opening beneath the center of the hood and push the
safety latch lever to the right to release it, before raising
the hood.
Adjuster Wheel
Hood Release
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Raise the hood and place the hood prop rod in hood slotto secure the hood in the open position.WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Hood Safety Latch Lever LocationHood Prop Rod Slot
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73

CAUTION!
To prevent possible damage:
•Before closing hood, make sure the hood prop rod is
fully seated into its storage retaining clips.
• Do not slam the hood to close it. Use a firm down-
ward push at the center front edge of the hood to
ensure that both latches engage. Never drive your
vehicle unless the hood is fully closed, with both
latches engaged.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signals, headlight beam
selection and the passing lights. The multifunction lever is
located on the left side of the steering column.Headlights
To turn on the headlights, turn the end of the
multifunction lever to the headlight position.
When the headlight switch is on, the parking
lights, taillights, license plate light, the clearance
lights and instrument panel lights are also turned on. To
turn off the headlights, turn the end of the multifunction
lever back to the O (Off) position.
Multifunction Lever
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Dimmer Controls
The dimmer controls are located on the left side of the
instrument panel below the Instrument Cluster Display.
Pushing the up or down arrow will increase or decrease the
brightness of the instrument panel lights.
Ambient Light
The vehicle is equipped with ambient light on the dome
lamp, the ambient light will be on all the time with the
option of dimming it with the dimmer controls.
Daytime Running Lights — If Equipped
NOTE:When the headlights are turned on, the Daytime
Running Lights will be deactivated.
To activate the Daytime Running Lights (DRL), rotate the
end of the multifunction lever to the O (Off) position.
NOTE: The low beams and side/taillights will not be on
with DRL. The DRL function may be programmed to be
ON or OFF through the Uconnect system screen if
equipped, or through the Instrument Cluster Display
menu. Refer to “Uconnect Settings” or “Instrument Cluster
Display” in “Understanding Your Instrument Panel” for
further information.
The Daytime Running Lights will come on whenever the
ignition is ON, the headlight switch is off, the parking
brake is off, and the turn signal is off.
Battery Saver
To protect the life of your vehicle’s battery when the
ignition is OFF and any door is left ajar for 15 minutes the
interior lights will automatically turn off.
NOTE: Battery saver mode is cancelled if the ignition is
ON.
Dimmer Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75

Fog Lights — If Equipped
The fog light switch is located on the center stack
of the instrument panel, just below the climate
controls. Push the switch once to turn the fog
lights on. Push the switch a second time to turn the fog
lights off.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the Instrument Cluster Display will flash to
show proper operation of the front and rear turn signal
lights.
NOTE:
If either light remains on and does not flash, or there
is a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is moved, it
would suggest that the indicator bulb is defective.
Parking Lights
These lights can only be turned on with ignition key in the
STOP position or removed, by moving the end of the
multifunction lever to O (off) position and then to the
headlight position. The warning light telltale in the instrument panel comes
on. The lights stay on until the next ignition cycle is
performed.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash five
times then automatically turn off.
High Beam/Low Beam Select Switch
Pull the multifunction lever toward you to switch the
headlights to high beam. Pull the lever a second time to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to turn
on until the lever is released.
Follow Me Home/Headlight Delay
When this feature is selected the driver can choose to have
the headlights remain on for a preset period of time.
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Activation
Remove the key or turn the ignition to the OFF/LOCK
position, and pull the multifunction lever toward the
steering wheel, within two minutes. Each time the lever is
pulled, the activation of the lights will be extended by 30
seconds. The activation of the lights can be extended to a
maximum of 210 seconds.
The warning light on the instrument panel will light up
and the corresponding message will appear in the Instru-
ment Cluster Display for as long as the function is acti-
vated. The warning light comes on when the lever is
operated and stays on until the function is automatically
deactivated. Each movement of the lever only increases the
amount of time the lights stay on.
Deactivation
Pull the multifunction lever toward the steering wheel and
hold it for more than two seconds.
Overhead Lights
These lights are mounted between the sun visors on the
overhead shelf. Each light is turned on by pushing the
corresponding switch.
Overhead Lights
1 — Ambient Light
2 — Right Map Light
3 — On/Right Position
4 — Center Position
5 — Off/Left Position
6 — Left Map Light
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77

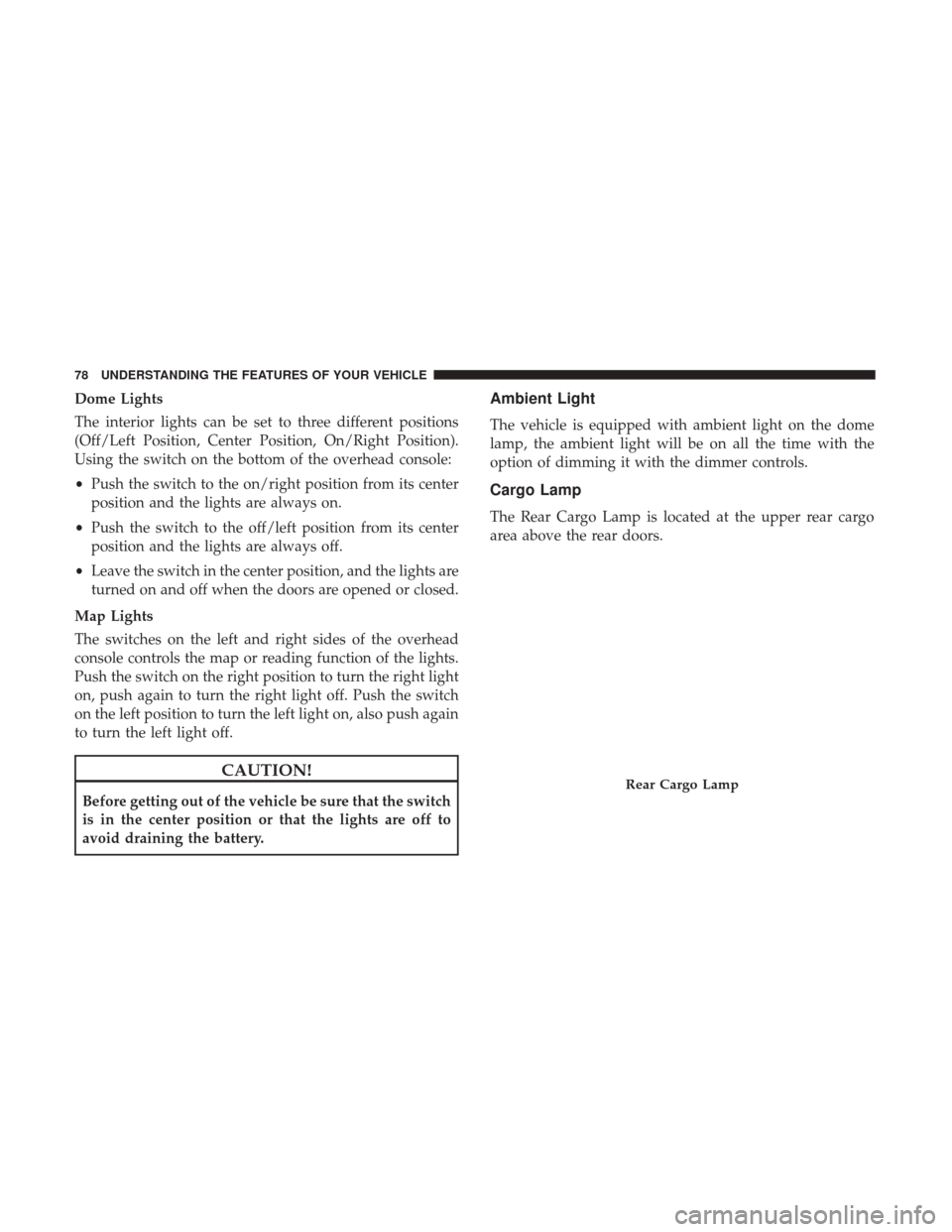

Dome Lights
The interior lights can be set to three different positions
(Off/Left Position, Center Position, On/Right Position).
Using the switch on the bottom of the overhead console:
•Push the switch to the on/right position from its center
position and the lights are always on.
• Push the switch to the off/left position from its center
position and the lights are always off.
• Leave the switch in the center position, and the lights are
turned on and off when the doors are opened or closed.
Map Lights
The switches on the left and right sides of the overhead
console controls the map or reading function of the lights.
Push the switch on the right position to turn the right light
on, push again to turn the right light off. Push the switch
on the left position to turn the left light on, also push again
to turn the left light off.
CAUTION!
Before getting out of the vehicle be sure that the switch
is in the center position or that the lights are off to
avoid draining the battery.
Ambient Light
The vehicle is equipped with ambient light on the dome
lamp, the ambient light will be on all the time with the
option of dimming it with the dimmer controls.
Cargo Lamp
The Rear Cargo Lamp is located at the upper rear cargo
area above the rear doors.
Rear Cargo Lamp
