For reassembly, carry out these operations in
reverse order.

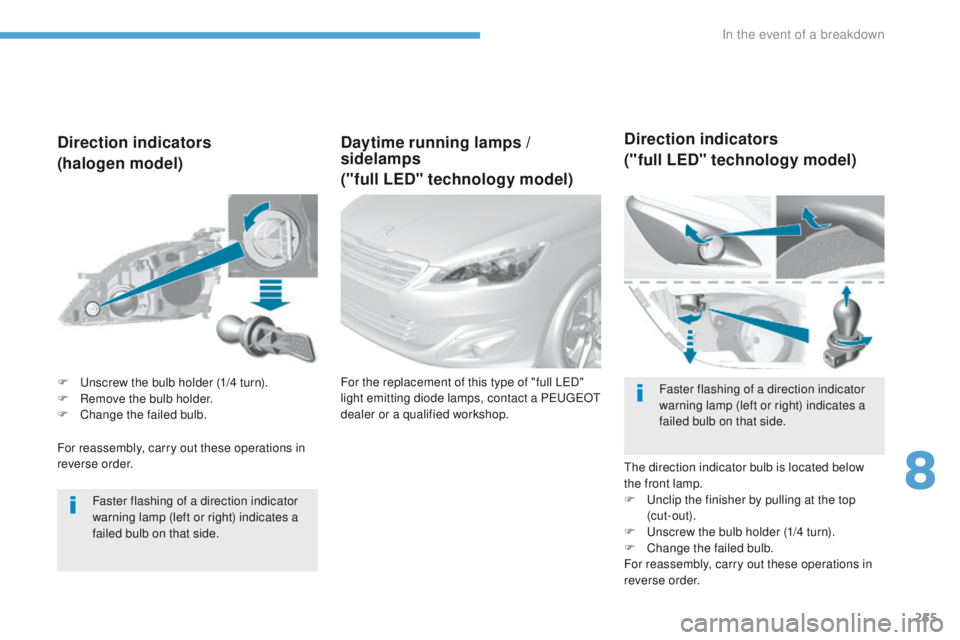

Direction indicators
(halogen model)
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Daytime running lamps /
sidelamps
("full LED" technology model)
For the replacement of this type of "full LeD"
light emitting diode lamps, contact a Pe ugeOt
dealer or a qualified workshop.
Direction indicators
("full LED" technology model)
the direction indicator bulb is located below
the front lamp.
F
u
n
clip the finisher by pulling at the top
(cut-out).
F
u
n
screw the bulb holder (1/4 turn).
F

C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order. Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
F
u
n

screw the bulb holder (1/4 turn).
F

R

emove the bulb holder.
F

C

hange the failed bulb.
8
In the event of a breakdown

256
Integrated direction indicator
side repeaters
You should contact a PeugeOt dealer or a
qualified workshop for the replacement of these
bulbs. You should contact a P
e
uge
Ot
dealer or a
qualified workshop for the replacement of the
light-emitting diode - L
eD
.

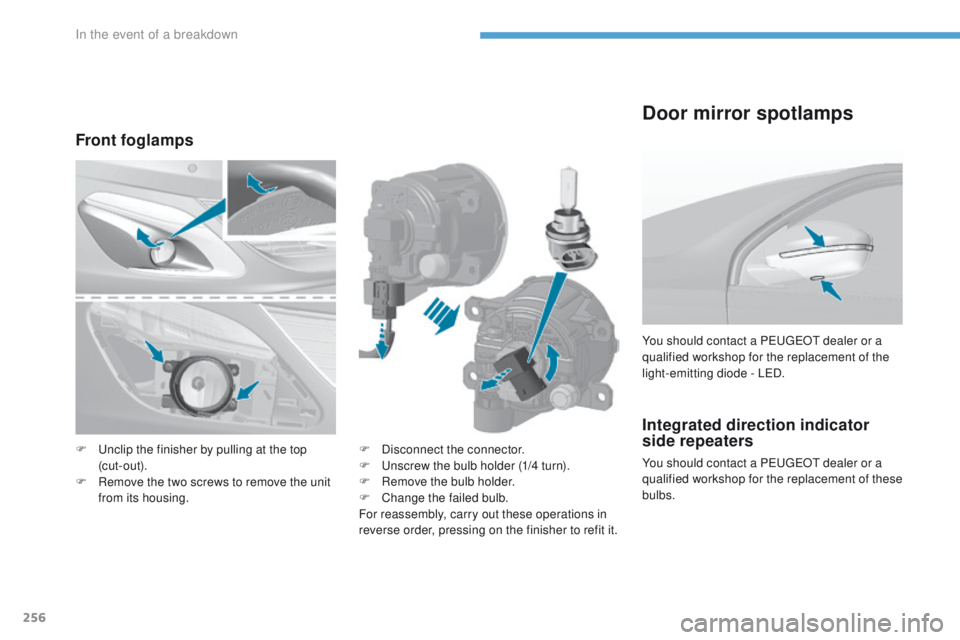

Front foglamps
F unclip the finisher by pulling at the top
(cut-out).
F

R
emove the two screws to remove the unit
from its housing. F
D isconnect the connector.
F un screw the bulb holder (1/4 turn).
F

R
emove the bulb holder.
F

C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps
In the event of a breakdown

257
1. Sidelamps (light-emitting diodes - LeDs).
2. R eversing lamps (W16W).
3.
D

irection indicators (PY21W amber).
4.
B

rake lamps (light-emitting diodes - L
eD
s).
5.
F

oglamps (P21W).

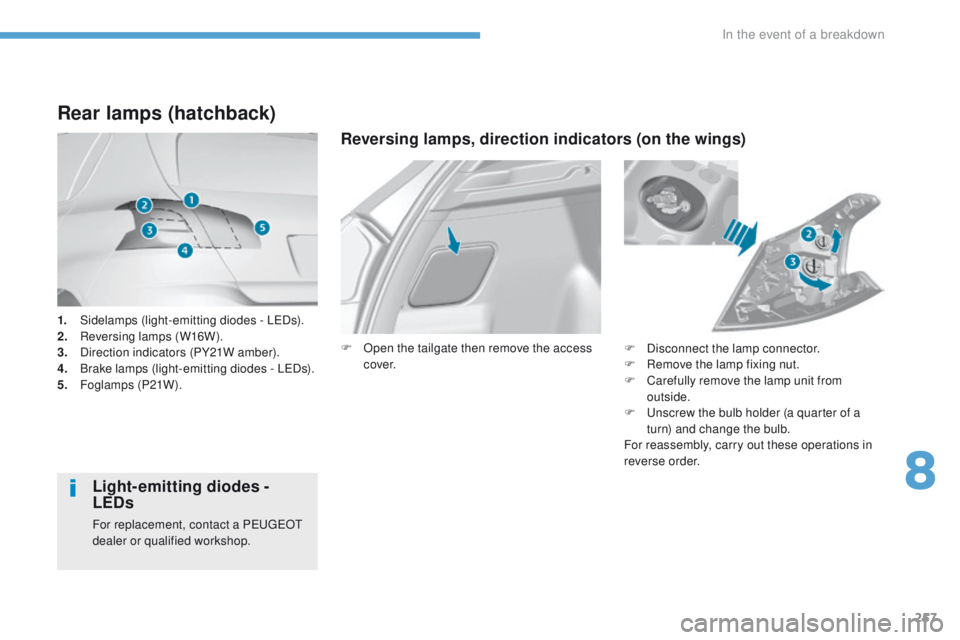

Rear lamps (hatchback)
Light-emitting diodes -
LEDs
For replacement, contact a Pe ugeOt
dealer or qualified workshop.
Reversing lamps, direction indicators (on the wings)
F Disconnect the lamp connector.
F R emove the lamp fixing nut.
F

C
arefully remove the lamp unit from
outside.
F
u
n
screw the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
F
O
pen the tailgate then remove the access
c ove r.
8
In the event of a breakdown

258
F unclip the left and right access covers.
F R emove the screws located in each
opening.
F
u
n
clip the boot trim for access to the lamp
connector.
F

D
isconnect the lamp connector.
F

R
emove the lamp fixing nut.
F

C
arefully remove the lamp from the
outside.
F
u
n
screw the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp (tailgate)
F Open the tailgate and then remove the large plastic cover.
In the event of a breakdown

259

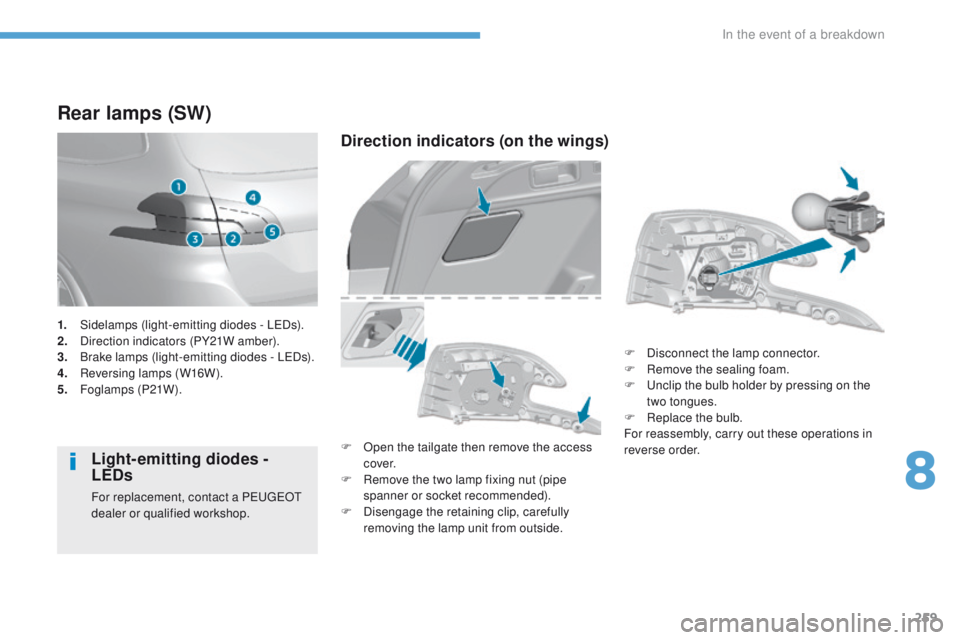

Rear lamps (SW)
Light-emitting diodes -
LEDs
For replacement, contact a PeugeOt
dealer or qualified workshop.
Direction indicators (on the wings)
F Open the tailgate then remove the access c ove r.
F

R
emove the two lamp fixing nut (pipe
spanner or socket recommended).
F

D
isengage the retaining clip, carefully
removing the lamp unit from outside. F

D
isconnect the lamp connector.
F
R
emove the sealing foam.
F u
n
clip the bulb holder by pressing on the
two tongues.
F
R
eplace the bulb.
For reassembly, carry out these operations in
reverse order.
1.
S

idelamps (light-emitting diodes - L
eD

s).
2.
D

irection indicators (PY21W amber).
3.
B

rake lamps (light-emitting diodes - L
eD

s).
4.
R

eversing lamps (W16W).
5.
F

oglamps (P21W).
8
In the event of a breakdown

260

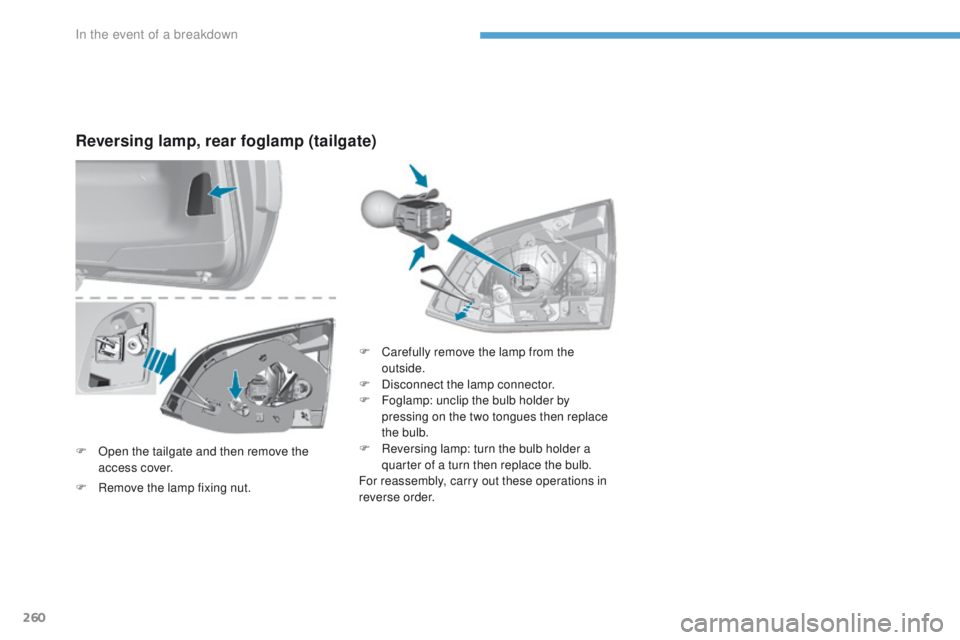

Reversing lamp, rear foglamp (tailgate)
F Open the tailgate and then remove the access cover. F

C
arefully remove the lamp from the
outside.
F
D
isconnect the lamp connector.
F
F
oglamp: unclip the bulb holder by
pressing on the two tongues then replace
the bulb.
F R eversing lamp: turn the bulb holder a
quarter of a turn then replace the bulb.
For reassembly, carry out these operations in
reverse order.
F

R
emove the lamp fixing nut.
In the event of a breakdown

261
For the replacement of this type of lamp,
contact a PeugeOt dealer or a qualified
workshop.

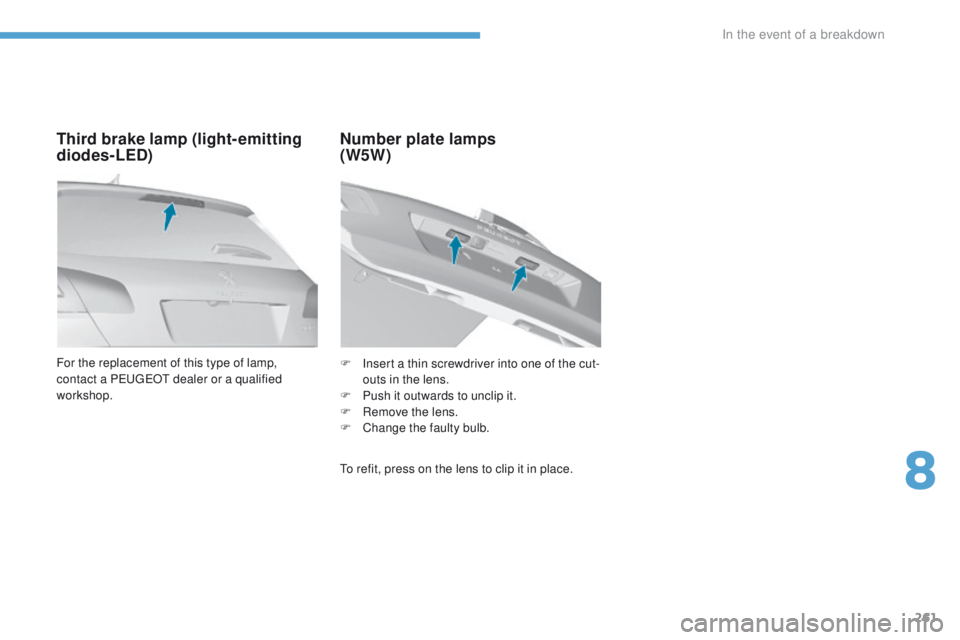

Third brake lamp (light- emitting
diodes-LED) Number plate lamps
(W5W)
to refit, press on the lens to clip it in place. F
I
nsert a thin screwdriver into one of the cut-
outs in the lens.
F
P
ush it outwards to unclip it.
F
R
emove the lens.
F
C
hange the faulty bulb.
8
In the event of a breakdown

262
F unclip the cover by pulling at the top left, then right.
F

D
isengage the cover completely and turn it
ove r.
Access to the tools
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must be switched
of f,
F

t
he vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.

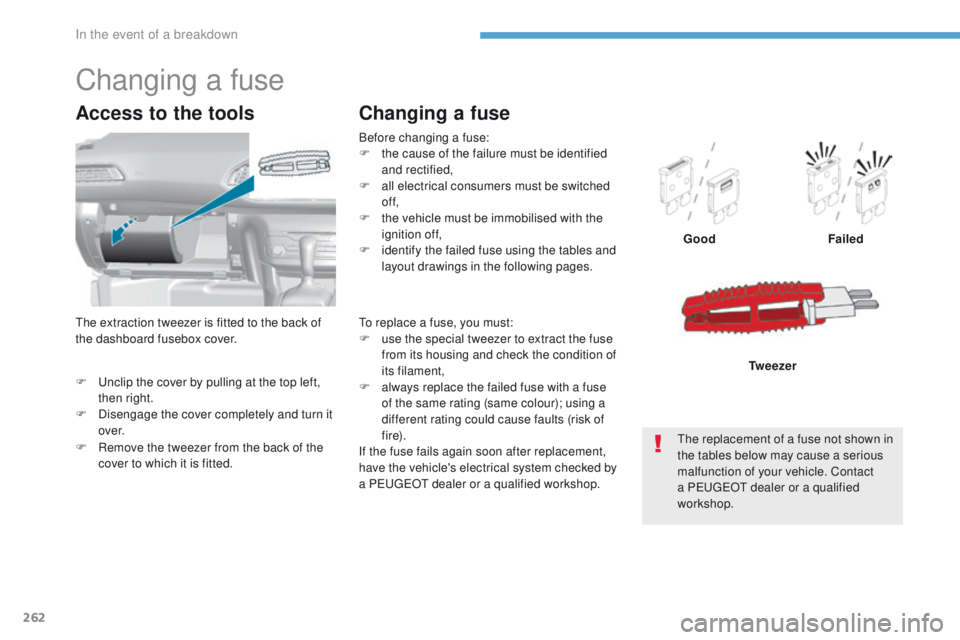

Changing a fuse
Good Failed
th

e replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a P
e

uge
Ot
dealer or a qualified
workshop. Tw e e z e r
Changing a fuse
to replace a fuse, you must:
F
u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a P
e

uge
Ot
dealer or a qualified workshop.
F

R

emove the tweezer from the back of the
cover to which it is fitted.th
e extraction tweezer is fitted to the back of
the dashboard fusebox cover.
