2017 Peugeot 3008 Hybrid 4 Charging port

121
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.
For more information on Audio and telematics
and the USB port in particular, refer to the
corresponding section. The USB port also allows a smartphone to be
connected by MirrorLink™ or CarPlay
®, so that
certain applications on the smartphone can be
used in the touch screen.
USB port
The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a USB memory stick.
The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system.
3
Ease of use and comfort

122
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Wireless charger
Operation
The charger works with the engine running and
in STOP mode of Stop & Start.
Charging is managed by the smartphone. This system allows the wireless charging of a
portable device, such as a smartphone, using
the principle of magnetic induction, based on
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by
design or by using a compatible holder or shell.
The charging zone is identified by the
Qi symbol.
For versions with Keyless Entry and Starting,
operation of the charger may be interrupted
when opening a door or switching off the
ignition.
FOCAL® premium Hi-Fi
system
Your vehicle is equipped with a high-fidelity
acoustic system designed by the French brand
FOCAL
®, a specialist in acoustics for more
than 35 years and recognised throughout the
world for its patented innovations and its unique
audio signature. 10 speakers incorporating exclusive FOCAL
®
technologies offer the pleasure of pure and
detailed sound inside the vehicle:
-

H

igh fidelity woofer / mid-range speakers:
Polyglass technology delivering balance
and precise sound.
-

T

NF tweeters: Inverted dome aluminium
technology giving optimum sound
dispersion and very detailed treble.
-

S

ub-woofer: 200 mm triple coil Power
Flower™ technology for defined and
dynamic reproduction of low frequencies.
-

1

2-way active amplification - 515 Watts:
Hybrid Class AB / Class D technology
providing breadth and finesse in the high
frequency signals, as well as real power in
the bass.
Ease of use and comfort

123
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

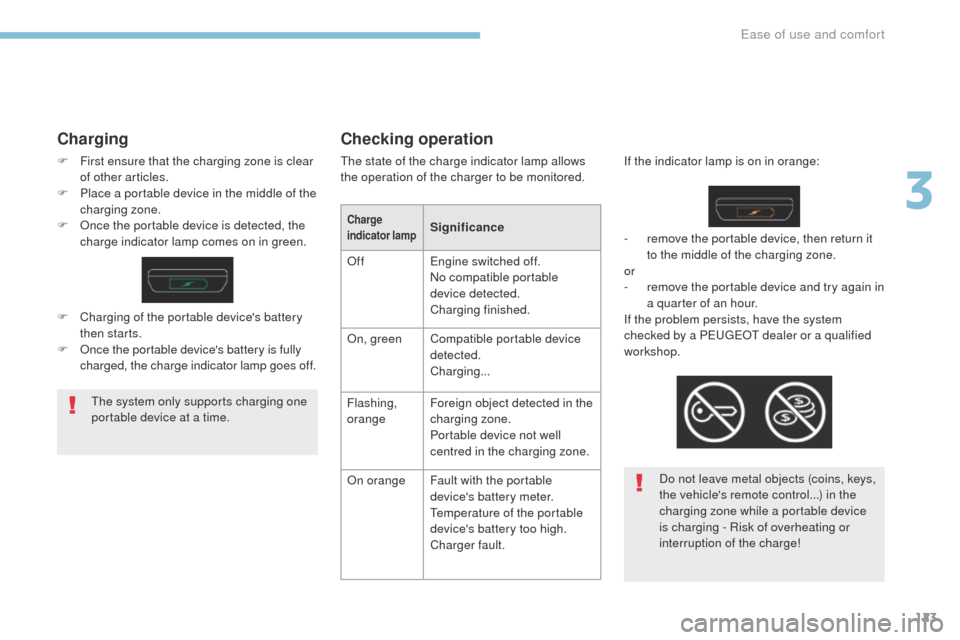

Charging
F First ensure that the charging zone is clear of other articles.
F

P
lace a portable device in the middle of the
charging zone.
F

O
nce the portable device is detected, the
charge indicator lamp comes on in green. If the indicator lamp is on in orange:
Do not leave metal objects (coins, keys,
the vehicle's remote control...) in the
charging zone while a portable device
is charging - Risk of overheating or
interruption of the charge!
-

r
emove the portable device, then return it
to the middle of the charging zone.
or
-

r
emove the portable device and try again in
a quarter of an hour.
If the problem persists, have the system
checked by a PEUGEOT dealer or a qualified
workshop.
F

C
harging of the portable device's battery
then starts.
F

O
nce the portable device's battery is fully
charged, the charge indicator lamp goes off.
Checking operation
The state of the charge indicator lamp allows
the operation of the charger to be monitored.
The system only supports charging one
portable device at a time.
Charge
indicator lampSignificance
Off Engine switched off.
No compatible portable
device detected.
Charging finished.
On, green Compatible portable device
detected.
Charging...
Flashing,
orange Foreign object detected in the
charging zone.
Portable device not well
centred in the charging zone.
On orange Fault with the portable
device's battery meter.
Temperature of the portable
device's battery too high.
Charger fault.
3
