2017 Peugeot 3008 Hybrid 4 stop start

335
3008-2_en_Chap08_en cas-de-panne_ed01-2016

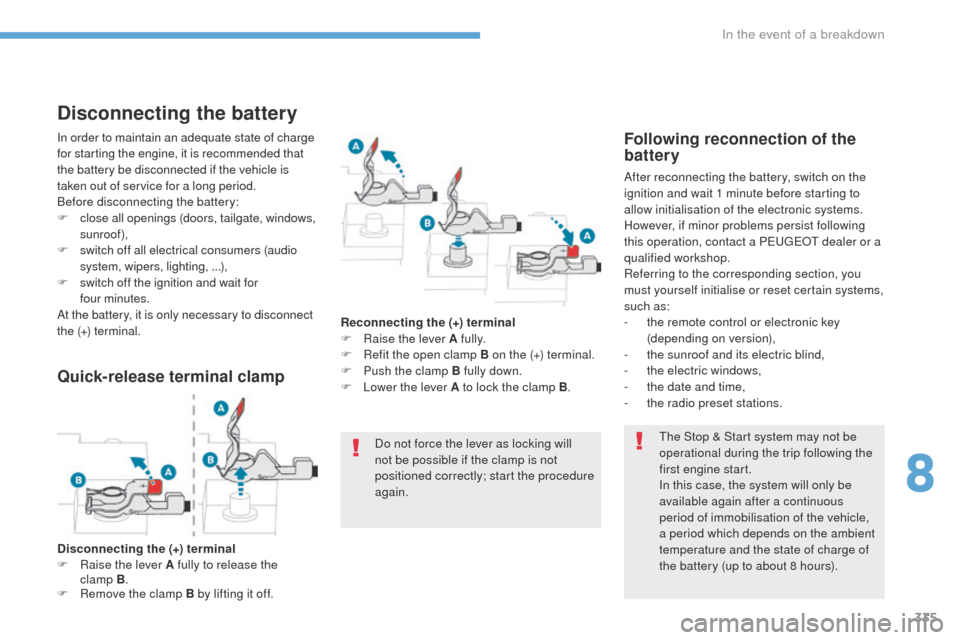

Disconnecting the battery
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).
In order to maintain an adequate state of charge
for starting the engine, it is recommended that
the battery be disconnected if the vehicle is
taken out of service for a long period.
Before disconnecting the battery:
F
c

lose all openings (doors, tailgate, windows,
sunroof),
F
s

witch off all electrical consumers (audio
system, wipers, lighting, ...),
F
s

witch off the ignition and wait for
four


minutes.
At the battery, it is only necessary to disconnect
the (+) terminal.
Following reconnection of the
battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself initialise or reset certain systems,
such as:
-

t
he remote control or electronic key
(depending on version),
-

t
he sunroof and its electric blind,
-

t
he electric windows,
-

t
he date and time,
-

t
he radio preset stations.
Quick-release terminal clamp
Disconnecting the (+) terminal
F Ra ise the lever A fully to release the
clamp


B.
F

R
emove the clamp B by lifting it off. Reconnecting the (+) terminal
F

Ra
ise the lever A fully.
F
R
efit the open clamp B on the (+) terminal.
F
P
ush the clamp B fully down.
F
L
ower the lever A to lock the clamp B
.
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
8
In the event of a breakdown

338
3008-2_en_Chap09_caracteristiques_ed01-2016
Petrol engines and gearboxes
Petrol engine1.2 litre PureTech 130 S&S 1.6 litre THP 150 1.6 litre THP 160 1.6 litre THP 165
S&S
Gearbox Manual
(6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed)
Model code:
MR... M4... HNYH/S
HNYH/1S HNYW/S
HNY W/1S 5FEA
5FMA5GZW/S
Cubic capacity (cc) 1 19 91 5981 5981 598
Bore x stroke (mm) 75 x 90.577 x 85.8 77 x 85.8 77 x 85.8
Max power*: EU standard (kW) 9611 0120 121
Max power speed (rpm) 5 5006 0506 000 6 000
Max torque: EU standard (Nm) 230240240240
Max torque speed (rpm) 1 7501 4001 4001 400
Fuel UnleadedUnleaded Unleaded Unleaded
Catalytic converter Ye sYe sYe sYe s
Engine oil capacity (in litres) (with filter
replacement) 3.5
4.254.254.25
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Technical data

340
3008-2_en_Chap09_caracteristiques_ed01-2016
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).Diesel engine
1.6 litre BlueHDi
100 S&S 1.6 litre BlueHDi 115 S&S
1.6 litre BlueHDi 120 S&S
Gearbox Manual
(5 - speed) Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MC... BHY6/SBHXH/S
BHXH/1S BHXW/S
BHX W/1S BHZH/S
BHZH/1S BHZW/S
BHZ W/1S
Cubic capacity (cc) 1 5601 560 1 560
Bore x stroke (mm) 75 x 88.375 x 88.3 75 x 88,3
Max power*: EU standard (kW) 7385 88
Max power speed (rpm) 3 7503 750 3 750
Max torque: UE standard (Nm) 254300 300
Max torque speed (rpm) 1 7501 750 1 750
Fuel DieselDiesel Diesel
Catalytic converter Ye sYe s Ye s
Particle filter Ye sYe s Ye s
Engine oil capacity (in litres) (with filter
replacement) 3.75
3.75 3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Technical data

341
3008-2_en_Chap09_caracteristiques_ed01-2016
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Diesel engine
2.0 litre BlueHDi 1502.0 litre BlueHDi 150
S&S 2.0 litre BlueHDi 180
S&S
Gearbox Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MJ... -
-AHRH/S
AHSH/S
AHXH/S AHWW/S
Cubic capacity (cc) --1 997 1 997
Bore x stroke (mm) --85 x 88 85 x 88
Max power*: EU standard (kW) --11 0 132
Max power speed (rpm) --4 000 3 750
Max torque: EU standard (Nm) --370 400
Max torque speed (rpm) --2 000 2 000
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (in litres) (with filter
replacement) -
-6 .1 5 .1
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Diesel engines and gearboxes
9
Technical data

350
