2017 Peugeot 3008 Hybrid 4 keyless

66
3008-2_en_Chap02_ouvertures_ed01-2016

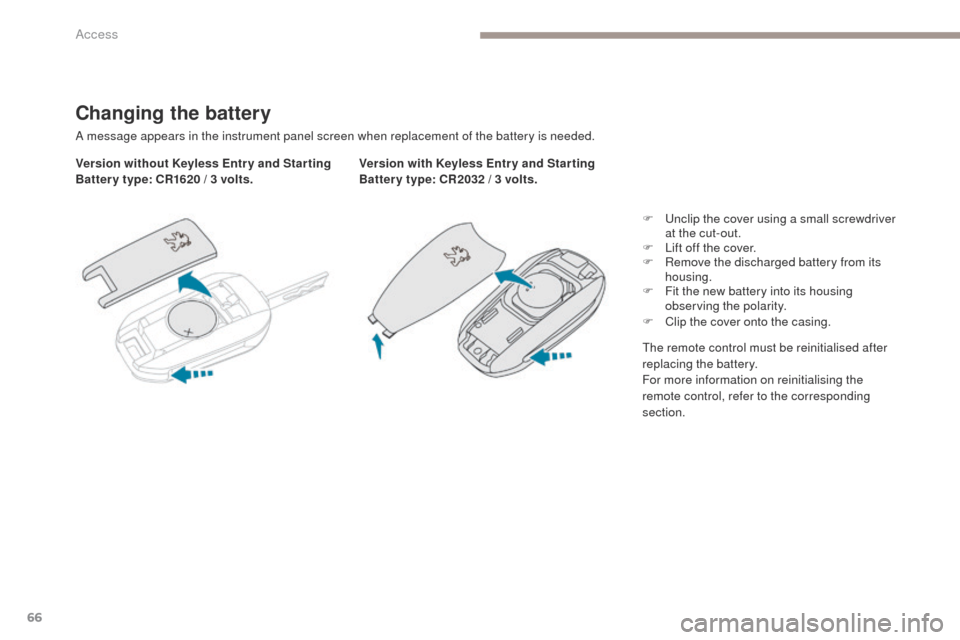

Changing the battery
A message appears in the instrument panel screen when replacement of the battery is needed.
Version without Keyless Entr y and Star ting
Batter y type: CR1620 / 3 volts.Version with Keyless Entr y and Star ting
Batter y type: CR2032 / 3 volts.
F

U
nclip the cover using a small screwdriver
at the cut-out.
F

L
ift off the cover.
F

R
emove the discharged battery from its
housing.
F

F
it the new battery into its housing
observing the polarity.
F

C
lip the cover onto the casing.
The remote control must be reinitialised after
replacing the battery.
For more information on reinitialising the
remote control, refer to the corresponding
section.
Access

67
3008-2_en_Chap02_ouvertures_ed01-2016
Following replacement of the battery or in the event of a remote control fault, it may be necessary to reinitialise the remote control.
Version with Keyless Entry and
Starting
Reinitialising the remote control
Version without Keyless Entry
and Starting
F Place the electronic key against the back-up reader on the steering column and hold
it there until the ignition is switched on. F

S
witch on the ignition by pressing the
"START/STOP" button.
The electronic key is now fully operational
again.
F

S

witch off the ignition.
F

T

urn the key to position 2 (ignition on)
.
F
P
ress the closed padlock button for a few
seconds.
F

S

witch off the ignition and remove the key
from the switch.
The remote control is now fully operational
again. F

I
f your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
F
I
f your vehicle has an automatic gearbox,
select position P then press the brake
pedal firmly.
If the fault persists after reinitialisation, contact
a PEUGEOT dealer or a qualified workshop
without delay.
2
Access

68
3008-2_en_Chap02_ouvertures_ed01-2016

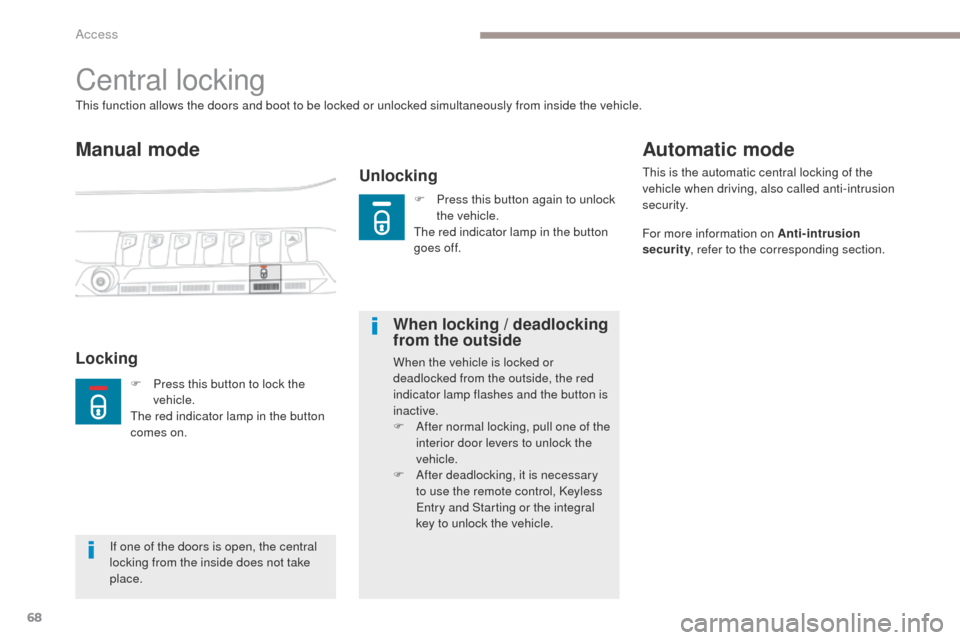

Central locking
Manual mode
Unlocking
This function allows the doors and boot to be locked or unlocked simultaneously from inside the vehicle.
LockingWhen locking / deadlocking
from the outsideWhen the vehicle is locked or
deadlocked from the outside, the red
indicator lamp flashes and the button is
inactive.
F

A
fter normal locking, pull one of the
interior door levers to unlock the
vehicle.
F

A
fter deadlocking, it is necessary
to use the remote control, Keyless
Entry and Starting or the integral
key to unlock the vehicle.
Automatic mode
This is the automatic central locking of the
vehicle when driving, also called anti-intrusion
s e c u r i t y.
For more information on Anti-intrusion
security , refer to the corresponding section.
If one of the doors is open, the central
locking from the inside does not take
place. F

P

ress this button to lock the
vehicle.
The red indicator lamp in the button
comes on. F

P

ress this button again to unlock
the vehicle.
The red indicator lamp in the button
goes off.
Access

71
3008-2_en_Chap02_ouvertures_ed01-2016

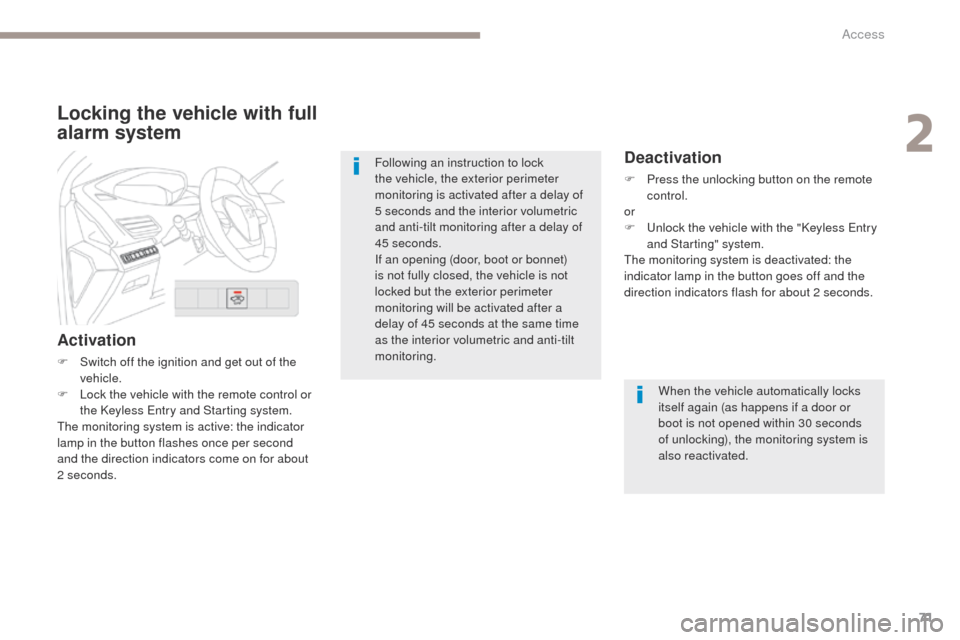

Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F

L
ock the vehicle with the remote control or
the Keyless Entry and Starting system.
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
Deactivation
F Press the unlocking button on the remote control.
or
F

U
nlock the vehicle with the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2 seconds.
Following an instruction to lock
the vehicle, the exterior perimeter
monitoring is activated after a delay of
5 seconds and the interior volumetric
and anti-tilt monitoring after a delay of
45 seconds.
If an opening (door, boot or bonnet)
is not fully closed, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after a
delay of 45

seconds at the same time
as the interior volumetric and anti-tilt
monitoring.
When the vehicle automatically locks
itself again (as happens if a door or
boot is not opened within 30 seconds
of unlocking), the monitoring system is
also reactivated.
2
Access

72
3008-2_en_Chap02_ouvertures_ed01-2016

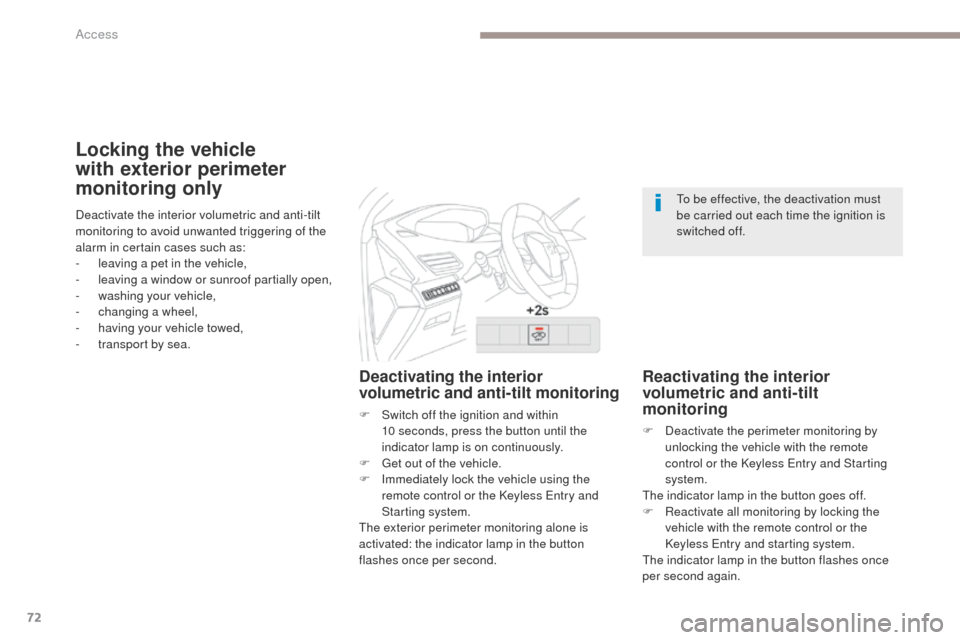

Locking the vehicle
with exterior perimeter
monitoring only
Deactivating the interior
volumetric and anti-tilt monitoring
F Switch off the ignition and within 10 seconds, press the button until the
indicator lamp is on continuously.
F

G
et out of the vehicle.
F

I
mmediately lock the vehicle using the
remote control or the Keyless Entry and
Starting system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Reactivating the interior
volumetric and anti-tilt
monitoring
F Deactivate the perimeter monitoring by unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system.
The indicator lamp in the button goes off.
F

R
eactivate all monitoring by locking the
vehicle with the remote control or the
Keyless Entry and starting system.
The indicator lamp in the button flashes once
per second again.
Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-

l

eaving a pet in the vehicle,
-

l

eaving a window or sunroof partially open,
-
w

ashing your vehicle,
-
c

hanging a wheel,
-

h

aving your vehicle towed,
-

t

ransport by sea. To be effective, the deactivation must
be carried out each time the ignition is
switched off.
Access

73
3008-2_en_Chap02_ouvertures_ed01-2016
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Failure of the remote control
To deactivate the monitoring functions:
F u nlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F

o
pen the door; the alarm is triggered,
F

s
witch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
30


seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
F

L
ock or deadlock the vehicle using the
key (integral to the remote control) in the
driver's door lock.
2
Access

74
3008-2_en_Chap02_ouvertures_ed01-2016
Doors
Opening
From outside
F After unlocking the vehicle or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely.
Closing
- with the engine running or the vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a few
seconds.
With the selective unlocking activated:
-

o

pening the driver's door unlocks
the driver's door only (if the vehicle
has not already been completely
unlocked).
-
o

pening one of the passenger
doors unlocks the rest of the
vehicle.
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only. When a door is not closed correctly:
-

w

ith the vehicle moving (speed above
6

mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
Access

75
3008-2_en_Chap02_ouvertures_ed01-2016

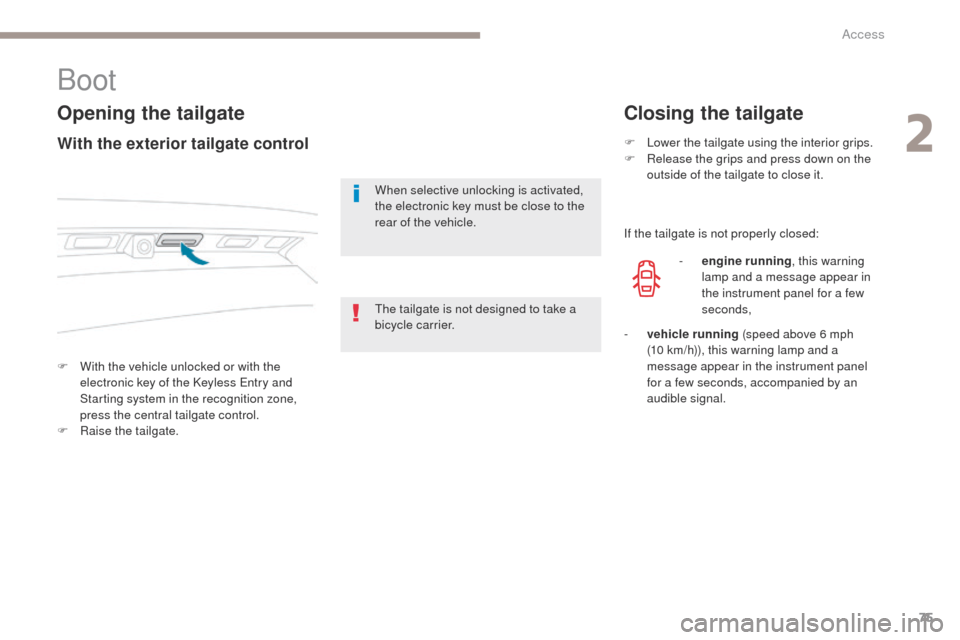

Boot
Opening the tailgate
F With the vehicle unlocked or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
press the central tailgate control.
F

Ra
ise the tailgate.
Closing the tailgate
When selective unlocking is activated,
the electronic key must be close to the
rear of the vehicle. F

L
ower the tailgate using the interior grips.
F
R
elease the grips and press down on the
outside of the tailgate to close it.
With the exterior tailgate control
The tailgate is not designed to take a
bicycle carrier. If the tailgate is not properly closed:
-
e
ngine running
, this warning
lamp and a message appear in
the instrument panel for a few
seconds,
-

v
ehicle running (speed above 6 mph
(10
km/h)), this warning lamp and a
message appear in the instrument panel
for a few seconds, accompanied by an
audible signal.
2
Access
