2017 NISSAN TITAN Owners Manual

Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oilviscosity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the NISSAN New Vehicle Limited
Warranty.
Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
LTI2208
Capacities and Specifications8-5

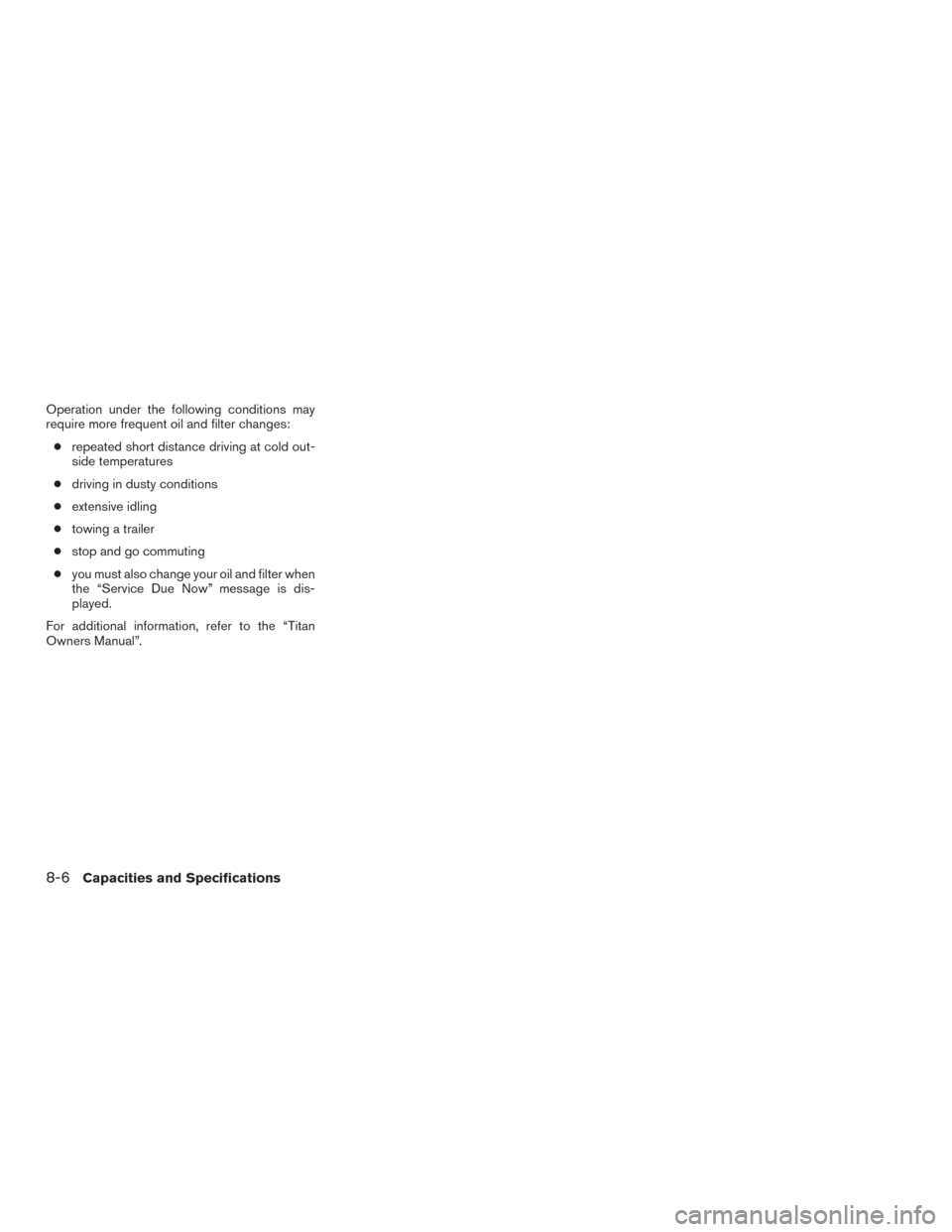

Operation under the following conditions may
require more frequent oil and filter changes:● repeated short distance driving at cold out-
side temperatures
● driving in dusty conditions
● extensive idling
● towing a trailer
● stop and go commuting
● you must also change your oil and filter when
the “Service Due Now” message is dis-
played.
For additional information, refer to the “Titan
Owners Manual”.
8-6Capacities and Specifications

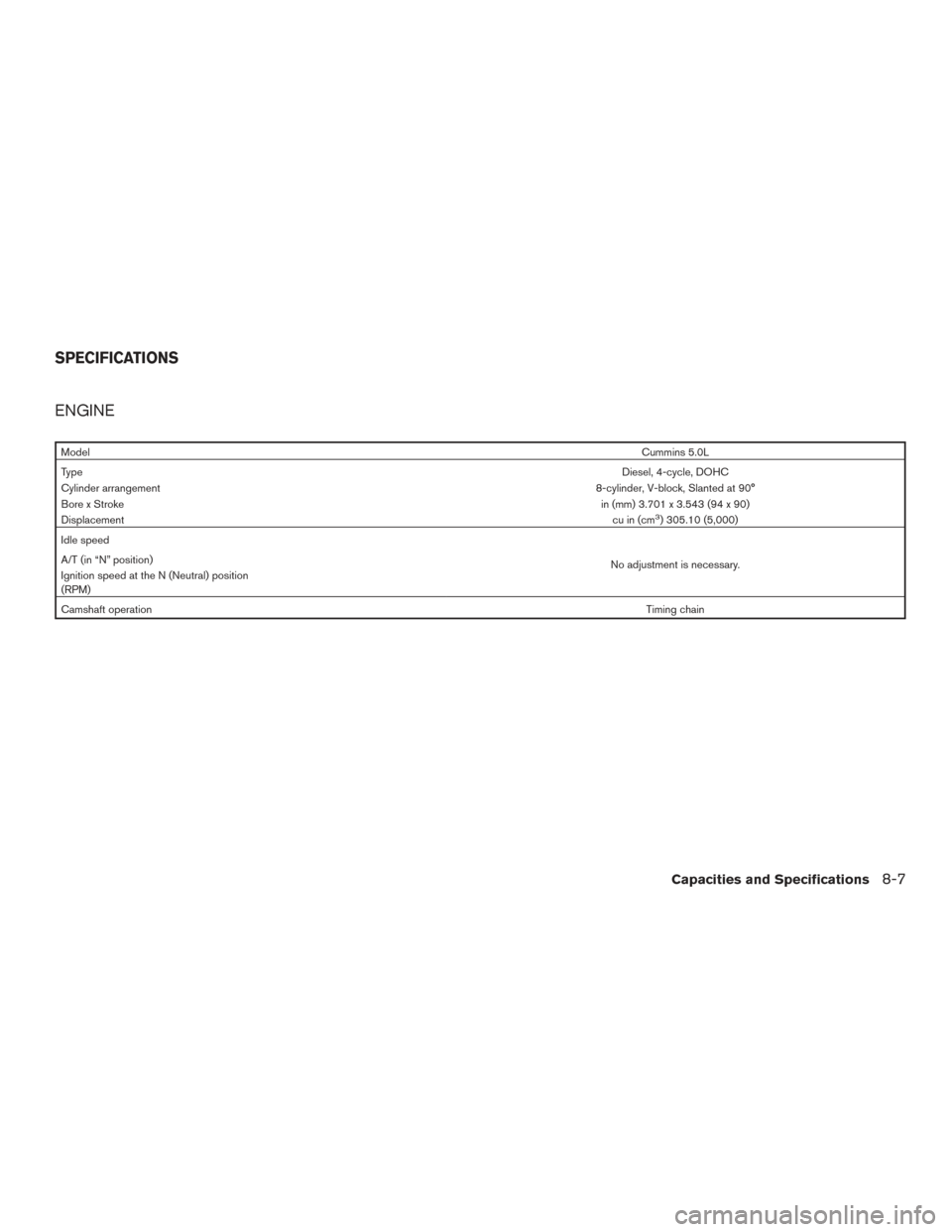

ENGINE
ModelCummins 5.0L
Type Diesel, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke in (mm) 3.701 x 3.543 (94 x 90)
Displacement cu in (cm
3) 305.10 (5,000)
Idle speed
No adjustment is necessary.
A/T (in “N” position)
Ignition speed at the N (Neutral) position
(RPM)
Camshaft operation
Timing chain
SPECIFICATIONS
Capacities and Specifications8-7

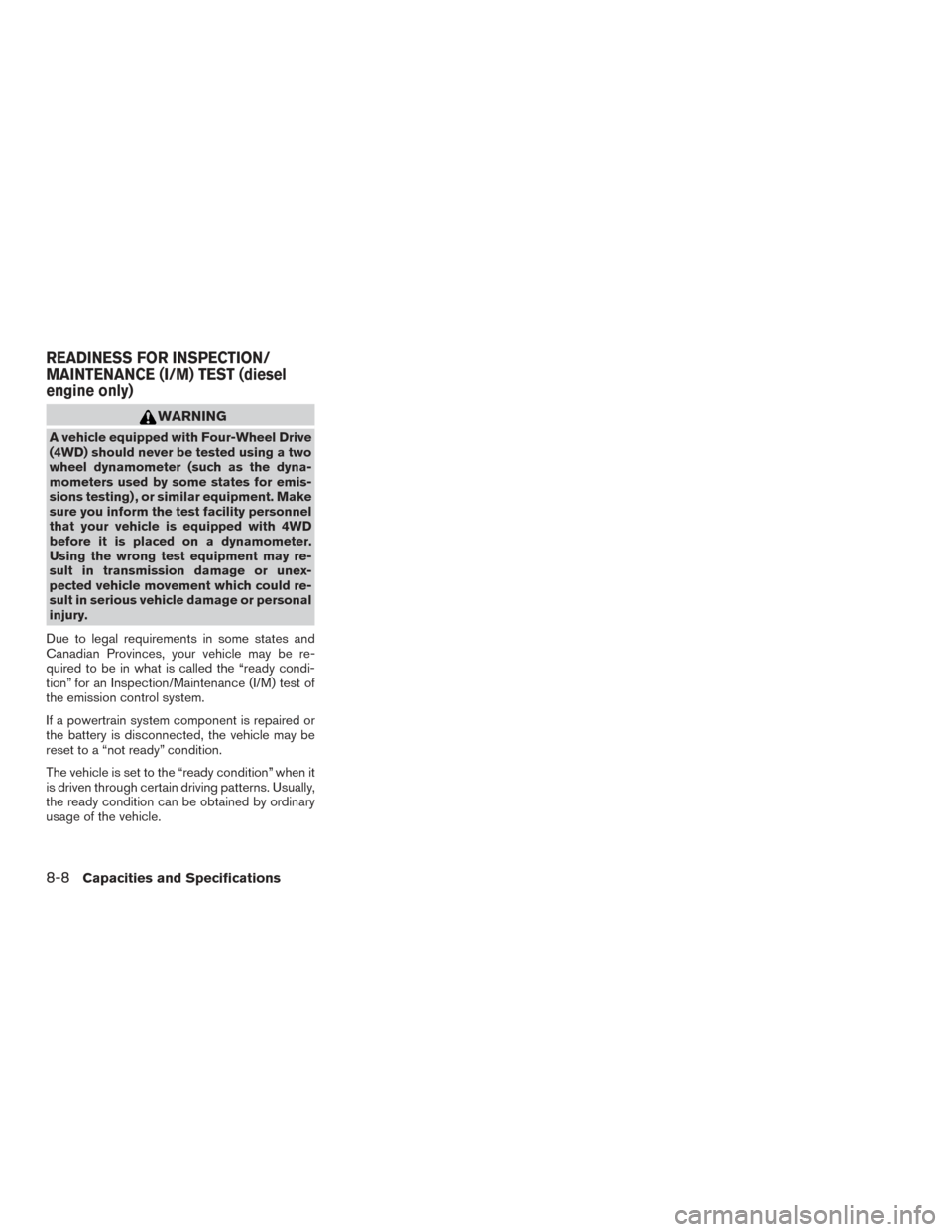

WARNING
A vehicle equipped with Four-Wheel Drive
(4WD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing) , or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with 4WD
before it is placed on a dynamometer.
Using the wrong test equipment may re-
sult in transmission damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (diesel
engine only)
8-8Capacities and Specifications

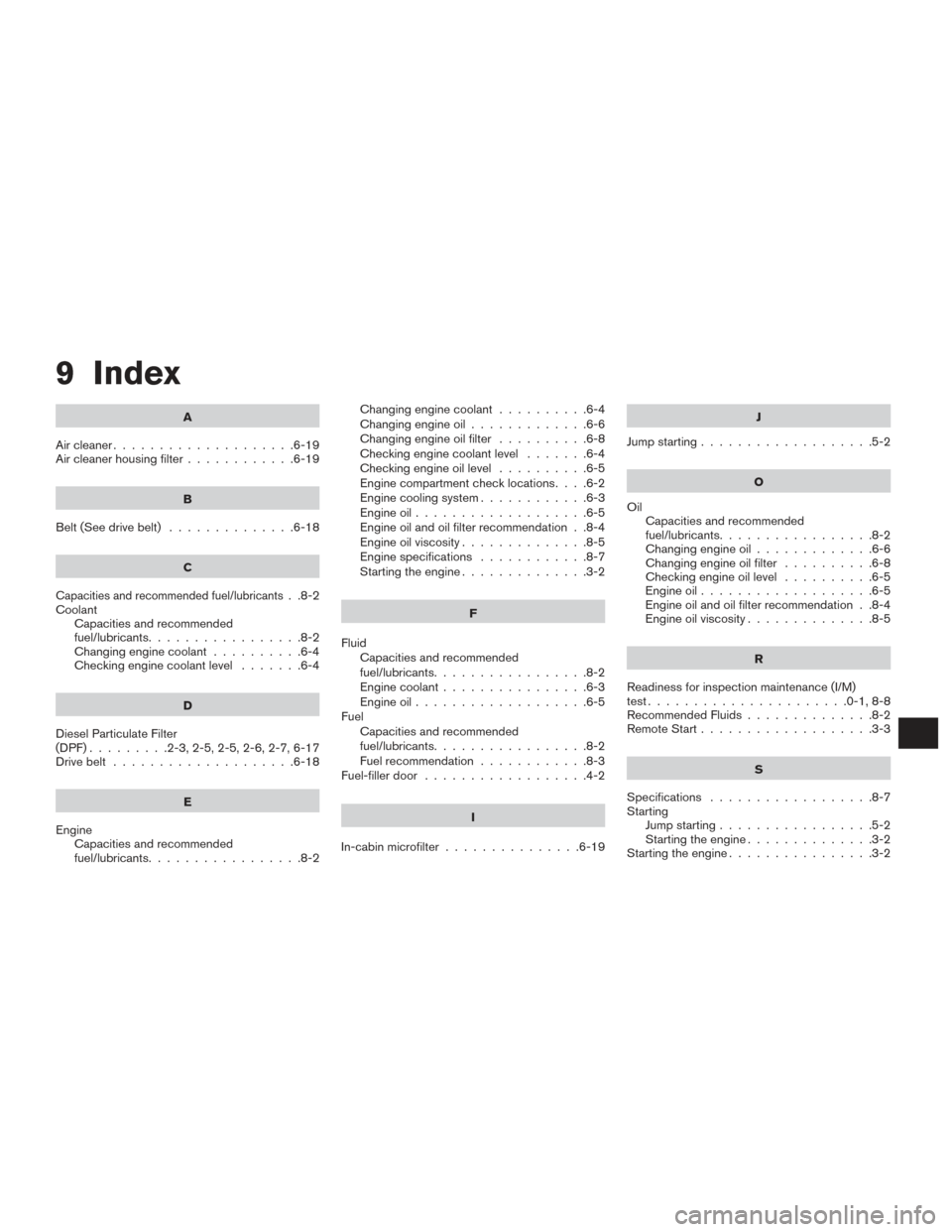

9 Index
A
Aircleaner....................6-19
Air cleaner housing filter ............6-19
B
Belt (See drive belt) ..............6-18
C
Capacities and recommended fuel/lubricants..8-2
Coolant Capacities and recommended
fuel/lubricants .................8-2
Changing engine coolant ..........6-4
Checking engine coolant level .......6-4
D
Diesel Particulate Filter
(DPF) .........2-3,2-5,2-5,2-6,2-7,6-17
Drive belt ....................6-18
E
Engine Capacities and recommended
fuel/lubricants .................8-2 Changingenginecoolant..........6-4
Changingengineoil.............6-6
Changing engine oil filter
..........6-8
Checking engine coolant level .......6-4
Checking engine oil level ..........6-5
Engine compartment check locations ....6-2
Engine cooling system ............6-3
Engine oil ...................6-5
Engine oil and oil filter recommendation . .8-4
Engine oil viscosity ..............8-5
Engine specifications ............8-7
Starting the engine ..............3-2
F
Fluid Capacities and recommended
fuel/lubricants .................8-2
Engine coolant ................6-3
Engine oil ...................6-5
Fuel Capacities and recommended
fuel/lubricants .................8-2
Fuel recommendation ............8-3
Fuel-filler door ..................4-2
I
In-cabin microfilter ...............6-19 J
Jump starting ...................5-2
O
Oil Capacities and recommended
fuel/lubricants .................8-2
Changingengineoil.............6-6
Changing engine oil filter ..........6-8
Checking engine oil level ..........6-5
Engine oil ...................6-5
Engine oil and oil filter recommendation . .8-4
Engine oil viscosity ..............8-5
R
Readiness for inspection maintenance (I/M)
test ......................0-1,8-8
Recommended Fluids ..............8-2
Remote Start ...................3-3
S
Specifications ..................8-7
Starting Jump starting .................5-2
Starting the engine ..............3-2
Starting the engine ................3-2

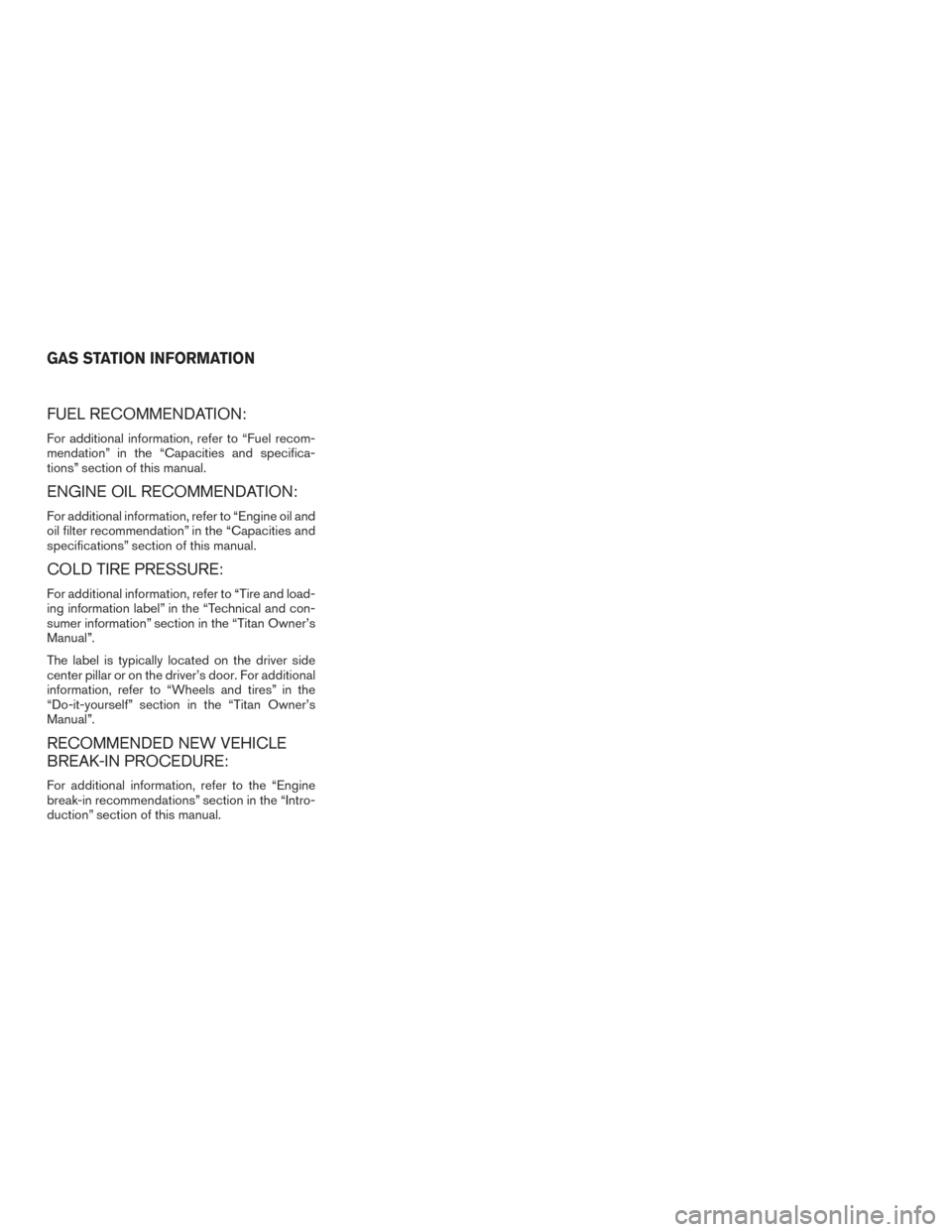

FUEL RECOMMENDATION:
For additional information, refer to “Fuel recom-
mendation” in the “Capacities and specifica-
tions” section of this manual.
ENGINE OIL RECOMMENDATION:
For additional information, refer to “Engine oil and
oil filter recommendation” in the “Capacities and
specifications” section of this manual.
COLD TIRE PRESSURE:
For additional information, refer to “Tire and load-
ing information label” in the “Technical and con-
sumer information” section in the “Titan Owner’s
Manual”.
The label is typically located on the driver side
center pillar or on the driver’s door. For additional
information, refer to “Wheels and tires” in the
“Do-it-yourself” section in the “Titan Owner’s
Manual”.
RECOMMENDED NEW VEHICLE
BREAK-IN PROCEDURE:
For additional information, refer to the “Engine
break-in recommendations” section in the “Intro-
duction” section of this manual.
GAS STATION INFORMATION

2017 TITAN DIESEL
OWNER’S MANUAL
and MAINTENANCE INFORMATION SUPPLEM ENT
For your safety, read carefully and keep in this vehicle.
+A61-D
Printing : July 2016 (04)
Publication No.: OM1E 0A60U0 Printed in U.S.A.OM17EA +A61U0
