2017 NISSAN TITAN Owners Manual

WHEELS AND TIRES
Wheel TypeOffset in (mm)Size
Steel 1.73 (44)
17 x 7.5 J
0.98 (25) 18 x 8.0 J
Alloy 0.98 (25)
18 x 8.0 J
0.91 (23) 18 x 8.0 J
1.63 (41.5) 18 x 7.5 J
0.91 (23) 20 x 8.0 J
1.63 (41.5) 20 x 7.5 J
Tire type Performance type Size
Passenger All season
265/70R18
All season P265/70R18
All season P275/60R20
All terrain P275/70/R18
Light truck All season
LT245/75R17
All terrain LT275/65R18
All season LT265/60R20
Spare wheel type Performance type Size
Full size (Non Matching)
Steel -
265/70R18
- P265/70R18
- LT245/75R17
Full size (Non Matching)
Alloy -
P275/60/R20
- LT275/65R18
Full size (Matching) Alloy -
P275/70R18
- P275/60R20
- LT275/60R20
10-10Technical and consumer information

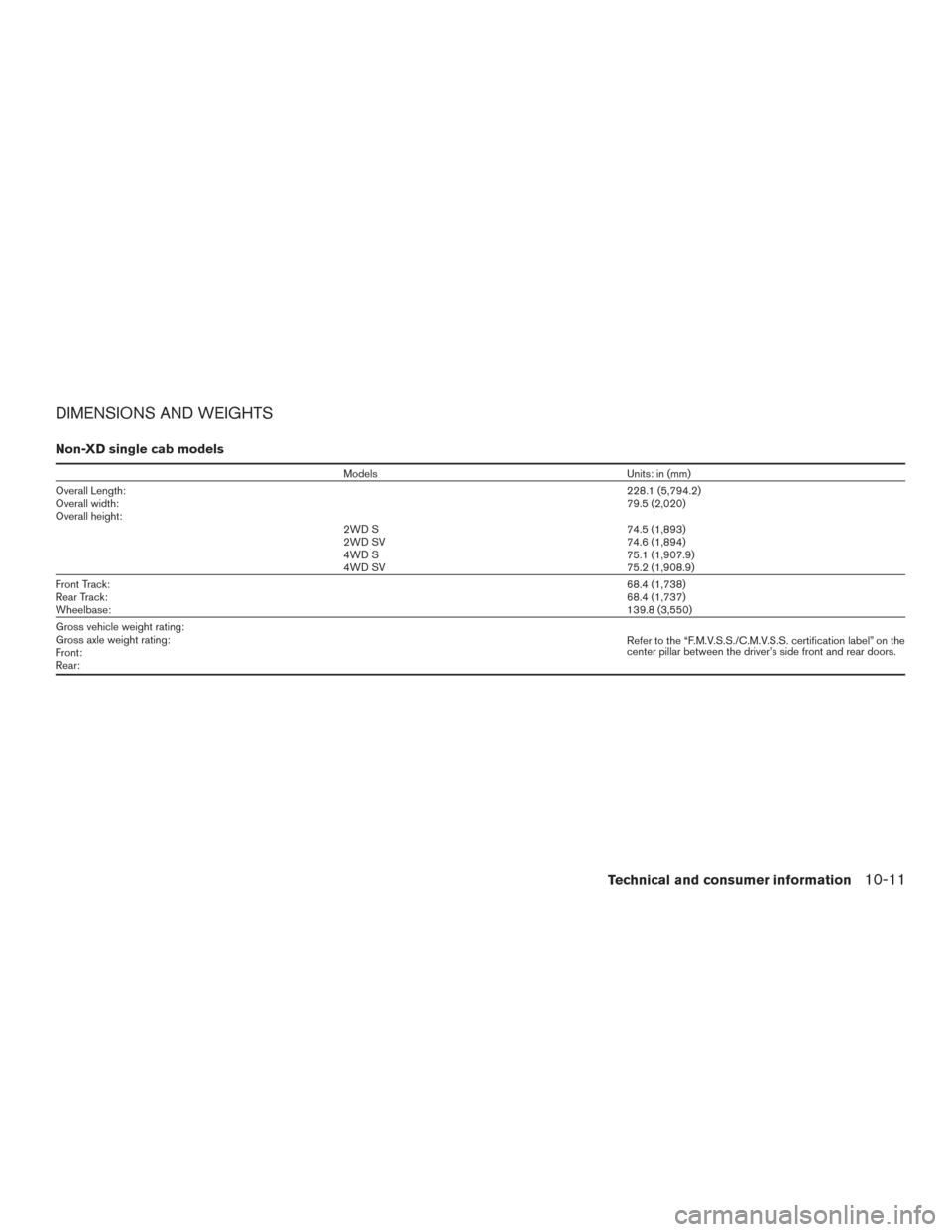

DIMENSIONS AND WEIGHTS
Non-XD single cab models
ModelsUnits: in (mm)
Overall Length: 228.1 (5,794.2)
Overall width: 79.5 (2,020)
Overall height: 2WD S74.5 (1,893)
2WD SV 74.6 (1,894)
4WD S 75.1 (1,907.9)
4WD SV 75.2 (1,908.9)
Front Track: 68.4 (1,738)
Rear Track: 68.4 (1,737)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on the
center pillar between the driver’s side front and rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-11

XD single cab models
ModelsUnits: in (mm)
Overall Length: 231 (5,866.5)
Overall width: 79.5 (2,020)
Overall height: 2WD with diesel engine77.2 (1,960.5)
4WD with diesel engine 77.1 (1959.5)
2WD with gasoline engine 77.3 (1,962.5)
4WD with gasoline engine 77.2 (1,960.5)
Front Track: 68.4 (1,738)
Rear Track: 68.4 (1,737)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on the
center pillar between the driver’s side front and rear doors.
Gross axle weight rating:
Front:
Rear:
10-12Technical and consumer information

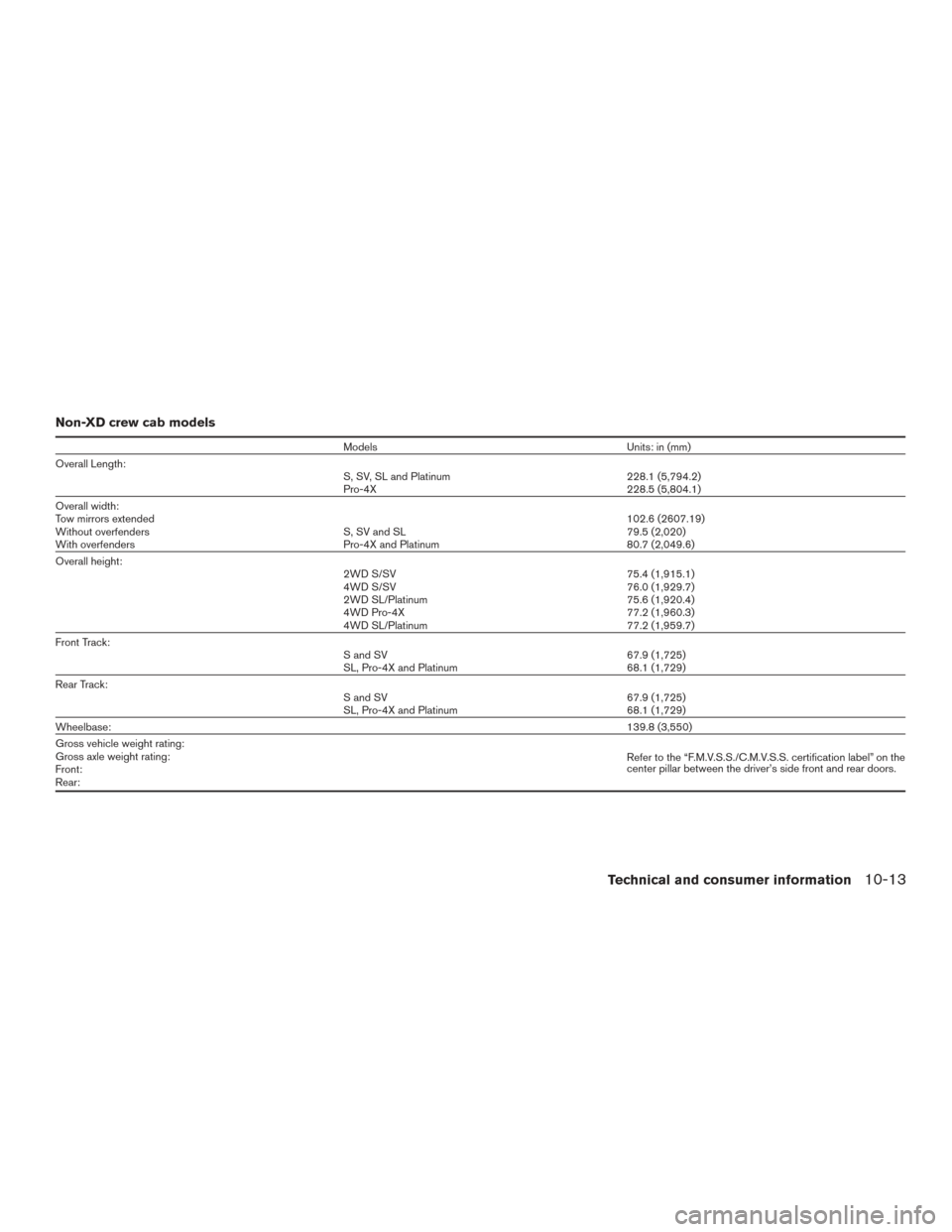

Non-XD crew cab models
ModelsUnits: in (mm)
Overall Length: S, SV, SL and Platinum228.1 (5,794.2)
Pro-4X 228.5 (5,804.1)
Overall width:
Tow mirrors extended 102.6 (2607.19)
Without overfenders S, SV and SL79.5 (2,020)
With overfenders Pro-4X and Platinum80.7 (2,049.6)
Overall height: 2WD S/SV75.4 (1,915.1)
4WD S/SV 76.0 (1,929.7)
2WD SL/Platinum 75.6 (1,920.4)
4WD Pro-4X 77.2 (1,960.3)
4WD SL/Platinum 77.2 (1,959.7)
Front Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Rear Track: S and SV67.9 (1,725)
SL, Pro-4X and Platinum 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on the
center pillar between the driver’s side front and rear doors.
Gross axle weight rating:
Front:
Rear:
Technical and consumer information10-13

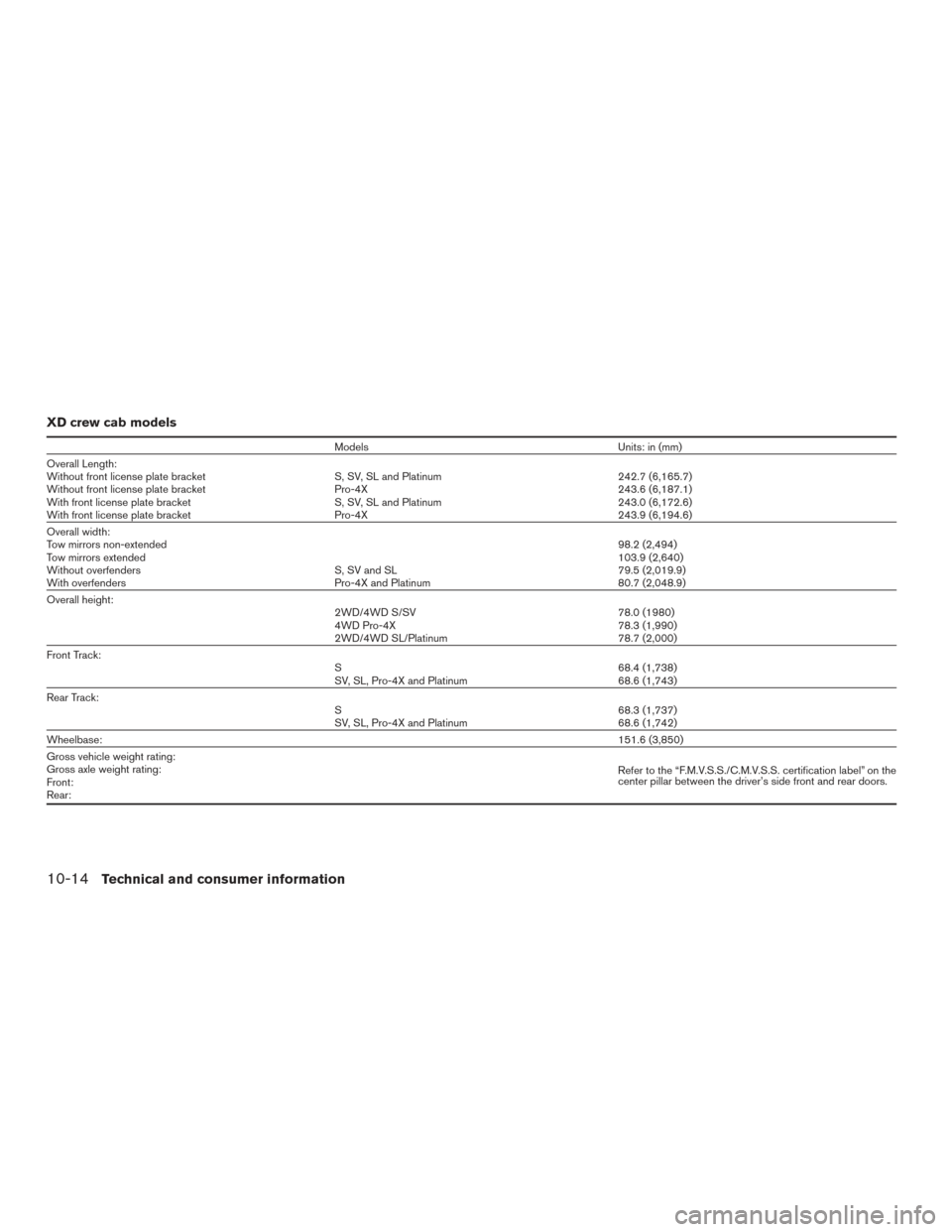

XD crew cab models
ModelsUnits: in (mm)
Overall Length:
Without front license plate bracket S, SV, SL and Platinum242.7 (6,165.7)
Without front license plate bracket Pro-4X243.6 (6,187.1)
With front license plate bracket S, SV, SL and Platinum243.0 (6,172.6)
With front license plate bracket Pro-4X243.9 (6,194.6)
Overall width:
Tow mirrors non-extended 98.2 (2,494)
Tow mirrors extended 103.9 (2,640)
Without overfenders S, SV and SL79.5 (2,019.9)
With overfenders Pro-4X and Platinum80.7 (2,048.9)
Overall height: 2WD/4WD S/SV78.0 (1980)
4WD Pro-4X 78.3 (1,990)
2WD/4WD SL/Platinum 78.7 (2,000)
Front Track: S68.4 (1,738)
SV, SL, Pro-4X and Platinum 68.6 (1,743)
Rear Track: S68.3 (1,737)
SV, SL, Pro-4X and Platinum 68.6 (1,742)
Wheelbase: 151.6 (3,850)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on the
center pillar between the driver’s side front and rear doors.
Gross axle weight rating:
Front:
Rear:
10-14Technical and consumer information

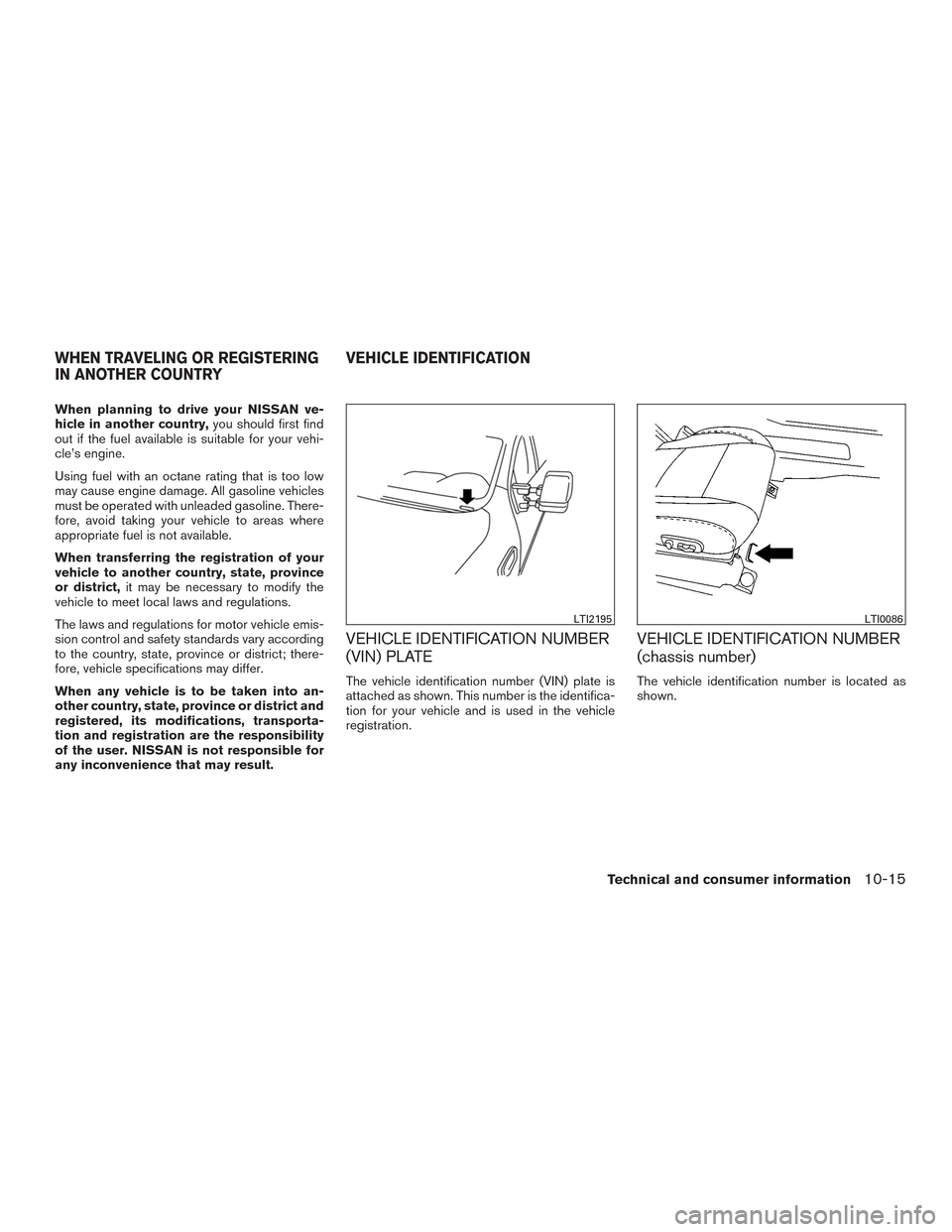

When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline. There-
fore, avoid taking your vehicle to areas where
appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district and
registered, its modifications, transporta-
tion and registration are the responsibility
of the user. NISSAN is not responsible for
any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN) plate is
attached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is located as
shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information10-15

ENGINE SERIAL NUMBER
The engine serial number is stamped on the
engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la-
bel is affixed as shown. This label contains valu-
able vehicle information, such as: (GVWR) ,
(GAWR) , month and year of manufacture, (VIN) ,
etc. Review it carefully.
VK56VD
WTI0095
Cummins 5.0L
LTI2155
Type A (if so equipped)
LTI2194
10-16Technical and consumer information

EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as shown.
Type B (if so equipped)
LTI2266
XD models
LTI2197
Except XD models
LTI2242
Technical and consumer information10-17
