2017 NISSAN PATHFINDER Quick Reference Guide

7

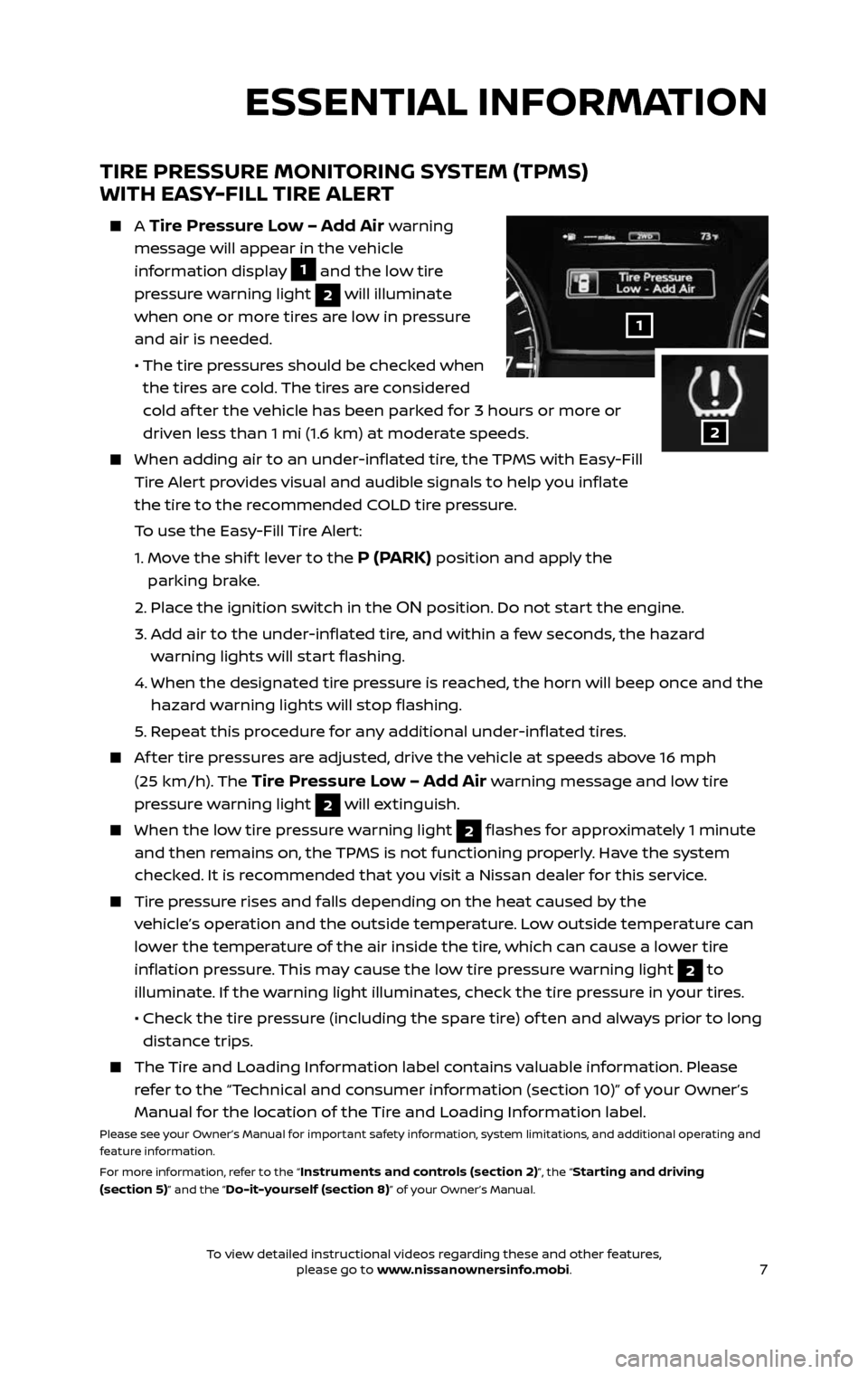

TIRE PRESSURE MONITORING SYSTEM (TPMS)
WITH EASY-FILL TIRE ALERT
A Tire Pressure Low – Add Air warning
message will appear in the vehicle
information display
1 and the low tire
pressure warning light
2 will illuminate
when one or more tires are low in pressure
and air is needed.
• The tir e pressures should be checked when
the tires are cold. The tires are considered
cold af ter the vehicle has been parked for 3 hours or more or
driven less than 1 mi (1.6 km) at moderate speeds.
When adding air to an under -inflated tire, the TPMS with Easy-Fill
Tire Alert provides visual and audible signals to help you inflate
the tire to the recommended COLD tire pressure.
To use the Easy-Fill Tire Alert:
1. Move the shif t lever to the P (PARK) position and apply the
parking brake.
2. Place the ignition switch in the ON position. Do not start the engine.
3. Add air to the under-inflated tire, and within a few seconds, the hazard
warning lights will start flashing.
4. When the designated tir e pressure is reached, the horn will beep once and the
hazard warning lights will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.
Af ter tire pressures are adjusted, drive the vehicle at speeds above 16 mph
(25 km/h). The Tire Pressure Low – Add Air warning message and low tire
pressure warning light
2 will extinguish.
When the lo w tire pressure warning light 2 flashes for approximately 1 minute
and then remains on, the TPMS is not functioning properly. Have the system
checked. It is recommended that you visit a Nissan dealer for this service.
Tire pressure rises and falls depending on the heat caused by the
vehicle’s operation and the outside temperature. Low outside temperature can
lower the temperature of the air inside the tire, which can cause a lower tire
inflation pressure. This may cause the low tire pressure warning light
2 to
illuminate. If the warning light illuminates, check the tire pressure in your tires.
• Check the tir e pressure (including the spare tire) of ten and always prior to long
distance trips.
The Tire and Loading Information label contains valuable information. Please
refer to the “Technical and consumer information (section 10)” of your Owner’s
Manual for the location of the Tire and Loading Information label.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Instruments and controls (section 2)”, the “Starting and driving
(section 5)” and the “Do-it-yourself (section 8)” of your Owner’s Manual.
1
ESSENTIAL INFORMATION
2
2485215_17b_Pathfinder_pQRG_111816b.indd 711/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

8

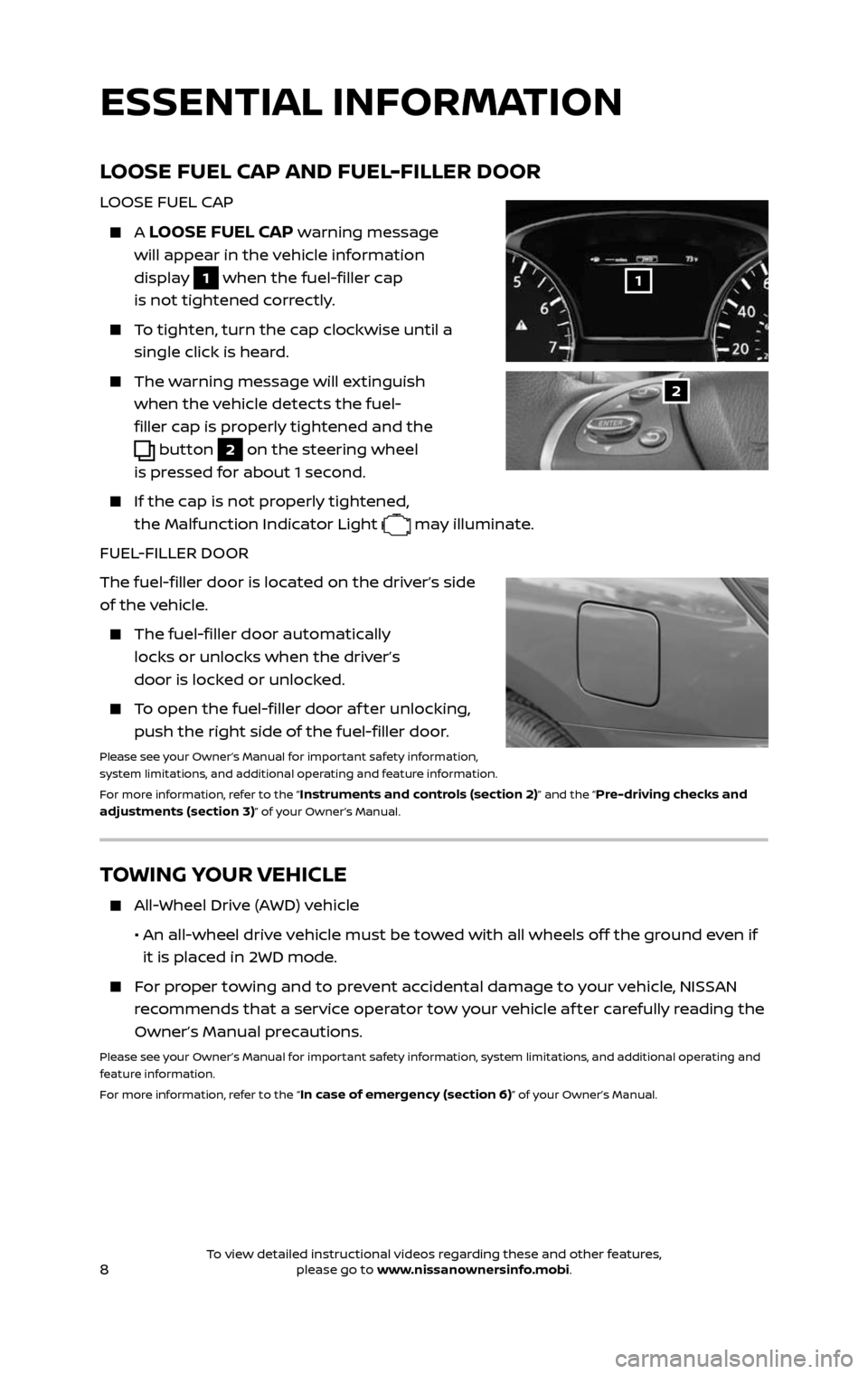

LOOSE FUEL CAP AND FUEL-FILLER DOOR
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message
will appear in the vehicle information
display
1 when the fuel-filler cap
is not tightened correctly.
To tighten, turn the cap clockwise until a
single click is heard.
The warning message will extinguish
when the vehicle detects the fuel-
filler cap is properly tightened and the
button 2 on the steering wheel
is pressed for about 1 second.
If the cap is not properly tightened,
the Malfunction Indicator Light
may illuminate.
FUEL-FILLER DOOR
The fuel-filler door is located on the driver’s side
of the vehicle.
The fuel-filler door automatically
locks or unlocks when the driver’s
door is locked or unlocked.
To open the fuel-filler door af ter unlocking,
push the right side of the fuel-filler door.
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
For more information, refer to the “
Instruments and controls (section 2)” and the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
2
1
TOWING YOUR VEHICLE
All-Wheel Drive (AWD) vehicle
• An al l-wheel drive vehicle must be towed with all wheels off the ground even if
it is placed in 2WD mode.
For proper towing and to prevent accidental damage to your vehicle, NISSAN
recommends that a service operator tow your vehicle af ter carefully reading the
Owner’s Manual precautions.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
In case of emergency (section 6)” of your Owner’s Manual.
ESSENTIAL INFORMATION
2485215_17b_Pathfinder_pQRG_111816b.indd 811/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

9

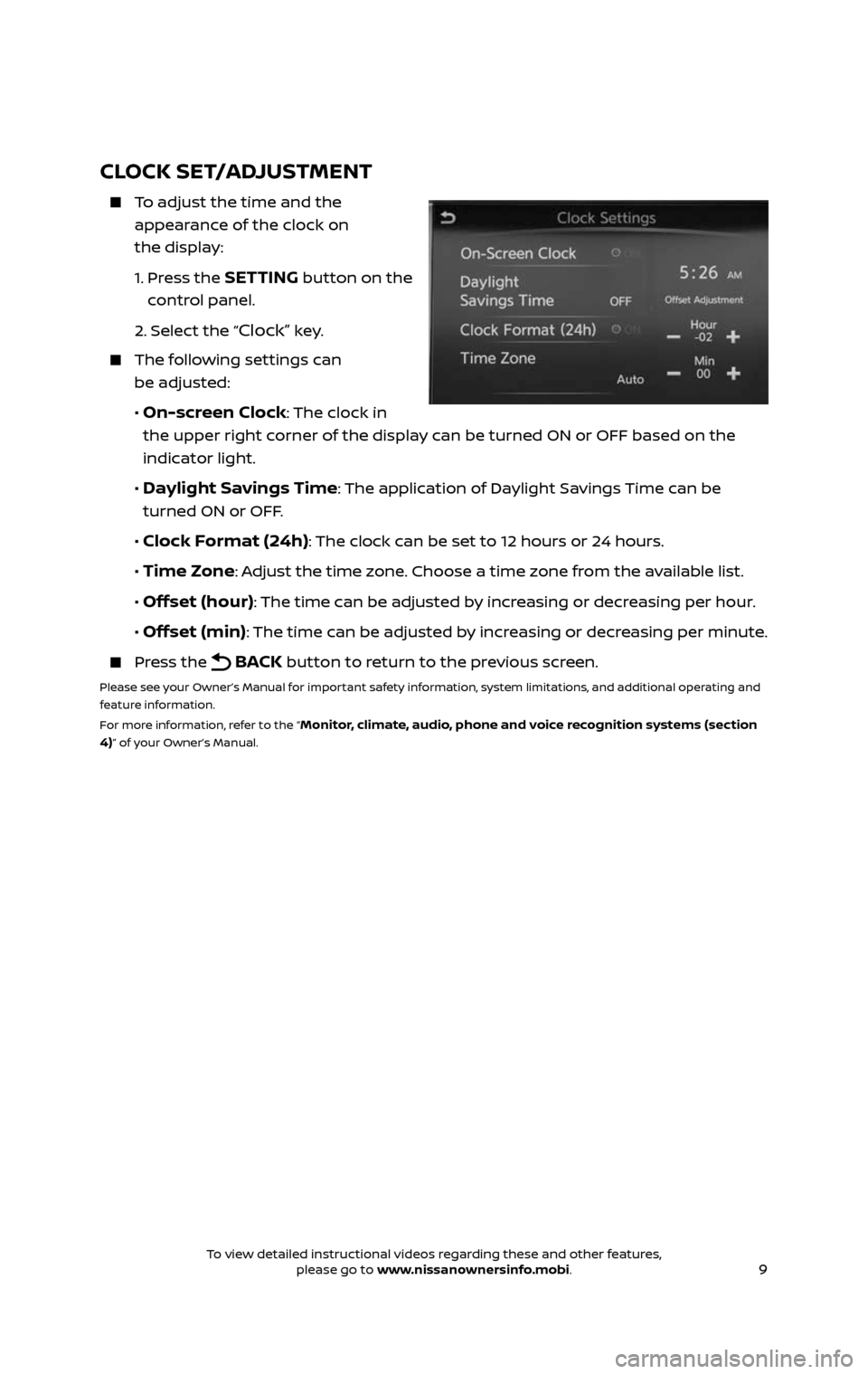

CLOCK SET/ADJUSTMENT
To adjust the time and the
appearance of the clock on
the display:
1. Press the SETTING button on the
control panel.
2. Select the “Clock” key.
The following settings can
be adjusted:
• On-screen Clock: The clock in
the upper right corner of the display can be turned ON or OFF based on the
indicator light.
• Daylight Savings Time: The application of Daylight Savings Time can be
turned ON or OFF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Time Zone: Adjust the time zone. Choose a time zone from the available list.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
Press the BACK button to return to the previous screen.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Monitor, climate, audio, phone and voice recognition systems (section
4)” of your Owner’s Manual.
2485215_17b_Pathfinder_pQRG_111816b.indd 911/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

10

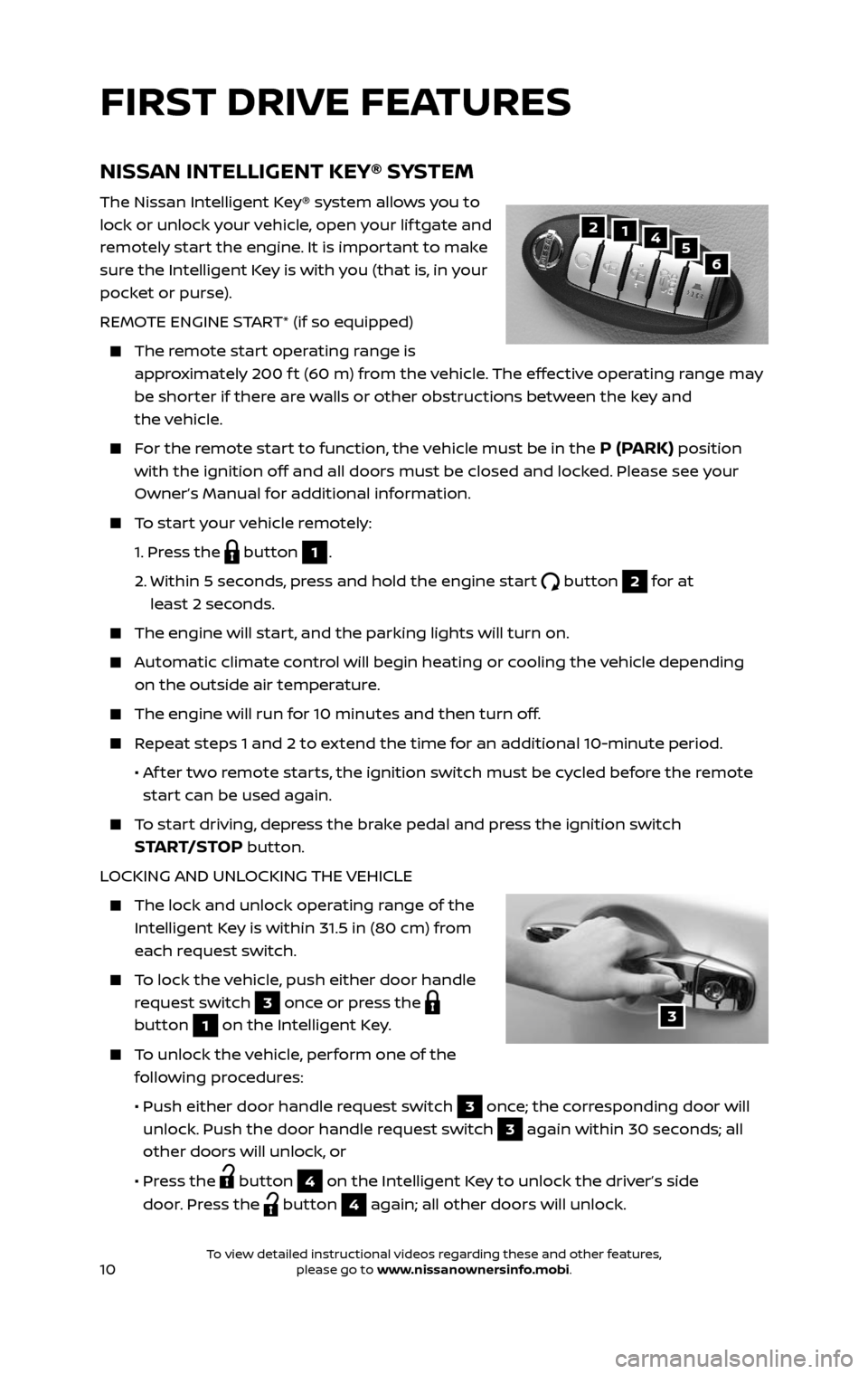

NISSAN INTELLIGENT KEY® SYSTEM
The Nissan Intelligent Key® system allows you to
lock or unlock your vehicle, open your lif tgate and
remotely start the engine. It is important to make
sure the Intelligent Key is with you (that is, in your
pocket or purse).
REMOTE ENGINE START* (if so equipped)
The remote start operating range is
approximately 200 f t (60 m) from the vehicle. The effective operating range may
be shorter if there are walls or other obstructions between the key and
the vehicle.
For the remote start to function, the vehicle must be in the P (PARK) position
with the ignition off and all doors must be closed and locked. Please see your
Owner’s Manual for additional information.
To start your vehicle remotely:
1. Press the button 1.
2. Within 5 sec onds, press and hold the engine start button 2 for at
least 2 seconds.
The engine wil l start, and the parking lights will turn on.
Automatic climate control will begin heating or cooling the vehicle depending
on the outside air temperature.
The engine will run for 10 minutes and then turn off.
Repeat steps 1 and 2 to extend the time for an additional 10-minute period.
• Af ter two remote starts, the ignition switch must be cycled before the remote
start can be used again.
To start driving, depress the brake pedal and press the ignition switch
START/STOP button.
LOCKING AND UNLOCKING THE VEHICLE
The lock and unlock oper ating range of the
Intelligent Key is within 31.5 in (80 cm) from
each request switch.
To lock the vehicle, push either door handle
request switch 3 once or press the
button 1 on the Intelligent Key.
To unlock the vehicle, perform one of the
following procedures:
• Push either door hand le request switch 3 once; the corresponding door will
unlock. Push the door handle request switch
3 again within 30 seconds; all
other doors will unlock, or
• Press the button 4 on the Intelligent Key to unlock the driver’s side
door. Press the
button 4 again; all other doors will unlock.
5124
6
FIRST DRIVE FEATURES
3
2485215_17b_Pathfinder_pQRG_111816b.indd 1011/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

11

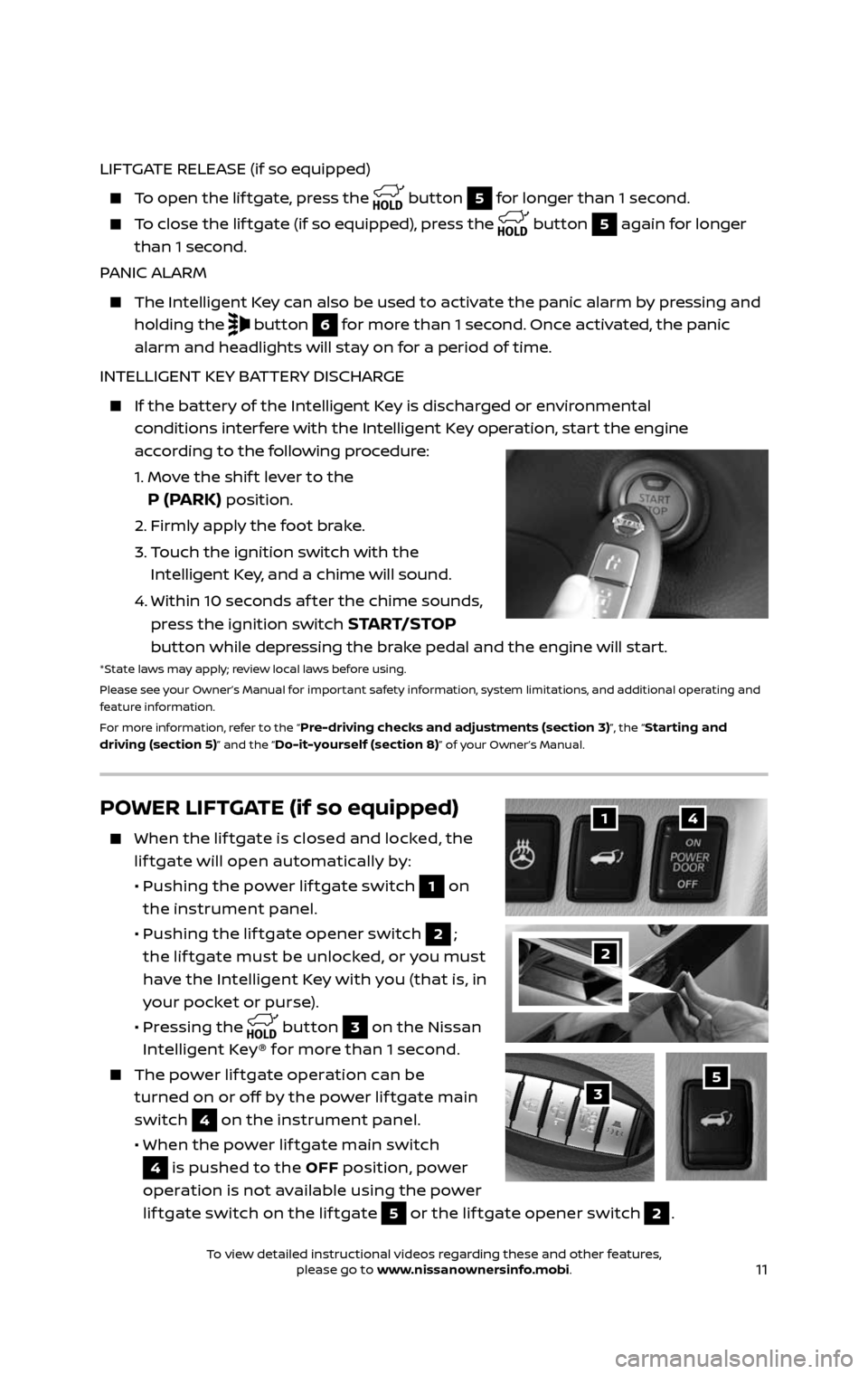

LIFTGATE RELEASE (if so equipped)
To open the lif tgate, press the button 5 for longer than 1 second.
To close the lif tgate (if so equipped), press the button 5 again for longer
than 1 second.
PANIC ALARM
The Intel ligent Key can also be used to activate the panic alarm by pressing and
holding the button 6 for more than 1 second. Once activated, the panic
alarm and headlights will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE
If the bat tery of the Intelligent Key is discharged or environmental
conditions interfere with the Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shif t lever to the
P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the
Intelligent Key, and a chime will sound.
4. Within 10 sec onds af ter the chime sounds,
press the ignition switch START/STOP
button while depressing the brake pedal and the engine will start.
*State laws may apply; review local laws before using.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Pre-driving checks and adjustments (section 3)”, the “Starting and
driving (section 5)” and the “Do-it-yourself (section 8)” of your Owner’s Manual.
POWER LIFTGATE (if so equipped)
When the lif tgate is closed and locked, the
lif tgate will open automatically by:
• Pushing the power lif tgate switch 1 on
the instrument panel.
• Pushing the lif tgate opener switch 2;
the lif tgate must be unlocked, or you must
have the Intelligent Key with you (that is, in
your pocket or purse).
• Pressing the button 3 on the Nissan
Intelligent Key® for more than 1 second.
The power lif tgate operation can be
turned on or off by the power lif tgate main
switch
4 on the instrument panel.
• When the power lif tgate main switch
4 is pushed to the OFF position, power
operation is not available using the power
lif tgate switch on the lif tgate
5 or the lif tgate opener switch 2 .
14
53
2
2485215_17b_Pathfinder_pQRG_111816b.indd 1111/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12
FIRST DRIVE FEATURES
STARTING/STOPPING THE ENGINE
It is important to make sure the Nissan Intelligent
Key® is with you (that is, in your pocket or purse).
Depress the brake pedal.
Press the ignition switch START/STOP
button to start the engine.
TURNING THE ENGINE OFF
Move the shif t lever to the P (PARK) position
and apply the parking brake.
Press the ignition switch START/STOP button to turn the engine off.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Starting and driving (section 5)” of your Owner’s Manual.

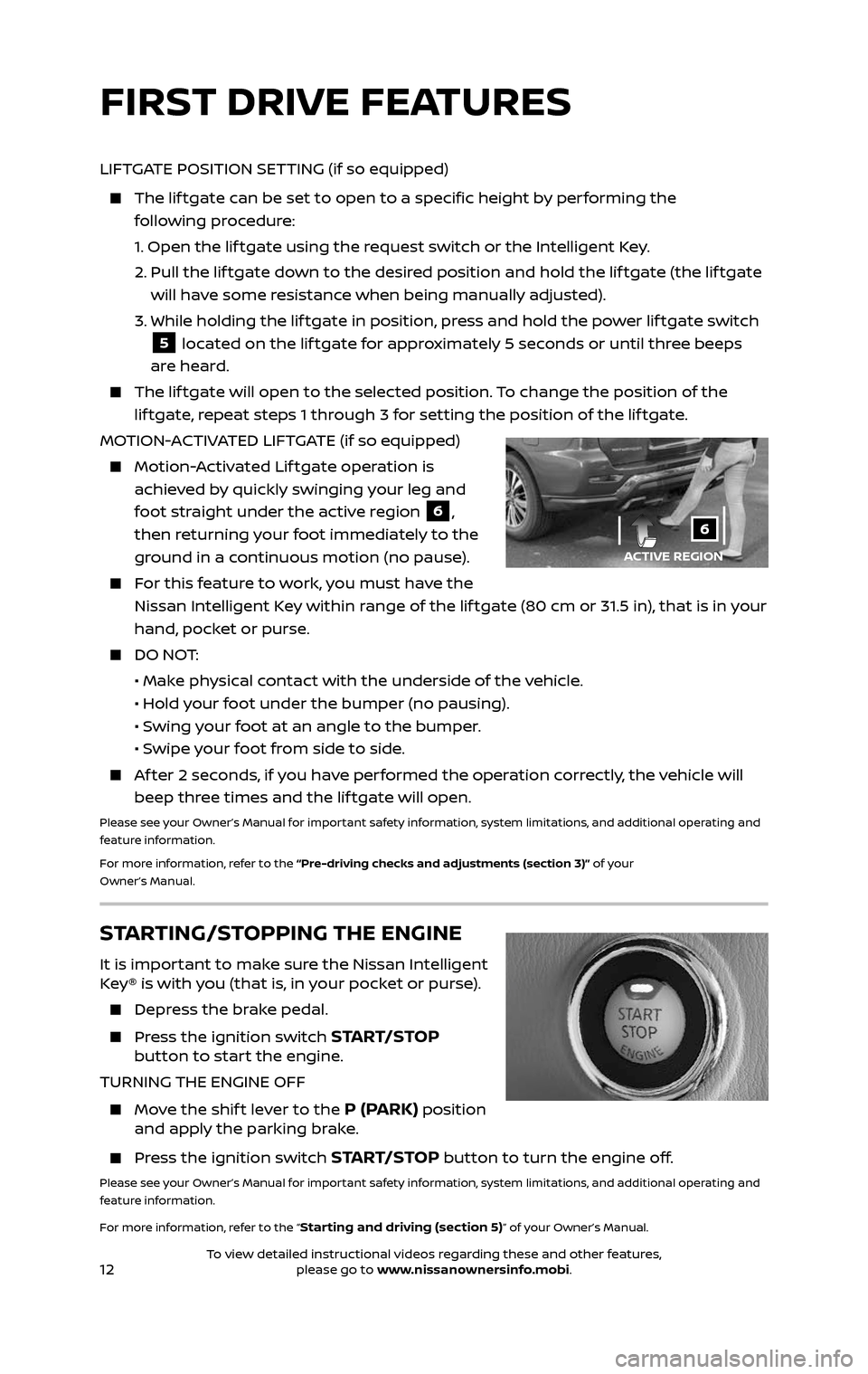

LIFTGATE POSITION SETTING (if so equipped)
The liftgate can be set to open to a specific height by performing the
following procedure:
1. Open the lif tgate using the request switch or the Intelligent Key.
2. Pull the lif tgate down to the desired position and hold the lif tgate (the lif tgate
will have some resistance when being manually adjusted).
3. While holding the lif tgate in position, press and hold the power lif tgate switch
5 located on the lif tgate for approximately 5 seconds or until three beeps
are heard.
The liftgate will open to the selected position. To change the position of the
lif tgate, repeat steps 1 through 3 for setting the position of the lif tgate.
MOTION-ACTIVATED LIFTGATE (if so equipped)
Motion-Activated Lif tgate operation is
achieved by quickly swinging your leg and
foot straight under the active region
6,
then returning your foot immediately to the
ground in a continuous motion (no pause).
For this feature to work, you must have the
Nissan Intelligent Key within range of the lif tgate (80 cm or 31.5 in), that is in your
hand, pocket or purse.
DO NOT:
• Make physical contact with the underside of the vehicle.
• Hold y our foot under the bumper (no pausing).
• Swing your foot at an angle to the bumper.
• Swipe your foot from side to side.
Af ter 2 seconds, if you have performed the operation correctly, the vehicle will
beep three times and the lif tgate will open.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
ACTIVE REGION
6
2485215_17b_Pathfinder_pQRG_111816b.indd 1211/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13
123

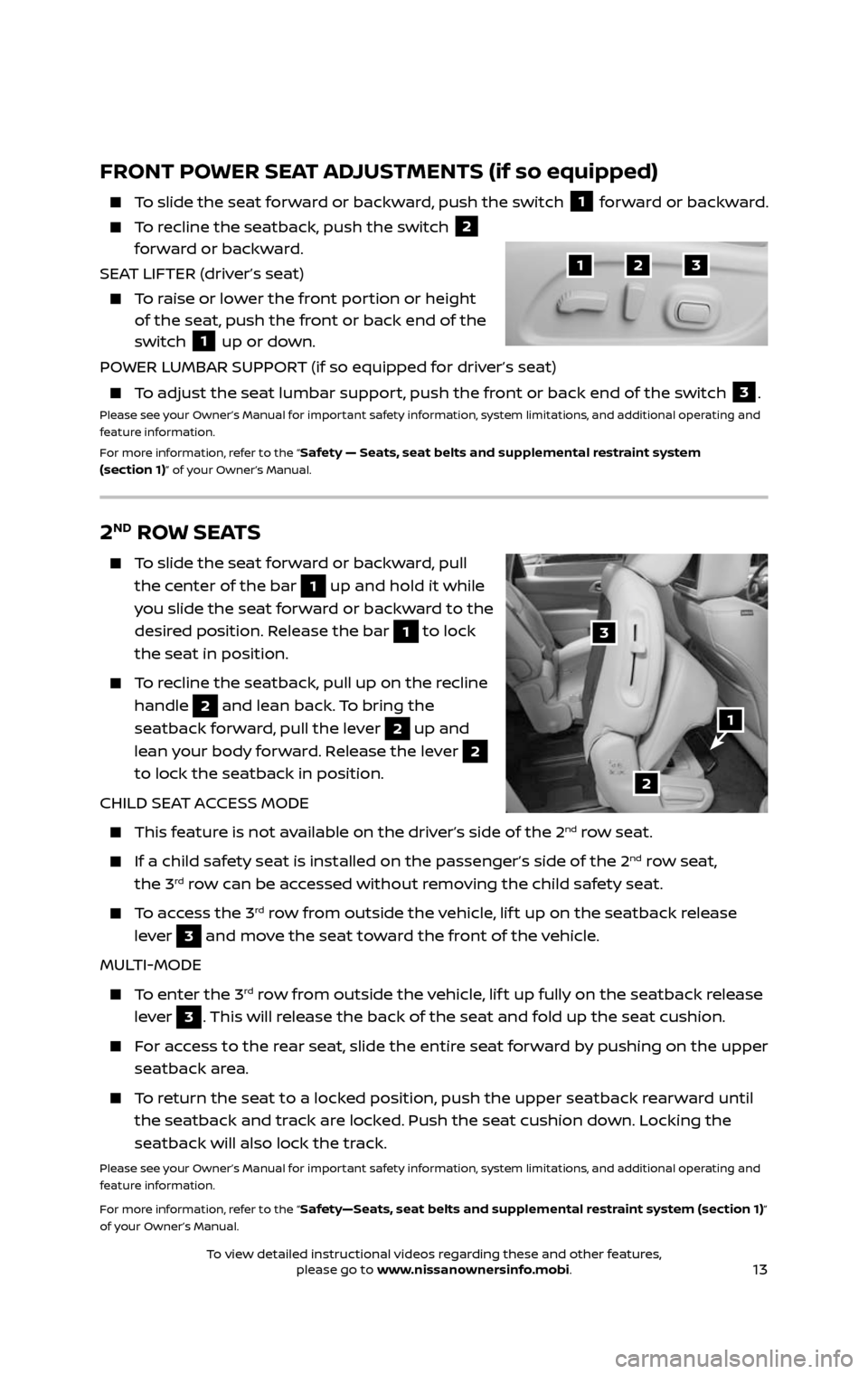

2ND ROW SEATS
To slide the seat forward or backward, pull
the center of the bar
1 up and hold it while
you slide the seat forward or backward to the
desired position. Release the bar
1 to lock
the seat in position.
To recline the seatback, pull up on the recline
handle 2 and lean back. To bring the
seatback forward, pull the lever
2 up and
lean your body forward. Release the lever
2
to lock the seatback in position.
CHILD SEAT ACCESS MODE
This feature is not available on the driver’s side of the 2nd row seat.
If a child saf ety seat is installed on the passenger’s side of the 2nd row seat,
the 3rd row can be accessed without removing the child safety seat.
To access the 3rd row from outside the vehicle, lif t up on the seatback release
lever
3 and move the seat toward the front of the vehicle.
MULTI-MODE
To enter the 3rd row from outside the vehicle, lif t up fully on the seatback release
lever
3. This will release the back of the seat and fold up the seat cushion.
For access to the rear seat, slide the entire seat forward by pushing on the upper
seatback area.
To return the seat to a locked position, push the upper seatback rearward until
the seatback and track are locked. Push the seat cushion down. Locking the
seatback will also lock the track.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Safety—Seats, seat belts and supplemental restraint system (section 1)”
of your Owner’s Manual.
2
3
1
FRONT POWER SEAT ADJUSTMENTS (if so equipped)
To slide the seat forward or backward, push the switch 1 forward or backward.
To recline the seatback, push the switch 2
forward or backward.
SEAT LIFTER (driver’s seat)
To raise or lower the front portion or height of the seat, push the front or back end of the
switch 1 up or down.
POWER LUMBAR SUPPORT (if so equipped for driver’s seat)
To adjust the seat lumbar support, push the front or back end of the switch 3.Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Safety — Seats, seat belts and supplemental restraint system
(section 1)” of your Owner’s Manual.
2485215_17b_Pathfinder_pQRG_111816b.indd 1311/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14

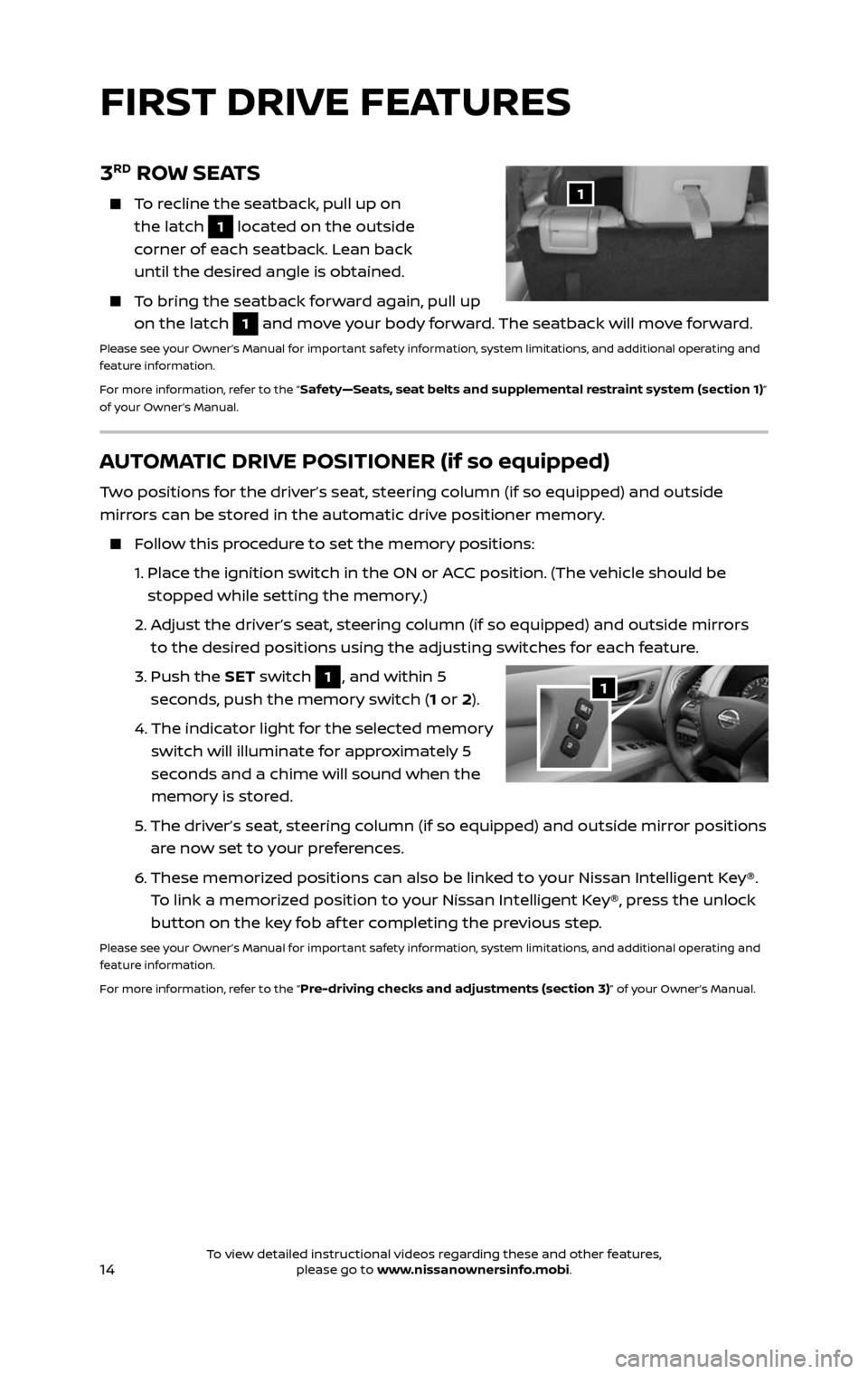

FIRST DRIVE FEATURES
AUTOMATIC DRIVE POSITIONER (if so equipped)
Two positions for the driver’s seat, steering column (if so equipped) and outside
mirrors can be stored in the automatic drive positioner memory.
Follow this procedure to set the memory positions:
1. Place the ignition switch in the ON or ACC position. (The vehicle should be
stopped while setting the memory.)
2. Adjust the driver’s seat, steering column (if so equipped) and outside mirrors
to the desired positions using the adjusting switches for each feature.
3. Push the SET switch 1, and within 5
seconds, push the memory switch (1 or 2).
4. The indic ator light for the selected memory
switch will illuminate for approximately 5
seconds and a chime will sound when the
memory is stored.
5. The driver’s seat, steering column (if so equipped) and outside mirror positions
are now set to your preferences.
6. These memoriz ed positions can also be linked to your Nissan Intelligent Key®.
To link a memorized position to your Nissan Intelligent Key®, press the unlock
button on the key fob af ter completing the previous step.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
3RD ROW SEATS
To recline the seatback, pull up on
the latch 1 located on the outside
corner of each seatback. Lean back
until the desired angle is obtained.
To bring the seatback forward again, pull up
on the latch 1 and move your body forward. The seatback will move forward.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
For more information, refer to the “
Safety—Seats, seat belts and supplemental restraint system (section 1)”
of your Owner’s Manual.
1
2485215_17b_Pathfinder_pQRG_111816b.indd 1411/18/16 1:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
