2017 NISSAN PATHFINDER Owners Manual

1Shows available command list. It is also
available to select a command from this list
by touching or using the multi-function con-
troller.
2Shows available command list. Displayed
commands are only available to execute
through Voice Recognition. You can say
commands from the left screen and the right
screen continuously.
3Previously selected command.
4Command list
You can say a command from the list, touch
the screen directly or select, using the steer-
ing switch or the multi-function controller.
You can say a preferred word for the < >
enclosed part of the command.
5“Previous”/ “Next” key
Say as a command or touch to go to the
previous/next screen. It cannot be selected
using the steering switch or multi-function
controller.
6Command numbers
Speak 1 to 6 numbers to select. Also, you can
touch the screen directly, using the steering
switch or the multi-function controller.
How to speak numbers
Voice Recognition requires the user speak num-
bers in a certain way when giving voice com-
mands.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if speaking 500, “five zero zero” can be
used, but “five hundred” cannot.)
First screen
5GD0015X
Second screen
5GD0016X
List screen
5GE0015X
4-138Monitor, climate, audio, phone and voice recognition systems

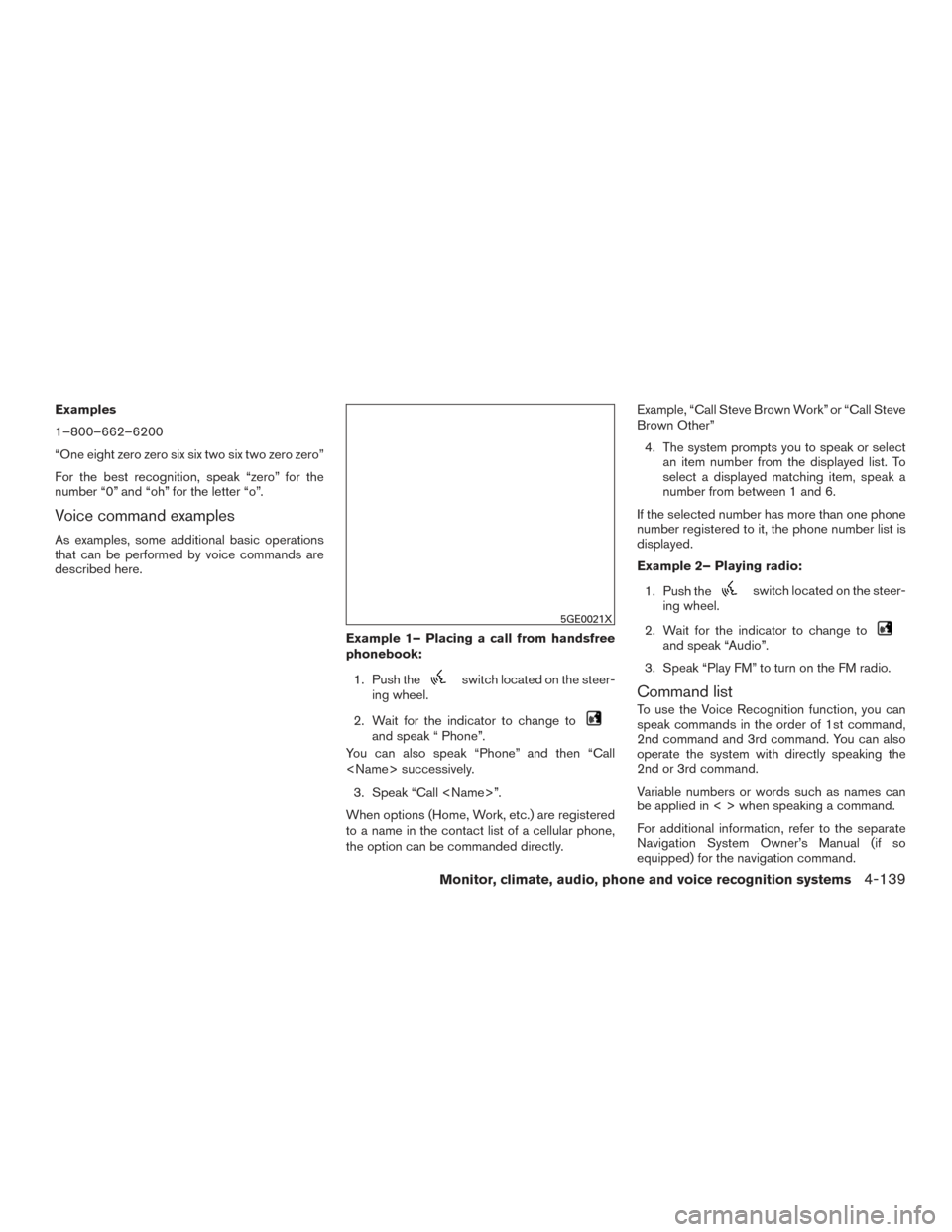

Examples
1–800–662–6200
“One eight zero zero six six two six two zero zero”
For the best recognition, speak “zero” for the
number “0” and “oh” for the letter “o”.
Voice command examples
As examples, some additional basic operations
that can be performed by voice commands are
described here.Example 1– Placing a call from handsfree
phonebook:1. Push the
switch located on the steer-
ing wheel.
2. Wait for the indicator to change to
and speak “ Phone”.
You can also speak “Phone” and then “Call
successively.
3. Speak “Call ”.
When options (Home, Work, etc.) are registered
to a name in the contact list of a cellular phone,
the option can be commanded directly. Example, “Call Steve Brown Work” or “Call Steve
Brown Other”
4. The system prompts you to speak or select an item number from the displayed list. To
select a displayed matching item, speak a
number from between 1 and 6.
If the selected number has more than one phone
number registered to it, the phone number list is
displayed.
Example 2– Playing radio:
1. Push the
switch located on the steer-
ing wheel.
2. Wait for the indicator to change to
and speak “Audio”.
3. Speak “Play FM” to turn on the FM radio.
Command list
To use the Voice Recognition function, you can
speak commands in the order of 1st command,
2nd command and 3rd command. You can also
operate the system with directly speaking the
2nd or 3rd command.
Variable numbers or words such as names can
be applied in < > when speaking a command.
For additional information, refer to the separate
Navigation System Owner’s Manual (if so
equipped) for the navigation command.
5GE0021X
Monitor, climate, audio, phone and voice recognition systems4-139

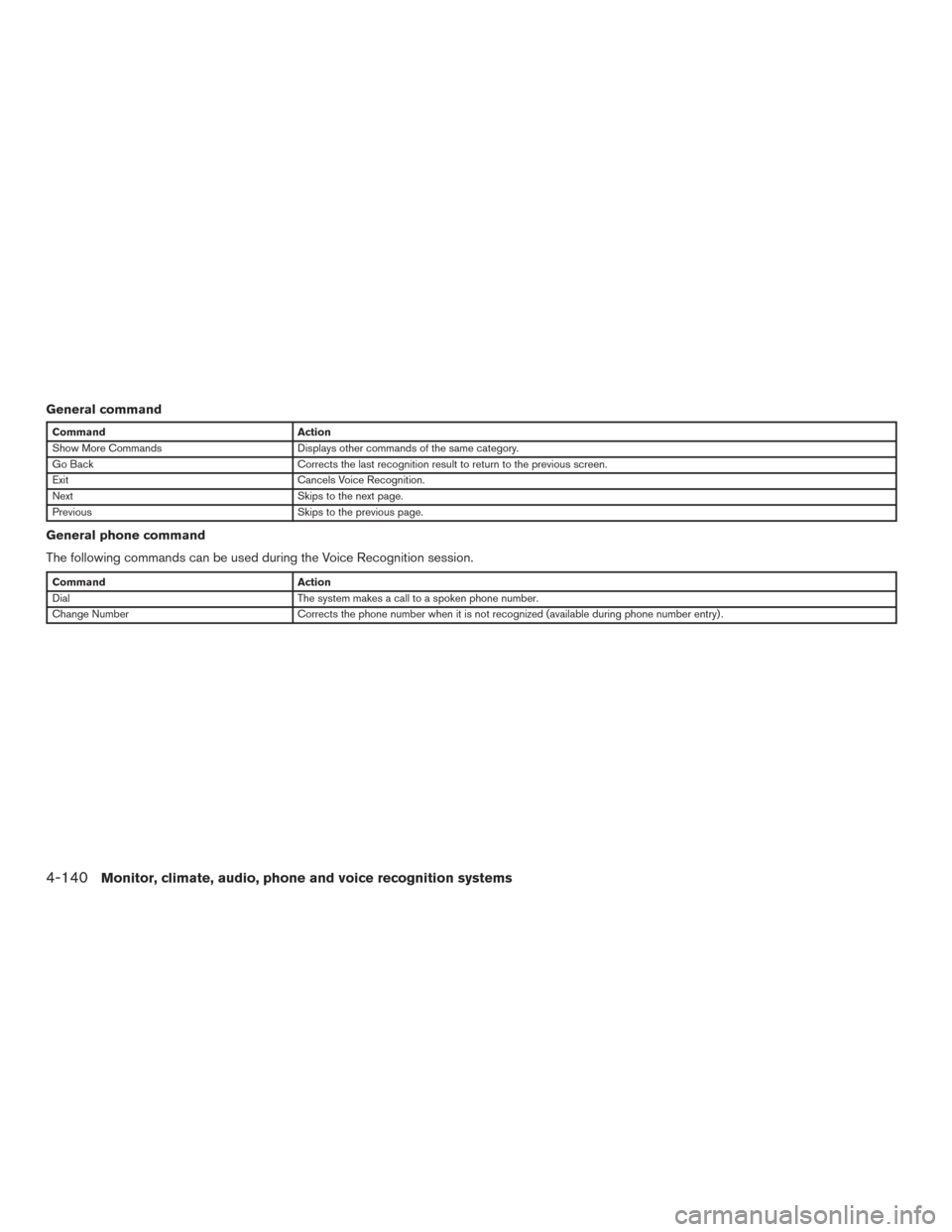

General command
CommandAction
Show More Commands Displays other commands of the same category.
Go Back Corrects the last recognition result to return to the previous screen.
Exit Cancels Voice Recognition.
Next Skips to the next page.
Previous Skips to the previous page.
General phone command
The following commands can be used during the Voice Recognition session.
CommandAction
Dial The system makes a call to a spoken phone number.
Change Number Corrects the phone number when it is not recognized (available during phone number entry) .
4-140Monitor, climate, audio, phone and voice recognition systems

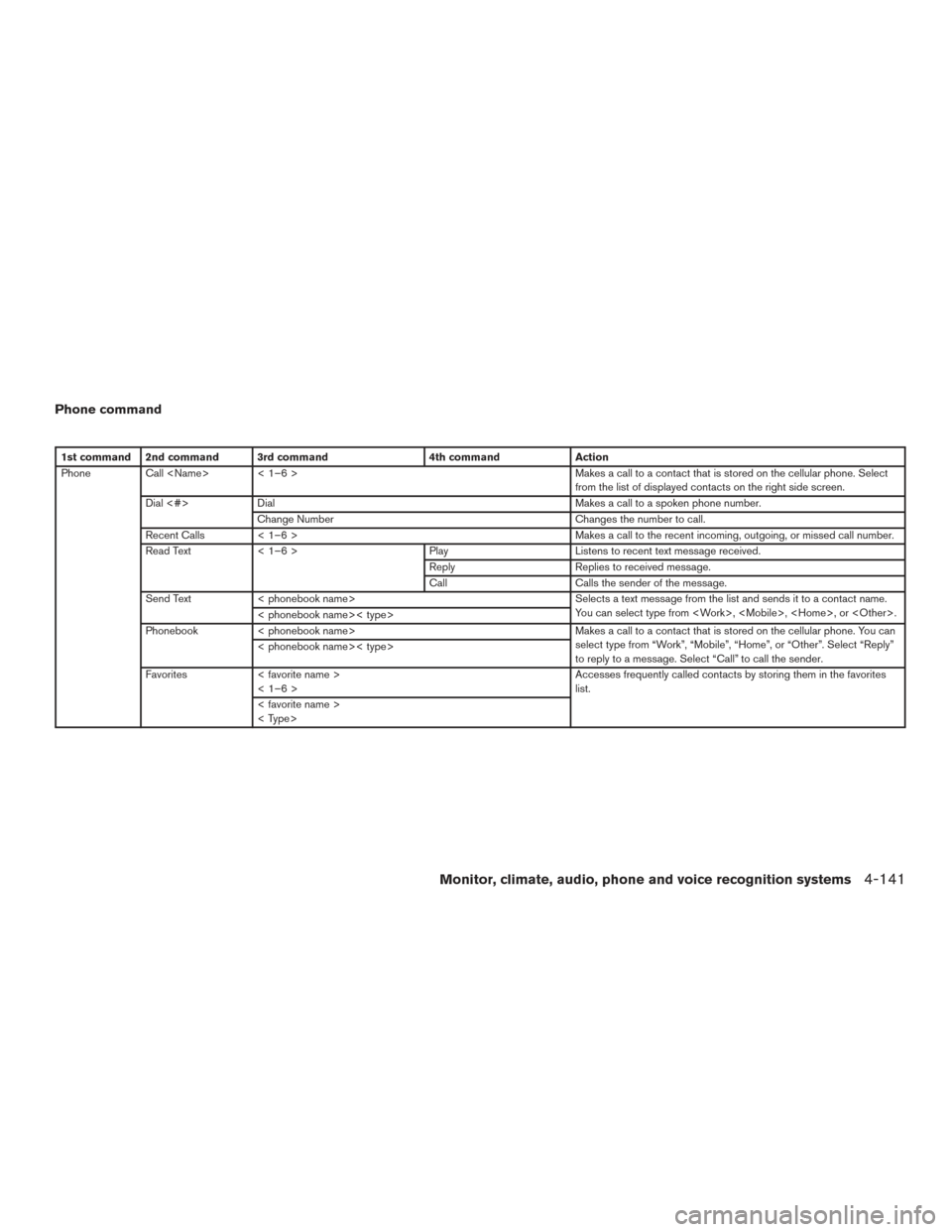

Phone command
1st command 2nd command 3rd command4th commandAction
Phone Call < 1–6 > Makes a call to a contact that is stored on the cellular phone. Select
from the list of displayed contacts on the right side screen.
Dial <#> Dial Makes a call to a spoken phone number.
Change Number Changes the number to call.
Recent Calls < 1–6 > Makes a call to the recent incoming, outgoing, or missed call number.
Read Text < 1–6 > PlayListens to recent text message received.
Reply Replies to received message.
Call Calls the sender of the message.
Send Text < phonebook name> Selects a text message from the list and sends it to a contact name.
You can select type from , , , or .
< phonebook name>< type>
Phonebook < phonebook name> Makes a call to a contact that is stored on the cellular phone. You can
select type from “Work”, “Mobile”, “Home”, or “Other”. Select “Reply”
to reply to a message. Select “Call” to call the sender.
< phonebook name>< type>
Favorites < favorite name >
< 1–6 > Accesses frequently called contacts by storing them in the favorites
list.
< favorite name >
< Type>
Monitor, climate, audio, phone and voice recognition systems4-141

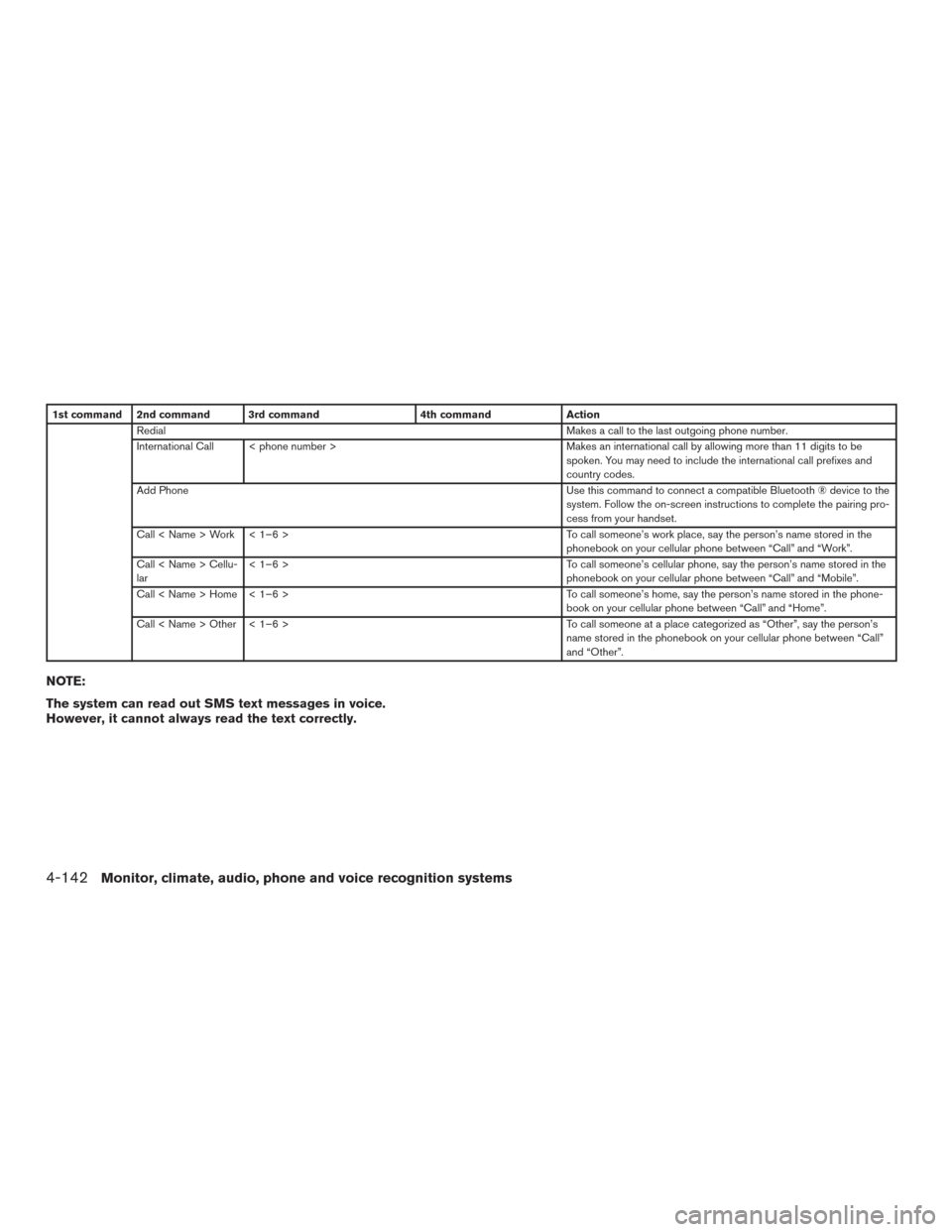

1st command 2nd command 3rd command4th commandAction
Redial Makes a call to the last outgoing phone number.
International Call < phone number > Makes an international call by allowing more than 11 digits to be
spoken. You may need to include the international call prefixes and
country codes.
Add Phone Use this command to connect a compatible Bluetooth ® device to the
system. Follow the on-screen instructions to complete the pairing pro-
cess from your handset.
Call < Name > Work < 1–6 > To call someone’s work place, say the person’s name stored in the
phonebook on your cellular phone between “Call” and “Work”.
Call < Name > Cellu-
lar < 1–6 >
To call someone’s cellular phone, say the person’s name stored in the
phonebook on your cellular phone between “Call” and “Mobile”.
Call < Name > Home < 1–6 > To call someone’s home, say the person’s name stored in the phone-
book on your cellular phone between “Call” and “Home”.
Call < Name > Other < 1–6 > To call someone at a place categorized as “Other”, say the person’s
name stored in the phonebook on your cellular phone between “Call”
and “Other”.
NOTE:
The system can read out SMS text messages in voice.
However, it cannot always read the text correctly.
4-142Monitor, climate, audio, phone and voice recognition systems

Audio command
1st command 2nd command3rd commandAction
Audio FM <87.7–107.9> Switches to the FM band, selecting the station of the preferred frequency.
SXM Switches to the SiriusXM Satellite Radio band, selecting the preferred channel.
USB Play Album Turns on the USB mode, selecting the album.
iPod Play Album Turns on the iPod® mode, selecting the album.
AM <530–1710> Switches to the AM band, selecting the preferred station.
FM <87.7–107.9> HD <#> Switches to the FM HD band, selecting the preferred station.
DISC Track <#> Turns on the CD, selecting the track number.
USB Play Song < Name> Switches to the USB, selecting the track. You can speak the commands
successively.
Play < Source Name> Plays the spoken audio source.
USB All Artists Displays the USB all artists list.
USB All Albums Displays the USB all albums list.
USB All Folders Displays the USB all folders list.
iPod All Artists Displays the iPod® all artists list.
iPod All Albums Displays the iPod® all albums list.
iPod All Songs Displays the iPod® all songs list.
Monitor, climate, audio, phone and voice recognition systems4-143

Notes on operating audio by Voice Recog-
nition● An audio device connected via Blutooth ®
cannot be operated with the Voice Recogni-
tion system. Source change is only available
for Bluetooth®streaming audio.
● Song title and Artist name information will be
overwritten when another iPod®/iPhone®
is connected after song titles and artists
names in the previously connected
iPod®/iPhone® have been installed. ●
If two USB devices are connected at the
same time, voice operation will only be avail-
able for use with one registered and se-
lected device. When selecting “YES” in the
pop-up screen that displays after a new
USB audio device is connected, the USB
audio device is registered in the Voice Rec-
ognition system and is selected automati-
cally. One iPod® and one USB device can
be registered in the system. If a USB audio
device is newly registered, old data is over-
written. It may take a few moments to regis-
ter an audio device. If you want to enable
voice operation for music stored on a previ-
ously registered audio device, select the de-
vice you want to use in advance. For addi-
tional information, refer to the Voice
Recognition settings in this section. Even when a device has been previously
registered, simply connecting the device will
not result in it being selected automatically.
●
The Voice Recognition system may not
function when the song information is too
long (artist names, album titles, song
titles, and playlists, etc.)
● The SXM function will not operate without
a subscription to SiriusXM Satellite Ra-
dio.
4-144Monitor, climate, audio, phone and voice recognition systems

Information command
1st command2nd command Action
Information Voice Menu Connects to the Nissan ConnectSMApps Services Response Specialists. For additional
information, refer to the Navigation System Owner’s Manual for details.
Fuel Prices Displays the fuel prices.
Weather Forecast Displays the weather forecast.
Current Weather Displays the nearby weather (current weather) .
Sports Scores Displays the sports scores.
Traffic Information* Turns the traffic information system on or off.
Route Information* Displays the route information.
*: Models with navigation system only.
NOTE:
The Fuel Prices, Weather Forecast, Current Weather, Sports Scores and Traffic Information will not operate without a subscription to
SiriusXM Radio
