2017 NISSAN PATHFINDER Owners Manual

Supported format and decode
Video codec
CodecProfileMaximum Resolution/Frame Rate Notes
DivX DivX 3.11/4/5/6 SD (720 x 576)/30 Only single-instance playback is supported for DivX 3.11.
Flash -1080 p/30 -
H.263 -1080 p/30 -
H.264 BP/MP/HP1080 p/30 Extended file not supported.
MPEG-1 -1080 p/30 -
MPEG-2 MP@ML1080 p/30 -
MPEG-4 SP/ASP1080 p/30 -
Real Video RV8/9/101080 p/30 -
XviD -SD (720 x 576)/30 -
WMV7/8 -D1/30 HD version not provided.
Only single instance playback is supported for WMV7/8
WMV9/VC-1 SP/MP/AP1080 p/30 Complex Profile not supported.
4-90Monitor, climate, audio, phone and voice recognition systems

Audio codec
CodecSupported Bitrates Sampling Frequency Channels Codec Features Supported
AAC (MPEG4 AAC-LC) 8 kbps - 320 kbps 8, 11.025, 16, 22.05, 24,
32, 44.1, 48 KHz Mono/Stereo/ 5.1 -> Stereo
Downmixing- Complies with ISO/IEC 13818-7
- ADTS/ADIF Output
- Modes: Mono, Stereo, Dual Mono, Joint Stereo (Intensity
Stereo (IS) and Mid-side Stereo (MS))
- All tools of 13818-7 LC + PNS supported
- CRC check supported
- Header formats: AAC, ADIF, ADTS
AAC+ (ENHANCED
AAC+) Up to 264 kbps
Up to 48 KHzMono/Stereo- Modes: Mono, Stereo, Dual Mono
- Header formats: ADIF, ADTS
Linear PCM - Up to 48 KHzStereoMax 16bit only
RealAudio (3, 6, 9, 10) 6 to 96 kbps 8, 11.025, 22.05, 44.1 KHz Mono/Stereo Downmixing is not supported.
Dolby Digital 64 to 640 kbps 48 KHzMono/Stereo/ 5.1 -> Stereo
Downmixing Modes: Mono, Stereo, 5.1 -> Stereo Downmixing
MP3 32 to 320 kbps
(MPEG-1 Layer 1,2,3)
8 to 160 kbps
(MPEG-2 Layer 1,2,3) 8/11.025/12 KHz
(MPEG-2.5)
16/22.05 /24 KHz
(MPEG-2)
32/44.1/48 KHz (MPEG-1)Mono/Stereo
- Complies with ISO 11172-3 and ISO 13818-3
- Modes: Mono, Stereo, Dual Mono, Joint Stereo (Intensity
Stereo (IS) and Mid-side Stereo (MS))
- CRC check supported
OGG Vorbis Up to 128 kbps 8 to 48 KHzMono/Stereo-
WMA v9 (std)
WMA v10 (std) Up to 384 kbps
Up to 48 KHzMono/Stereo- Decodes WMA streams generated using encoder v2, v7,
v8, v9, v10 content.
- Supports all L1, L2, and L3 profiles.
Depending on the combination of video codec, audio codec, and format, some files cannot be played with the Mobile Entertainment System.
Monitor, climate, audio, phone and voice recognition systems4-91

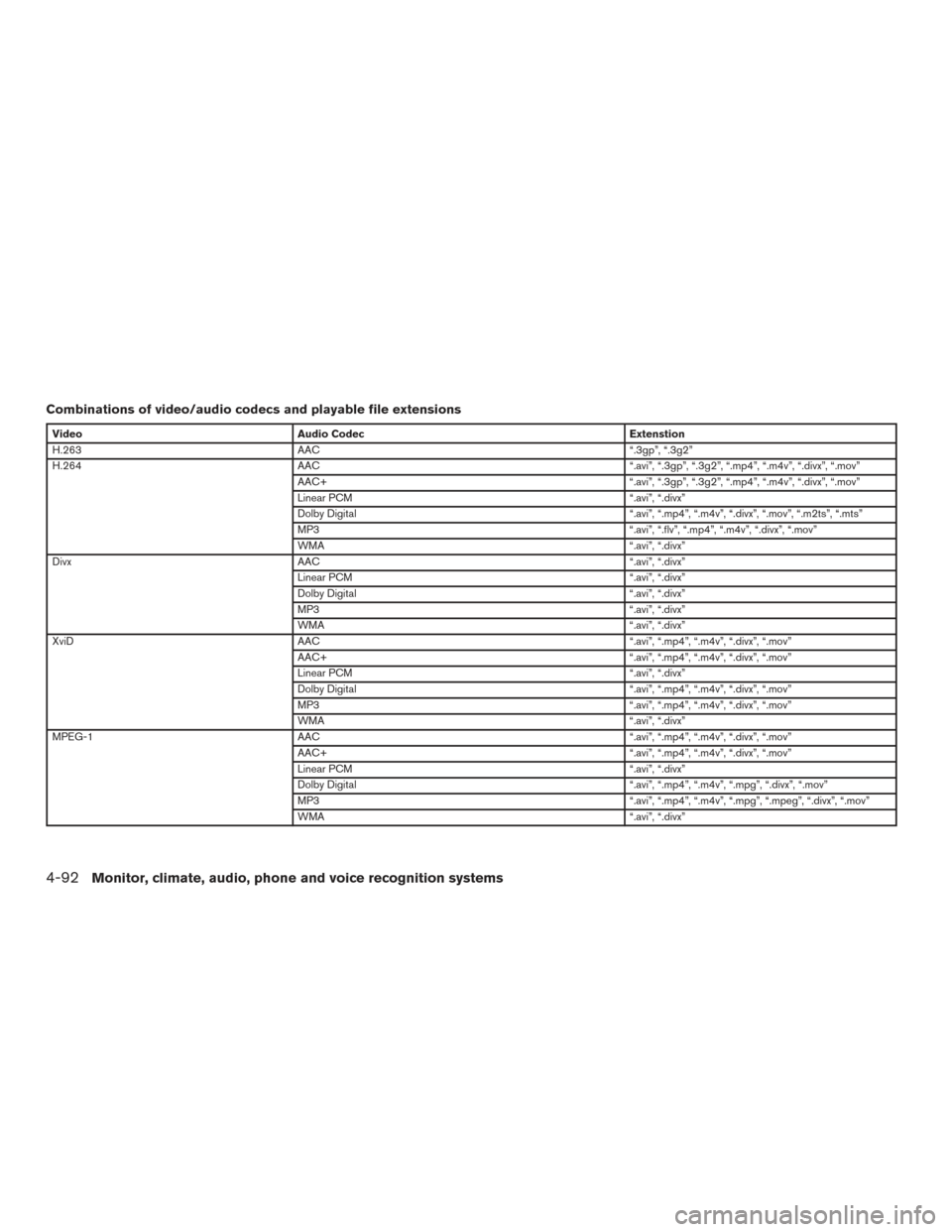

Combinations of video/audio codecs and playable file extensions
VideoAudio Codec Extenstion
H.263 AAC “.3gp”, “.3g2”
H.264 AAC “.avi”, “.3gp”, “.3g2”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.3gp”, “.3g2”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”, “.m2ts”, “.mts”
MP3 “.avi”, “.flv”, “.mp4”, “.m4v”, “.divx”, “.mov”
WMA “.avi”, “.divx”
Divx AAC “.avi”, “.divx”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.divx”
MP3 “.avi”, “.divx”
WMA “.avi”, “.divx”
XviD AAC “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
MP3 “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
WMA “.avi”, “.divx”
MPEG-1 AAC “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.mpg”, “.divx”, “.mov”
MP3 “.avi”, “.mp4”, “.m4v”, “.mpg”, “.mpeg”, “.divx”, “.mov”
WMA “.avi”, “.divx”
4-92Monitor, climate, audio, phone and voice recognition systems

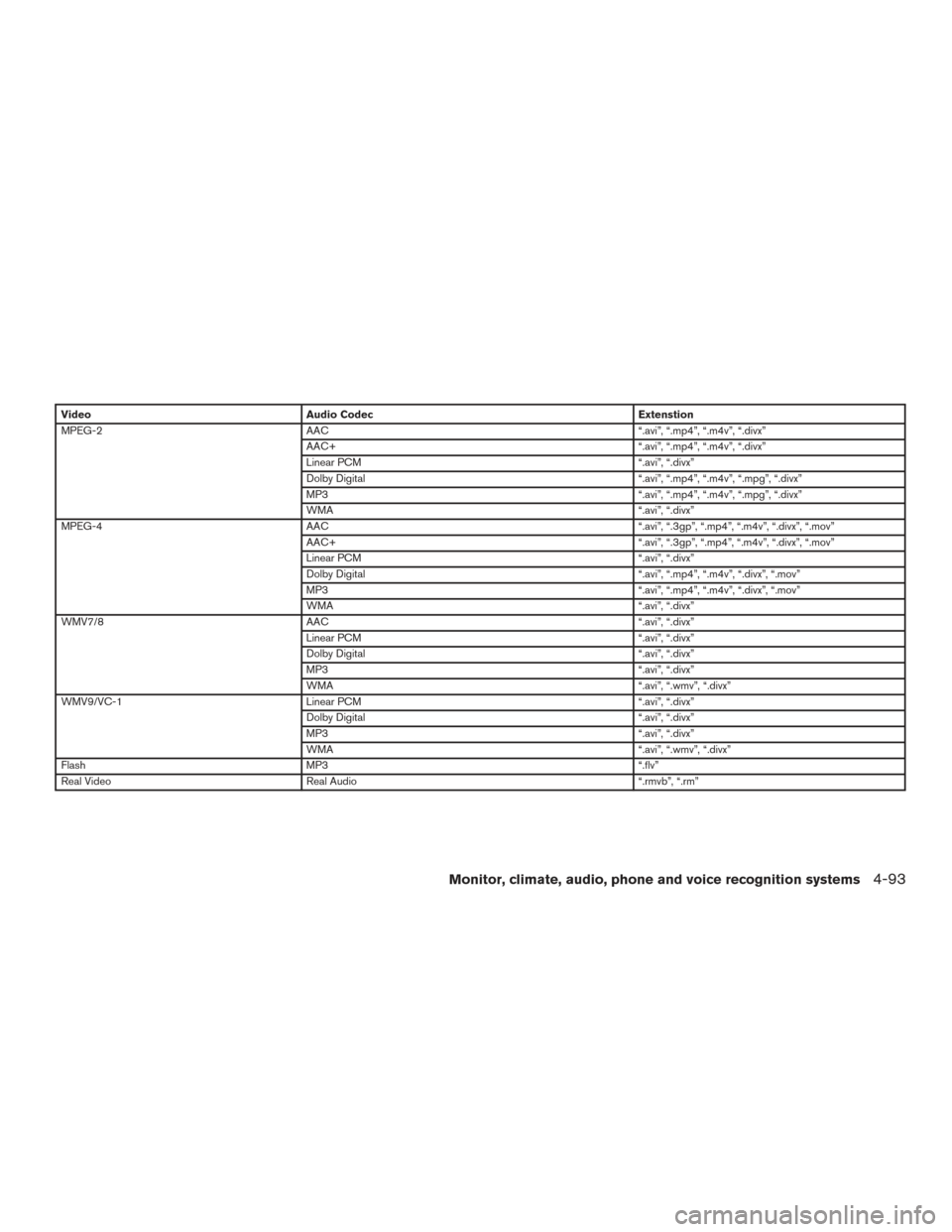

VideoAudio Codec Extenstion
MPEG-2 AAC “.avi”, “.mp4”, “.m4v”, “.divx”
AAC+ “.avi”, “.mp4”, “.m4v”, “.divx”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.mpg”, “.divx”
MP3 “.avi”, “.mp4”, “.m4v”, “.mpg”, “.divx”
WMA “.avi”, “.divx”
MPEG-4 AAC “.avi”, “.3gp”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.3gp”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
MP3 “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
WMA “.avi”, “.divx”
WMV7/8 AAC “.avi”, “.divx”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.divx”
MP3 “.avi”, “.divx”
WMA “.avi”, “.wmv”, “.divx”
WMV9/VC-1 Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.divx”
MP3 “.avi”, “.divx”
WMA “.avi”, “.wmv”, “.divx”
Flash MP3 “.flv”
Real Video Real Audio “.rmvb”, “.rm”
Monitor, climate, audio, phone and voice recognition systems4-93

VideoAudio Codec Extenstion
Without Picture (Audio only) AAC “.m4a”, “.aac”
AAC+ “.m4a”, “.aac”
Linear PCM “.wav”, “.aiff”
Dolby Digital “.m4a”, “.ac3”
MP3 “.mp3”, “.m4a”
Ogg Vorbis “.ogg”
WMA “.wma”
Apple support
When an iPhone®, iPad®, or iPod® is con-
nected, the MES will play music with the iPod
technology and initiate quick charging (up to 2.1
A) . The following Apple products are supported:
● iPhone® 5s (iOS 7.0.4)
● iPhone® 5c (iOS 7.1)
● iPhone® 5 (iOS 6.1.4)
● iPhone® 4S (iOS 5.1.1)
● iPhone® 4 (iOS 7.1)
● iPhone® 3GS (iOS 6.1.6)
● iPhone® 3G (iOS 4.2.1)
● iPad® (4th generation) (iOS 7.0.4)
● iPad® (3rd generation) (iOS 6.0)
● iPad® (2nd generation) (iOS6.0) ●
iPad® (1st generation) (iOS 5.1.1)
● iPad Air® (iOS 7.0.4)
● iPad miniTM(2nd generation) (iOS 7.0.4)
● iPad mini
TM(1st generation) (iOS 7.0.4)
● iPod touch® (5th generation) (iOS 6.1.3)
● iPod touch® (4th generation) (iOS 6.1.3)
● iPod touch® (3rd generation) (iOS 5.1.1)
● iPod touch® (2nd generation) (iOS 4.2.1)
● iPod touch® (1st generation) (iOS 3.1.3)
● iPod nano® (7th generation) (Firmware ver-
sion 1.0.2)
● iPod nano® (6th generation) (Firmware ver-
sion 1.2)
● iPod nano® (5th generation) (Firmware ver-
sion 1.0.2) ●
iPod nano® (4th generation) (Firmware ver-
sion 1.0.3)
● iPod nano® (3rd generation) (Firmware ver-
sion 1.1.2)
● iPod nano® (2nd generation) (Firmware ver-
sion 1.1.3)
● iPod nano® (1st generation) (Firmware ver-
sion 1.3.1)
● iPod classic® (160 GB) (End 2009) (Firm-
ware version 2.0.4)
● iPod classic® (120 GB) (Firmware version
2.0.1)
● iPod classic® (Firmware version 1.1.2)
4-94Monitor, climate, audio, phone and voice recognition systems

“Made for iPod”, “Made for iPhone”, and “Made
for iPad” mean that an electronic accessory has
been designed to connect specifically to iPod,
iPhone, or iPad, respectively, and has been cer-
tified by the developer to meet Apple perfor-
mance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod
touch, and Retina are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
Air and iPad mini are trademarks of Apple Inc.
Licenses
Dolby:
Manufactured under license from Dolby Labora-
tories. Dolby and the double-D symbol are trade-
marks of Dolby Laboratories.DivX:
This DivX Certified® device has passed rigorous
testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your
device at vod.divx.com. Find your registration
code in the DivX VOD section of your device
setup menu.
DivX®, DivX Certified® and associated logos
are trademarks of DivX, LLC and are used under
license.
Covered by one or more of the following U.S.
patents: 7,295,673; 7,460,668; 7,515,710;
8,656,183; 8,731,369; RE45,052.
DivX Certified® to play DivX® video, including
premium content.
DivX®, DivX Certified®
and associated logos are
trademarks of DivX, LLC
and are used under
license.
RMVB:
Portions of this software are included under li-
cense from RealNetworks, Inc. Copyright
1995–2011, RealNetworks, Inc. All rights re-
served.HDMI:
The terms HDMI and HDMI High-Definition Mul-
timedia Interface, and the HDMI Logo are trade-
marks or registered trademarks of HDMI Licens-
ing LLC in the United States and other countries.
Les termes HDMI et HDMI High-Definition Multi-
media Interface, de même que le logo HDMI sont
des marques commerciales ou des marques dé-
posées de HDMI Licensing, LLC aux États-Unis
et dans d’autres pays.
MPEG4–AVC (H.264):
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERICIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (ii) DECODE AVC
VIDEO THAT WAS ENCODED BY A CON-
SUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LI-
CENSED TO PROVIDE AVC VIDEO. NO LI-
CENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFOR-
MATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
Monitor, climate, audio, phone and voice recognition systems4-95

VC-1:
THIS PRODUCT IS LICENSED UNDER THE
VC-1 PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR (ii) DECODE VC-1
VIDEO THAT WAS ENCODED BY A CON-
SUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LI-
CENSED TO PROVIDE VC-1 VIDEO. NO LI-
CENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFOR-
MATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
MPEG-4 VISUAL:
USE OF THIS PRODUCT IN ANY MANNER
THAT COMPLIES WITH THE MPEG-4 VISUAL
STANDARD IS PROHIBITED, EXCEPT FOR
USE BY A CONSUMER ENGAGING IN PER-
SONAL AND NON-COMMERCIAL ACTIVI-
TIES.
MP3:
MPEG Layer-3 audio coding technology li-
censed from Fraunhofer IIS and Thomson.WMA/WMV:
This product includes technology owned by Mi-
crosoft Corporation and under a license from
Microsoft Licensing, GP. Use or distribution of
such technology outside of this product is pro-
hibited without a license from Microsoft
Corporation and/or Microsoft Licensing, GP as
applicable.
Natune surround sound:
Le son surround Natune
est un terme général pour
la famille de la dernière
technologie de traitement
de signal acoustique
produite par DiMAGIC
Co., Ltd.
CONNECTING REAR MEDIA
INTERFACE
Ports for the USB1and HDMI2interface are
located at the rear of the center console box.
Compatible devices connected to the ports can
be played on the rear displays. Turn off the power
of the portable device before connecting to the
port.
LHA4288
4-96Monitor, climate, audio, phone and voice recognition systems

REMOTE CONTROLLER AND
HEADPHONES
Remote controller
A remote controller is provided with the Mobile
Entertainment System.The remote controller is for the rear display op-
eration and cannot be used to control portable
devices.
The following buttons/switches are on the re-
mote controller.
1button
The rear displays can be activated or deac-
tivated individually.
2HOME button
Push to display the HOME screen. Select
the media from the DVD, AUX, USB and
HDMI interface device.
3buttons (select
buttons)
Push the select buttons to select the items
displayed on the rear screens.
4BACK button
Push to go back to the previous screen
5Keypad
Push the keys below for operations.
button Push play or pause the movie
button Push to stop playing the
movie
button Push to select the next chap-
ter. Push and hold to fast-forward the chap-
ter.
button Push once to return to the
beginning of the current chapter. Push again
to select the previous chapter. Push and
hold to rewind the current chapter.
JVH1388X
Monitor, climate, audio, phone and voice recognition systems4-97
