2017 NISSAN PATHFINDER Owners Manual

●Dolby digital is manufactured under license
from Dolby Laboratories, Inc.
● Dolby and the double D mark
are
trademarks of Dolby Laboratories, Inc.
● DTS is a registered trademark DTS, Inc. and
DTS 2.0 “
” is a trademark of DTS, Inc.
Parental level (parental control):
DVDs with the parental control settings can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selection:
You can play the following disc formats with the
DVD drive:
● DVD-Video
● Video-CD
● DTS-CD
Use DVDs with the region code “ALL” or the code
applicable to your DVD player. (The region code
Ais displayed as a small symbol printed on the
DVD
B.) This vehicle-installed DVD player can
only play DVDs with an applicable region code. Do not use the following DVDs as they may
cause the DVD player to malfunction:
● 3.1 in (8 cm) discs
● DVDs with incompatible region code
● DVDs that are not round
● DVDs with a paper label
● DVDs that are warped, scratched, or
have unequal edges
The following DVDs may not work properly: ● Recordable digital video discs (DVD-R)
● Rewritable digital video discs (DVD-RW)
Specification chart for DVD
Playable media:
The following media can be played on the system.
● DVD+RW
● DVD+R
● DVD+R DL
● DVD-RW (corresponds to CPRM)
● DVD-R (corresponds to CPRM)
● DVD-R DL (corresponds to CPRM)
● DVD-ROM
● Duel DISC (not guaranteed)
LHA0484
4-66Monitor, climate, audio, phone and voice recognition systems

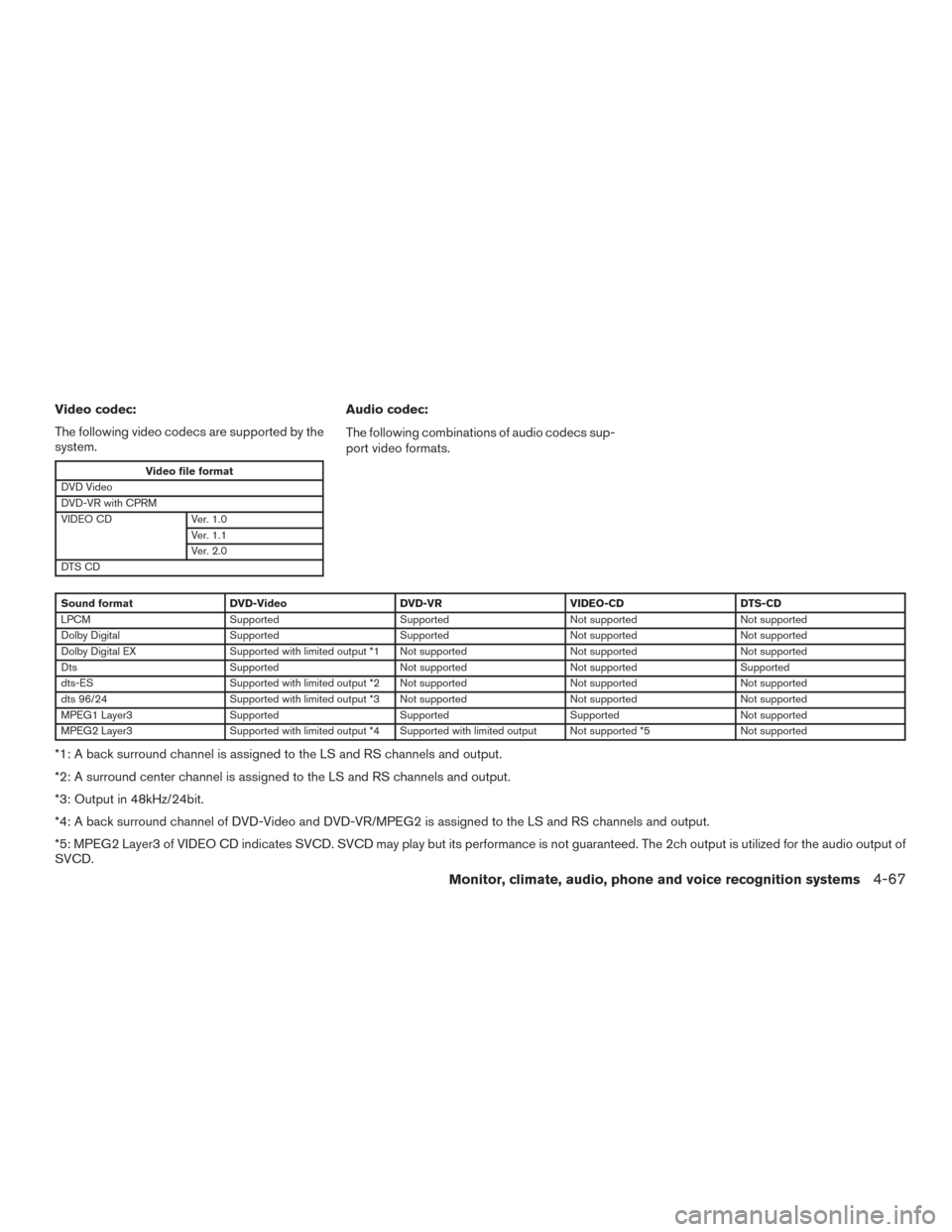

Video codec:
The following video codecs are supported by the
system.
Video file format
DVD Video
DVD-VR with CPRM
VIDEO CD Ver. 1.0
Ver. 1.1
Ver. 2.0
DTS CD
Audio codec:
The following combinations of audio codecs sup-
port video formats.
Sound format DVD-Video DVD-VRVIDEO-CDDTS-CD
LPCM Supported SupportedNot supportedNot supported
Dolby Digital Supported SupportedNot supportedNot supported
Dolby Digital EX Supported with limited output *1 Not supported Not supportedNot supported
Dts Supported Not supportedNot supportedSupported
dts-ES Supported with limited output *2 Not supported Not supportedNot supported
dts 96/24 Supported with limited output *3 Not supported Not supportedNot supported
MPEG1 Layer3 Supported SupportedSupportedNot supported
MPEG2 Layer3 Supported with limited output *4 Supported with limited output Not supported *5 Not supported
*1: A back surround channel is assigned to the LS and RS channels and output.
*2: A surround center channel is assigned to the LS and RS channels and output.
*3: Output in 48kHz/24bit.
*4: A back surround channel of DVD-Video and DVD-VR/MPEG2 is assigned to the LS and RS channels and output.
*5: MPEG2 Layer3 of VIDEO CD indicates SVCD. SVCD may play but its performance is not guaranteed. The 2ch output is utilized for the audio output of
SVCD.
Monitor, climate, audio, phone and voice recognition systems4-67

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONSMain audio buttons
1button
Push to eject a disc.
2Disc slot: Insert a disc with the label side facing up.
3Radio memory buttons
Up to six preferred stations can be regis-
tered in the preset list for each band.
4VOL/ON•OFF button
Push to turn the audio system on/off.
Turn to adjust the volume.
5RADIO button
Push to switch to the radio mode. The radio
band will switch between AM, FM and SXM
(SiriusXM) each time the button is pushed.
6SCAN button
Scans at each broadcasting station/channel
for 5 seconds. Pushing the button again will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
7RPT RDM button
Changes the play mode.
8DISC button
Plays the CD or DVD.
9SEEK•CAT button
Functions to seek radio stations or to skip
and fast-forward /rewind through tracks.
LHA4356
4-68Monitor, climate, audio, phone and voice recognition systems

10TRACKbutton
Functions to seek radio stations or to skip
and fast-forward through tracks.
11MEDIA button
Each time the button is pushed, a different
audio source (iPod®, USB, Bluetooth®
streaming audio, AUX or Rear Display) will
be selected.
12TUNE/FOLDER AUDIO button
Bass, treble, balance and fade can also be
adjusted by pushing this button and turning
the knob to select the item to adjust.
Steering Wheel Switch for Audio
Control
The audio system can be operated using the
controls on the steering wheel.
1.
Tuning switch/ENTER button
2.
(back) switch
3. SOURCE switch
4. Volume control switch
SOURCE switch
With the ignition switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on. Push the SOURCE switch to change the mode.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Tuning switch/ENTER
button
While the display is showing a MAP, STATUS or
Audio screen, tilt the Tuning switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch
up/down for more than 1.5 seconds provides a
different function than tilting up/down for less
than 1.5 seconds.
AM and FM
● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
XM ● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
LHA3170
Monitor, climate, audio, phone and voice recognition systems4-69

iPod®● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
CD ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number (if
playing compressed audio files) .
DVD ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the title number.
USB ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.
Bluetooth® Audio ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.(back) switch
Press the
(back) switch to return to the
previous screen or cancel the current selection.
NOTE:
You are unable to operate the display of the
NissanConnect
SMusing the buttons on the
steering switch whenever the meter shows
the setting display.
ANTENNA
The antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise.
To install the antenna rod, turn the antenna rod
clockwise and hand tighten.
CAUTION
● Always properly tighten the antenna
rod during installation or the antenna
rod may break during vehicle operation.
● Be sure that the antenna is removed
before the vehicle enters an automatic
car wash.
Window antenna
The antenna pattern is printed inside the rear
window.
CAUTION
●Do not place metalized film near the
rear window glass or attach any metal
parts to it. This may cause poor recep-
tion or noise.
● When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a
dampened soft cloth.
AUDIO MAIN OPERATION
Turning audio system on/off
The ignition switch must be in the ACC or ON
position to turn on the audio system. Push the
ON•OFF button on the steering wheel to turn on
the last audio source which was playing immedi-
ately before the system was turned off. To turn off
the audio system, push the ON•OFFbutton on
the steering wheel again.
Displaying Audio screen
Push the AUDIObutton on the control panel to
display the current audio screen.
4-70Monitor, climate, audio, phone and voice recognition systems

Selecting audio source
1. Turn on the audio source menu screen bytouching the “Source” key on the upper left
corner of the audio screen.
2. Select an item from the audio source menu screen.
● Pushing the RADIO,DISC,MEDIA or
SOURCE button on the steering switch can
also change the audio source. For additional
information, refer to “Names and functions of
audio control buttons” in this section.
● If the audio system has been turned off while
one of the audio sources was playing, turn-
ing the audio system back on will play the
audio source that was playing when the sys-
tem was turned off.
● The audio source can also be changed with
the source bar on top of the audio screen.
Audio source bar
The audio source can be changed with the
source bar on top of the audio screen. The
source bar display can be turned on/off. Turning source bar on/off
You can select whether the source bar on top of
the audio screens is displayed or not.
1. Touch the “Source” key on the upper left corner of the audio screen.
2. Touch the “Show Source Bar” key to turn the indicator on/off. Editing source bar
The audio sources to be displayed on the source
bar can be changed.
1. Touch the “Source” key on the upper left corner of the audio screen.
2. Touch the “Edit Source Bar” key.
3. Touch one of the keys on the source bar and then touch one of the audio sources from the
source list to register the audio source in the
source bar.
5GA0025X
Monitor, climate, audio, phone and voice recognition systems4-71

RADIO
How to view radio operation screen
*For models with radio status indicator and
reception information display.The radio screen can be viewed and operated on
the display.1Radio mode indicator: The current radio
mode is displayed.
2“Source” key: Touch to switch to the source
select screen. For additional information, re-
fer to “Selecting audio source” in this sec-
tion.
3“Control” key: Touch to display the control
screen. For additional information, refer to
“Radio controls” in this section.
4HD Radio reception status indicator (for AM
and FM):
The icon is displayed when the HD Radio
digital signal is received. The icon flashes
when the radio is acquiring the digital signal
but the sound output is not yet in the HD
mode.
5Radio band indicator: The currently selected
radio band (AM, FM or SXM) is displayed.
6Reception information display: Reception in-
formation available at the time such as fre-
quency, station/channel name, etc. are dis-
played.
On the SXM screen, touch the area to dis-
play the category list.
736 stations/channels can be registered in
the preset list.
For additional information, refer to “Preset-
ting” in this section.
NAA1716
4-72Monitor, climate, audio, phone and voice recognition systems

NOTE:
HD Radio reception needs to be activated to
receive HD Radio broadcasts. This enables you
to receive radio broadcasts digitally (where avail-
able) , providing a better quality sound with clear
reception. When this feature is not activated or
HD Radio broadcasts are not available, you will
receive analog radio (AM/FM broadcasts) .
Radio source control
There are 2 elements used in the preset list area
that are associated with radio source:
1Highlight for multi-function controller opera-
tion.
2(With triangle) Indicator of current selected
preset station.
Radio operation
Radio activation and band selection
Push the RADIO button or select the preferred
radio band (AM, FM or SXM) from the audio
source list to turn on the radio. Each time the RADIO button is pushed, the radio band will
change. For additional information, refer to “Se-
lecting audio source” in this section.
NOTE:
When the stereo broadcast signal is weak,
the radio will automatically change from
stereo to monaural reception.
Seeking stations/channels
AM and FM radio
Push the SEEK•CAT button or TRACK button to
tune from low to high or high to low frequencies
and to stop at the next broadcasting station.
SiriusXM Satellite Radio
Push the SEEK•CAT button or TRACK button to
tune to the first channel of the next or previous
category.
Scan tuning
To tune the stations/channels, touch the “Con-
trol” key on the display and touch the “Scan” key.
The stations will be turned from low to high
frequencies and stop at each broadcasting sta-
tion for 5 seconds. Touching the “Scan” key again
during this 5 second period will stop scan tuning
and the radio will remain tuned to that station.
Pushing the SCAN button can also scan tune.
NAA1717
Monitor, climate, audio, phone and voice recognition systems4-73
