Scrolling through a message or list:
Turn the TUNE-SCROLL knob to scroll through
a message or a list. When scrolling a lengthy list,
you can also touch the screen and slide your fin-
ger along the scroll bar where shown to scroll
more quickly. Touching the up or down arrow will
move between pages of the list.MENU SCREEN OPERATION Menu screens and their purpose
Press one of the application buttons to activate
the corresponding menu screen:
●NAV (Navigation)
●
or MENU
LNV3014(Type A)LNV2448(Type B)LNV2478
Getting started2-9

How to select a menu item
1. As an alternative to using the touch screen,turn the TUNE-SCROLL knob clockwise or
counter-clockwise to scroll through the
menu items until the preferred item is
highlighted.
2. To select the preferred item, press the TUNE-SCROLL knob.
3. Press the BACK or
BACK button.
The previous screen will be displayed and
the changes will be saved.
HOW TO INPUT CHARACTERS
Character (letter and number) input
screen
Alphanumeric characters are used when setting
a destination, searching for an address, editing
stored locations, etc.
1. Touch characters on the touch keyboardand they will appear in the field at the top of
the screen. When the entry is complete,
touch the “OK” key.
Alternatively, use the scrolling knob to high-
light a character and press the knob to se-
lect that character.
NOTE:
● Press the
BACK button to delete the
last inputted character or to return to the pre-
vious screen if no characters have been
inputted.
● On every character entry screen, the touch
keyboard will display only the letters that are
possible to enter after the current letter.
● Symbol and number keys are available when
the “123/ABC” key is touched.
(Type C)LNV2476LNV2415
2-10Getting started

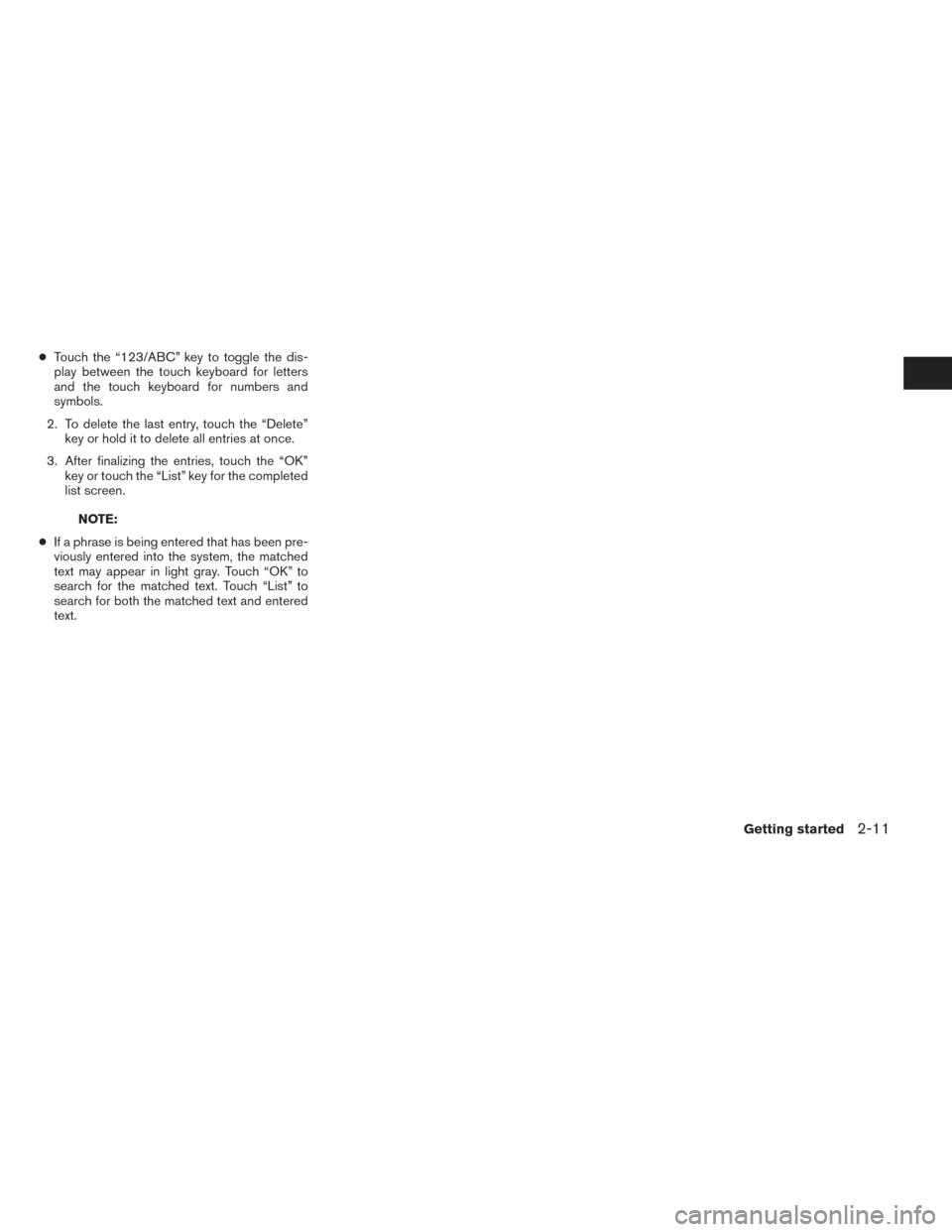

●Touch the “123/ABC” key to toggle the dis-
play between the touch keyboard for letters
and the touch keyboard for numbers and
symbols.
2. To delete the last entry, touch the “Delete” key or hold it to delete all entries at once.
3. After finalizing the entries, touch the “OK” key or touch the “List” key for the completed
list screen.
NOTE:
● If a phrase is being entered that has been pre-
viously entered into the system, the matched
text may appear in light gray. Touch “OK” to
search for the matched text. Touch “List” to
search for both the matched text and entered
text.
Getting started2-11

2-12Getting started

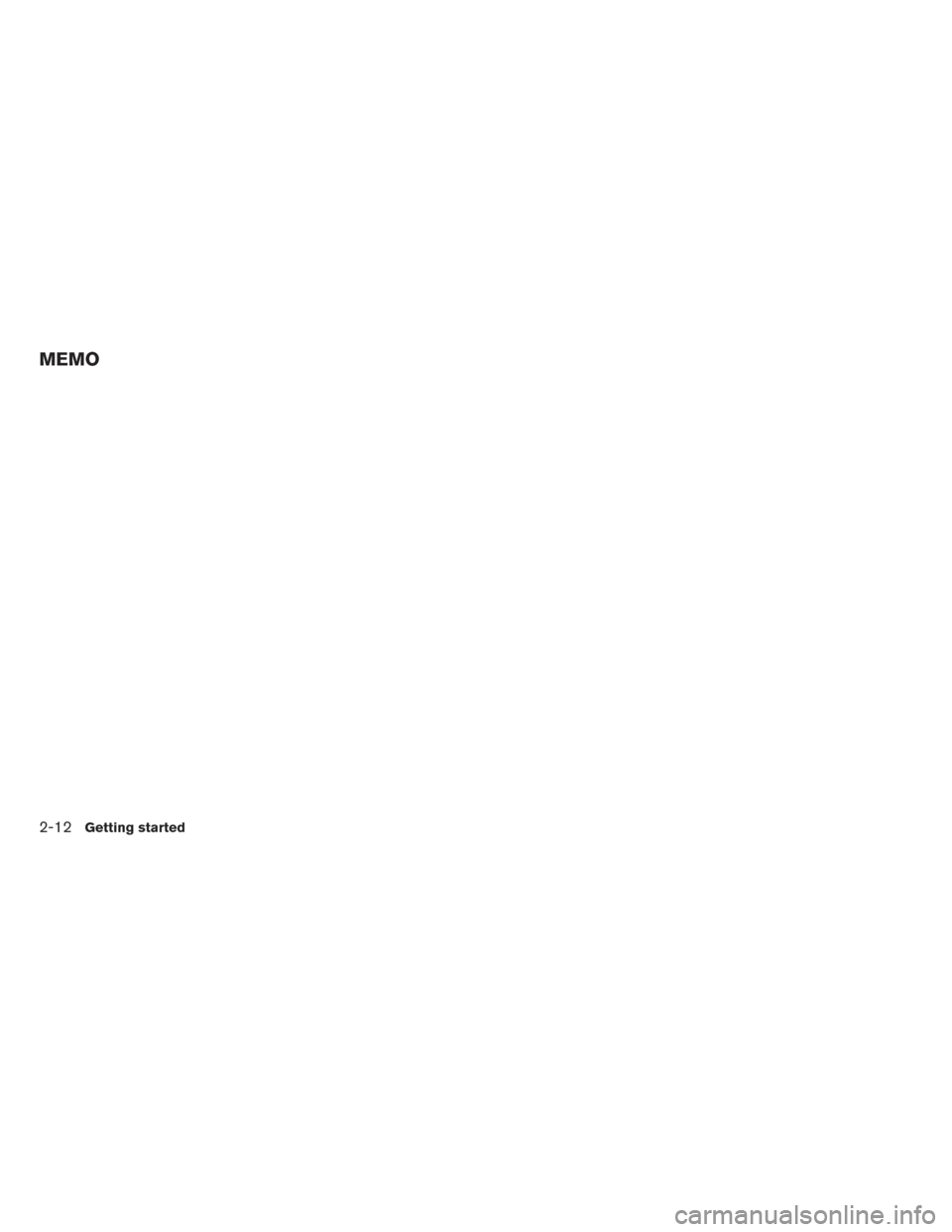

MEMO

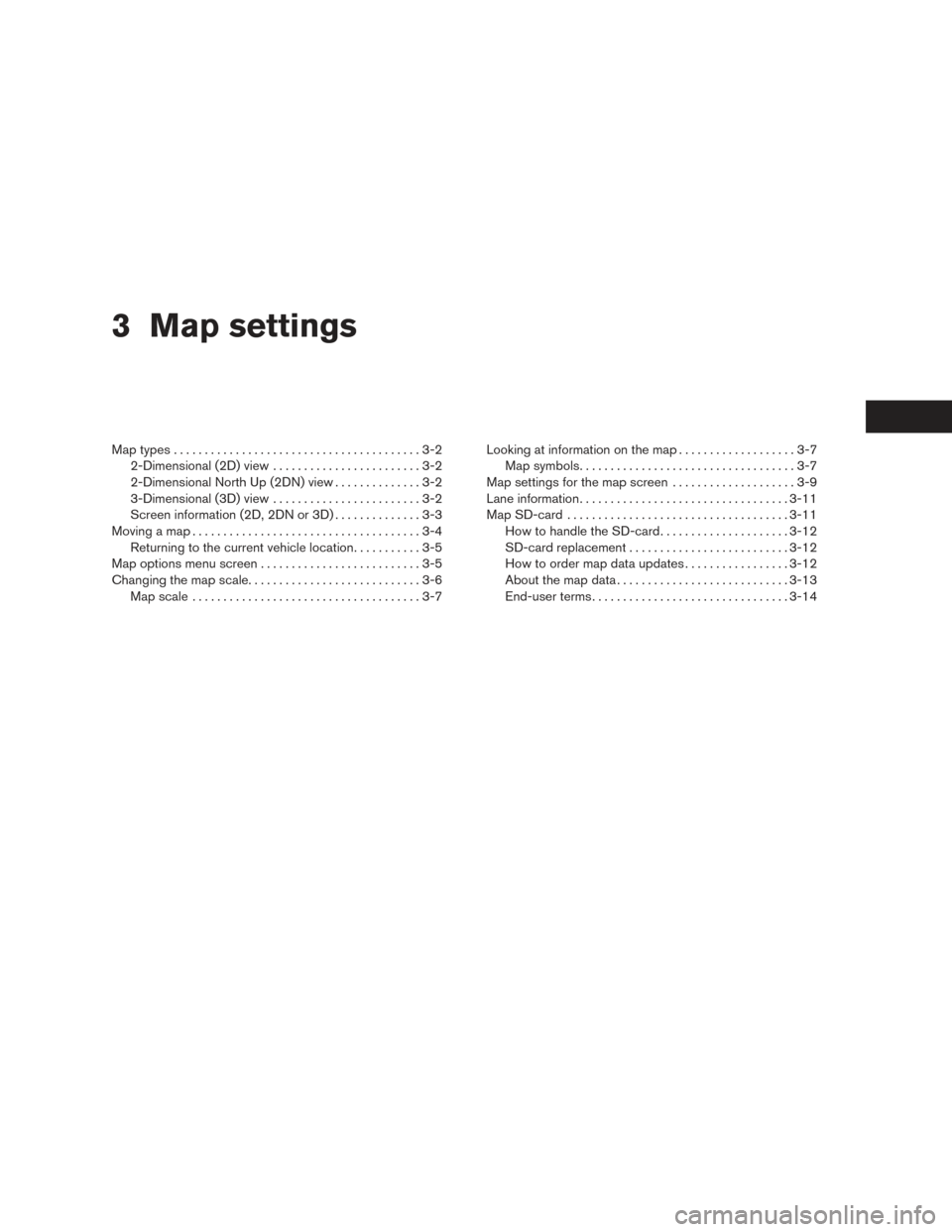

3 Map settings
Map types........................................3-2
2-Dimensional (2D) view . .......................3-2
2-Dimensional North Up (2DN) view ..............3-2
3-Dimensional (3D) view . .......................3-2
Screen information (2D, 2DN or 3D) ..............3-3
Moving a map .....................................3-4
Returning to the current vehicle location ...........3-5
Map options menu screen ..........................3-5
Changing the map scale............................3-6 Map scale .....................................3-7 Looking at information on the map
...................3-7
Map symbols. . .................................3-7
Map settings for the map screen ....................3-9
Lane information .................................. 3-11
Map SD-card . ................................... 3-11
How to handle the SD-card .....................3-12
SD-card replacement .......................... 3-12
How to order map data updates .................3-12
About the map data ............................ 3-13
End-user terms ................................ 3-14

2-DIMENSIONAL (2D) VIEW
The 2D map is a two-dimensional (flat) repre-
sentation of the map data, similar to a road map,
focused on the vehicle’s position (vehicle icon) .
Touch the compass icon to switch map to an-
other view.
“SCREEN INFORMATION (2D, 2DN
or 3D)” (page 3-3)
“MAP SETTINGS FOR THE MAP
SCREEN” (page 3-7)
2-DIMENSIONAL NORTH UP (2DN)
VIEW
The 2DN map is a two-dimensional (flat) repre-
sentation of the map data, similar to a road map,
focused on the vehicle’s position (vehicle icon)
with the top of the map aligned North.
Touch the compass icon to switch map to an-
other view.
3-DIMENSIONAL (3D) VIEW
The 3D map displays the map from an elevated
perspective, providing a panoramic view over a
long distance.
The map in 3D view always appears with the cur-
rent forward direction facing up (heading up) .
Touch the compass icon to switch map to an-
other view.
2DLNV24552DNLNV24543DLNV2456
MAP TYPES
3-2Map settings

SCREEN INFORMATION (2D, 2DN or
3D)
1“Voice” keyTouch to repeat the voice guidance while a
route is active. Touch and hold for two sec-
onds to toggle the voice guidance on or off
(button will be grayed out when voice guid-
ance is turned off) . This option is available
only when a route is set.
2Audio information
Indicates the radio station, CD track number
or other audio information currently playing.
3Current routeA blue line indicates the path to follow.
4Satellite and Bluetooth connection informa-
tion
This area shows satellite and/or Bluetooth
connections, indicates unread text mes-
sages and illustrates a connected cell
phone’s battery and signal strength.
5Clock
Indicates the current time.
6Next maneuver road nameIndicates the name of the next road in the
route guidance. This is only shown if route
guidance is active.
7Direction indicator and distance to next ma-
neuver on the route
When route guidance is active but you have
deviated from the route, this area displays a
compass icon with an arrow indicating the
destination direction.
When route guidance is active and you are
on the route, this area indicates the dis-
tance (in miles or kilometers) to the next
point and the turning direction at that point.
When the “Voice” key is not shown on the
screen (such as when an audio screen is
displayed on the screen) , touch the direc-
tion indicator to repeat the voice guidance
while a route is active. Touch and hold for
two seconds to toggle the voice guidance
on or off.
LNV3010
Map settings3-3

8Estimated time of arrival and distance to
destination or remaining time of travel and
distance to destination.
Touch this button to switch the indicator be-
tween estimated arrival time and remaining
travel time. This indicator only appears once
the destination is set and the route guid-
ance is initiated. The estimated arrival time
may not switch to the estimated arrival time
for the destination’s time zone if a time zone
line is crossed as part of the route.
9Posted speed limitWhen available, the posted speed limit for
the current road is displayed.
10NissanConnectSMServices (if so equipped)
Touch the headset icon to connect to Nis-
sanConnect
SMServices.
“NISSANCONNECT SER-
VICES” (page 6-4)
11Current road indicator This displays the name of the road upon
which the vehicle is currently traveling.
12Vehicle iconIndicates the current location and direction
of the vehicle.
13Suggested routeAppears as a bold blue line during route
guidance.
14Scale indicatorIndicates the scale of the map.
15Compass iconIndicates the direction of the map. Touch
this icon to switch the map view between
the North Up, Heading Up (or actual direc-
tion) and 3D modes.
16Zoom in and zoom out keysTouch to zoom the map perspective in or
out.
17“Options” keyTouch this key to access the map options
menu screen.
“MAP OPTIONS MENU
SCREEN” (page 3-5) To scroll the map in either direction:
1. Touch and release the screen anywhere on the map.
2. Touch the screen again and move your fin- ger along the screen in the direction you
wish to scroll.
After releasing and touching the map again, a
marker will be displayed at the point touched
and, if possible, the position determined.NOTE:
When the current location of the vehicle is
recognized, the street name will be dis-
played at the bottom of the screen. When
scrolling a map and an area that is not a
road, city or POI is touched, coordinates
corresponding to the marker’s position are
displayed at the bottom of the screen.
LNV2463
