2017 NISSAN LEAF display

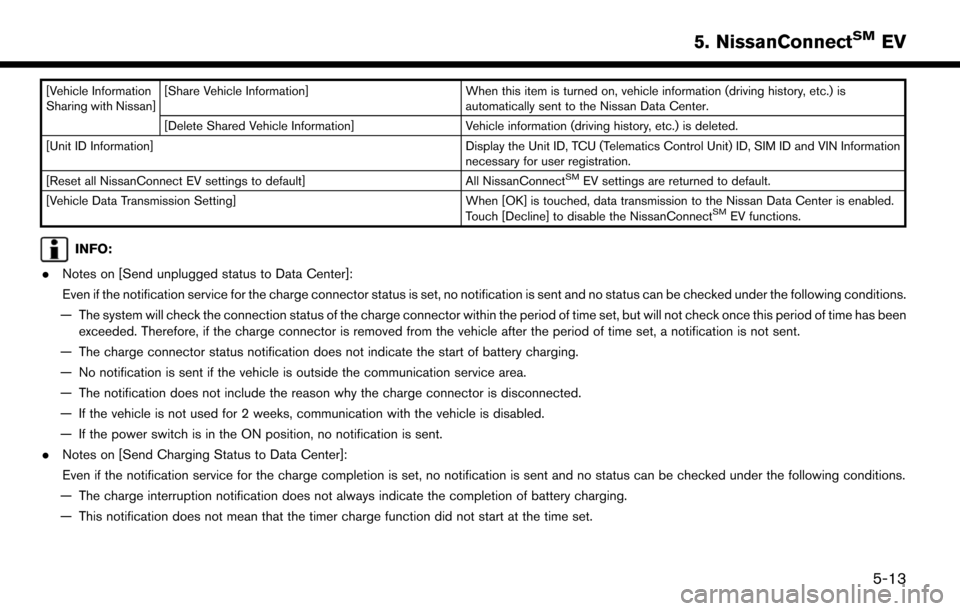

[Vehicle Information
Sharing with Nissan][Share Vehicle Information] When this item is turned on, vehicle information (driving history, etc.) is
automatically sent to the Nissan Data Center.
[Delete Shared Vehicle Information] Vehicle information (driving history, etc.) is deleted.
[Unit ID Information] Display the Unit ID, TCU (Telematics Control Unit) ID, SIM ID and VIN Information necessary for user registration.
[Reset all NissanConnect EV settings to default] All NissanConnect
SMEV settings are returned to default.
[Vehicle Data Transmission Setting] When [OK] is touched, data transmission to the Nissan Data Center is enabled.
Touch [Decline] to disable the NissanConnect
SMEV functions.
INFO:
. Notes on [Send unplugged status to Data Center]:
Even if the notification service for the charge connector status is set, no notification is sent and no status can be checked under the following conditions.
— The system will check the connection status of the charge connector within the period of time set, but will not check once this period of time has been exceeded. Therefore, if the charge connector is removed from the vehicle after the period of time set, a notification is not sent.
— The charge connector status notification does not indicate the start of battery charging.
— No notification is sent if the vehicle is outside the communication service area.
— The notification does not include the reason why the charge connector is disconnected.
— If the vehicle is not used for 2 weeks, communication with the vehicle is disabled.
— If the power switch is in the ON position, no notification is sent.
. Notes on [Send Charging Status to Data Center]:
Even if the notification service for the charge completion is set, no notification is sent and no status can be checked under the following conditions.
— The charge interruption notification does not always indicate the completion of battery charging.
— This notification does not mean that the timer charge function did not start at the time set.
5-13
5. NissanConnectSMEV

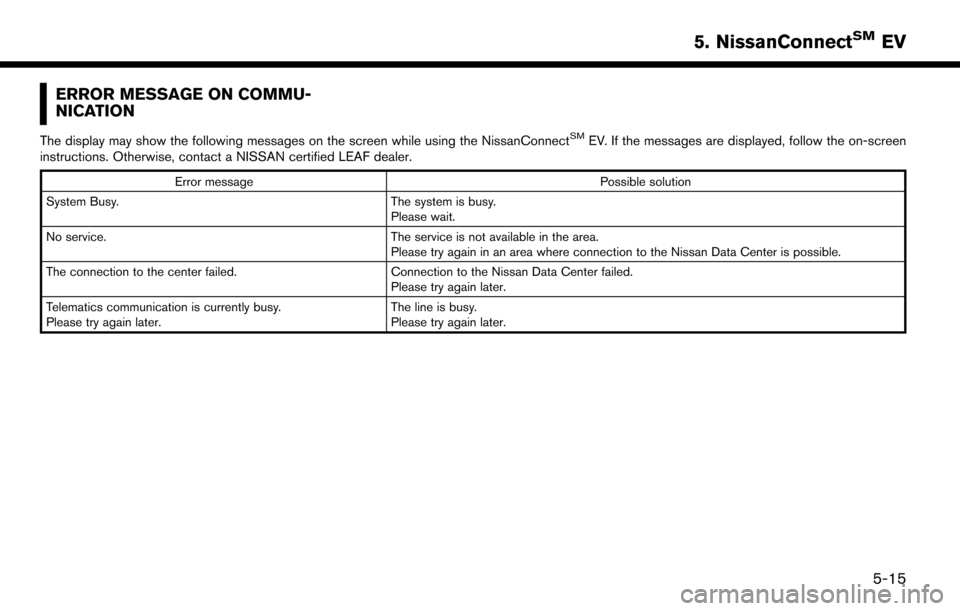

ERROR MESSAGE ON COMMU-
NICATION
The display may show the following messages on the screen while using the NissanConnectSMEV. If the messages are displayed, follow the on-screen
instructions. Otherwise, contact a NISSAN certified LEAF dealer.
Error message Possible solution
System Busy. The system is busy.
Please wait.
No service. The service is not available in the area.
Please try again in an area where connection to the Nissan Data Center is possible.
The connection to the center failed. Connection to the Nissan Data Center failed.
Please try again later.
Telematics communication is currently busy.
Please try again later. The line is busy.
Please try again later.
5-15
5. NissanConnectSMEV

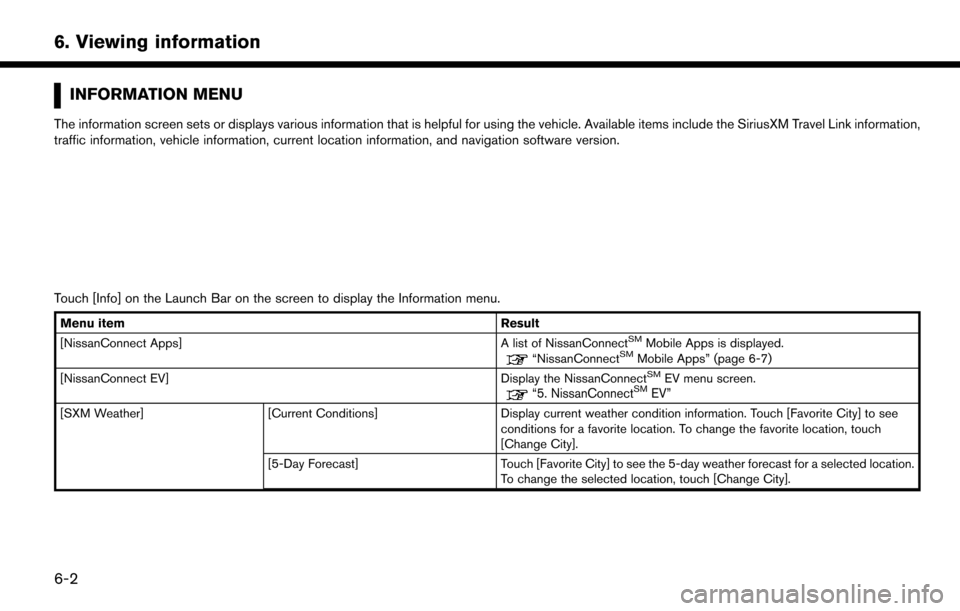

INFORMATION MENU
The information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information,
traffic information, vehicle information, current location information, and navigation software version.
Touch [Info] on the Launch Bar on the screen to display the Information menu.
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.“NissanConnectSMMobile Apps” (page 6-7)
[NissanConnect EV] Display the NissanConnectSMEV menu screen.“5. NissanConnectSMEV”
[SXM Weather] [Current Conditions] Display current weather condition information. Touch [Favorite City] to see
conditions for a favorite location. To change the favorite location, touch
[Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location.
To change the selected location, touch [Change City].
6-2
6. Viewing information

Menu itemResult
[Graphical Map] Display a graphical map of the weather information on the display. Initially, the
system will display all available information. Touch the scale button to show
[Zoom In]/[Zoom Out] for changing the map scale to 320 miles (640 km) U.S.,
32 miles (64 km) Middle scale or 5 miles (10 km) Detail scale. Touch [Radar] to
stop displaying the weather radar map. Touch [Chart] to stop displaying
weather surface features and pressure, when the map scale is U.S. Touch
[Storm] to stop displaying Storm information, when the map scale is U.S. or
Middle scale. Touch [Winds] to stop displaying wind information, when map
scale is Detail scale.
[Alert Map] Show Alert Map information on the display. Touch [Legend] to display the
detailed contents of information used for the current warning/advisory map by
type. Touch the scale button to show [Zoom In]/[Zoom Out] for changing the
map scale to 320 miles (640 km) U.S., 32 miles (64 km) Middle scale or 5 miles
(10 km) Detail scale.
[Weather Alert] Turn the weather alert on/off.
[SXM Traffic] [Info on Route] Touch to display traffic information detected on the route to the destination.
[Nearby Traffic Info] Touch to display traffic information detected near the current vehicle location.
[SXM Sports] Touch [Yes] to view a list of available sports that can be added or touch [No] to
go back. Select a favorite sport and division/conference from the list to view
scores. A favorite team cannot be selected. When viewing a favorite, a list of
recent and near future games/events is displayed. Touch [Tune] to go to a
channel that is broadcasting the event live. A score will also display while the
event is broadcasting. Touch [Delete One] to delete a favorite sport or [Delete
All] to delete all favorite sports. Up to 10 sports can be saved.
6-3
6. Viewing information

Menu itemResult

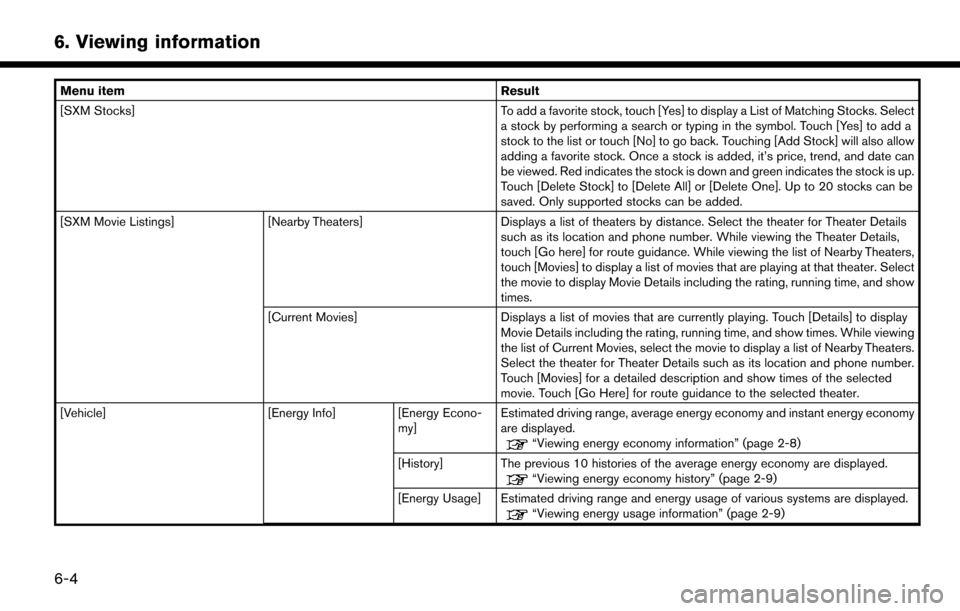

[SXM Stocks] To add a favorite stock, touch [Yes] to display a List of Matching Stocks. Select
a stock by performing a search or typing in the symbol. Touch [Yes] to add a
stock to the list or touch [No] to go back. Touching [Add Stock] will also allow
adding a favorite stock. Once a stock is added, it’s price, trend, and date can
be viewed. Red indicates the stock is down and green indicates the stock is up.
Touch [Delete Stock] to [Delete All] or [Delete One]. Up to 20 stocks can be
saved. Only supported stocks can be added.
[SXM Movie Listings] [Nearby Theaters] Displays a list of theaters by distance. Select the theater for Theater Details
such as its location and phone number. While viewing the Theater Details,
touch [Go here] for route guidance. While viewing the list of Nearby Theaters,
touch [Movies] to display a list of movies that are playing at that theater. Select
the movie to display Movie Details including the rating, running time, and show
times.
[Current Movies] Displays a list of movies that are currently playing. Touch [Details] to display
Movie Details including the rating, running time, and show times. While viewing
the list of Current Movies, select the movie to display a list of Nearby Theaters.
Select the theater for Theater Details such as its location and phone number.
Touch [Movies] for a detailed description and show times of the selected
movie. Touch [Go Here] for route guidance to the selected theater.
[Vehicle] [Energy Info] [Energy Econo-
my]Estimated driving range, average energy economy and instant energy economy
are displayed.
“Viewing energy economy information” (page 2-8)
[History] The previous 10 histories of the average energy economy are displayed.
“Viewing energy economy history” (page 2-9)
[Energy Usage] Estimated driving range and energy usage of various systems are displayed.
“Viewing energy usage information” (page 2-9)
6-4
6. Viewing information

Menu itemResult

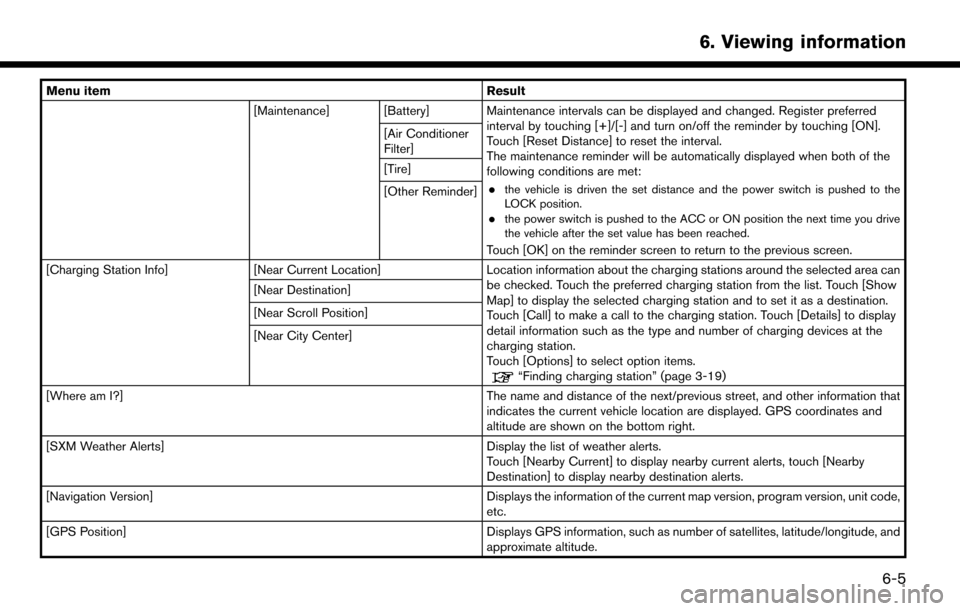

[Maintenance] [Battery] Maintenance intervals can be displayed and changed. Register preferred interval by touching [+]/[-] and turn on/off the reminder by touching [ON].
Touch [Reset Distance] to reset the interval.
The maintenance reminder will be automatically displayed when both of the
following conditions are met:
.
the vehicle is driven the set distance and the power switch is pushed to the
LOCK position.
.the power switch is pushed to the ACC or ON position the next time you drive
the vehicle after the set value has been reached.
Touch [OK] on the reminder screen to return to the previous screen.
[Air Conditioner
Filter]
[Tire]
[Other Reminder]
[Charging Station Info] [Near Current Location] Location information about the charging stations around the selected area can be checked. Touch the preferred charging station from the list. Touch [Show
Map] to display the selected charging station and to set it as a destination.
Touch [Call] to make a call to the charging station. Touch [Details] to display
detail information such as the type and number of charging devices at the
charging station.
Touch [Options] to select option items.
“Finding charging station” (page 3-19)
[Near Destination]
[Near Scroll Position]
[Near City Center]
[Where am I?] The name and distance of the next/previous street, and other information that indicates the current vehicle location are displayed. GPS coordinates and
altitude are shown on the bottom right.
[SXM Weather Alerts] Display the list of weather alerts. Touch [Nearby Current] to display nearby current alerts, touch [Nearby
Destination] to display nearby destination alerts.
[Navigation Version] Displays the information of the current map version, program version, unit code, etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and approximate altitude.
6-5
6. Viewing information

NISSANCONNECTSMMOBILE
APPS
NISSANCONNECT
SMMOBILE APPS
SMARTPHONE INTEGRATION
This vehicle is equipped with smartphone
integration technology. This allows many com-
patible smartphone applications to be displayed
and easily controlled through the vehicle’s touch
screen display.
Laws in some jurisdictions may restrict the use of
some of the applications and features, such as
social networking and texting. Check local
regulations for any requirements.
INFO:
A compatible smartphone and registration is
required to use mobile applications or to access
connected features of certain vehicle applica-
tions.
REGISTERING WITH NISSANCON-
NECTSMMOBILE APPS
To use the smartphone integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect
SMwebsite for
more information and to sign up. Once regis-
tered, download the NissanConnect
SMApp from your compatible phone’s application download
source and then log into the application.
For more information about this technology, visit
the website or contact NissanConnect
SMMobile
Apps and EV customer service.
For U.S. customers:
Website:
www.NissanUSA.com/connect
For Canadian customers: Website:
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)
CONNECTING PHONE
To use this feature, a compatible smartphone
must be connected via BluetoothŠor USB to the
vehicle.
“Connecting BluetoothŠdevice”
(page 1-19)
“USB (Universal Serial Bus) Connection
Port and AUX (auxiliary) input jack”
(page 1-5)
INFO:
. For Apple iPhone
Š, NissanConnectSMMo-
bile Apps REQUIRES the phone to be
connected via USB after the Bluetooth
Š
connection is established.
. For Android phones, NissanConnect
SMMo-
bile Apps REQUIRES the phone to be paired
via Bluetooth
Š.
APPLICATION DOWNLOAD
Once connected, the NissanConnectSMApp will
search your phone to determine which compa-
tible applications are currently installed. The
vehicle will then download the in-vehicle inter-
face for each of these compatible applications.
Once downloaded, the user can access many
smartphone Applications through the vehicle
touch screen display with the following opera-
tion.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Apps].
For more information on application availability
visit the NissanConnect
SMwebsite or contact
NissanConnectSMMobile Apps and EV custo-
mer service.
For U.S. customers:
www.NissanUSA.com/connect
6-7
6. Viewing information

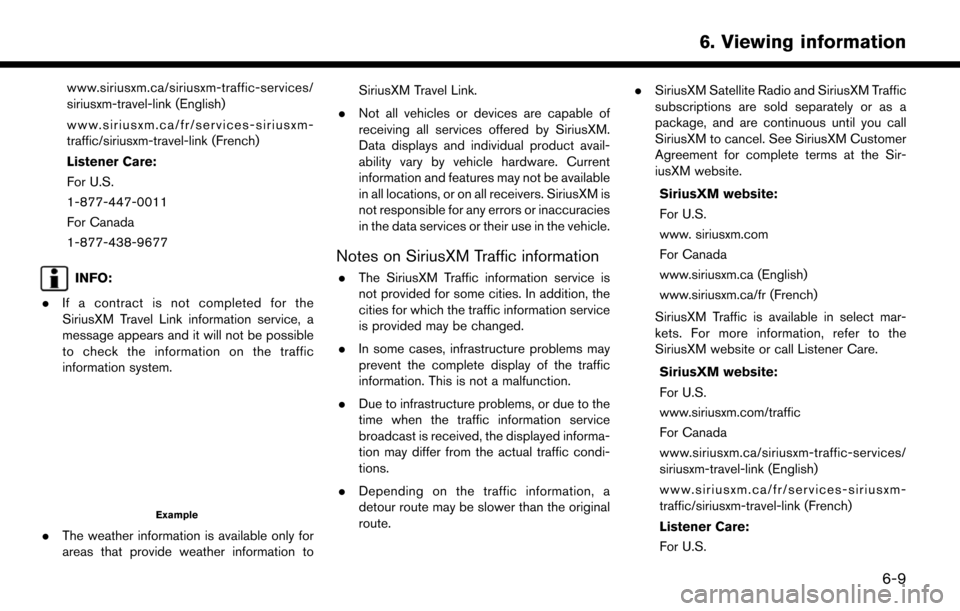

www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-travel-link (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-travel-link (French)
Listener Care:
For U.S.
1-877-447-0011
For Canada
1-877-438-9677
INFO:
. If a contract is not completed for the
SiriusXM Travel Link information service, a
message appears and it will not be possible
to check the information on the traffic
information system.
Example
.The weather information is available only for
areas that provide weather information to SiriusXM Travel Link.
. Not all vehicles or devices are capable of
receiving all services offered by SiriusXM.
Data displays and individual product avail-
ability vary by vehicle hardware. Current
information and features may not be available
in all locations, or on all receivers. SiriusXM is
not responsible for any errors or inaccuracies
in the data services or their use in the vehicle.
Notes on SiriusXM Traffic information
.The SiriusXM Traffic information service is
not provided for some cities. In addition, the
cities for which the traffic information service
is provided may be changed.
. In some cases, infrastructure problems may
prevent the complete display of the traffic
information. This is not a malfunction.
. Due to infrastructure problems, or due to the
time when the traffic information service
broadcast is received, the displayed informa-
tion may differ from the actual traffic condi-
tions.
. Depending on the traffic information, a
detour route may be slower than the original
route. .
SiriusXM Satellite Radio and SiriusXM Traffic
subscriptions are sold separately or as a
package, and are continuous until you call
SiriusXM to cancel. See SiriusXM Customer
Agreement for complete terms at the Sir-
iusXM website.
SiriusXM website:
For U.S.
www. siriusxm.com
For Canada
www.siriusxm.ca (English)
www.siriusxm.ca/fr (French)
SiriusXM Traffic is available in select mar-
kets. For more information, refer to the
SiriusXM website or call Listener Care.
SiriusXM website:
For U.S.
www.siriusxm.com/traffic
For Canada
www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-travel-link (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-travel-link (French)
Listener Care:
For U.S.
6-9
6. Viewing information
