4-42Heater, air conditioner, audio and phone systems
Specification chart (for models with navigation system):
Supported mediaCD, CD-R, CD-RW
Supported file systems ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet * ISO9660 Level 3 (packet writing) is not
supported.
Supported
versions*1 MP3
Version
MPEG1, MPEG2, MPEG2.5
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR
WMA*2 Version
WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 48 kbps - 192 kbps, VBR
Tag information ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only)
Folder levels Folder levels: 8, Max folders: 255 (including root folder) , Files: 512 (Max. 255 files for one folder)
Text character number limitation 128 characters
Displayable character codes*2 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian) , 04: UNICODE (UTF-16 Non-BOM Big
Endian) , 05: UNICODE (UTF-8) , 06: UNICODE (Non-UTF-16 BOM Little Endian)
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Available codes depend on what kind of media, versions and information are going to be displayed.

4-76Heater, air conditioner, audio and phone systems
CONNECT PHONE
To use this feature, a compatible smartphone
must be connected via BluetoothŠor USB to
the vehicle. For more information on connecting
your phone, see “Bluetooth
ŠHands-Free Phone
System (models without navigation system)”
(P.4-80) or “Bluetooth
ŠHands-Free Phone
System (models with navigation system)” (P.4-
89) .
NOTE:
. For Apple iPhones
Š, NissanConnectSM
Apps REQUIRES the phone to be
plugged in via USB.
. For Android phones, NissanConnect
SM
Apps REQUIRES the phone to be
paired via BluetoothŠ.
APPLICATION DOWNLOAD
Once connected, the NissanConnectSMApp
will search your phone to determine which
compatible applications are currently installed.
The user will then choose which apps they want
to bring into their vehicle from the list of apps
within the “Manage My Apps” section of the
NissanConnect
SMApp on their smartphone. The
vehicle will then download the in-vehicle inter-
face for each of these compatible applications.
Once downloaded, the user can access their
selected smartphone applications through the
vehicle touchscreen. For more information on application availability see NissanConnect
SM
website.
NissanConnectSMwebsite:
For U.S.
www.nissanusa.com/connect/
For Canada
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)
GENERAL INFORMATION
Apple SiriŠEyes Free personal assistant can be
accessed from the vehicle. SiriŠEyes Free can
be accessed in SiriŠEyes Free mode to reduce
user distraction. In this mode, SiriŠEyes Free is
available for interaction by voice control. After
connecting a compatible Apple device by using
Bluetooth
Š, SiriŠEyes Free can be activated
using theTALK switch on the steering
wheel.
Siri
Šis a trademark of Apple Inc., registered in
the U.S. and other countries.
INFO:
. Some Siri
ŠEyes Free functions, such as
opening apps, may not be available during
driving.
. For best results, always update your device
to the latest software version.
. Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
from recognizing the voice commands cor-
rectly.
. For functions that can be used in Siri
ŠEyes
Free, please refer to the Apple website.
SIRIŠEYES FREE

REQUIREMENTS
SiriŠis available on the iPhoneŠ4S or later.
Devices released before iPhoneŠ4S are not
supported by the SiriŠEyes Free system.
Visit www.apple.com/ios/siri for details about
device compatibility.
Siri
Šmust be enabled on the phone. Please
check phone settings.
If the device has a lock screen, Siri
Šmust be
accessible from the lock screen. Please check
phone settings.
For best results, always update your device to
the latest software version.
SAA3385
SIRIŠEYES FREE ACTIVATION
SiriŠEyes Free function can be activated by
using theTALK switch on the steering
wheel.
Models with navigation system
1. Connect a Siri
ŠEyes Free enabled iPhoneŠ
to the vehicle. (See “Connecting procedure”
(P.4-92) .)
2. After the Bluetooth
Šconnection is estab-
lished, push and hold theTALK switch
to activate the SiriŠEyes Free function.
Models without navigation system
1. Connect a Siri
ŠEyes Free enabled iPhoneŠ
to the vehicle. (See “Initialization” (P.4-83) .) 2. After the Bluetooth
Šconnection is estab-
lished, the switch operation select screen is
displayed.
3. Select “Short Press” or “Long Press” for Siri
ŠEyes Free activation. Switch action can
also be changed from the BluetoothŠ
settings menu. (See “Changing SiriŠEyes
Free Settings (models without navigation
system)” (P.4-78) .)
OPERATING SIRIŠEYES FREE
1. Push or push and hold theTALK switch.
2. Speak your command and then listen to the Siri
ŠEyes Free reply.
After starting SiriŠEyes Free, push theTALK switch again within 5 seconds of the end
of the SiriŠEyes Free announcement to extend
the session.
Example 1 - Playing music
1. Push or push and hold the
TALK switch.
2. Say “Play (artist name, song name, etc.)”.
3. Your vehicle will automatically change to Bluetooth
ŠAudio or iPodŠmode* when the
music starts playing. Mode selection is
determined by the phone.
*: If the iPhone
Šis also connected with the
USB cable.
If the audio track does not start playing
Heater, air conditioner, audio and phone systems4-77

4-78Heater, air conditioner, audio and phone systems
automatically after SiriŠEyes Free ends, try
changing the track or audio source to resume
playback.
NOTE:
For best results, use the native music app.
Performance of music control function
while using Podcasts, Audiobook or other
3rd party music apps may vary and is
controlled by the iPhone
Š.
Example 2 - Replying to text messages
1. If a compatible iPhone
Šis connected and
“Show Notifications” of the iPhoneŠsettings
is enabled, the vehicle will display a notifica-
tion for new incoming text messages.
2. After reading the message, push or push and hold the
TALK switch to reply using
SiriŠEyes Free.
3. After a beep sounds, say “Text message” or a similar command to reply using Siri
ŠEyes
Free.
CHANGING SIRIŠEYES FREE SET-
TINGS (models without navigation sys-
tem)
Settings for SiriŠEyes Free can be found in the
BluetoothŠsettings menu. (See “BluetoothŠ
settings” (P.4-88) .) 1. Push the ENTER/SETTING button.
2. Use the TUNE·FOLDER or TUNE·SCROLL
knob to select “Bluetooth” and then push
the ENTER/SETTING button.
3. Use the TUNE·FOLDER or TUNE·SCROLL knob to select “Siri” and then push the
ENTER/SETTING button.
4. Select “Short Press” or “Long Press” using the TUNE·FOLDER or TUNE·SCROLL knob
and then push the ENTER/SETTING button.

TROUBLESHOOTING GUIDE
SymptomCause and Countermeasure
Cannot access SiriŠEyes Free from the switch on the steering wheel Check if a BluetoothŠconnection is established between the iPhoneŠand the system.
Check if SiriŠis enabled on the device. On your phone, go to SiriŠsetting.
Check that SiriŠcan be accessed from the device lock screen. This can be set in the settings menu
of your phone.
Models without navigation system:
Check the settings for Siri
ŠEyes Free activation on the vehicle audio system. If the setting is “Long
Press”, you must push and hold theTALK switch on the steering wheel for more than 1.5
seconds to start SiriŠEyes Free. If the setting is “Short Press”, a short push and release of the switch
should start SiriŠEyes Free.
Audio source does not change automatically to iPodŠor BluetoothŠ
Audio mode For best results, use the native music app. Performance of music control function while using
Podcasts, Audiobook or other 3rd party music apps may vary.
For best results, play media already stored on your device. Streaming music or playback from cloud
storage may degrade performance.
Switch the source manually by pushing the AUX or MEDIA button on the vehicle audio system or the
SOURCE select switch on the steering wheel.
Play, pause, next track, previous track or play timer does not work For best results, use the native music app. Performance of music control function while using Podcasts, Audiobook or other 3rd party music apps may vary and is controlled by the device.
Cannot hear any music/audio being played back from a connected
iPhone
ŠCheck that the audio source is set to BluetoothŠAudio or iPodŠmode. A USB connection is
required for iPodŠmode.
Cannot hear map turn-by-turn direction guidance from a connected
iPhone
ŠCheck that the audio source is set to BluetoothŠAudio or iPodŠmode. A USB connection is
required for iPodŠmode.
Cannot receive text message notifications on the vehicle audio
system Check if “Show Notifications” is enabled on your phone. On your phone, go to BluetoothŠsettings.
Find the device name, like “My Car”. Tapon your phone. Turn on “Show Notifications”.
Cannot reply to text message notifications using SiriŠEyes Free After receiving an incoming text message, follow the on-screen guidance. Push or push and hold theTALK switch on the steering wheel for SiriŠEyes Free. After SiriŠEyes Free starts, say “Text
Message”.
Heater, air conditioner, audio and phone systems4-79

4-80Heater, air conditioner, audio and phone systems
When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
precautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.

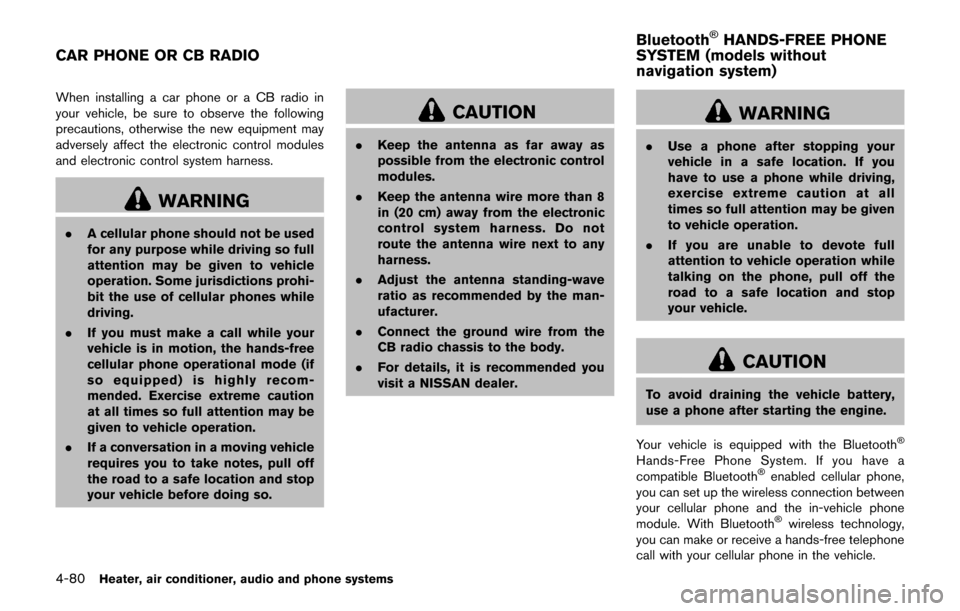

WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, it is recommended you
visit a NISSAN dealer.

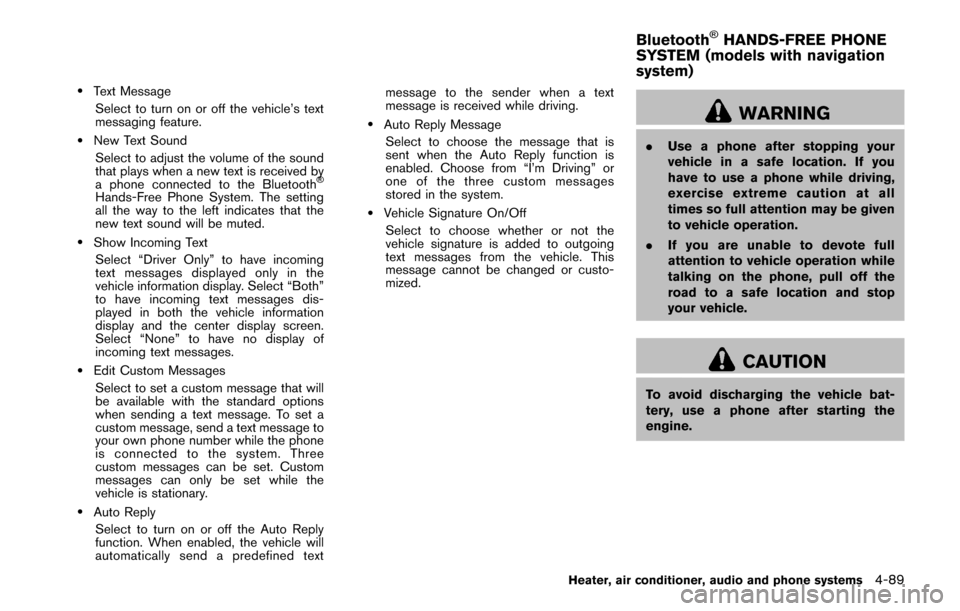

WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your vehicle is equipped with the Bluetooth
Š
Hands-Free Phone System. If you have a
compatible BluetoothŠenabled cellular phone,
you can set up the wireless connection between
your cellular phone and the in-vehicle phone
module. With Bluetooth
Šwireless technology,
you can make or receive a hands-free telephone
call with your cellular phone in the vehicle.
CAR PHONE OR CB RADIO Bluetooth
ŠHANDS-FREE PHONE
SYSTEM (models without
navigation system)

.Text MessageSelect to turn on or off the vehicle’s text
messaging feature.
.New Text SoundSelect to adjust the volume of the sound
that plays when a new text is received by
a phone connected to the Bluetooth
Š
Hands-Free Phone System. The setting
all the way to the left indicates that the
new text sound will be muted.
.Show Incoming TextSelect “Driver Only” to have incoming
text messages displayed only in the
vehicle information display. Select “Both”
to have incoming text messages dis-
played in both the vehicle information
display and the center display screen.
Select “None” to have no display of
incoming text messages.
.Edit Custom MessagesSelect to set a custom message that will
be available with the standard options
when sending a text message. To set a
custom message, send a text message to
your own phone number while the phone
is connected to the system. Three
custom messages can be set. Custom
messages can only be set while the
vehicle is stationary.
.Auto ReplySelect to turn on or off the Auto Reply
function. When enabled, the vehicle will
automatically send a predefined text message to the sender when a text
message is received while driving.
.Auto Reply Message
Select to choose the message that is
sent when the Auto Reply function is
enabled. Choose from “I’m Driving” or
one of the three custom messages
stored in the system.
.Vehicle Signature On/OffSelect to choose whether or not the
vehicle signature is added to outgoing
text messages from the vehicle. This
message cannot be changed or custo-
mized.
WARNING
. Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
To avoid discharging the vehicle bat-
tery, use a phone after starting the
engine.
Heater, air conditioner, audio and phone systems4-89
BluetoothŠHANDS-FREE PHONE
SYSTEM (models with navigation
system)

4-90Heater, air conditioner, audio and phone systems
SAA3446
1. Volume control switchí/+
2. PHONE SENDbutton
3. PHONE ENDbutton
4. Microphone
The phonebutton is located on the control
panel can also use to control the BluetoothŠ
Hands-Free Phone System. (See “Control but-
tons and functions (models with navigation
system)” (P.4-3) .)
Your vehicle is equipped with the Bluetooth
Š
Hands-Free Phone System. If you have a
compatible BluetoothŠenabled cellular phone,
you can set up the wireless connection between
your cellular phone and the in-vehicle phone
module. With Bluetooth
Šwireless technology, you can make or receive a hands-free telephone
call with your cellular phone in the vehicle.
Once your cellular phone is connected to the in-
vehicle phone module, no other phone connect-
ing procedure is required. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
placed in the ON position with the connected
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
Š
cellular phones to the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.
NISSAN Voice Recognition system supports the
phone commands, so dialing a phone number
using your voice is possible. For more details,
see “NISSAN Voice Recognition System (mod-
els with navigation system)” (P.4-96).
Before using the Bluetooth
ŠHands-Free Phone
System, refer to the following notes.
. Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Hands-Free Phone
System.
. Some Bluetooth
Šenabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit www.nissanusa.
com/bluetooth for a recommended phone list and connecting.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the cellular
service area.
— Your vehicle is in an area where it is difficult to receive cellular signal; such as
in a tunnel, in an underground parking
garage, near a tall building or in a
mountainous area.
— Your cellular phone is locked to prevent it from being dialed.
. When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
. Immediately after the ignition switch is
placed in the ON position, it may be
impossible to receive a call for a short
period of time.
. Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the BluetoothŠwireless connection, the
battery power of the cellular phone may
discharge quicker than usual. The Blue-
