2017 NISSAN ARMADA Owners Manual

2-48Instruments and controls

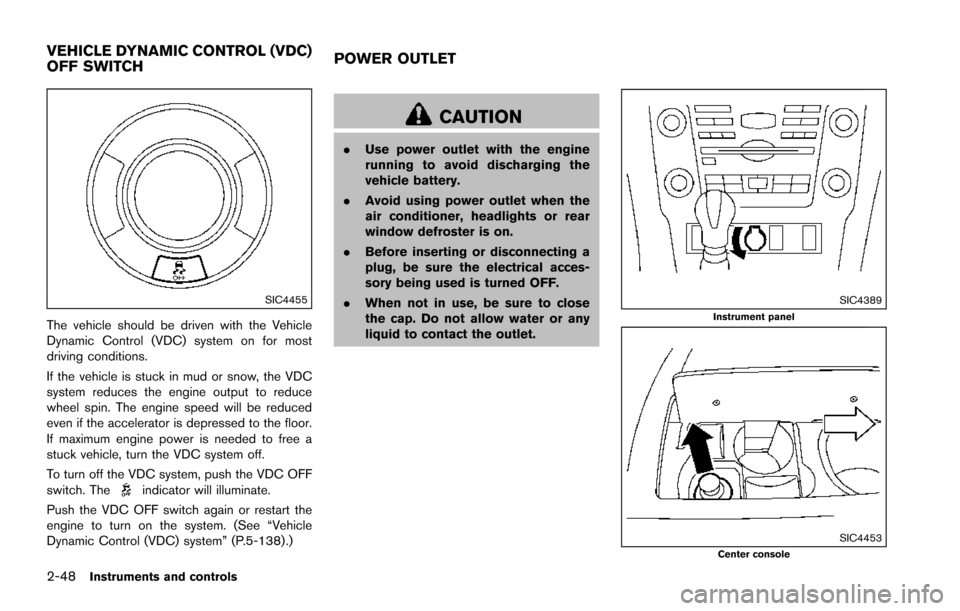

SIC4455
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-138) .)
CAUTION
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
SIC4389Instrument panel
SIC4453Center console
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH POWER OUTLET

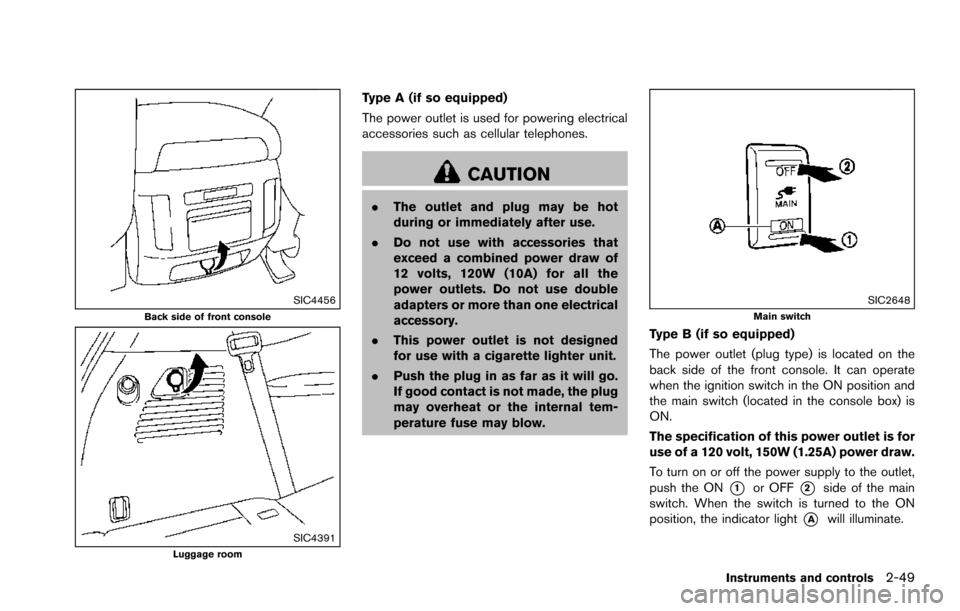

SIC4456Back side of front console
SIC4391Luggage room
Type A (if so equipped)
The power outlet is used for powering electrical
accessories such as cellular telephones.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a combined power draw of
12 volts, 120W (10A) for all the
power outlets. Do not use double
adapters or more than one electrical
accessory.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may blow.
SIC2648Main switch
Type B (if so equipped)
The power outlet (plug type) is located on the
back side of the front console. It can operate
when the ignition switch in the ON position and
the main switch (located in the console box) is
ON.
The specification of this power outlet is for
use of a 120 volt, 150W (1.25A) power draw.
To turn on or off the power supply to the outlet,
push the ON
*1or OFF*2side of the main
switch. When the switch is turned to the ON
position, the indicator light
*Awill illuminate.
Instruments and controls2-49

2-50Instruments and controls

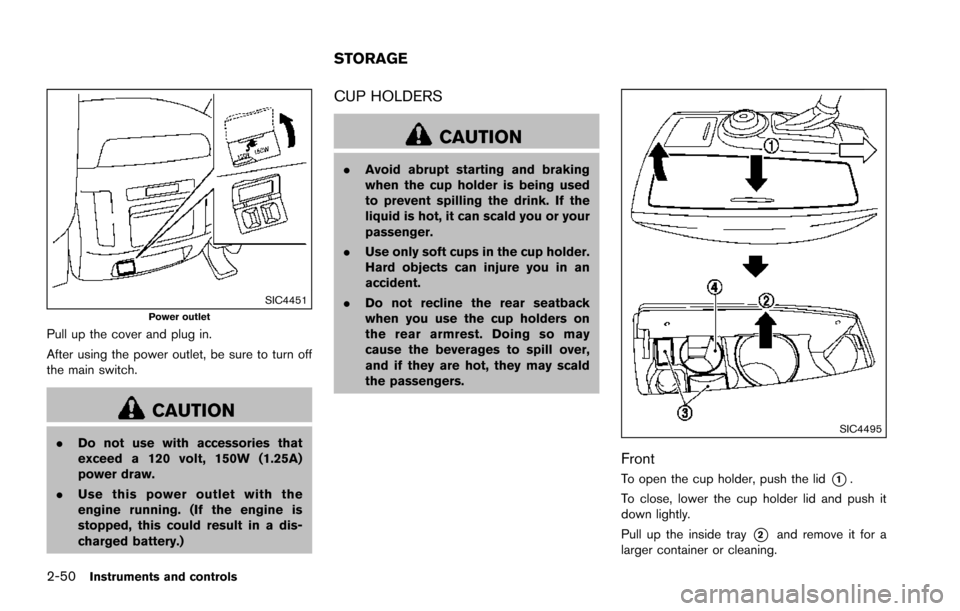

SIC4451Power outlet
Pull up the cover and plug in.
After using the power outlet, be sure to turn off
the main switch.
CAUTION
.Do not use with accessories that
exceed a 120 volt, 150W (1.25A)
power draw.
. Use this power outlet with the
engine running. (If the engine is
stopped, this could result in a dis-
charged battery.)
CUP HOLDERS
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
. Do not recline the rear seatback
when you use the cup holders on
the rear armrest. Doing so may
cause the beverages to spill over,
and if they are hot, they may scald
the passengers.
SIC4495
Front
To open the cup holder, push the lid*1.
To close, lower the cup holder lid and push it
down lightly.
Pull up the inside tray
*2and remove it for a
larger container or cleaning.
STORAGE

The cap of the bottle can be placed on*3.
A small beverage can be placed in the cup
holder
*4.
The cup holder is not designed to store personal
items.

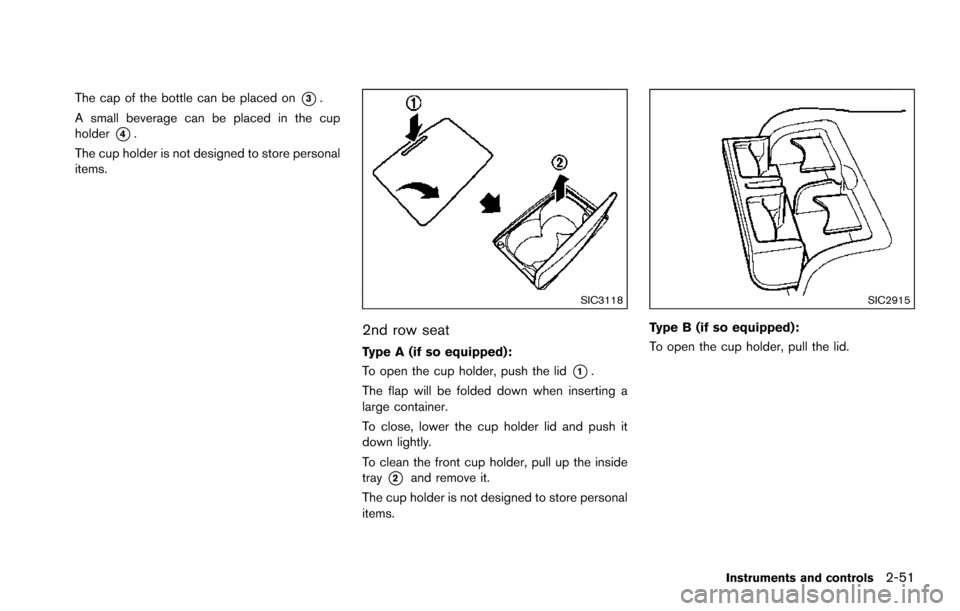

SIC3118
2nd row seat
Type A (if so equipped):
To open the cup holder, push the lid
*1.
The flap will be folded down when inserting a
large container.
To close, lower the cup holder lid and push it
down lightly.
To clean the front cup holder, pull up the inside
tray
*2and remove it.
The cup holder is not designed to store personal
items.
SIC2915
Type B (if so equipped):
To open the cup holder, pull the lid.
Instruments and controls2-51

2-52Instruments and controls
SIC4419
3rd row seat
SIC4501
Soft bottle holder
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
SIC3246
SUNGLASSES HOLDER
To open the sunglasses holder, push*1.
WARNING
Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.

CAUTION
.Do not use for anything other than
glasses.
. Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
SIC4393
GLOVE BOX
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
*1.
To close, push the lid in until the lock latches.
To lock
*2/unlock*3the glove box, use the
mechanical key. For the mechanical key usage,
see “Keys” (P.3-2) .
Instruments and controls2-53

2-54Instruments and controls

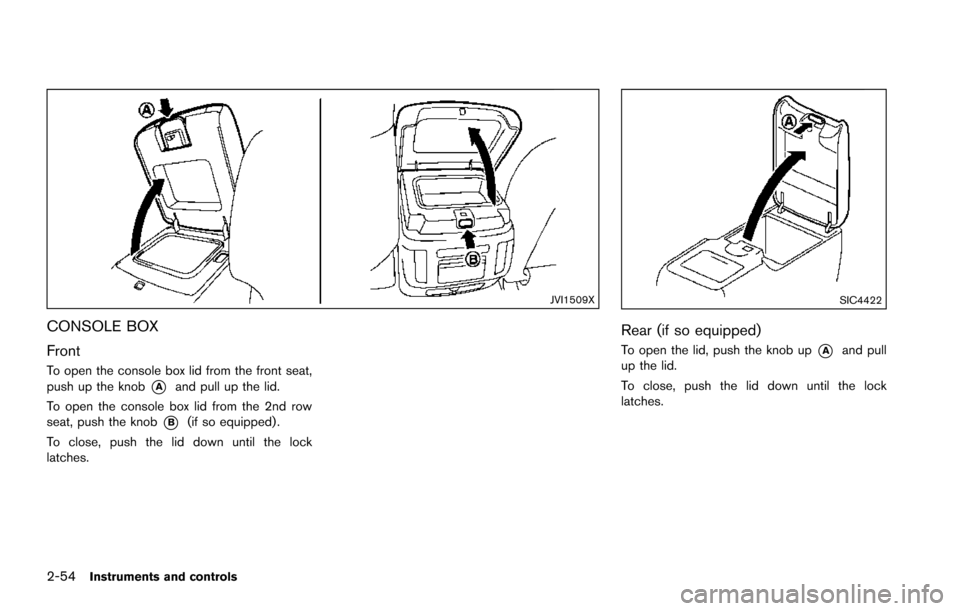

JVI1509X
CONSOLE BOX
Front
To open the console box lid from the front seat,
push up the knob
*Aand pull up the lid.
To open the console box lid from the 2nd row
seat, push the knob
*B(if so equipped) .
To close, push the lid down until the lock
latches.
SIC4422
Rear (if so equipped)
To open the lid, push the knob up*Aand pull
up the lid.
To close, push the lid down until the lock
latches.

SIC4423
Pocket:
To open the pocket, pull the knob
*1.
To close, push the lid until the lock latches.
JVI1393X
TRAY
To open the tray, push the lid*1. To close, push
the lid down.
The USB and/or iPod
Šconnection port is
located inside the tray. (See “Audio system”
(P.4-59) .)
SIC3505
COAT HOOKS
The coat hooks are equipped at the rear assist
grips.
CAUTION
Do not place items which are more than
2 lb (1 kg) on the hook.
Instruments and controls2-55
