2017 MITSUBISHI OUTLANDER III display

Multi Around Monitor (if so equipped)
5
N00587200042
The Multi Around Monitor system uses 4 cameras, “Front-view camera”, “Side-viewcameras (right and le
ft)” and “Rear-view
camera”, and displays
composite views from
those cameras on a screen in the inside rear-view mirror, the DISPLAY AUDIO, the Smartphone Link Display Audio or the Mit- subishi Multi-Comm
unication System.
The Multi Around Monitor
system wi
ll assist
the driver to park the vehicle in a narrow orparallel parking space. Multi Around Monitor
(if so
equipped) Before using the Multi Around Monitor system, read this entire section to fully understand the limitations of this system. Failure to follow instructions could resultin an accident. The Multi Around Monitor system is an aid system to help observe around the vehicle. It is not a substitute for your visual confirmation. Never rely solely on the Multi Around Monitor system. The view on the screen islimited, and objects
outside the view can-
not be seen on the screen.
CAUTION Before using the Multi Around Monitor, make sure that all doors and the liftgate areclosed and the outside mirrors are unfolded.If an outside mirror is folded and/or if a front door and/or the liftgate
is open, the areas dis-
played on the Multi Around Monitor will notbe appropriate.

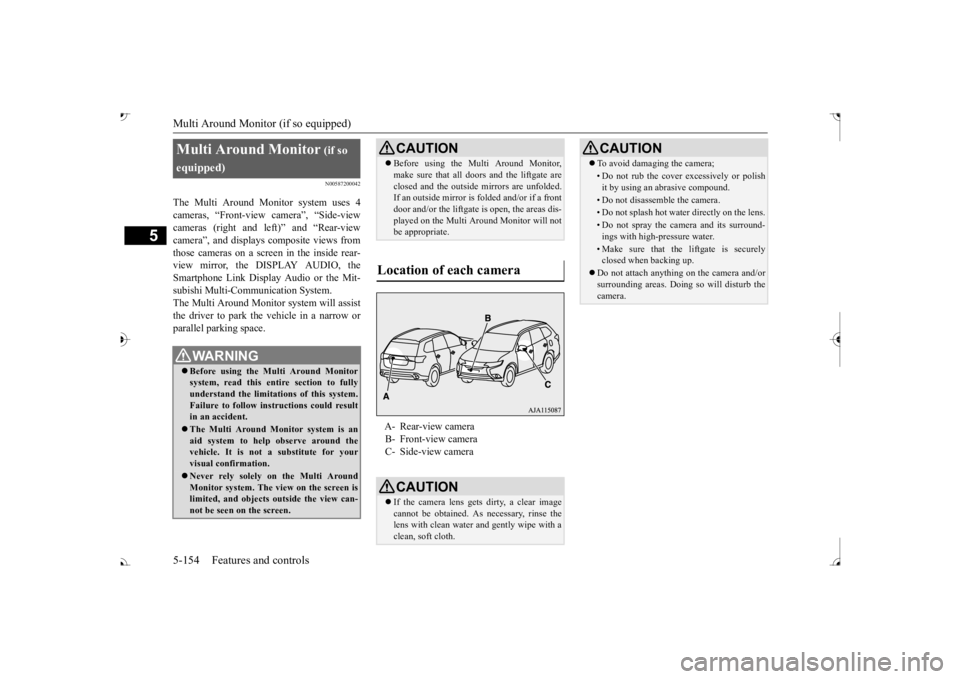

Location of each camera

A- Rear-view camera B- Front-view camera C- Side-view cameraCAUTION If the camera lens gets
dirty, a clear image
cannot be obtained. As necessary, rinse the lens with clean water and gently wipe with aclean, soft cloth.
 To avoid damaging the camera;• Do not rub the cover excessively or polish it by using an abrasive compound.• Do not disassemble the camera.• Do not splash hot wate
r directly on the lens.
• Do not spray the camera and its surround- ings with high-pressure water.• Make sure that the liftgate is securelyclosed when backing up.
 Do not attach anythi
ng on the camera and/or
surrounding areas. Doing
so will disturb the
camera.CAUTION
BK0239700US.book 154 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
5
N00587400028
Two different types of views are displayed on the left side and the ri
ght side respectively.
Views of the surroundings of the vehicle and behind the vehicle are displayed.
Views of the passenger’s side of the vehicle and behind the vehicle are displayed. Views of the surroundings of the vehicle and the front of the vehicle are displayed.
Views of the passenger’s side of the vehicle and the front of the vehicle are displayed.
Types of views of the Multi Around Monitor

Bird’s eye-view/Rear-view mode

Side-view/Rear-view mode

Bird’s eye-view/Front-view mode

Side-view/Front-view mode

CAUTION The camera uses a special lens. As a result, images and distances shown on the screen are not exact.NOTE
 Because the cameras have a special lens, the lines on the ground between parking spaces may not look parallel on the screen.  Under certain circumst
ances, it may become
difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night.
BK0239700US.book 156 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
Features and controls 5-157
5
N00587500032
The Multi Around Monitor can only be used when the operation mode is put in ON. When you move the selector lever to the “R” view/rear-view is disp
layed on the screen of
the inside rearview mirror, the DISPLAY AUDIO, the Smartphone Link Display Audio or the Mitsubishi Multi-communication Sys-
tem. When you move the selector lever to any other position, the
display disappears.
When the camera switch (A) is pressed, the bird’s eye-view/front
-view is displayed.
• When water drops or
condensation are on
the lens. • When sun light or he
adlights shine directly
into the lens. • When a fluorescent li
ght shines directly
into the lens.
 If the atmospheric temperature is extremely hot or extremely cold, the camera images may not be clear.There is no abnormality.  If a wireless device is installed near the cam- era, the camera images may cause electrical system interference and the system may stop functioning properly.
How to use the Multi Around Monitor

Operation with the selector lever

NOTE
NOTE
 The passenger’s side sc
reen can be switched
to the side-view by pressing the camera switch on the steering wheel or the inside rearview mirror.

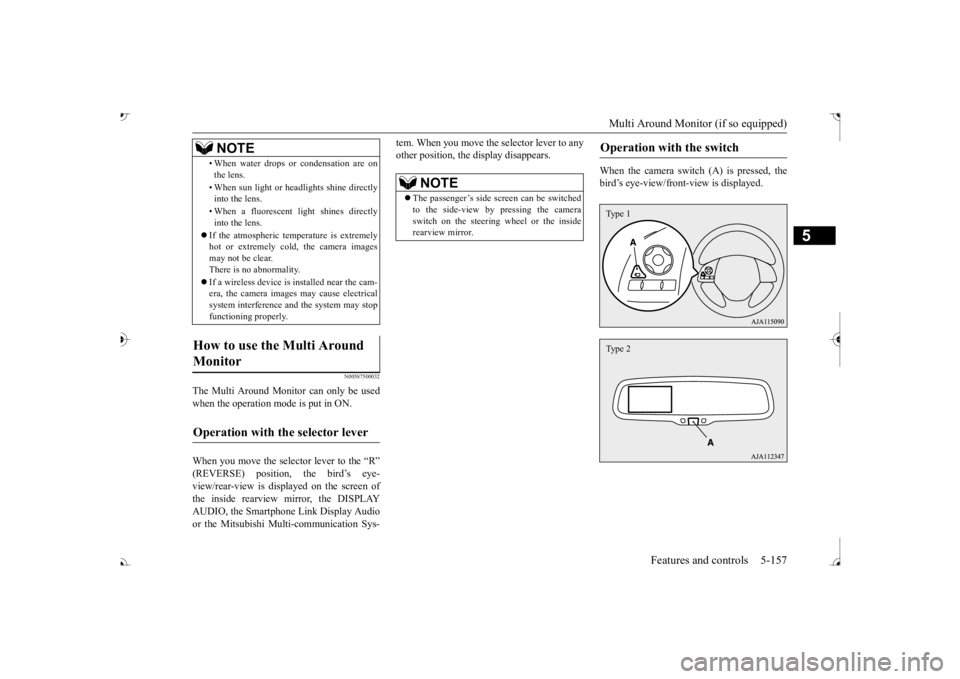

Operation with the switch

Type 1Type 2
BK0239700US.book 157 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
5
If the camera switch is pressed, the mode of Multi Around Monitor is
switched as follows.
Bird’s eye-view/Rear-view mode
 Side-
view/Rear-view mode Bird’s eye-view/Rear-view mode
 Side-
view/Rear-view mode
 OFF
If the camera switch is
pressed, the mode of
Multi Around Monitor is switched, Bird’seye-view/Front-view mode
 Side-
view/Front-view mode
 OFF
N00587600033
In any mode other than the Bird’s eye-view mode, the lines in the screen give the follow- ing information. Use them only as a guide. Reference lines for the distance and the vehi- cle width and upper surface of the front bum- per (A) are displayed on the screen.  The Red line (B) indicates approximately 20 inches (50 cm) from the front edge ofthe front bumper.  The Two Green lines (C) indicate the approximate ve
hicle width.
 The Orange lines (D) indicates an expected course when the vehicle moves forward with the steering wheel turned. Itdisappears when the
steering wheel is in
the neutral position.
NOTE
 If there is no operation for 3 minutes after the Multi Around Monitor is displayed bypressing the switch with the selector lever inother than “R” (REVERSE), the display dis- appears.
Switching of the screen (Selector lever is

Multi Around Monitor (if so equipped)
Features and controls 5-159
5
 The approximate distance from the vehi- cle body is as follows:
N00587700021
Reference lines for the distance and the vehi- cle width and upper surface of the rear bum- per (A) are displayed on the screen.  The Red line (B) indicates approximately 20 inches (50 cm) behind the rear edge of the rear bumper.  The Two Green lines (C) indicate the approximately vehicle width.  The Orange line (D) indicates an expected course when the vehicle is reserved with the steering wheel turned. It disappears when the steering wheel is in the neutralposition.  The approximate distance from the vehi- cle body is as follows:
1- Approximately 39 inches (100 cm) from
the front edge of the front bumperNOTE
 When the expected course lines are dis- played in the front-vie
w, the expected course
lines are also displayed in the bird’s eye-view (Front: solid line
, Rear: broken line).
Rear-view mode

1- Approximately 39 inches (100 cm)
from the rear edge of the rear bumper
2- Approximately 79 inches (200 cm)
from the rear edge of the rear bumperCAUTION The rear-view camera uses a wide-angle lens. As a result, images and distances shown on the screen are not exact. Never rely solely on th
e reference lines. The
reference lines indicati
ng distance and vehi-
cle width are based on a level, flat road sur- face. Actual distance may be different from dis-tance indicated by the
lines on the screen,
depending on the loadi
ng condition of the
vehicle and road surface condition.Also, your vehicle wi
dth indicated by the
reference lines may be different from the actual vehicle width.For example;In the following cases, objects shown on thescreen will appear to
be farther off than they
actually are.
BK0239700US.book 159 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
Features and controls 5-161
5
N00587900023
Reference lines for the
vehicle width and the
front end of the vehicle are displayed on the screen.
• When there is an object behind the vehicle that has upper sections projecting in thedirection of the vehicl
e, the reference lines
on the screen will indicate that point A is the farthest point and
point B is the closest
point to the vehicle.
In reality, point A and
B are actually the same distance from the vehicle, and point C is
farther off than point
A and B.CAUTION
NOTE
 When the expected course lines are dis- played in the rear-view, the expected courselines are also displayed in the bird’s eye-view (Front: broken li
ne, Rear: solid line).
Side-view mode

1- Approximate vehi
cle width including
the door mirror.
2- Approximate location
of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0239700US.book 161 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
5
N00588000021

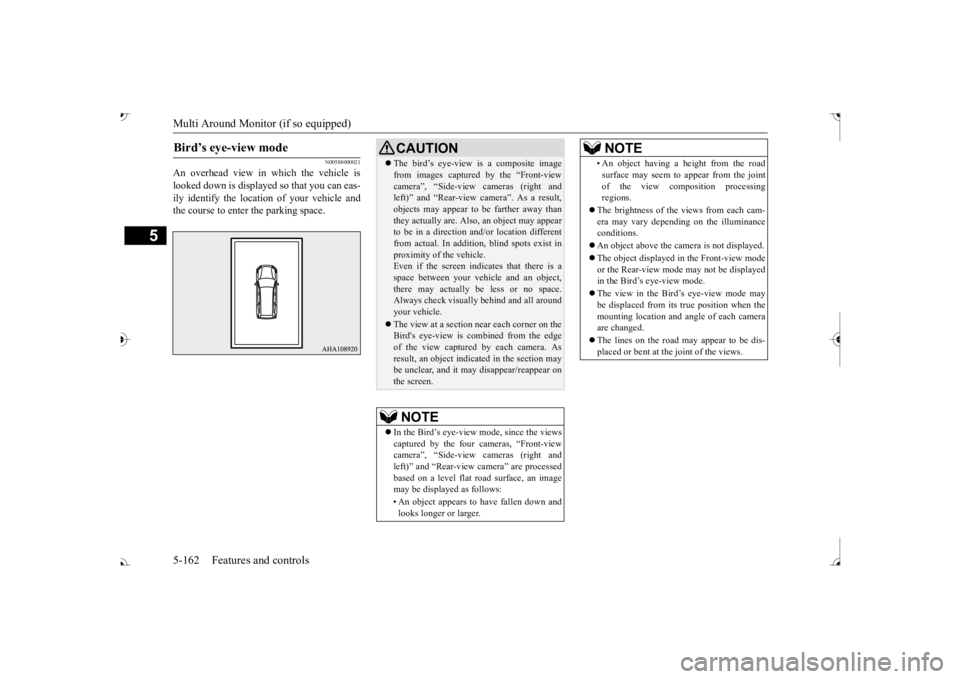

An overhead view in which the vehicle is looked down is displaye
d so that you can eas-
ily identify the location of your vehicle andthe course to enter the parking space.Bird’s eye-view mode

CAUTION The bird’s eye-view is a composite image from images captured by the “Front-viewcamera

Instrument cluster
Features and controls 5-163
5
N00519001402
N00519101272
The speedometer shows
the vehicle speed in
miles per hour (mph) or kilometers per hour(km/h).
N00519201303
The tachometer shows en
gine revolutions per
minute. This allows the driver to determine the most efficient selector position and engine speed combinations.This gauge also assists in evaluating engine performance.

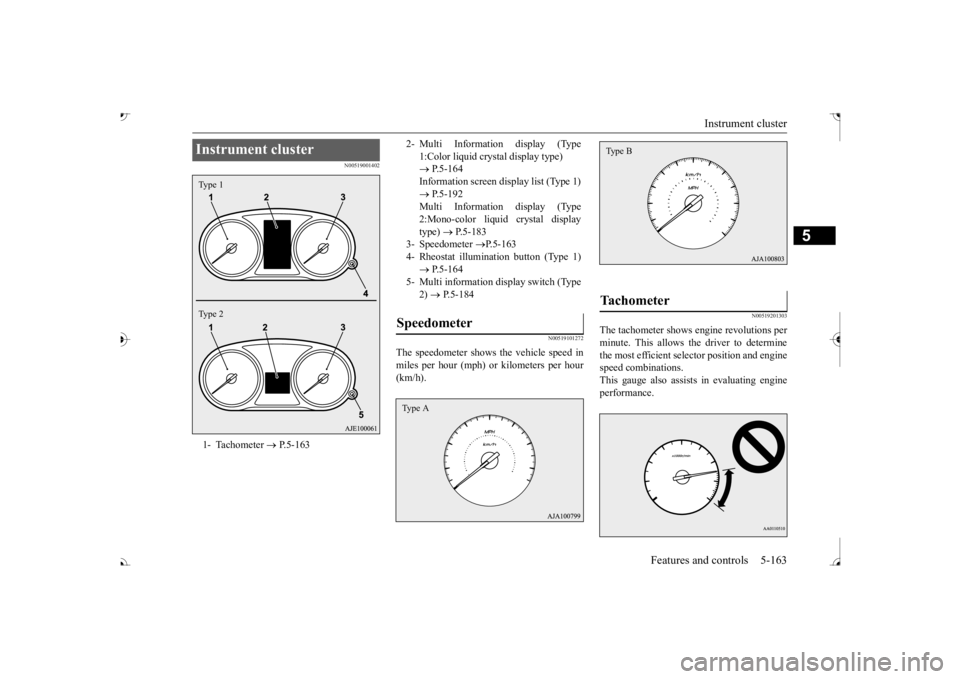

Instrument cluster 1- Tachometer
 P.5-163
Type 1 Type 2
2- Multi Information display (Type
1:Color liquid crystal display type)  P.5-164 Information screen display list (Type 1) Multi Information display (Type2:Mono-color liquid crystal display type)
 P.5-183
3- Speedometer
P.5-163
4- Rheostat illumination button (Type 1) 5- Multi information display switch (Type
2)  P.5-184
Speedometer Type A
Tachometer Type B
