2017 MITSUBISHI LANCER Owners Manual

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-16 Features and controls
5
While carrying the F.A.S.T.-key within the operating range to open the trunk lid, pressand hold down the OPEN
switch (A) until the
trunk lid opens. Also refer to “Trunk lid” on pages 5-39 respectively.
N00513500059
To prevent vehicle theft, no F.A.S.T.-keysother than those registered in advance can be
used to start the engine. (Electronic immobi- lizer function) While carrying the F.A.S.T.-key, the ignition switch can be turned to start the engine. The position where the steering wheel is locked. When the ID code verification inside the vehicle produces a match, the ignition switchcan be turned.
Allows operation of electrical accessories with the engine off. The engine runs and all electrical accessories can be used. Engages the starter. Release the ignition switch when the engine starts. The ignition switch returns automatically to the “ON”position.
To open the trunk lid

NOTE
 The F.A.S.T.-key does not operate when the trunk lid is open.
Ignition switch

LOCK (PUSH OFF)

LOCK (PUSH ON)

ACC

ON

START

NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-27.)
BK0237700US.bo
ok 16 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00513600021
Turn slowly after pressing the ignition switch.
N00513701117
Slowly turn the ignition switch to the “LOCK” position while pressing it. First, set the selector lever to the “P” (PARK) position, and then slowly turn the ignitionswitch to the “LOCK” position while press- ing it.
 If the ignition switch is not turned to the “LOCK (PUSH OFF)” position when the engine is not running, the ID code cannot be verified and the engine will not start even if the ignition switch is turned to the “START” ignition switch to the “LOCK (PUSH OFF)” position, and start the engine again.
To turn from “LOCK (PUSH OFF)” to “ACC”

A- Steering wheel locked B- Steering wheel lock released
NOTE
NOTE
 To turn the ignition switch from the “LOCK (PUSH OFF)” position to the “ACC” posi- tion, push the ignition switch again, turn the steering wheel in both directions and then turn the ignition switch.  The ignition switch cannot be turned unless the F.A.S.T.-key is inside the vehicle.Refer to “Operating range for starting the engine” on page 5-14.
To turn from “ACC” to “LOCK”

For vehicles with manual transaxle For vehicles with continuously variable transmission (CVT)
NOTE
 For vehicle with CVT the ignition switch cannot be turned to the “LOCK” position unless the selector lever is in the “P” (PARK) position.CAUTION If the engine is stopped while driving, the power brake booster will stop functioning and greater effort for braking will berequired. Also, the power steering system will not function and it will require greater effort to manually steer the vehicle. Do not leave the ignition switch in the “ON” position for a long time when the engine isnot running. Doing so could lead to a dead battery. Do not turn the ignition switch to the “START” position when the engine is run- ning. It will damage the starter motor.
BK0237700US.bo
ok 17 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-18 Features and controls
5
N00503500160
With the F.A.S.T.-key, warnings are given through buzzers and displays on the informa-tion screen in the multi-information display in order to prevent mistaken operations or vehicle theft.When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning is also displayed if there is a problem in theF. A . S . T. - k e y.If the following warning displays, contact an authorized Mitsubishi Motors dealer. If the following warning display, the display goes off if corrective action is taken.  The ID codes of the F.A.S.T.-key and the vehicle cannot be verified
 A door cannot be locked even when the driver’s or front passenger’s door lock/unlock switch is pressed.
N00559801141
Ty p e 1
Warning activation

Type 1 Type 2
There is a problem in the F. A . S . T. - k e y
Type 1 Type 2
Someone may be carrying a F.A.S.T.-key with a different ID code, or the F.A.S.T.-key may not be within the oper- ating range
Type 1 Type 2
Refer to “F.A.S.T.-key take- out monitoring system” on page 5-18.
Type 1 Type 2
The battery of the F.A.S.T.- key is run down
Type 1 Type 2
Refer to “Key lock-in pre- vention system” on page 5-19.
Type 1 Type 2
Refer to “Door ajar preven- tion system” on page 5-19.
Type 1 Type 2
Refer to “Ignition switch turn-off reminder system” on page 5-20.
F.A.S.T.-key take-out monitoring system

BK0237700US.bo
ok 18 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
Type 2 When the ignition switch is in a position other than the “LOCK (PUSH OFF)”, if the door(s) are opened, the F.A.S.T. - key isremoved from the passenger compartment, and then the door(s) are closed, the warning display is displayed and the buzzer sounds 4times as a warning since it’s impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
N00559900103
Type 1 Type 2 When the ignition switch is in the “LOCK (PUSH OFF)” position, the F.A.S.T.-key is left in the passenger compartment, all thedoors are closed, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, thewarning display is displayed and the buzzer sounds for about 3 seconds as a warning, and the doors cannot be locked.If all the doors are manually locked andclosed while the ignition switch is in the “LOCK (PUSH OFF)” position and the F.A.S.T.-key is left in the car, the doors willautomatically unlock and a buzzer will sound for about 3 seconds.
N00560000104
Type 1 Type 2 When the ignition switch is in the “LOCK (PUSH OFF)” position, and someone tries to lock the vehicle by pressing the driver’s orfront passenger’s door lock/unlock switch while one of the doors is not fully closed, the warning display is displayed and the buzzersounds for about 3 seconds as a warning, and the doors cannot be locked.
NOTE
 The F.A.S.T.-key take-out monitoring system does not function if the F.A.S.T.-key isremoved through a window without opening a door. This setting can be changed. See an authorized Mitsubishi Motors dealerfor details.  The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine. The surrounding envi- ronment or electromagnetic waves maymake it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
Key lock-in prevention system

Door ajar prevention system

BK0237700US.bo
ok 19 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-20 Features and controls
5
N00560100105
Ty p e 1 Ty p e 2 When the ignition switch is in a position other than “LOCK (PUSH OFF)”, all the doors are closed, and someone tries to lock the vehicle by pressing the driver’s or frontpassenger’s door lock/unlock switch, the warning display is displayed and the buzzer sounds for about 3 seconds as a warning, andthe doors cannot be locked.
N00514300025
Turn the ignition switch to the “LOCK” posi-tion.Turn the steering wheel until it is locked. Turn the ignition switch to the “ACC” posi- tion while moving the steering wheel slightly.
N00514601386
 Do not operate the starter motor for longer than 15 seconds as this could run the bat-tery down or damage the starter motor. If the engine does not start, turn the ignition switch back to the “LOCK” position, waita few seconds, and then try again. Trying repeatedly with the engine or starter motor still turning will damage the startermechanism.
Ignition switch turn-off reminder system

Steering wheel lock

To l o c k

To u n l o c k

CAUTION Carry the key with you when leaving the vehicle.
 If your vehicle needs to be towed, turn the ignition switch to the “ACC” position to unlock the steering wheel.NOTE
 If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the ignition switch from “LOCK” to “ACC”position. Firmly turn the steering wheel to the left or to the right as you turn the ignition switch.
St arting

Tips for starting

CAUTION
BK0237700US.bo
ok 20 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
 If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” on page 8-2 for instructions. A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driving when the bar graph ofthe engine coolant temperature display starts to move. Refer to “Interrupt display screen (With ignition
switch in the “ON”
position)” on page 5-101.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This isa system that automatically controls fuel injection. There is no need to depress the accelerator pedal when starting the engine.The starter motor should not be run for more than 15 seconds at a time. To prevent battery drain, wait a few secondsbetween attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened. 2. Make sure the parking brake is applied. 3. Press and hold the brake pedal downfirmly with your right foot. 4. Press and hold the clutch pedal all the way down (manual transaxle). 5. On vehicles with manual transaxle, place the gearshift lever in the “N” (Neutral) position.On vehicles with continuously variable transmission (CVT) make sure the selec- tor lever is in the “P” (PARK) position.
6. While pushing the ignition switch from “LOCK” (PUSH OFF) to “LOCK” (PUSH ON), set the ignition switch to the“ON” position and confirm that all warn-ing lights and warning displays are oper- ating properly. 7. Without pressing the accelerator pedal,slowly turn the ignition switch to the “START” position to start the engine. Release the ignition switch when theengine starts.
After several attempts, you may experience that the engine still does not start.
WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car-bon monoxide gas, which is odorless and extremely poisonous, could build up and cause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high rpms or drive at high speeds until the engine has had a chance to warm up. Release the ignition switch as soon as the engine starts. Otherwise, the starter motorwill be damaged.
Starting the engine

NOTE
 For models equipped with a manual trans- axle, the starter will not operate unless the clutch pedal is fully depressed (Clutch inter-lock). This is a safety feature.
NOTE
 On vehicles with CVT, the starter will not operate unless the selector lever is in the “P” (PARK) or “N” (NEUTRAL) position. For safety reasons, start the engine in the “P” (PARK) position so that the wheels arelocked.NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
BK0237700US.bo
ok 21 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-22 Features and controls
5
1. Make sure that all electric devices, such as lights, air conditioning blower and rear window defogger, are turned off. 2. While depressing the brake pedal on vehi-cles equipped with continuously variable transmission (CVT) or the clutch pedal on the vehicles equipped with manual trans-axle, press the accelerator pedal halfway and hold it there, then crank the engine. Release the accelerator pedal, immedi-ately after the engine starts.3. If the engine still will not start, the engine could be flooded with too much gasoline. While depressing the brake pedal on vehi-cles equipped with CVT or the clutch pedal on the vehicles
equipped with man-
ual transaxle, push the accelerator pedalall the way down and hold it there, then crank the engine for 5 to 6 seconds. Return the ignition switch to the “LOCK”position and release the accelerator pedal. Wait a few seconds, and then crank the engine again for 5 to 6 seconds whiledepressing the brake pedal or the clutch pedal, but do not push the accelerator pedal. Release the ignition key if theengine starts. If the engine fails to start, repeat these procedures. If the engine still will not start, contact your local Mitsubi-shi Motors dealer or a repair facility of your choice for assistance.
When the ambient temperature is -4°F (-20°C) or lower, it may not be possible tostart from a standstill even with the selector lever in the “D” (DRIVE) or “R” (REVERSE) position.This phenomenon occurs because the trans- axle has not warmed up sufficiently; it does not indicate a problem. If this occurs, placethe selector lever in the “P” (PARK) positionand let the engine idle for at least 10 minutes. The transaxle will warm up, and you will be able to drive normally.Do not leave the vehicle during warm-up operation.
N00514800020 N00515200148
The emergency key is built into the F.A.S.T.- key.When the F.A.S.T.-key cannot be used, such as when the battery of the F.A.S.T.-key or the vehicle has run down, the emergency key can
be used to lock and unlock the driver’s door and to start the engine. To use the emergency key (1), unlock the lock knob (2) and remove it from the F.A.S.T.-key (3). Turn the emergency key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the emergencykey back to the center and remove it.
Startability of continuously variable transmission (CVT) vehicles at extremely cold ambient temperatureTo operate using the emergency key

Emergency key

NOTE
 Only use the emergency key in an emer- gency. When the battery of the F.A.S.T.-key has run down, replace the battery as soon as possible and use it as a F.A.S.T.-key again.  After using the emergency key, be sure to reinsert it into the F.A.S.T.-key.
To lock or unlock the driver’s door with the emergency key
BK0237700US.bo
ok 22 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5

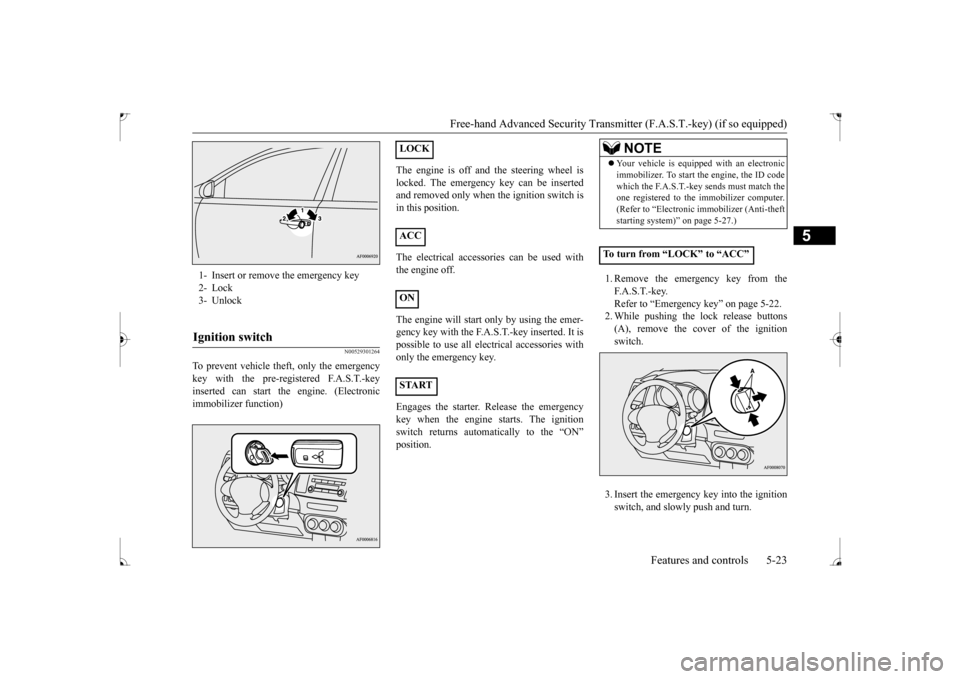

N00529301264
To prevent vehicle theft, only the emergency key with the pre-registered F.A.S.T.-keyinserted can start the engine. (Electronic immobilizer function)
The engine is off and the steering wheel is locked. The emergency key can be inserted and removed only when the ignition switch is in this position. The electrical accessories can be used with the engine off. The engine will start only by using the emer- gency key with the F.A.S.T.-key inserted. It is possible to use all electrical accessories with only the emergency key. Engages the starter. Release the emergency key when the engine starts. The ignition switch returns automatically to the “ON” position.
1. Remove the emergency key from the F. A . S . T. - k e y. Refer to “Emergency key” on page 5-22. 2. While pushing the lock release buttons(A), remove the cover of the ignition switch. 3. Insert the emergency key into the ignition switch, and slowly push and turn.
1- Insert or remove the emergency key 2- Lock 3- UnlockIgnition switch

LOCK ACC ON START
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-27.)
To turn from “LOCK” to “ACC”
BK0237700US.bo
