2017 MITSUBISHI LANCER Owners Manual

Supplemental Restraint System (SRS) - airbag 4-30 Seat and restraint systems
4
The front airbags and driver’s knee airbag may deploy if the underside of the vehicle suffers a moderate to severe impact (under- carriage impact). Some typical situations areshown in the illustrations. Because the front airbags and driver’s knee airbag may deploy in certain types of unex- pected impacts, as shown in the illustrations, and these unexpected impacts can move youout of position, it is important to always wear your seat belts properly. When worn properly, seat belts can help maintain your distancefrom the airbags and driver’s knee airbag when they begin to inflate. The beginning stage of airbag inflatio
n is the most forceful
and can cause serious injury or death if you are close to the deploying airbag.The front airbags and driver’s knee airbag MAY DEPLOY when …
Collision with an elevated median/island or curb Vehicle travels over a deep hole/pothole Vehicle drives down a steep slope and hits the ground
WA R N I N G Do not attach anything to the steering wheel’s padded cover, such as trim mate- rial, badges, etc. These could strike and injure an occupant if the airbag inflates.  Do not set anything on, or attach anything to, the instrument panel above the glove compartment. Such items could strike andinjure an occupant if the airbag inflates. WA R N I N G Do not attach accessories to, or put them in front of, the windshield. They couldrestrict the airbag inflation, or strike and injure an occupant, when the airbag inflates.
BK0237700US.bo
ok 30 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-31
4
N00408101460
The side airbags (A) are contained in the driver and front passenger seatbacks.The side airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat. A label is attached to the seatbacks in vehi- cles with side airbags.
 Do not attach additional keys or accesso- ries (hard, pointed or heavy objects) to the ignition key. Such objects could prevent the driver’s knee airbag from inflating normally or could be propelled to causeserious injury if the airbag inflates.  Do not attach accessories to the lower por- tion of the driver’s side instrument panel. Such objects could prevent the driver’s knee airbag from inflating normally orcould be propelled to cause serious injury if the airbag inflates.WA R N I N G Do not attempt to remove, install, disas- semble or repair the SRS airbags.WA R N I N G
 Do not place objects, such as packages or pets, between the airbags and the driver or the front passenger. Such objects can adversely affect airbag performance, or cause serious injury or death when theairbag deploys. Immediately after airbag inflation, some parts of the airbag system will be hot. Do not touch them. You could be burned.  The airbag system is designed to work only once. After the airbags deploy, they will not work again. They must promptlybe replaced and the entire airbag system must be inspected by an authorized Mit- subishi Motors dealer.WA R N I N G
Side airbag system
(if so equipped)
BK0237700US.bo
ok 31 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag 4-32 Seat and restraint systems
4
N00419201230

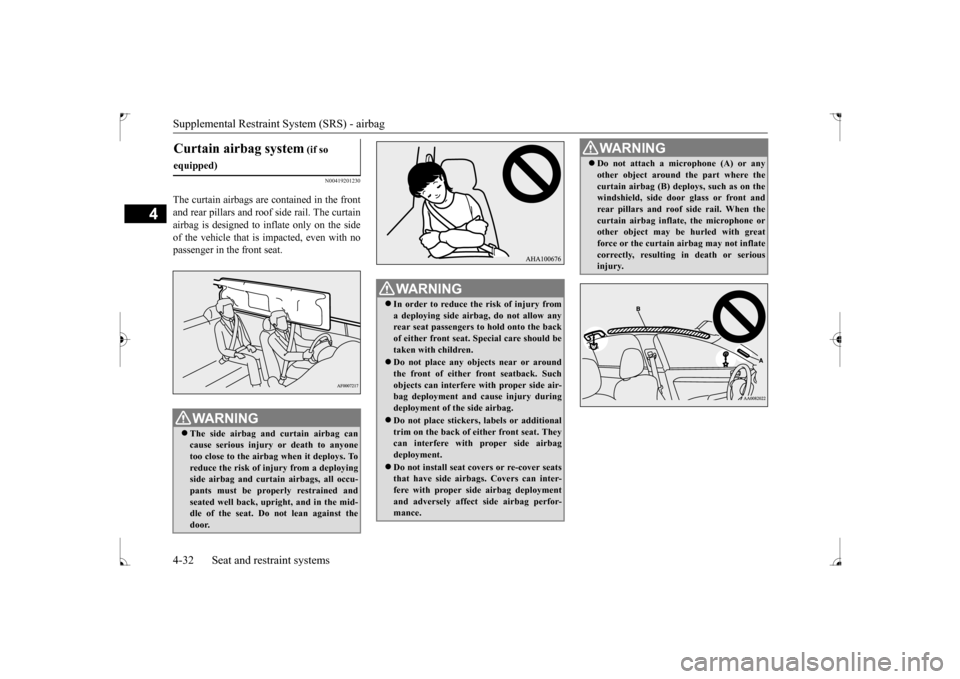

The curtain airbags are contained in the front and rear pillars and roof
side rail. The curtain
airbag is designed to inflate only on the sideof the vehicle that is impacted, even with no passenger in the front seat.Curtain airbag system
(if so
equipped)
WA R N I N G The side airbag and curtain airbag can cause serious injury or death to anyone too close to the airbag when it deploys. Toreduce the risk of injury from a deploying side airbag and curtain airbags, all occu- pants must be properly restrained andseated well back, upright, and in the mid- dle of the seat. Do not lean against the door.
WA R N I N G In order to reduce the risk of injury from a deploying side airbag, do not allow any rear seat passengers to hold onto the backof either front seat. Special care should be taken with children. Do not place any objects near or around the front of either front seatback. Such objects can interfere with proper side air-bag deployment and cause injury during deployment of the side airbag. Do not place stickers, labels or additional trim on the back of either front seat. They can interfere with proper side airbagdeployment. Do not install seat covers or re-cover seats that have side airbags. Covers can inter- fere with proper side airbag deployment and adversely affect side airbag perfor-mance.
 Do not attach a microphone (A) or any other object around the part where the curtain airbag (B) deploys, such as on the windshield, side door glass or front and rear pillars and roof side rail. When thecurtain airbag inflate, the microphone or other object may be hurled with great force or the curtain airbag may not inflatecorrectly, resulting in death or serious injury. WA R N I N G
BK0237700US.bo
ok 32 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-33
4
N00408200507

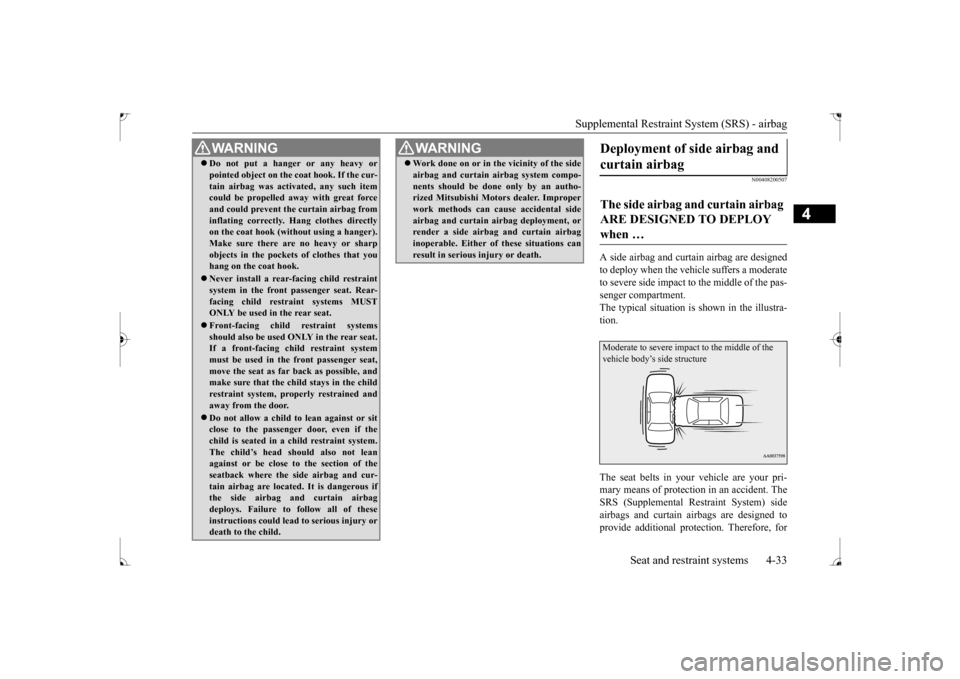

A side airbag and curtain airbag are designed to deploy when the vehicle suffers a moderateto severe side impact to the middle of the pas- senger compartment. The typical situation is shown in the illustra-tion. The seat belts in your vehicle are your pri- mary means of protection in an accident. The SRS (Supplemental Restraint System) sideairbags and curtain airbags are designed to provide additional protection. Therefore, for
WA R N I N G Do not put a hanger or any heavy or pointed object on the coat hook. If the cur- tain airbag was activated, any such item could be propelled away with great force and could prevent the curtain airbag frominflating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharpobjects in the pockets of clothes that you hang on the coat hook. Never install a rear-facing child restraint system in the front passenger seat. Rear- facing child restraint systems MUSTONLY be used in the rear seat. Front-facing child restraint systems should also be used ONLY in the rear seat. If a front-facing child restraint system must be used in the front passenger seat,move the seat as far back as possible, and make sure that the child stays in the child restraint system, properly restrained andaway from the door. Do not allow a child to lean against or sit close to the passenger door, even if the child is seated in a child restraint system. The child’s head should also not leanagainst or be close to the section of the seatback where the side airbag and cur- tain airbag are located.
It is dangerous if
the side airbag and curtain airbag deploys. Failure to follow all of theseinstructions could lead to serious injury or death to the child.
 Work done on or in the vicinity of the side airbag and curtain airbag system compo- nents should be done only by an autho- rized Mitsubishi Motors dealer. Improper work methods can cause accidental sideairbag and curtain airbag deployment, or render a side airbag and curtain airbag inoperable. Either of these situations canresult in serious injury or death.WA R N I N G
Deployment of side airbag and curtain airbag The side airbag and curtain airbag ARE DESIGNED TO DEPLOY when … Moderate to severe impact to the middle of the vehicle body’s side structure
BK0237700US.bo
ok 33 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag 4-34 Seat and restraint systems
4

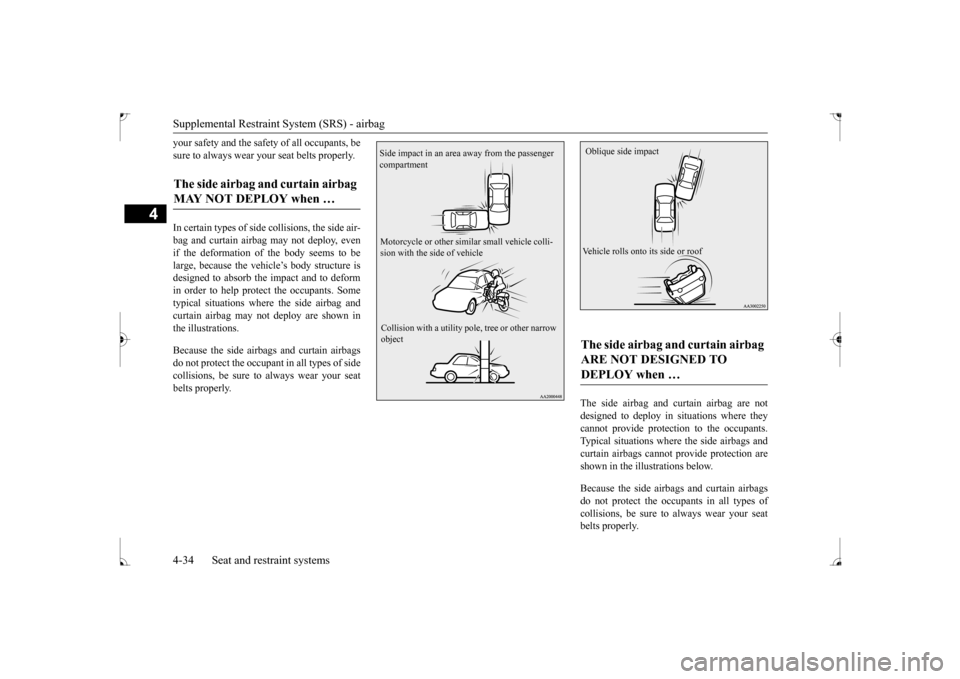

your safety and the safety of all occupants, be sure to always wear your seat belts properly. In certain types of side collisions, the side air- bag and curtain airbag may not deploy, evenif the deformation of the body seems to be large, because the vehicle’s body structure is designed to absorb the impact and to deformin order to help protect the occupants. Sometypical situations where the side airbag and curtain airbag may not deploy are shown in the illustrations. Because the side airbags and curtain airbags do not protect the occupant in all types of side collisions, be sure to always wear your seat belts properly.
The side airbag and curtain airbag are not designed to deploy in situations where they cannot provide protection to the occupants. Typical situations where the side airbags andcurtain airbags cannot provide protection are shown in the illustrations below. Because the side airbags and curtain airbags do not protect the occupants in all types ofcollisions, be sure to always wear your seatbelts properly.
The side airbag and curtain airbag MAY NOT DEPLOY when …
Side impact in an area away from the passenger compartment Motorcycle or other si
milar small vehicle colli-
sion with the side of vehicle Collision with a utility pole
, tree or other narrow
object
The side airbag and curtain airbag ARE NOT DESIGNED TO DEPLOY when … Oblique side impact Vehicle rolls onto its side or roof
BK0237700US.bo
ok 34 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-35
4
N00408500672
Head-on collision Rear end collision
SRS servicing
WA R N I N G Any maintenance performed on or near the components of the SRS should be per- formed only by an authorized Mitsubishi Motors dealer. Do not permit anyone elseto do any service, inspection, maintenance or repair on any SRS components or wir- ing. Similarly, no part of the SRS shouldever be handled, removed or disposed by anyone except an authorized Mitsubishi Motors dealer.Improper work methods on the SRS com- ponents or wiring could result in an acci- dental airbag deployment or could makethe SRS inoperable. Either of these situa- tions could result in serious injury or death.  Do not modify your steering wheel or any other SRS component or related vehiclepart. For example, replacement of the steering wheel, or modifications to the front bumper or body structure canadversely affect SRS performance and may lead to injury. If your vehicle has received any damage, you should have the SRS inspected by an authorized Mitsubishi Motors dealer to make sure it is in proper working order.
 Do not modify your front seats, center pil- lar or center console. Such modifications can adversely affect SRS performance and may lead to injury. Also, if you discover any tear or openseam in the seat fabric near the side air- bag, have the seat inspected by an autho- rized Mitsubishi Motors dealer.  If you find a crack in or damage to the front pillar, rear pillar, or roof side railwhere the curtain airbag is located, have the SRS inspected by an authorized Mit- subishi Motors dealer.NOTE
 When you transfer ownership of the vehicle to another person, we urge you to alert the new owner that it is equipped with the SRS and refer that owner to the applicable sec-tions in this owner’s manual.  If you decide to junk
or scrap your vehicle,
we urge you to first take it to an authorized Mitsubishi Motors dealer so that the SRS can be made safe for disposal.  If any of the following parts needs to be modified for use by a handicapped person, the advanced airbag system will be greatly affected. Please consult an authorized Mit-subishi Motors dealer for assistance. • Driver’s seat• Front passenger seat • Front seat beltWA R N I N G
BK0237700US.bo
ok 35 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
N00408600341
Occupant restraint warning labels for the SRS are located in the vehicle as shown in the illustration.
• Steering wheel • Instrument panel[For vehicles sold in U.S.A.] To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to:Mitsubishi Motors North America, Inc. Customer Relations DepartmentP. O. Box 6400Cypress, CA 90630-0064 [For vehicles sold in Canada] To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:Mitsubishi Motor Sales of Canada, Inc. Customer Relations DepartmentP.O. Box 41009 4141 Dixie Road Mississauga, ON L4W 5C9NOTE
[For vehicles sold in Puerto Rico]To contact Mitsubishi Motor Sales of Caribbean, Inc. call 1-787-251-8715 or write to: Mitsubishi Motor Sales of Caribbean, Inc. Customer Service Department P.O. Box 192216SAN JUAN PR 00919-2216 [For vehicles sold in Guam] To contact Triple J Enterprises Inc.call (671) 649-3673 or write to: Triple J Enterprises, Inc. P.O. Box 6066TAMUNING GUAM 96931 [For vehicles sold in Saipan] To contact Triple J Motors call (670) 234-7133 or write to:Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]To contact Pacific Marketing Inc. call 684 (699) 9140 or write to: Pacific Marketing, Inc.P.O. Box 698 PA G O PA G O , AMERICAN SAMOA AS, 96799
Warning labels
BK0237700US.bo
ok 36 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-37
4

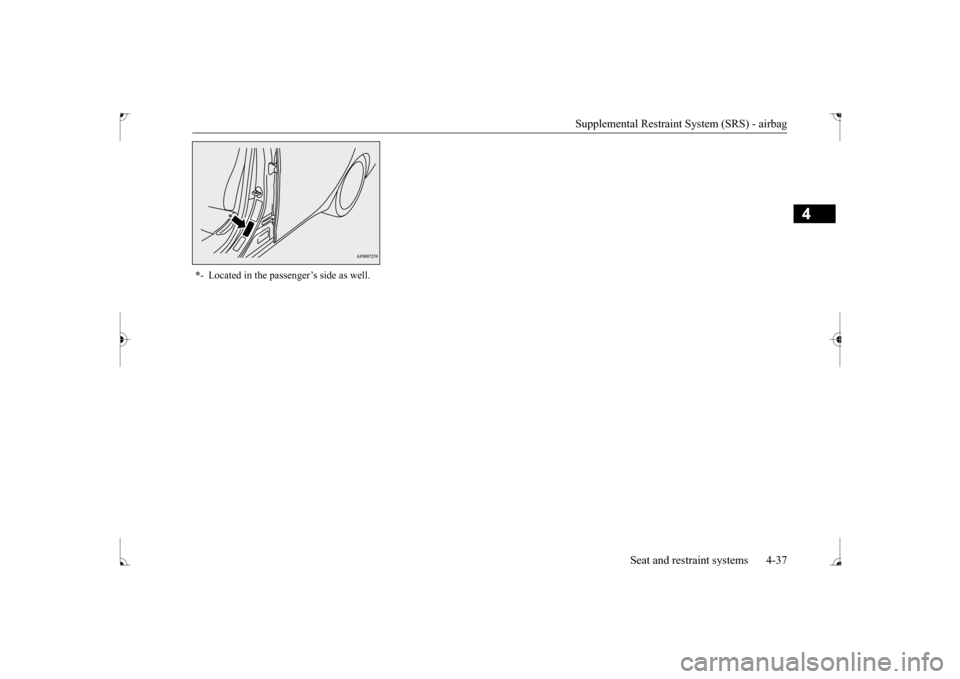

* - Located in the passenger’s side as well.
