2017 MERCEDES-BENZ GLE Owners Manual

Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances out of the air.
The "Cooling with air dehumidification" function
is only available when the engine is running.
Optimum climate control is only achieved with
the side windows and roof closed.
The residual heat function can only be activated
or deactivated with the ignition switched off
( Y
page 128).
i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 86).
This will speed up the cooling process and the
desired interior temperature will be reached
more quickly. If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated ( Y
page 134).
i The integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book-
let.
i Vehicles with AIR-BALANCE package: in
addition to ionization, the vehicle has an air
filter with anti-allergenic properties that con-
tribute to improved air filtration.
i It is possible that under certain circumstan-
ces the residual heat function may be activa-
ted automatically an hour after the SmartKey
has been removed in order to dry the auto-
matic climate control. The vehicle is then ven-
tilated for 30 minutes.
i Hybrid vehicles: observe the information
on climate control in the separate operating
instructions.Overview of climate control systems 119
Climate control

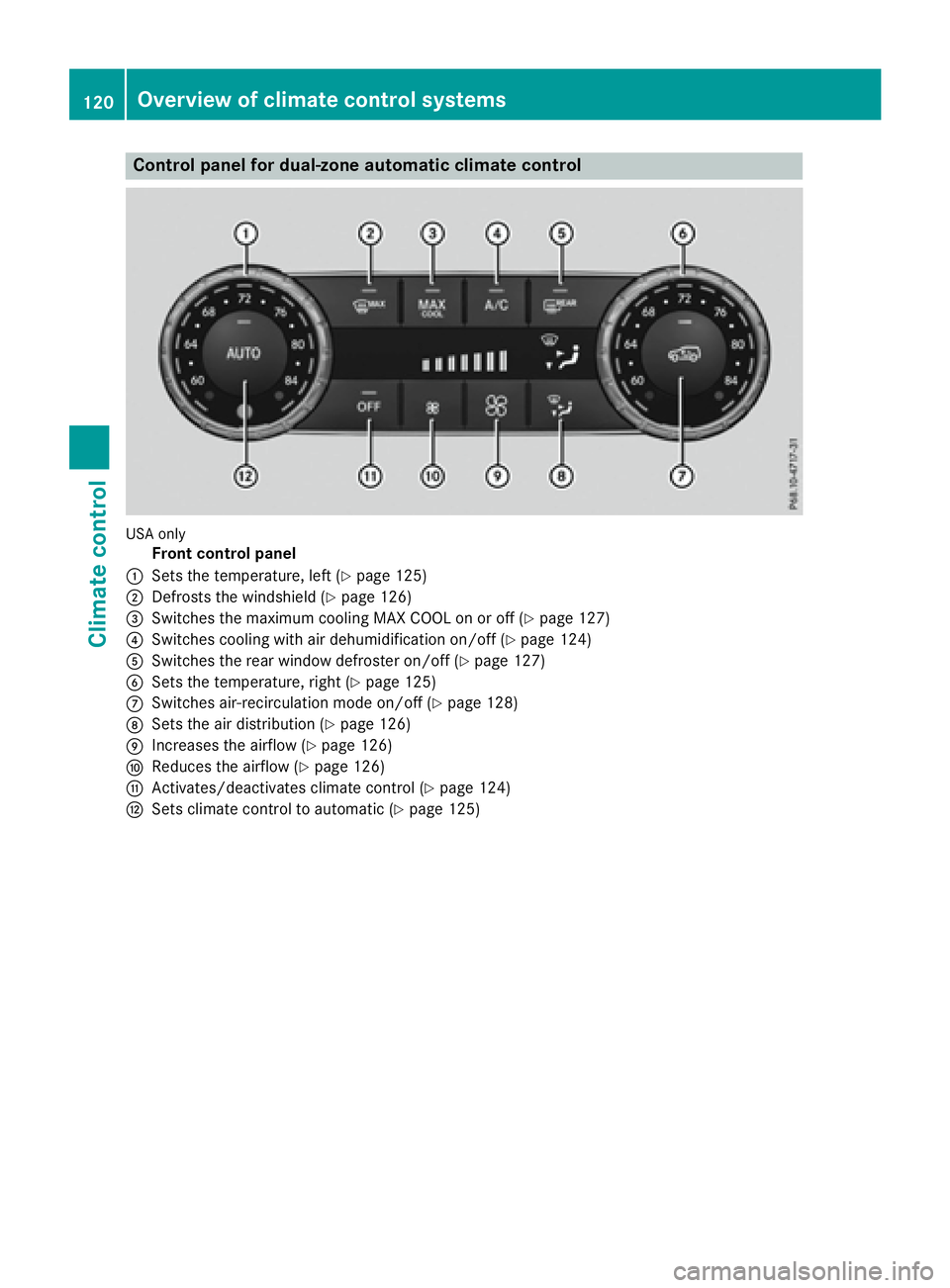

Control panel for dual-zone automatic climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 125)D
Defrosts the windshield ( Y
page 126)

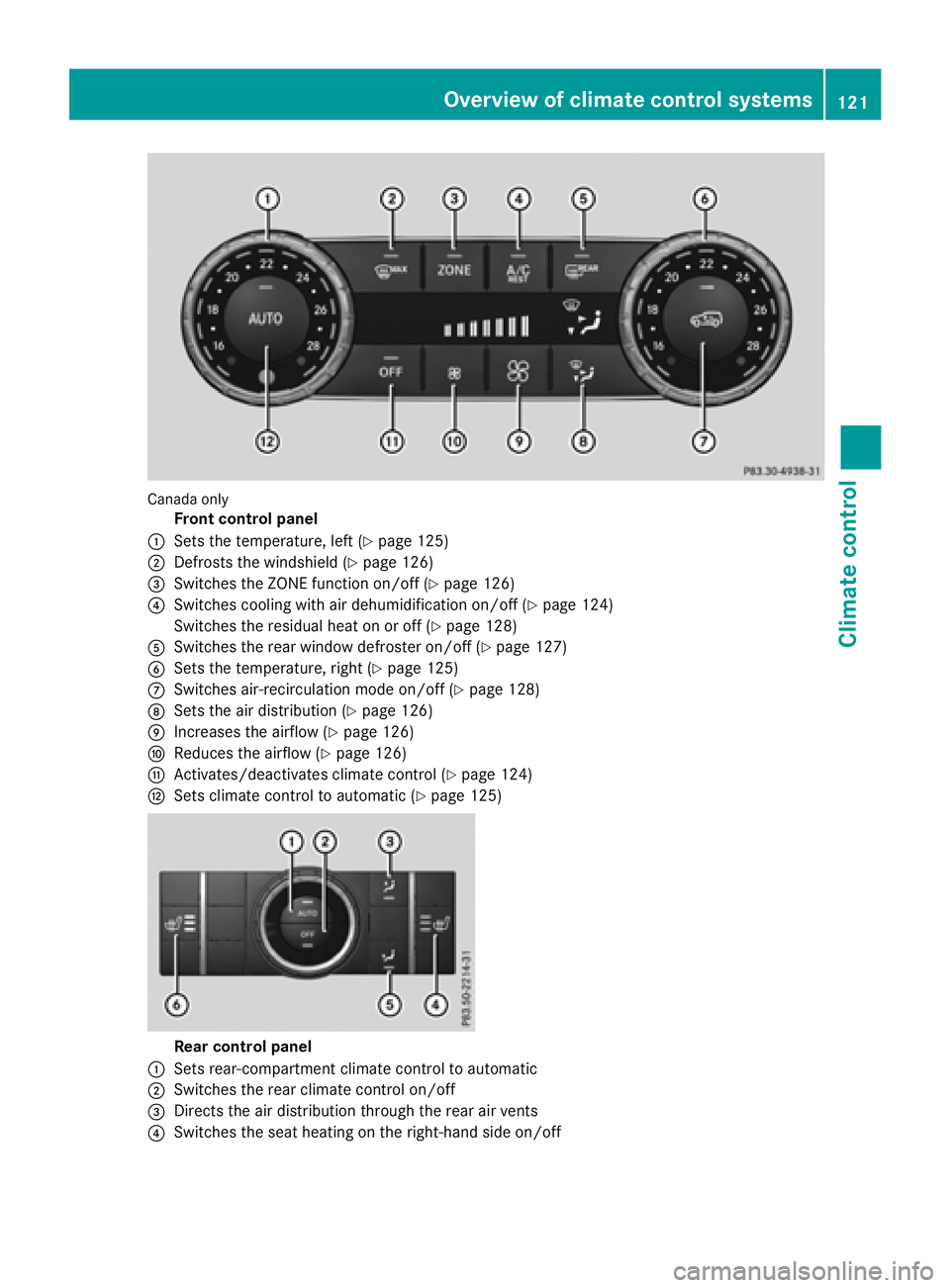

Canada on ly
Front control panelC
Sets the temperature, left ( Y
page 125)D
Defrosts the windshield ( Y
page 126)

{
Reduces th e airflow ( Y
page 126)|
Switches th e seat heating on th e left-han d side on/off ( Y
page 98 )
Canad a only
Front control panelC
Sets th e temperature, lef t ( Y
page 125)D
Defrost s th e windshield ( Y
page 126)

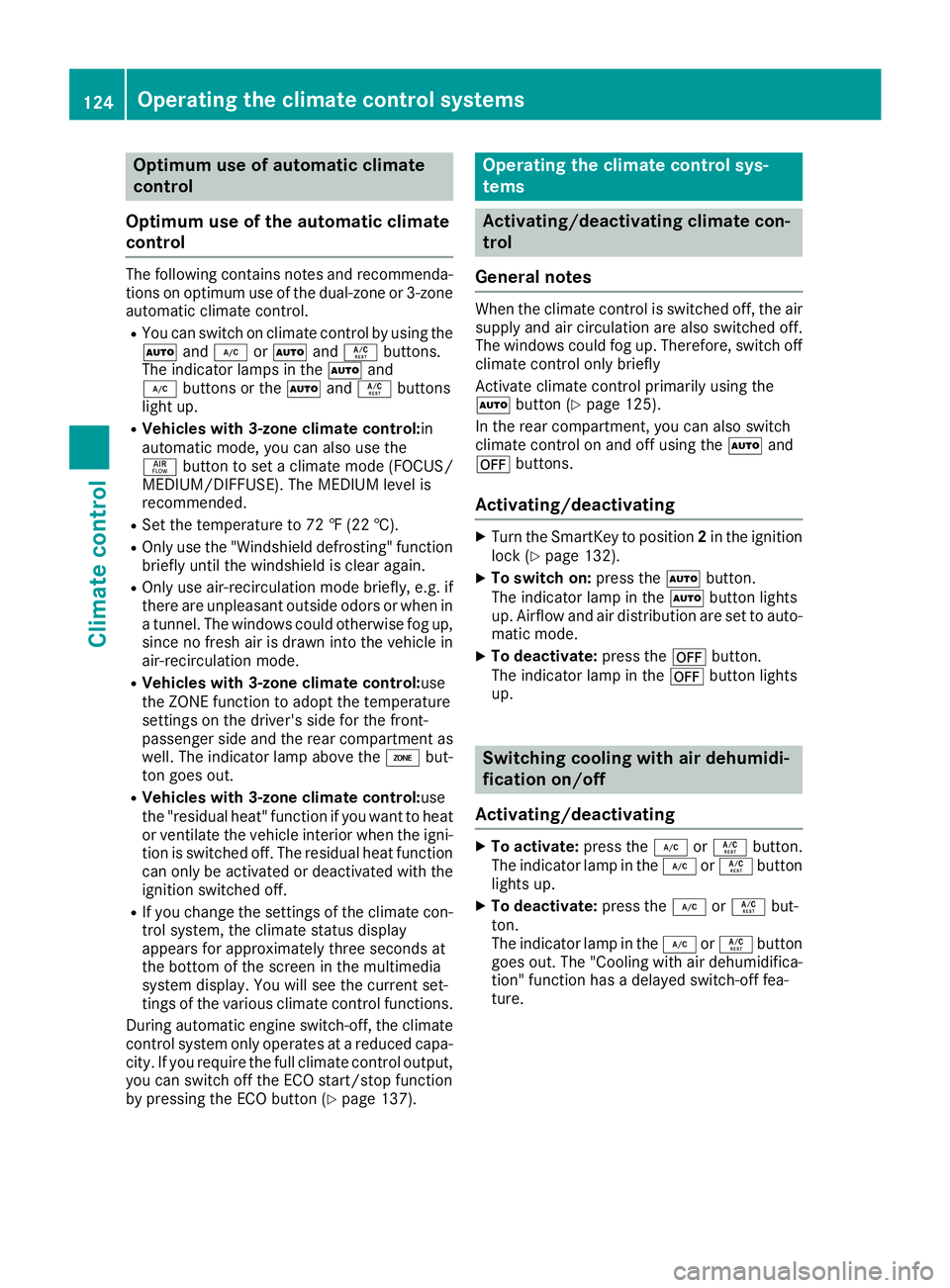

Optimum use of automatic climate
control
Optimum use of the automatic climate
control The following contains notes and recommenda-
tions on optimum use of the dual-zone or 3-zone
automatic climate control. R
You can switch on climate control by using the
X and Z or X and V buttons.
The indicator lamps in the X and
Z buttons or the X and V buttons
light up. R
Vehicles with 3-zone climate control: in
automatic mode, you can also use the

Problems with the "Cooling with air dehumidification" function Problem
Possible causes/consequences and P Solutions
The indicator lamp in the
Z or V button
flashes three times or
remains off. The "Cool-
ing with air dehumidifi-
cation" function cannot
be switched on. Cooling with air dehumidification has been deactivated due to a mal-
function. X
Visit a qualified specialist workshop.
Setting climate control to automatic
General notes In automatic mode, the set temperature is main-
tained automatically at a constant level. The
system automatically regulates the temperature
of the dispensed air, the airflow and the air dis-
tribution.
The "Cooling with air dehumidification" function
is activated automatically in automatic mode.
In the rear compartment, you can also switch
climate control for the rear seats to automatic
mode using the X button.
Automatic control X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 132).X
Set the desired temperature. X
To activate: press the X button.
The indicator lamp in the X button lights
up. Automatic air distribution and airflow are
activated. X
To switch to manual mode: press the

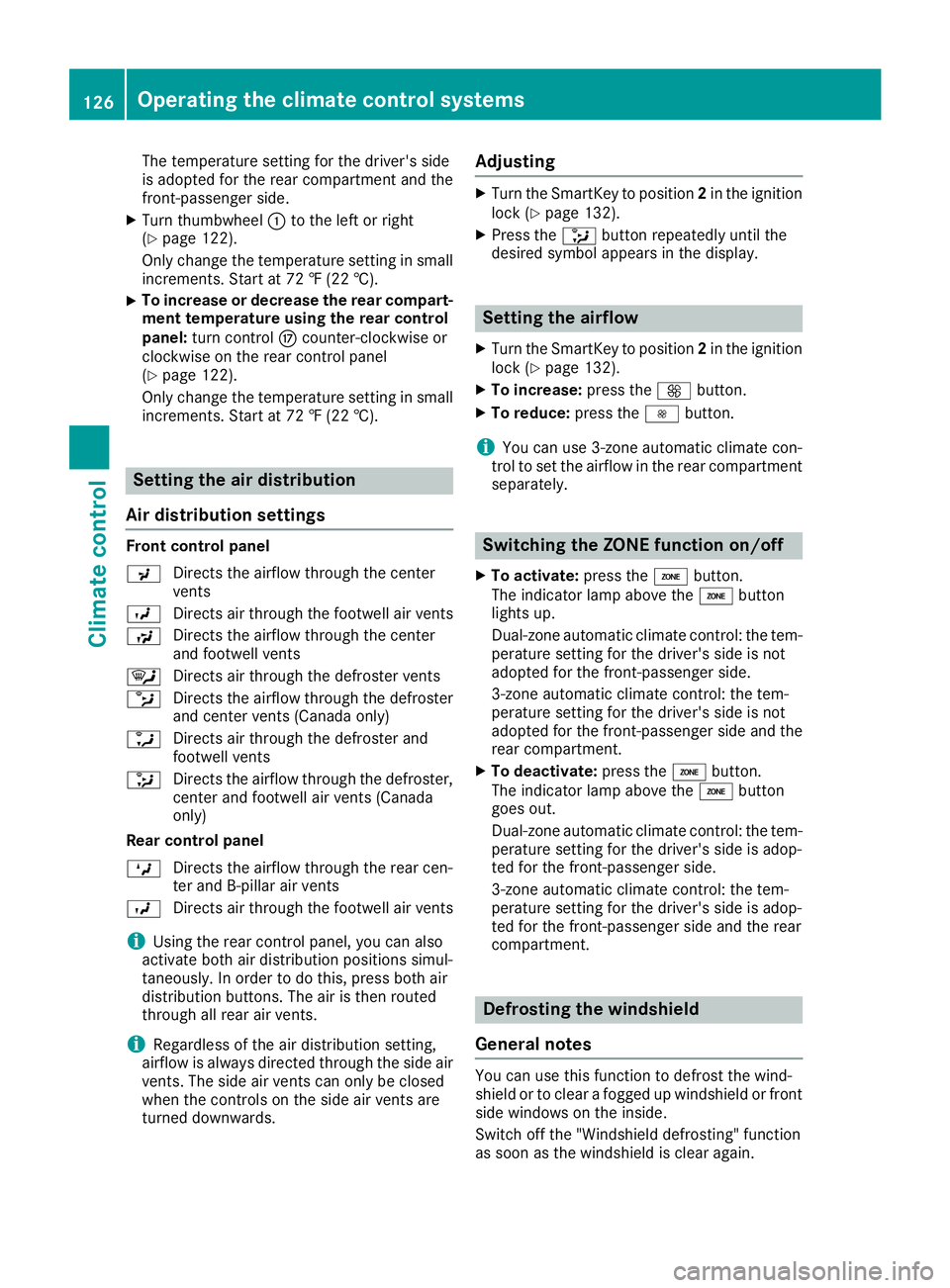

The temperature setting for the driver's side
is adopted for the rear compartment and the
front-passenger side. X
Turn thumbwheel C to the left or right
( Y
page 122).
Only change the temperature setting in small
increments. Start at 72 ‡ (22 †). X
To increase or decrease the rear compart-
ment temperature using the rear control
panel: turn control u counter-clockwise or
clockwise on the rear control panel
( Y
page 122).
Only change the temperature setting in small
increments. Start at 72 ‡ (22 †).
Setting the air distribution
Air distribution settings Front control panel
