2017 MERCEDES-BENZ GLC Owners Manual

Stowage compartments in the front Glove box X
To open: pull handle C and open glove box
flap D .X
To close: fold glove box flap D upwards until
it engages.
Objects in A4 format or an iPad ®
, for example,
can be stored in the glove box. For vehicles with
a perfume atomizer ( Y
page 128) the storage
space of the glove box is restricted.
The glove box can only be locked and unlocked
using the mechanical key ( Y
page 79).X
To lock: insert the mechanical key into the
lock and turn it 90° clockwise to position H .X
To unlock: insert the mechanical key into the
lock and turn it 90° counter-clockwise to
position G . Eyeglasses compartment X
To open: press marking C .
The eyeglasses compartment opens down.
Make sure that the eyeglasses compartment is
always closed while the vehicle is in motion.
Stowage compartment in the front center
console
X
Briefly press trim D in the direction of the
arrow.
Cover C swings up.
Stowage compartment under the armrest
X
To open: press button C at front.
The stowage space opens.Stowage areas 279
Stowage and features Z

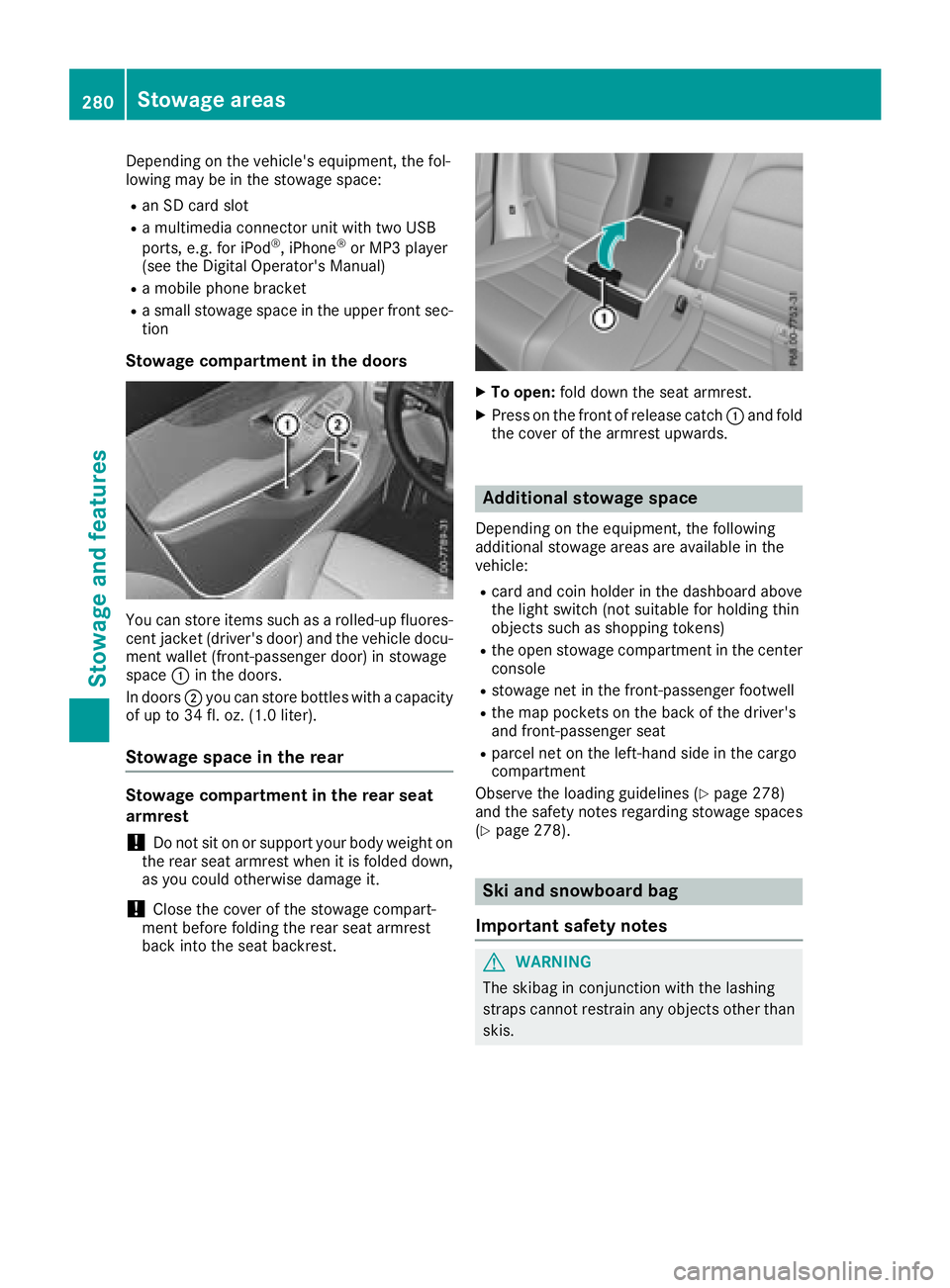

Depending on the vehicle's equipment, the fol-
lowing may be in the stowage space: R
an SD card slot R
a multimedia connector unit with two USB
ports, e.g. for iPod ®
, iPhone ®
or MP3 player
(see the Digital Operator's Manual) R
a mobile phone bracket R
a small stowage space in the upper front sec-
tion
Stowage compartment in the doors
You can store items such as a rolled-up fluores-
cent jacket (driver's door) and the vehicle docu-
ment wallet (front-passenger door) in stowage
space C in the doors.
In doors D you can store bottles with a capacity
of up to 34 fl. oz. (1.0 liter).
Stowage space in the rear
Stowage compartment in the rear seat
armrest
! Do not sit on or support your body weight on
the rear seat armrest when it is folded down,
as you could otherwise damage it.
! Close the cover of the stowage compart-
ment before folding the rear seat armrest
back into the seat backrest. X
To open: fold down the seat armrest. X
Press on the front of release catch C and fold
the cover of the armrest upwards.
Additional stowage space Depending on the equipment, the following
additional stowage areas are available in the
vehicle: R
card and coin holder in the dashboard above
the light switch (not suitable for holding thin
objects such as shopping tokens) R
the open stowage compartment in the center
console R
stowage net in the front-passenger footwell R
the map pockets on the back of the driver's
and front-passenger seat R
parcel net on the left-hand side in the cargo
compartment
Observe the loading guidelines ( Y
page 278)
and the safety notes regarding stowage spaces
( Y
page 278).
Ski and snowboard bag
Important safety notes
G WARNING
The skibag in conjunction with the lashing
straps cannot restrain any objects other than
skis.280
Sto wag e areas
Stowag e an d features

Vehicle occupants could be struck in the
event of sudden braking or an accident, for
instance, if you: R
transport other heavy or sharp-edged
objects in the skibag R
do not secure the skibag with the lashing
straps
There is a risk of accident and injury.
Store only skis in the skibag. Always secure
the skibag with the lashing straps so that it
cannot move around.
A maximum of four pairs of skis or two snow-
boards can be transported in the ski and snow-
board bag.
Securing the ski/snowboard bag in the
cargo compartment
X
Fold the middle rear seat backrest forwards
( Y
page 281). X
Slide the ski and snowboard bag between the
two outside rear seat backrests. Ensure that
the wheels of the ski/snowboard bag are in
the cargo compartment. X
Open the ski/snowboard bag with zip C and
place the skis or snowboards inside it. X
Close the ski and snowboard bag. X
Pull tensioning strap D tight by the loose end
until the skis or snowboards are held firmly
inside the ski/snowboard bag. X
Engage tensioning strap

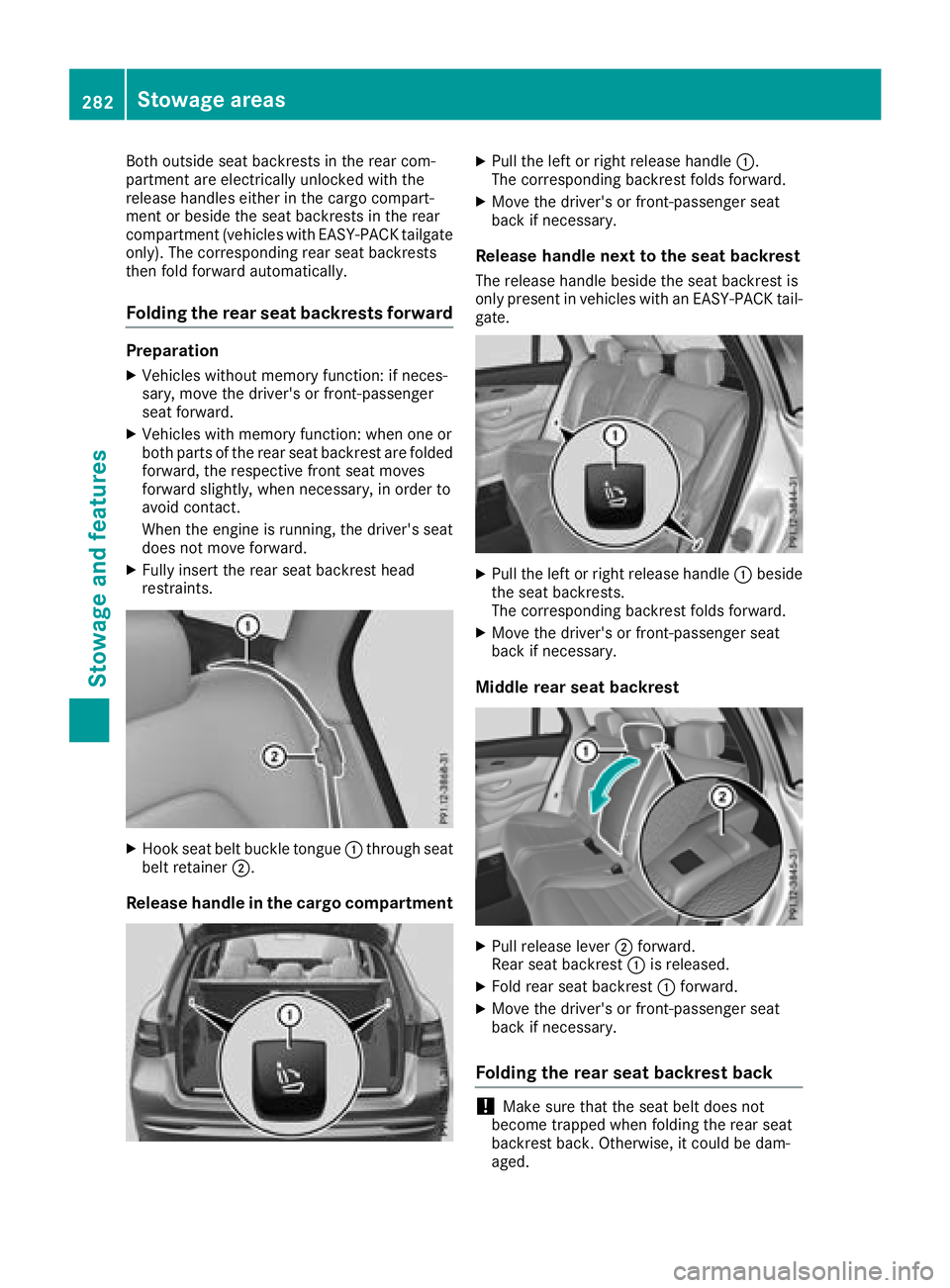

Both outside seat backrests in the rear com-
partment are electrically unlocked with the
release handles either in the cargo compart-
ment or beside the seat backrests in the rear
compartment (vehicles with EASY-PACK tailgate
only). The corresponding rear seat backrests
then fold forward automatically.
Folding the rear seat backrests forward Preparation X
Vehicles without memory function: if neces-
sary, move the driver's or front-passenger
seat forward. X
Vehicles with memory function: when one or
both parts of the rear seat backrest are folded
forward, the respective front seat moves
forward slightly, when necessary, in order to
avoid contact.
When the engine is running, the driver's seat
does not move forward. X
Fully insert the rear seat backrest head
restraints.
X
Hook seat belt buckle tongue C through seat
belt retainer D .
Release handle in the cargo compartment X
Pull the left or right release handle C .
The corresponding backrest folds forward. X
Move the driver's or front-passenger seat
back if necessary.
Release handle next to the seat backrest The release handle beside the seat backrest is
only present in vehicles with an EASY-PACK tail-
gate.
X
Pull the left or right release handle C beside
the seat backrests.
The corresponding backrest folds forward. X
Move the driver's or front-passenger seat
back if necessary.
Middle rear seat backrest
X
Pull release lever D forward.
Rear seat backrest C is released.X
Fold rear seat backrest C forward.X
Move the driver's or front-passenger seat
back if necessary.
Folding the rear seat backrest back
! Make sure that the seat belt does not
become trapped when folding the rear seat
backrest back. Otherwise, it could be dam-
aged.282
Stowage areas
Stowage and features

Left and right seat backrest: X
Move the driver's or front-passenger seat
forward if necessary. X
Fold rear seat backrest C back until it
engages.
If the rear seat backrest is not engaged and
locked, this will be shown in the multifunction
display in the instrument cluster. A warning
tone also sounds. X
Adjust the head restraints if necessary
( Y
page 101). X
Move the driver's or front-passenger seat
back if necessary.
Middle rear seat backrest: X
Move the driver's or front-passenger seat
forward if necessary. X
Fold seat backrest C back until it engages.
Red lock status indicator D is no longer visi-
ble. X
Adjust the head restraints if necessary
( Y
page 101). X
Move the driver's or front-passenger seat
back if necessary. Locking the center rear seat backrest
In order to prevent the cargo compartment from
being accessed by unauthorized persons, the
center seat backrest can be locked using a
catch. The center seat backrest can only be fol-
ded forward together with the left seat backrest. X
To lock: fold the left and center seat backr-
ests forward. Make sure that the center and
left seat backrests are engaged and joined
together. X
Slide catch C upwards.
The release mechanism of the center seat
backrest is locked. X
To unlock: fold the left and center seat backr-
ests forward. X
Slide catch C downwards.
Adjusting the angle of the rear seat
backrests (cargo position) Stowage areas 283
Stowage and features Z

Vehicles with the stowage space package: to
enlarge the cargo compartment, you can adjust
the rear seat backrests to a 10 degrees steeper
angle (cargo position). X
Fold the seat backrest forward ( Y
page 281).X
Move handle C in the direction of the arrow.X
Push back seat backrest D as far as han-
dle C until the backrest engages.
The cargo position has been reached.
Securing loads
Cargo tie-down rings Observe the following notes on securing loads: R
Observe the loading guidelines ( Y
page 278).R
Secure the load using the cargo tie-down
rings. R
Distribute the load on the cargo tie-down
rings evenly. R
Do not use elastic straps or nets to secure a
load, as these are only intended as an anti-slip
protection for light loads. R
Do not route tie-downs across sharp edges or
corners. R
Pad sharp edges for protection.
C
Cargo tie-down rings in the rear-compart-
ment footwell (vehicles with cargo net) C
Cargo tie-down rings in the cargo compart-
ment
Bag hook
G WARNING
The bag hooks cannot restrain heavy objects
or items of luggage. Objects or items of lug-
gage could be flung around and thereby hit
vehicle occupants when braking or abruptly
changing directions. There is a risk of injury.
Only hang light objects on the bag hooks.
Never hang hard, sharp-edged or fragile
objects on the bag hooks.
! The bag hook can bear a maximum load of
6.6lbs (3kg) and should not be used to secure
a load.
C
Bag hook284
Stowage areas
Stowage and features

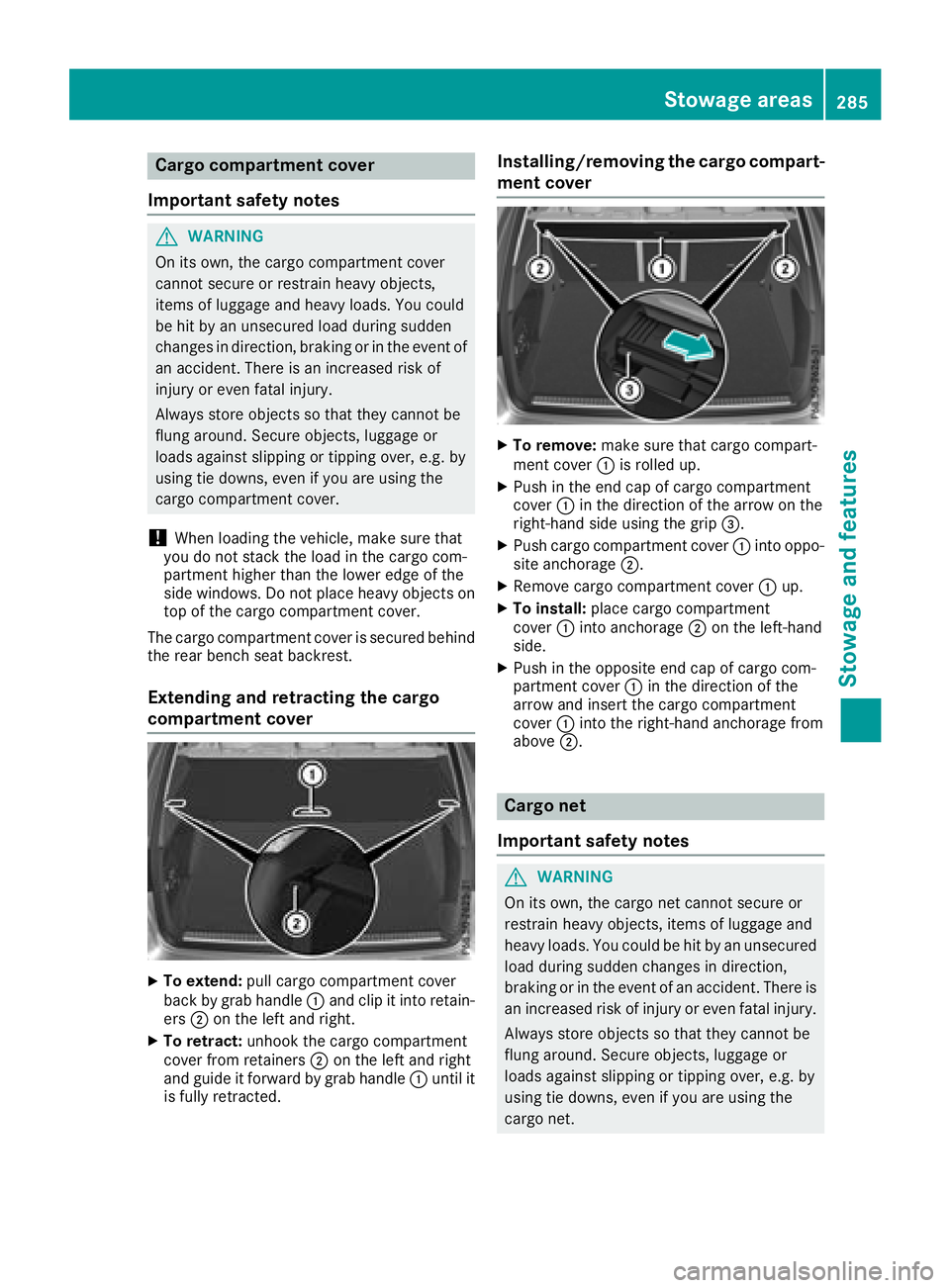

Cargo compartment cover
Important safety notes
G WARNING
On its own, the cargo compartment cover
cannot secure or restrain heavy objects,
items of luggage and heavy loads. You could
be hit by an unsecured load during sudden
changes in direction, braking or in the event of
an accident. There is an increased risk of
injury or even fatal injury.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping over, e.g. by
using tie downs, even if you are using the
cargo compartment cover.
! When loading the vehicle, make sure that
you do not stack the load in the cargo com-
partment higher than the lower edge of the
side windows. Do not place heavy objects on
top of the cargo compartment cover.
The cargo compartment cover is secured behind
the rear bench seat backrest.
Extending and retracting the cargo
compartment cover
X
To extend: pull cargo compartment cover
back by grab handle C and clip it into retain-
ers D on the left and right.X
To retract: unhook the cargo compartment
cover from retainers D on the left and right
and guide it forward by grab handle C until it
is fully retracted. Installing/removing the cargo compart-
ment cover X
To remove: make sure that cargo compart-
ment cover C is rolled up. X
Push in the end cap of cargo compartment
cover C in the direction of the arrow on the
right-hand side using the grip

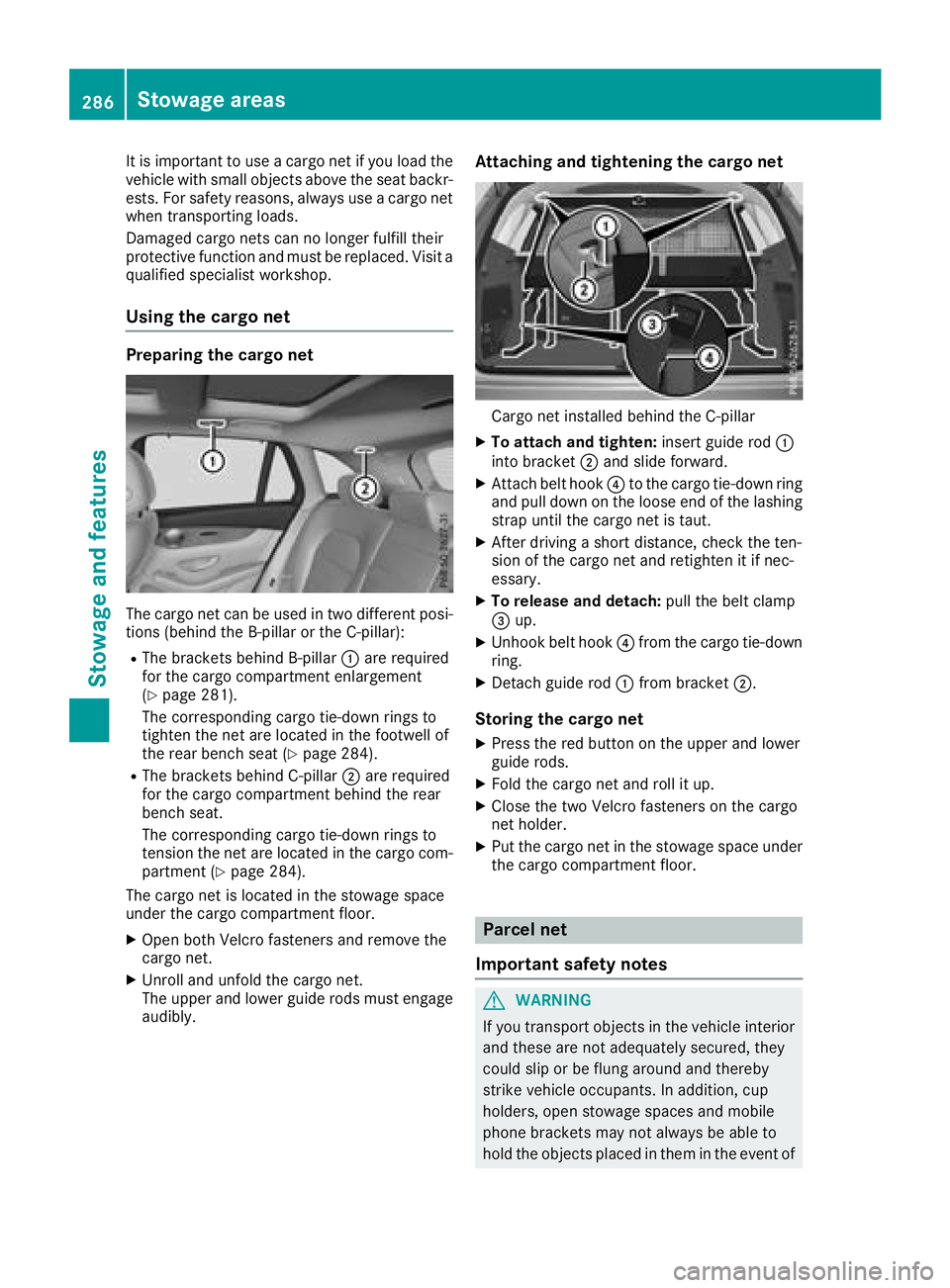

It is important to use a cargo net if you load the
vehicle with small objects above the seat backr-
ests. For safety reasons, always use a cargo net
when transporting loads.
Damaged cargo nets can no longer fulfill their
protective function and must be replaced. Visit a
qualified specialist workshop.
Using the cargo net Preparing the cargo net
The cargo net can be used in two different posi-
tions (behind the B-pillar or the C-pillar): R
The brackets behind B-pillar C are required
for the cargo compartment enlargement
( Y
page 281).
The corresponding cargo tie-down rings to
tighten the net are located in the footwell of
the rear bench seat ( Y
page 284).R
The brackets behind C ‑ pillar D are required
for the cargo compartment behind the rear
bench seat.
The corresponding cargo tie-down rings to
tension the net are located in the cargo com-
partment ( Y
page 284).
The cargo net is located in the stowage space
under the cargo compartment floor. X
Open both Velcro fasteners and remove the
cargo net. X
Unroll and unfold the cargo net.
The upper and lower guide rods must engage
audibly. Attaching and tightening the cargo net
Cargo net installed behind the C-pillar X
To attach and tighten: insert guide rod C
into bracket D and slide forward. X
Attach belt hook
