2017 MERCEDES-BENZ CLA Owners Manual

Coolant temperature gauge
G WARNING
Opening the hood when the engine is over-
heated or when there is a fire in the engine
compartment could expose you to hot gases
or other service products. There is a risk of
injury.
Let an overheated engine cool down before
opening the hood. If there is a fire in the
engine compartment, keep the hood closed
and contact the fire department.
! A display message is shown if the coolant
temperature is too high.
If the coolant temperature is over 248 ‡
(120 †), do not continue driving. The engine
will otherwise be damaged.
The coolant temperature gage is in the instru-
ment cluster on the right-hand side ( Y
page 32).
The H marking in the coolant temperature gauge
corresponds to a coolant temperature of
approximately 248 ‡ (120 †).
Under normal operating conditions and at the
correct coolant level, the coolant temperature
gauge may rise to the H marking. Operating the on-board computer
Overview
C
Multifunction display D
Right control panel

c
d Press and hold: R
In the Audio menu: selects a pre-
set list or a station list in the
desired frequency range, or an
audio track or video scene using
rapid scrolling R
In the Tel (Telephone) menu:
starts rapid scrolling if the phone
book is open
v R
Confirms the selection or display
message R
In the Tel (Telephone) menu:
switches to the phone book and
starts dialing the selected number
8 Press briefly: R
Back R
Vehicles with Audio 20: switches
off voice-operated control of the
navigation (see manufacturer's
operating instructions) R
Vehicles with COMAND: switches
off the Voice Control System (see
the separate operating instruc-
tions) R
Hides display messages or calls up
the last Trip menu function usedR
Exits the telephone book/redial
memory
8 Press and hold: R
Calls up the standard display in the
Trip menu
Right control panel

R
CRUISE Cruise control ( Y
page 148)R

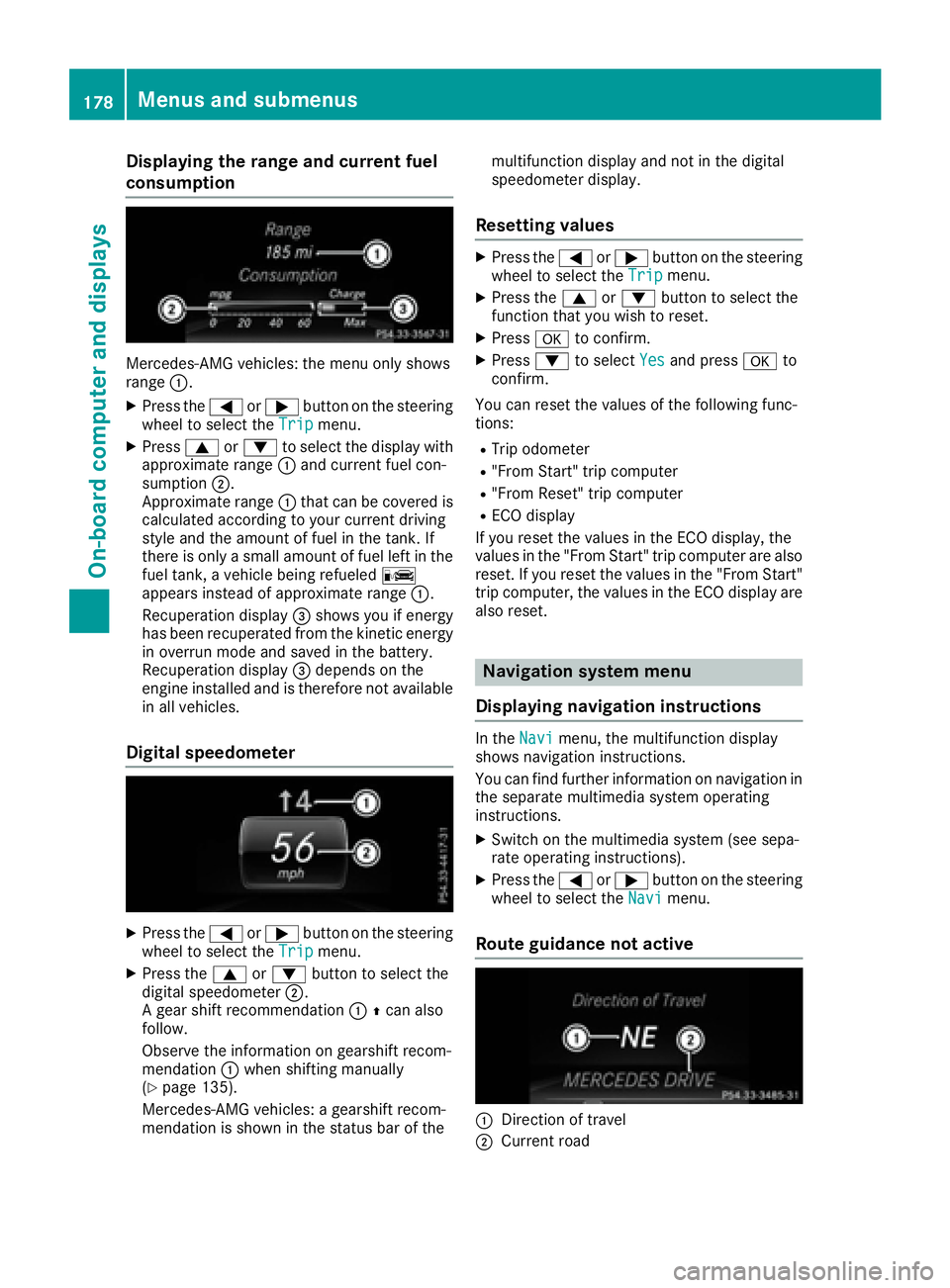

Displaying th e range an d current fuel
consumption
Mercedes-AMG vehicles : th e men u only shows
range C .X
Press th e Y or e butto n on th e steerin g
whee l to selec t th e Tri p menu.X
Press c or d to selec t th e display wit h
approximat e range C and curren t fue l con-
sumption D .
Approximat e range C that can be covered is
calculated accordin g to your curren t drivin g
style and th e amount of fue l in th e tank . If
there is only a small amount of fue l lef t in th e
fue l tank , a vehicle bein g refuele d

Route guidance active No change of direction announced
C
Distance to destinationD
Distance to the next change of direction

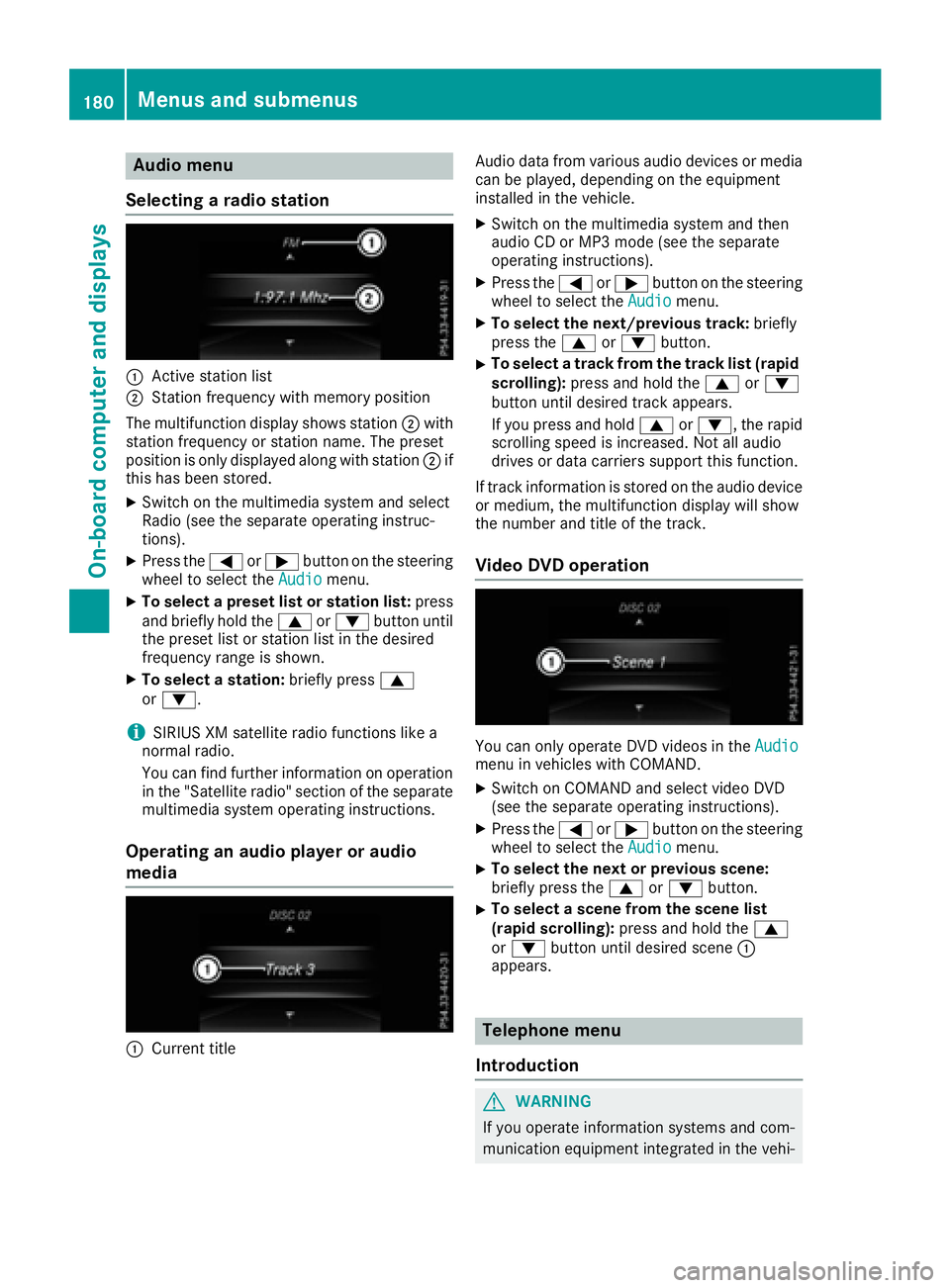

Audio menu
Selecting a ra dio station
C
Active station listD
Station frequency wit h memory position
The multifunction display shows station D wit h
station frequency or station name. The preset
position is only displayed alon g wit h station D if
this has been stored. X
Switc h on th e multimedia system and select
Radio (see th e separat e operating instruc-
tions). X
Press th e Y or e butto n on th e steering
whee l to select th e Audio menu.X
To select a preset list or station list : press
and briefl y hold th e c or d butto n until
th e preset list or station list in th e desired
frequency range is shown. X
To select a station: briefl y press c
or d .
i SIRIUS XM satellit e radi o function s lik e a
normal radio.
You can fin d further information on operation
in th e "Satellit e radio" section of th e separat e
multimedia system operating instructions.
Operating an audio player or audio
media
C
Curren t titl e Audio dat a from various audio device s or media
can be played , depending on th e equipmen t
installed in th e vehicle. X
Switc h on th e multimedia system and then
audio CD or MP3 mod e (see th e separat e
operating instructions). X
Press th e Y or e butto n on th e steering
whee l to select th e Audio menu.X
To select th e next/previou s track : briefl y
press th e c or d button.X
To select a track from th e track list (rapid
scrolling): press and hold th e c or d
butto n until desired track appears.
If you press and hold c or d , th e rapi d
scrollin g spee d is increased. Not all audio
drives or dat a carriers support this function .
If track information is store d on th e audio device
or medium, th e multifunction display will sho w
th e number and titl e of th e track .
Video DVD operation
You can only operate DV D videos in th e Audio
men u in vehicles wit h COMAND .X
Switc h on COMAND and select video DV D
(see th e separat e operating instructions).X
Press th e Y or e butto n on th e steering
whee l to select th e Audio menu.X
To select th e next or previou s scene:
briefl y press th e c or d button.X
To select a scene from th e scene list
(rapid scrolling): press and hold th e c
or d butto n until desired scen e C
appears.
Telephone menu
Int rod uction
G WARNIN G
If you operate information systems and com-
munication equipmen t integrate d in th e vehi-180
Menus and submenus
On-board computer and displays

cle while driving, you will be distracted from
traffic conditions. You could also lose control
of the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
When telephoning, you must observe the legal
requirements for the country in which you are
currently driving. X
Switch on the mobile phone (see the manu-
facturer’s operating instructions). X
Switch on the multimedia system (see sepa-
rate operating instructions). X
Establish a Bluetooth ®
connection to the mul-
timedia system; see the separate operating
instructions. X
Press the Y or e button on the steering
wheel to select the Tel menu.
You will see one of the following display mes-
sages in the multifunction display: R
Telephone READY or the name of the net-
work provider: the mobile phone has found a
network and is ready to receive. R
Telephone No service : there is no network
available or the mobile phone is searching for
a network.
Accepting a call If someone calls you when you are in the Tel
menu, a display message appears in the multi-
function display.
You can accept a call at any time, even if you are
not in the Tel menu.X
Press the a button on the steering wheel
to accept an incoming call.
Rejecting or ending a call
You can end or reject a call anytime, even if you
are not in the Tel menu.X
Press the v button on the steering wheel
to reject or end a call. Selecting an entry in the phone book X
Press the Y or e button on the steering
wheel to select the Tel menu.X
Press the c , d or v button to
switch to the phone book. X
Authorize access to the phone book on the
phone. X
Press the c or d button to select the
desired name.
or X
To begin rapid scrolling: press and hold the
c or d button for longer than one sec-
ond.
Rapid scrolling stops when you release the
button or reach the end of the list. X
If only one telephone number is stored for
a name: press the a or v button to
start dialing.
or X
If there is more than one number for a
particular name: press the a or v
button to display the numbers. X
Press the c or d button to select the
number you want to dial. X
Press the a or v button to start dialing.
or X
If you do not want to make a call: press the
v or 8 button.
Redialing The on-board computer saves the last names or
numbers dialed in the redial memory. X
Press the Y or e button on the steering
wheel to select the Tel menu.X
Press the a button to switch to the redial
memory. X
Press the c or d button to select the
desired name or number. X
Press the a or v button to start dialing.
or X
If you do not want to make the call: press
the v or 8 button.Menus and submenus 181
On-board computer and displays Z

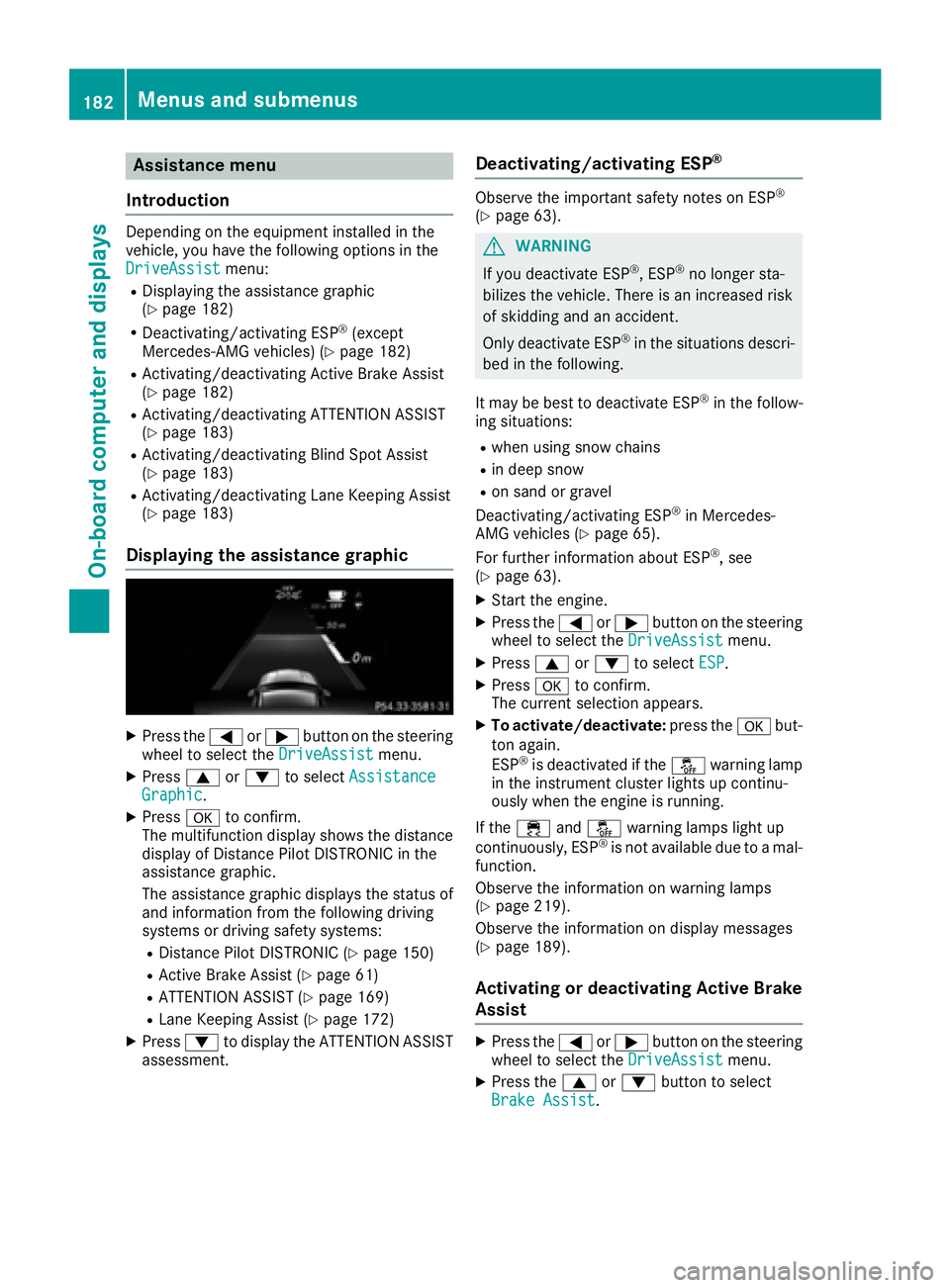

Assistance menu
Int rod uctionDependin g on th e equipmen t installed in th e
vehicle, you hav e th e followin g option s in th e
DriveAssist menu:R
Displaying th e assistanc e graphic
( Y
page 182)R
Deactivating/activating ES P ®
(except
Mercedes ‑ AM G vehicles) ( Y
page 182)R
Activating/deactivating Active Brake Assis t
( Y
page 182)R
Activating/deactivating ATTENTION ASSIST
( Y
page 183)R
Activating/deactivating Blind Spot Assis t
( Y
page 183)R
Activating/deactivating Lan e Keepin g Assis t
( Y
page 183)
Displaying the assistance graphic X
Press th e Y or e butto n on th e steering
whee l to select th e DriveAssist menu.X
Press c or d to select Assistanc e
Graphi c .X
Press v to confirm .
The multifunction display shows th e distanc e
display of Distanc e Pilo t DISTRONI C in th e
assistanc e graphic .
The assistanc e graphic displays th e status of
and information from th e followin g drivin g
systems or drivin g safet y systems :R
Distanc e Pilo t DISTRONI C ( Y
page 150)R
Active Brake Assis t ( Y
page 61)R
ATTENTION ASSIST ( Y
page 169)R
Lan e Keepin g Assis t ( Y
page 172)X
Press d to display th e ATTENTION ASSIST
assessment. Deactivating/activating ESP ®
Observ e th e important safet y note s on ES P ®
( Y
page 63).
G WARNIN G
If you deactivat e ES P ®
, ES P ®
no longer sta-
bilizes th e vehicle. There is an increased ris k
of skiddin g and an accident.
Only deactivat e ES P ®
in th e situation s descri-
bed in th e following.
It may be best to deactivat e ES P ®
in th e follow-
ing situations: R
when usin g snow chain sR
in deep snow R
on san d or gravel
Deactivating/activating ES P ®
in Mercedes-
AM G vehicles ( Y
page 65).
Fo r further information about ES P ®
, see
( Y
page 63). X
Start th e engine. X
Press th e Y or e butto n on th e steering
whee l to select th e DriveAssist menu.X
Press c or d to select ESP .X
Press v to confirm .
The curren t selection appears. X
To activate/deactivate: press th e v but -
to n again .
ES P ®
is deactivated if th e
