2017 MERCEDES-BENZ CLA Owners Manual

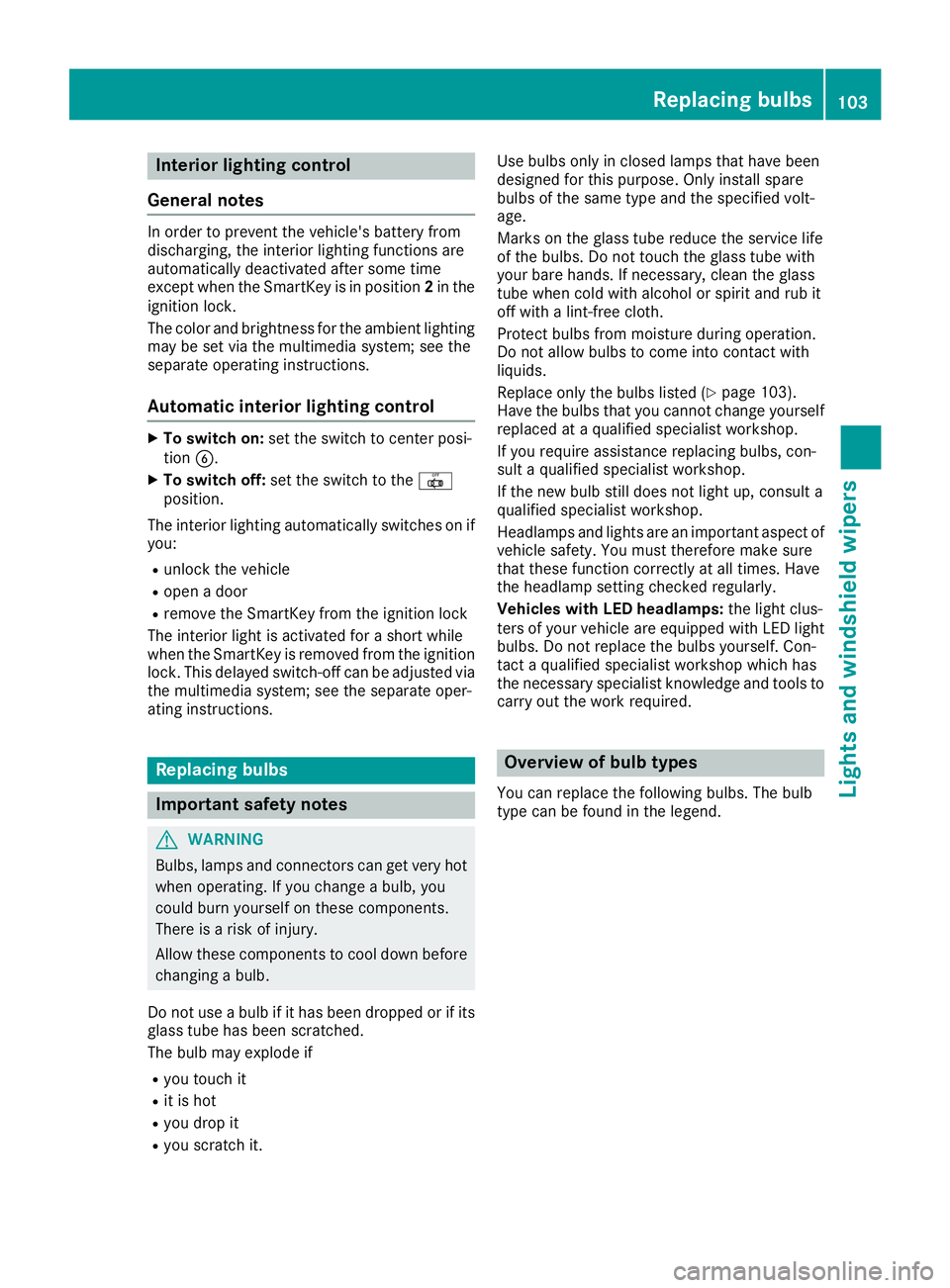

Interior lighting control
General notes In order to preven t th e vehicle's battery from
discharging , th e interio r lighting function s are
automatically deactivated after som e time
except when th e SmartKey is in position 2 in th e
ignition lock.
The color and brightness for th e ambien t lighting
may be set via th e multimedia system; see th e
separat e operating instructions.
Automatic interior lighting control X
To switch on: set th e switch to center posi-
tion

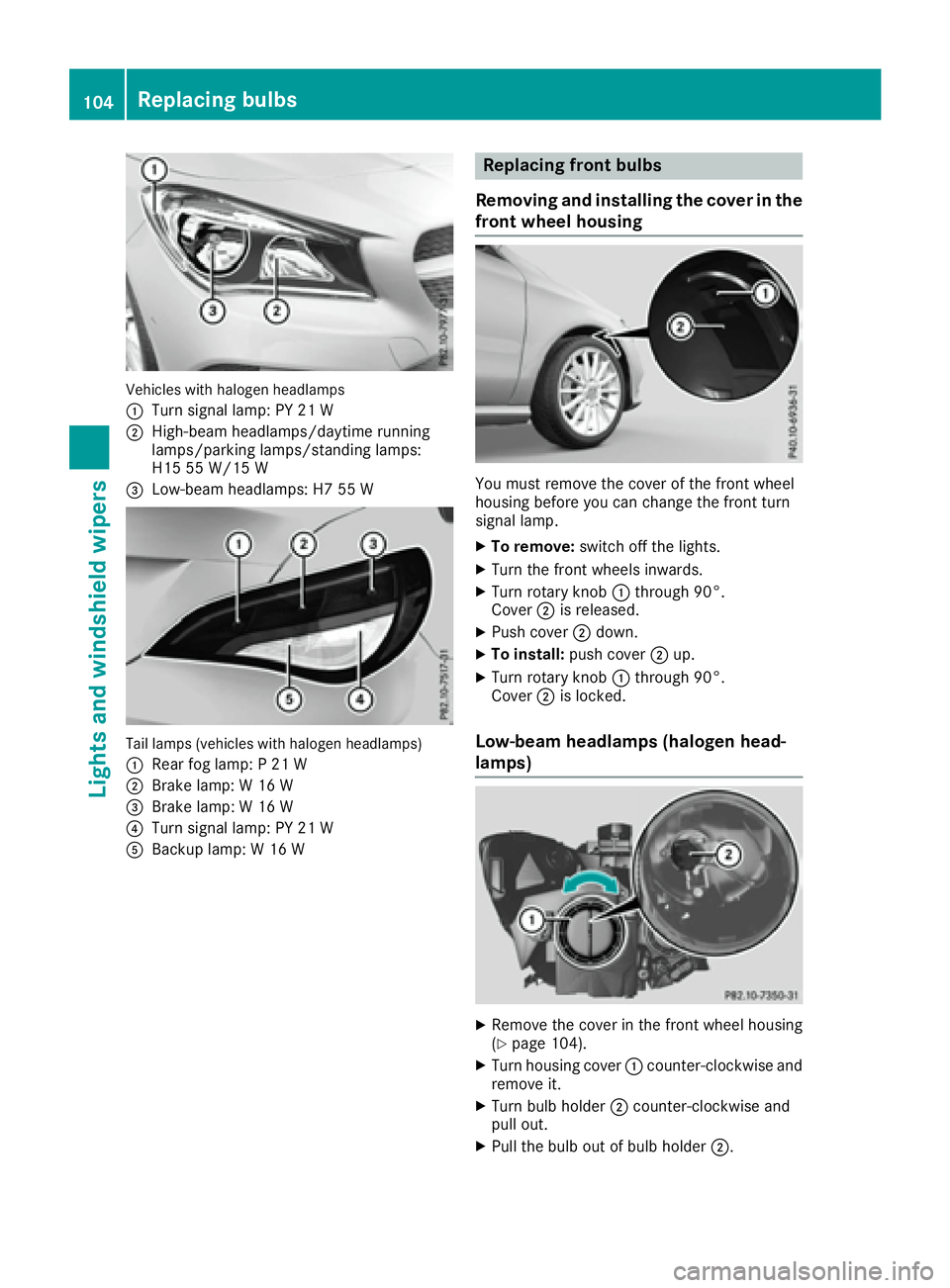

Vehicles with halogen headlamps
C
Turn signal lamp: PY 21 WD
High-beam headlamps/daytime running
lamps/parking lamps/standing lamps:
H15 55 W/15 W

X

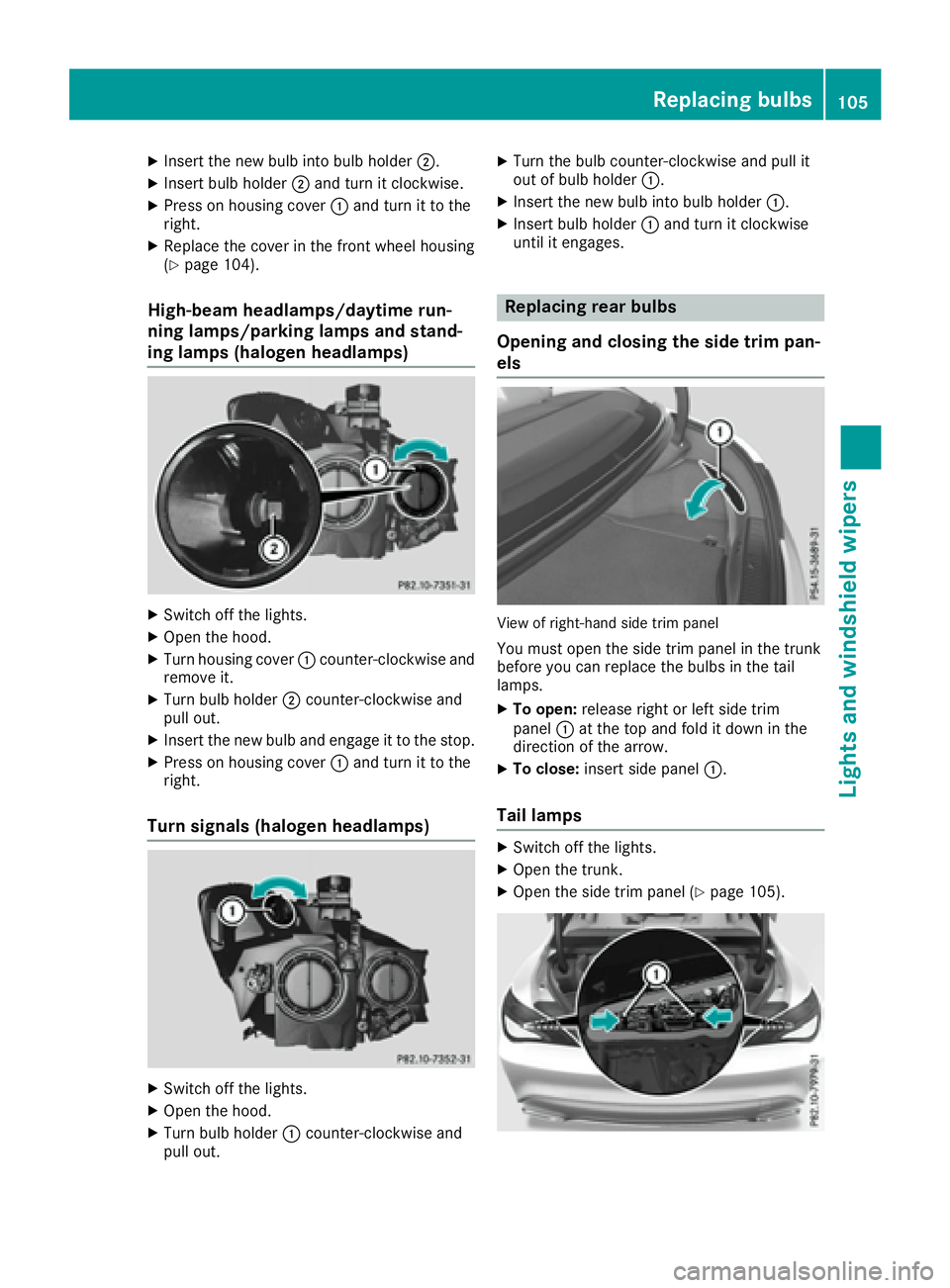

Insert the new bulb into bulb holder D .X
Insert bulb holder D and turn it clockwise.X
Press on housing cover C and turn it to the
right. X
Replace the cover in the front wheel housing
( Y
page 104).
High-beam headlamps/daytime run-
ning lamps/parking lamps and stand-
ing lamps (halogen headlamps) X
Switch off the lights. X
Open the hood. X
Turn housing cover C counter-clockwise and
remove it. X
Turn bulb holder D counter-clockwise and
pull out. X
Insert the new bulb and engage it to the stop. X
Press on housing cover C and turn it to the
right.
Turn signals (halogen headlamps)
X
Switch off the lights. X
Open the hood. X
Turn bulb holder C counter-clockwise and
pull out. X
Turn the bulb counter-clockwise and pull it
out of bulb holder C .X
Insert the new bulb into bulb holder C .X
Insert bulb holder C and turn it clockwise
until it engages.
Replacing rear bulbs
Opening and closing the side trim pan-
els
View of right-hand side trim panel
You must open the side trim panel in the trunk
before you can replace the bulbs in the tail
lamps. X
To open: release right or left side trim
panel C at the top and fold it down in the
direction of the arrow. X
To close: insert side panel C .
Tail lamps X
Switch off the lights. X
Open the trunk. X
Open the side trim panel ( Y
page 105).Replacing bulbs 105
Lights and windshield wipers Z

X

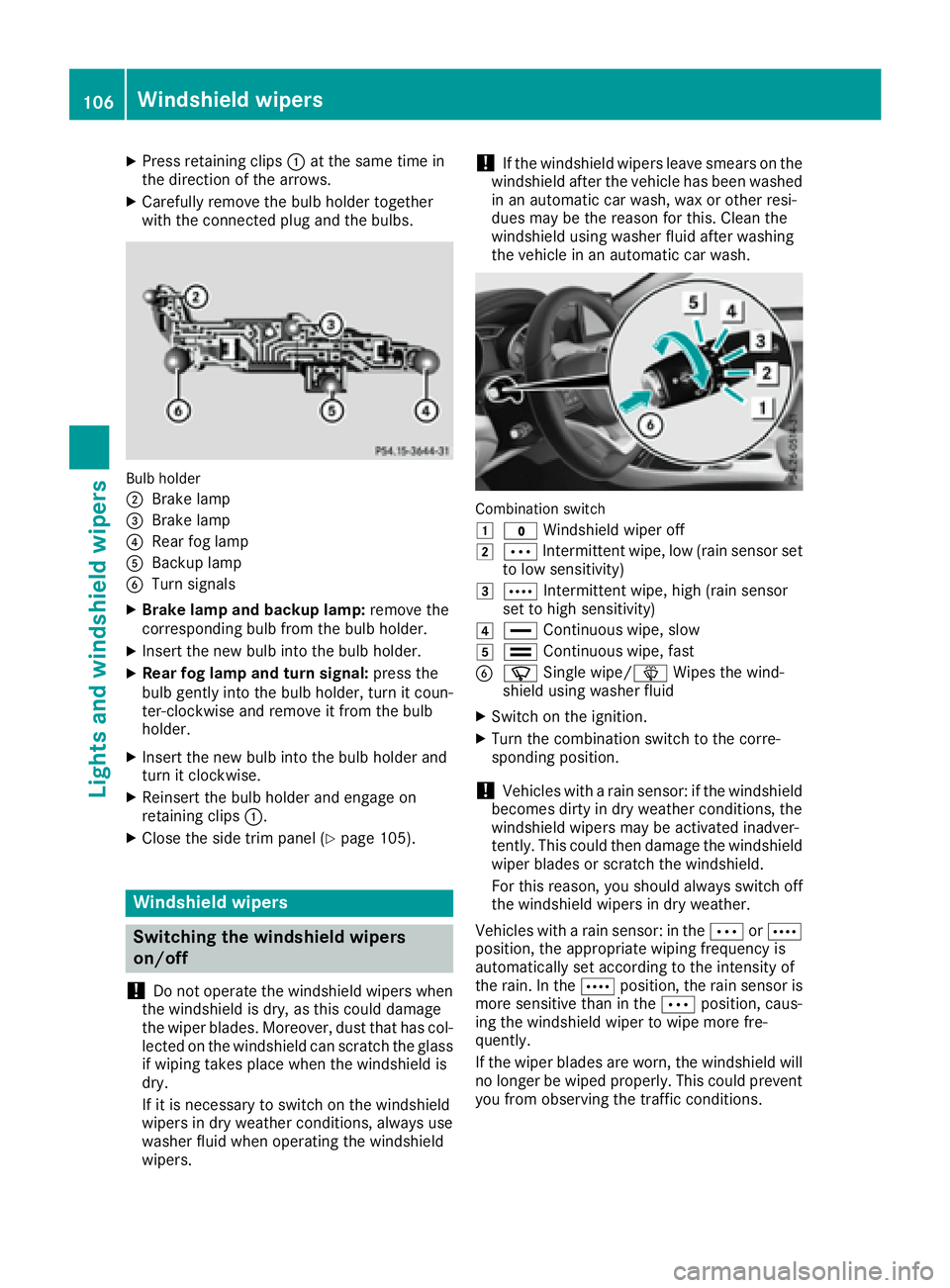

Press retaining clips C at the same time in
the direction of the arrows. X
Carefully remove the bulb holder together
with the connected plug and the bulbs.
Bulb holder
D
Brake lamp

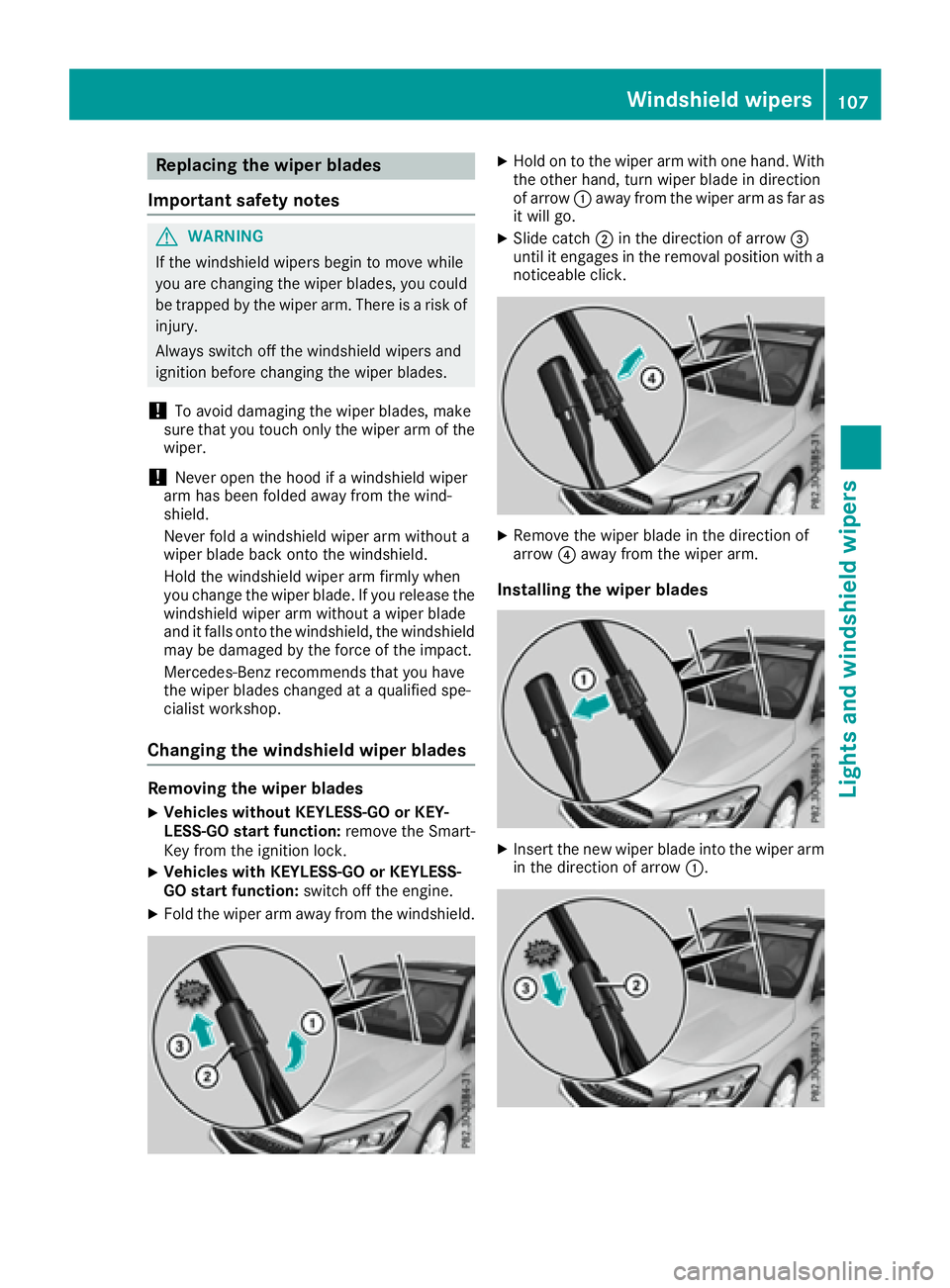

Replacing the wiper blades
Important safety notes
G WARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could
be trapped by the wiper arm. There is a risk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
! To avoid damaging the wiper blades, make
sure that you touch only the wiper arm of the
wiper.
! Never open the hood if a windshield wiper
arm has been folded away from the wind-
shield.
Never fold a windshield wiper arm without a
wiper blade back onto the windshield.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release the
windshield wiper arm without a wiper blade
and it falls onto the windshield, the windshield
may be damaged by the force of the impact.
Mercedes-Benz recommends that you have
the wiper blades changed at a qualified spe-
cialist workshop.
Changing the windshield wiper blades
Removing the wiper blades X
Vehicles without KEYLESS-GO or KEY-
LESS-GO start function: remove the Smart-
Key from the ignition lock. X
Vehicles with KEYLESS-GO or KEYLESS-
GO start function: switch off the engine.X
Fold the wiper arm away from the windshield. X
Hold on to the wiper arm with one hand. With
the other hand, turn wiper blade in direction
of arrow C away from the wiper arm as far as
it will go. X

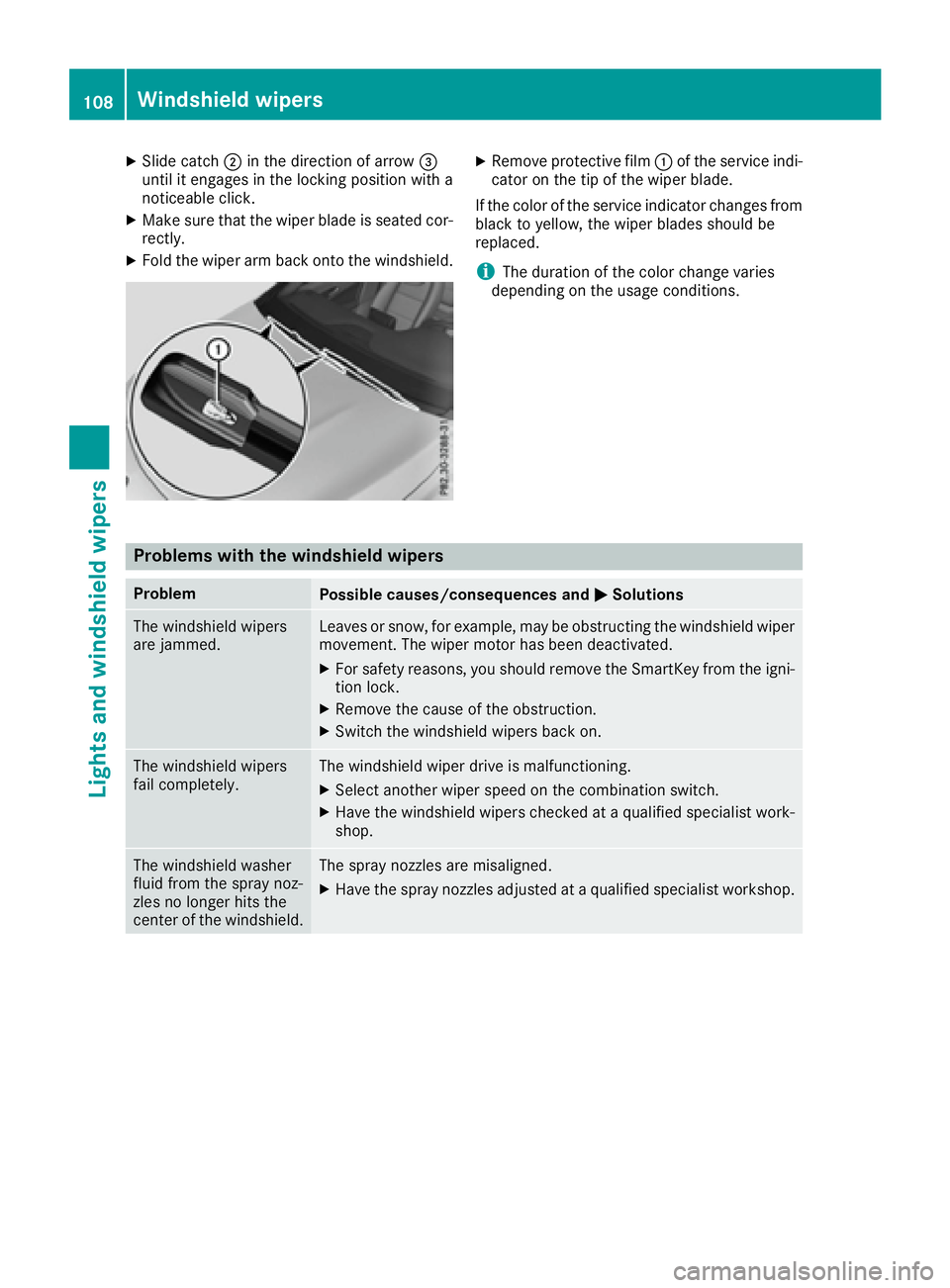

Slide catch D in the direction of arrow

X
Slide catch D in the direction of arrow

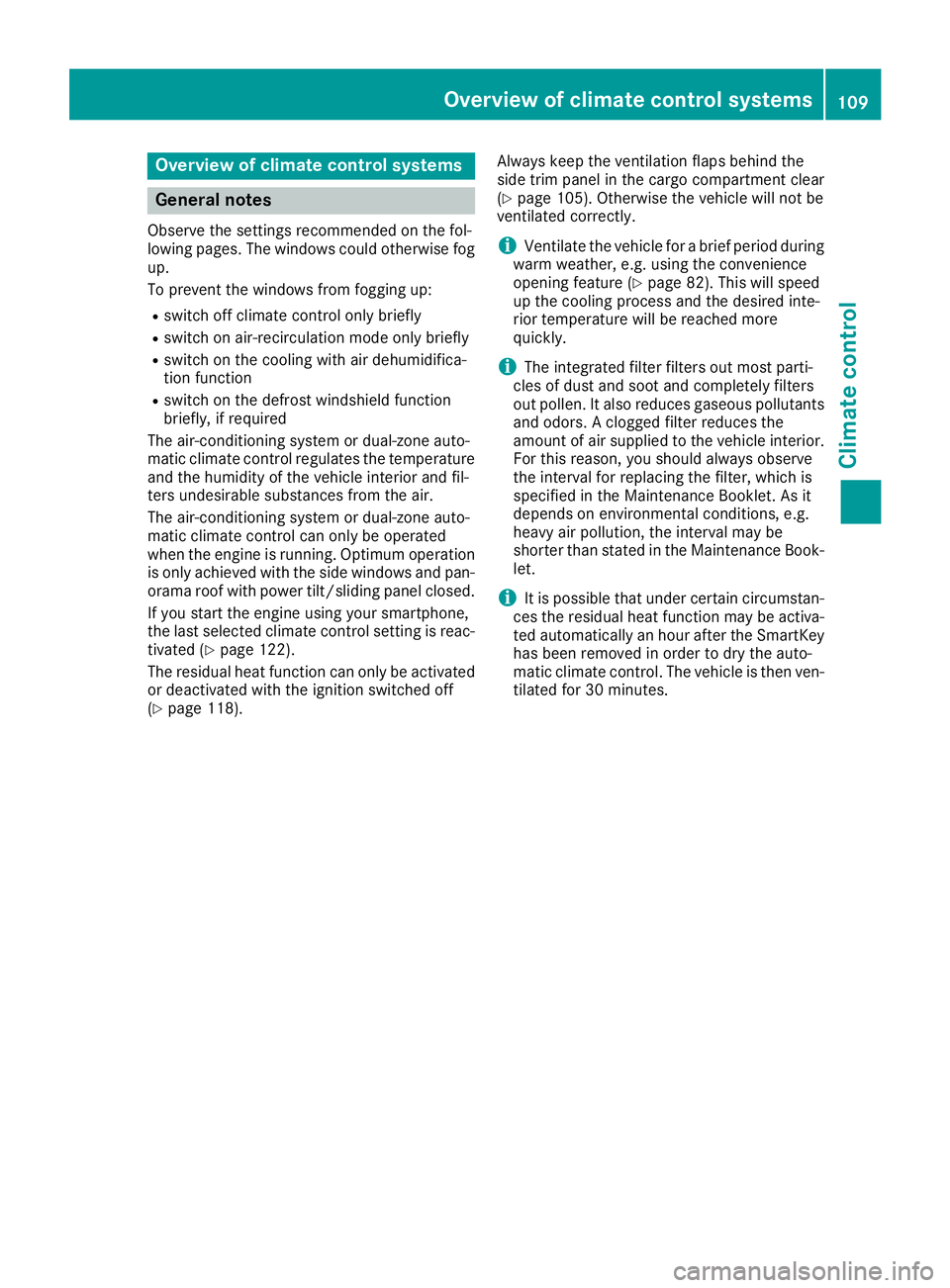

Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
switch on the defrost windshield function
briefly, if required
The air-conditioning system or dual-zone auto-
matic climate control regulates the temperature
and the humidity of the vehicle interior and fil-
ters undesirable substances from the air.
The air-conditioning system or dual-zone auto-
matic climate control can only be operated
when the engine is running. Optimum operation
is only achieved with the side windows and pan-
orama roof with power tilt/sliding panel closed.
If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated ( Y
page 122).
The residual heat function can only be activated
or deactivated with the ignition switched off
( Y
page 118). Always keep the ventilation flaps behind the
side trim panel in the cargo compartment clear
( Y
page 105). Otherwise the vehicle will not be
ventilated correctly.
i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 82). This will speed
up the cooling process and the desired inte-
rior temperature will be reached more
quickly.
i The integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book-
let.
i It is possible that under certain circumstan-
ces the residual heat function may be activa-
ted automatically an hour after the SmartKey
has been removed in order to dry the aut o-
mat ic climate control. The vehicle is then ven-
tilated for 30 minutes.Overview of climate control systems 109
Climate control

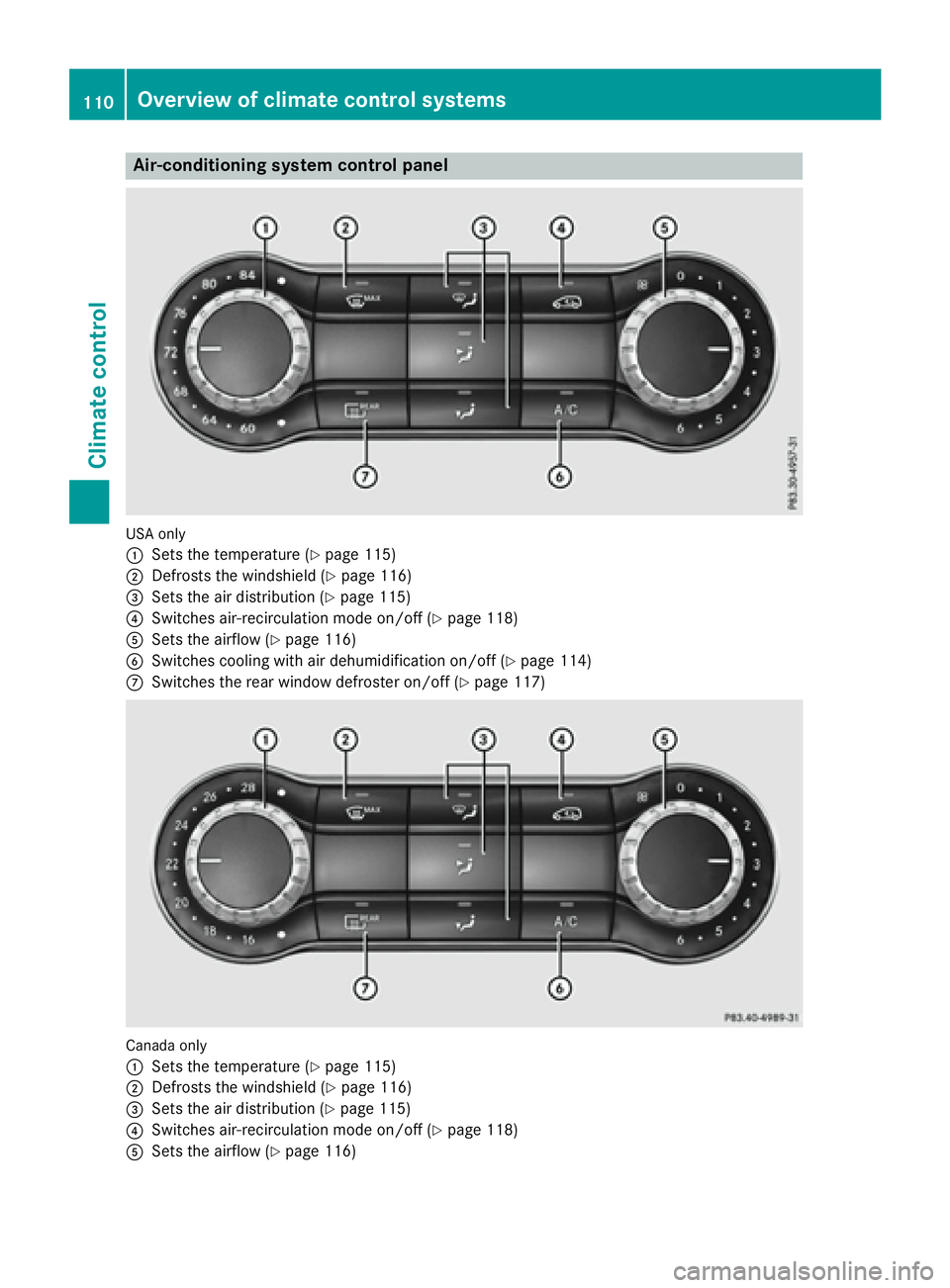

Air-conditioning system cont rol panel
US A only
C
Sets th e temperature ( Y
page 115)D
Defrost s th e windshield ( Y
page 116)
