2017 MAZDA MODEL CX-5 headlight

4. Pull the centre of each plastic retainerusing a flathead screwdriver and
remove the retainers, and then partially
peel back the mudguard.
Removal
Installation
5. Turn the socket and bulb assemblyanticlockwise and remove it.
6. Disconnect the bulb from the socket.
7. Install the new bulb in the reverse order of the removal procedure.
Rear direction indicator lights, Brake
lights/Tail lights (Type B)
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Wrap a small flathead screwdriver witha soft cloth to prev ent damage to the
cover, and then remove the cover with
the flathead screwdriver.
3. Turn the screws anticlockwise and remove them.
4. Pull the unit rearward to remove it.
5. Turn the socket and bulb assembly
anticlockwise and remove it.
Maintenance and Care
Owner Maintenance
6-50
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

6. Disconnect the bulb from the socket.Rear direction indicator lights
Brake lights/Tail lights
7. Install the new bulb in the reverseorder of the removal procedure.
Rear fog light
*
1. Make sure the ignition is switched off and the headlight switch is off.
2. Pull the centre of each plastic retainer and remove the retainers.
3. Remove the cover.
Removal
Installation
4. Turn the socket and bulb assembly
anticlockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order of the removal procedure.
Number plate lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on t he edge of the lens
with a flathead screwdriver.
Maintenance and Care
Owner Maintenance
*Some models.6-51
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

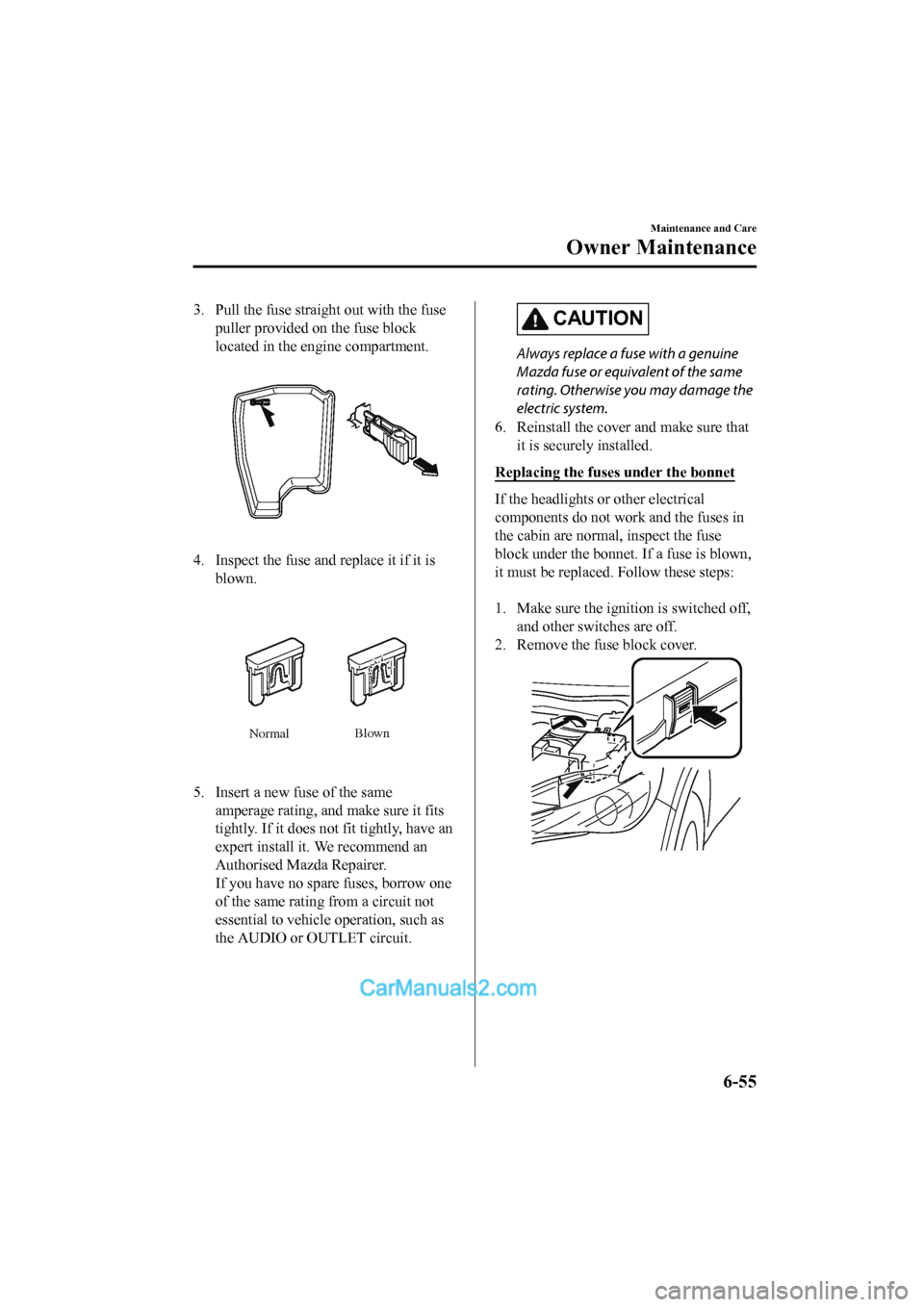

3. Pull the fuse straight out with the fusepuller provided on the fuse block
located in the eng ine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blown
5. Insert a new fu
se of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. We recommend an
Authorised Mazda Repairer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fuse s under the bonnet
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the bonnet. If a fuse is blown,
it must be replaced. Follow these steps:

1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
Maintenance and Care
Owner Maintenance
6-55
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
3 INJECTOR
ENG.SUB 30 A
Engine control system
*
4 SCR1
EVVT 20 A
Engine control system*
5 P.WINDOW1 30 A Power windows*
6 R.HEATER 20 A ―
7 ADD FAN DE 40 A Cooling fan
*
8 WIPER.DEI 20 AWindscreen wiper de-icer*
9DEFOG 40 A Rear window defogger
10 DCDC DE 40 A For protection of various circuits
*
11EPB R 20 A Electric parking brake (EPB) (RH)
12 EPB L 20 A Electric parking brake (EPB) (LH)
13 AUDIO
DCDC REG 30 A
Audio system
*
14 FAN GE 30 A
Cooling fan*
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17 FAN DE 40 A
Cooling fan
*
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 ADD FAN GE 30 A Cooling fan
*
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG115 A For protection of various circuits
23 AUDIO2 7.5 A Audio system
24 METER2 7.5 A Instrument cluster
*
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 AEngine control system
*
28AT 15 A
Transaxle control system*, Ignition switch
29 H/CLEAN 20 A Headlight washer
*
30A/C 7.5 A
Air conditioner*
31 AT PUMP 15 A Transaxle control system*
32HORN 15 A Horn
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
Maintenance and Care
Owner Maintenance
*Some models.6-57
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
35 ST.HEATER 15 A Heated steering wheel
*
36FOG 15 A
Fog lights*
377.5 A Engine control system
38 H/L LOW L 15 A Headlight low beam (LH)
39 ENGINE4 15 A Engine control system
*
40― ― ―
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A
Bose
® Sound System-equipped model*
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynami c stability control system
46 FUEL PUMP 15 A Fuel system
*
47 FUEL WARM 25 AFuel warmer*
48TAIL 15 A Tail lights, Number plate lights
49 SCR2
FUEL PUMP2 25 A
Fuel system
*
50 HAZARD 25 A Hazard warning flashers, Direc
tion indicator lights, Tail lights,
Position lights
51 H/L LOW R 15 A Headlight low beam (RH)
52 OUTLET 25 A Accessory sockets
53 STOP 10 A Brake lights
54 ROOM 15 A Overhead light
Maintenance and Care
Owner Maintenance
6-58*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning
(Amber)
i-stop Warning
Light
*
When the light is turned on
A problem in the system may be i ndicated under the following conditions. Have your ve-
hicle inspected at an expert repairer, we recommend an Authoris ed Mazda Repairer.
•The light does not turn on when the ignition is switched ON.•The light continues to remain on even though the i-stop OFF swi tch has been pressed
while the engine is running.
When the light is flashing
The light continues to flash if the system has a malfunction. H ave your vehicle inspected
at an expert repairer, we recommend an Authorised Mazda Repaire r.
i-ELOOP Warning
Indication*
The Warning indication turns on if there is any malfunction in the i-ELOOP system. Con-
sult an expert repairer, we reco mmend an Authorised Mazda Repai rer.
(Amber)
High Beam Control System (HBC)
Wa r n i n g L i g h t
*
The light remains turned on if th ere is a problem with the system. Have your vehicle in-
spected at an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or ob-
structed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
(Amber)
Adaptive LED
Headlights (ALH)
Wa r n i n g L i g h t
*
The light remains turned on if th ere is a problem with the system. Have your vehicle in-
spected at an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or ob-
structed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Blind Spot Monitor-
ing (BSM) Warning
Indication
*
This light illuminates if there i s a malfunction in the Blind Spot Monitoring (BSM). Have
your vehicle inspected by an expe rt repairer, we recommend an Authorised Mazda Re-
pairer.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. However , it does not indicate a malfunction.
Blind Spot Monitor-
ing (BSM) OFF In-
dicator Light
*
A problem in the system may be i ndicated under the following conditions.
Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda
Repairer.
•The light does not turn on when the ignition is switched ON.•The light remains on even when the Blind Spot Monitoring (BSM) system can be operat-
ed.
•The light turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Bli nd Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). However, it does not indicate a malfunction.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-52*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning
(Amber)
Driver Attention
Alert (DAA) Warn-
ing Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect-
ed at an expert repairer, we r ecommend an Authorised Mazda Repa irer.
(Amber)
Mazda Radar Cruise
Control (MRCC)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect-
ed at an expert repairer, we r ecommend an Authorised Mazda Repa irer.
(Amber)
Mazda Radar Cruise
Control with Stop &
Go function (MRCC with Stop & Go
function) Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect-
ed at an expert repairer, we r ecommend an Authorised Mazda Repa irer.
(Amber)
Lane-keep Assist System (LAS) & Lane Departure
Wa r n i n g S y s t e m
(LDWS) Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect-
ed at an expert repairer, we r ecommend an Authorised Mazda Repa irer.
The system does not operate when the warning message is displayed.
CAUTION
Always use tyres for all wheels that are of the
specified size, and the same manufacture,
brand, and tread pattern. In addition, do not use tyres with significantly different wear
patterns on the same vehicle. If such improper tyres are used, the system may not oper‐
ate normally.
 When an emergency spare tyre is used, the system may not operate normally.
LED Headlight
Wa r n i n g L i g h t This light illuminates if there i
s a malfunction in the LED hea dlight. Have your vehicle
inspected by an expert repairer , we recommend an Authorised Maz da Repairer.
▼Taking Action
Take the appropriate action and verify that the warning light t
urns off.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-53
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemCapacity
Automatic
transaxle flu-
id SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.8 L (8.2 US qt, 6.9 Imp qt)
SKYACTIV-D 2.2 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank 2WD
56.0 L (14.8 US gal, 12.3 Imp
gal)
4WD 58.0 L (15.3 US gal, 12.8 Imp
gal)
Check oil and fluid levels with d ipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 17 inch wheel vehicle
1,675 mm (65.9 in)
19 inch wheel vehicle 1,680 mm (66.1 in)
Front tread 17 inch styled steel wheel
vehicle
1,585 mm (62.4 in)
17 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
19 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
Rear tread 17 inch styled steel wheel
vehicle
1,585 mm (62.4 in)
17 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
19 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
Wheelbase 2,700 mm (106.3 in)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UNECE*1(SAE)
Headlights High beam
LED
*2― (―)
Low beam LED
*2― (―)
Running lights
*LED type LED*2― (―)
Bulb type 21/5W21/5W (7443)
Specifications
Specifications
9-8*Some models.
