2017 MAZDA MODEL CX-5 stop start

Always apply the electric parking brake (EPB) when parking the vehicle:
Not applying the electric parking brake (EPB) when parking the vehicle is dangerous as the
vehicle may move unexpectedly and result in an accident. When parking the vehicle, shift the
selector lever to the P position (automatic tr ansaxle vehicle) and apply the electric parking
brake (EPB).
CAUTION
If you stop operating the accelerator pedal befo re the vehicle starts moving, the force holding
the vehicle in the stopped position may weaken. Firmly depress the brake pedal or depress the
accelerator pedal to accelerate the vehicle.
NOTE
•Under the following conditions, a problem with the AUTOHOLD is occurring. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer as
soon as possible.
•The brake pedal operation demand warning light (red) in the instrument cluster flashes
and the warning sound is activated for about five seconds while the AUTOHOLD is
operating or when you press the AUTOHOLD switch.
•A message is indicated on the multi-information display and a warning sound is
activated for about five seconds while the AUTOHOLD is operating or when your press
the AUTOHOLD switch.
•If you switch the ignition OFF while the AU TOHOLD is operating, the electric parking
brake (EPB) is applied automatically to assist you with parking the vehicle.
•The AUTOHOLD is cancelled when the selector lever/shift lever is shifted to R while the
vehicle is on level ground, or facing up a hill or grade (as shown below).
Level ground
: Driving in reverse (selector lever/shift lever in R)
Vehicle tilts forward Vehicle tilts rearward
AUTOHOLD :
Operates AUTOHOLD :
Does not operate,
cancelled
AUTOHOLD :
Does not operate,
cancelled
When Driving
Brake
4-85
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Hill Launch Assist (HLA)
HLA is a function which assists the driver
in accelerating from a stop while on a
slope. When the driver releases the brake
pedal and depresses the accelerator pedal
while on a slope, the function prevents the
vehicle from rolling. The braking force is
maintained automatically after the brake
pedal is released on a steep grade.
For vehicles with a manual transaxle,
HLA operates on a downward slope when
the shift lever is in the reverse (R)
position, and on an upward slope when the
shift lever is in a position other than the
reverse (R) position.
For vehicles with an automatic transaxle,
HLA operates on a downward slope when
the selector lever is in the reverse (R)
position, and on an upward slope when the
selector lever is in a forward gear.
WA R N I N G
Do not rely completely on HLA:
HLA is an auxiliary device for accelerating
from a stop on a slope. The system only
operates for about two seconds and
therefore, relying only on the system, when
accelerating from a stop is dangerous
because the vehicle may move (roll)
unexpectedly and cause an accident.
The vehicle could roll depending on the
vehicle's load or if it is towing something. In
addition, for vehicles with a manual
transaxle, the vehicle could still roll
depending on how the clutch pedal or the
accelerator pedal is operated.
Always confirm the safety around the
vehicle before starting to drive the vehicle.
NOTE
•HLA does not operate on a gentle slope.
In addition, the gradient of the slope on
which the system will operate changes
depending on the vehicle's load.
•HLA does not operate if the parking
brake is applied, the vehicle has not
stopped completely, or the clutch pedal
is released.
•While HLA is operating, the brake pedal
may feel stiff and vibrate, however, this
does not indicate a malfunction.
•HLA does not operate while the
TCS/DSC indicator li ght is illuminated.
Refer to Warning/Indicator Lights on
page 4-42.
•HLA does not turn off even if the TCS
OFF switch is pressed to turn off the
TCS.
•(Automatic Transaxle)
Although the HLA does not operate
during idling stop, the vehicle roll
prevention function operates to prevent
vehicle roll.
When Driving
Brake
4-89
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Antilock Brake System(ABS)
The ABS control unit continuously
monitors the speed o f each wheel. If one
wheel is about to lock up, the ABS
responds by automatically releasing and
reapplying that wheel's brake.

The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal ABS system operation. Continue
to depress the brak e pedal without
pumping the brakes.

The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-42.
WA R N I N G
Do not rely on ABS as a substitute for safe
driving:
The ABS cannot compensate for unsafe
and reckless driving, excessive speed,
tailgating (following another vehicle too
closely), driving on ice and snow, and
hydroplaning (reduced tyre friction and
road contact because of water on the road
surface). You can still have an accident.
NOTE
•Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tyres will build up a wedge
of surface layer when the wheels skid.
•The sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle,
however, it does not indicate a
malfunction.
When Driving
ABS/TCS/DSC
4-90
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Long, descending slopes (to maintain distance between vehicles, the system automatically
and continuously applies the brakes which could result in the loss of brake power.)
 Slopes with a steep gradient (The vehicle ahea d may not be detected correctly, your vehicle
may slide while stopped by the stop hold control, and it may accelerate suddenly after it
starts moving.)
For safety purposes, switch the MRCC system off when it is not being used.
CAUTION
If your vehicle is towed or you are towing some thing, switch the MRCC system off to prevent a
miss-operation.
NOTE
•The MRCC system does not detect the following as physical objects.
•Vehicles approaching in the opposite direction
•Pedestrians
•Stationary objects (stopped vehicles, obstructions)
•If a vehicle ahead is travelling at an extre mely low speed, the system may not detect it
correctly.
•During headway control travel, do not set the system for detection of two-wheeled
vehicles such as motorcycles and bicycles.
•Do not use the MRCC system under conditions in which close proximity warnings are
frequently activated.
•During headway control travel, the system accelerates and decelerates your vehicle in
conjunction with the speed of the vehicle ahead. However, if it is necessary to accelerate
for a lane change or if the vehicle ahead brakes suddenly causing you to close in on the
vehicle rapidly, accelerate using the accelerator pedal or decelerate using the brake
pedal depending on the conditions.
•While the MRCC system is in use, it does not cancel even if the selector lever (automatic
transaxle)/shift lever (manual transaxle) is operated and any intended engine braking will
not occur. If deceleration is required, lower the vehicle speed setting or depress the brake
pedal.
•The sound of the automatic brakes operating may be heard, however, it does not indicate
a problem.
•The brake lights turn on while the MRCC automatic braking is operating, however, they
may not turn on while the vehicle is on a downslope at the set vehicle speed or travelling
at a constant speed and following a vehicle ahead.
When Driving
i-ACTIVSENSE
4-138
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

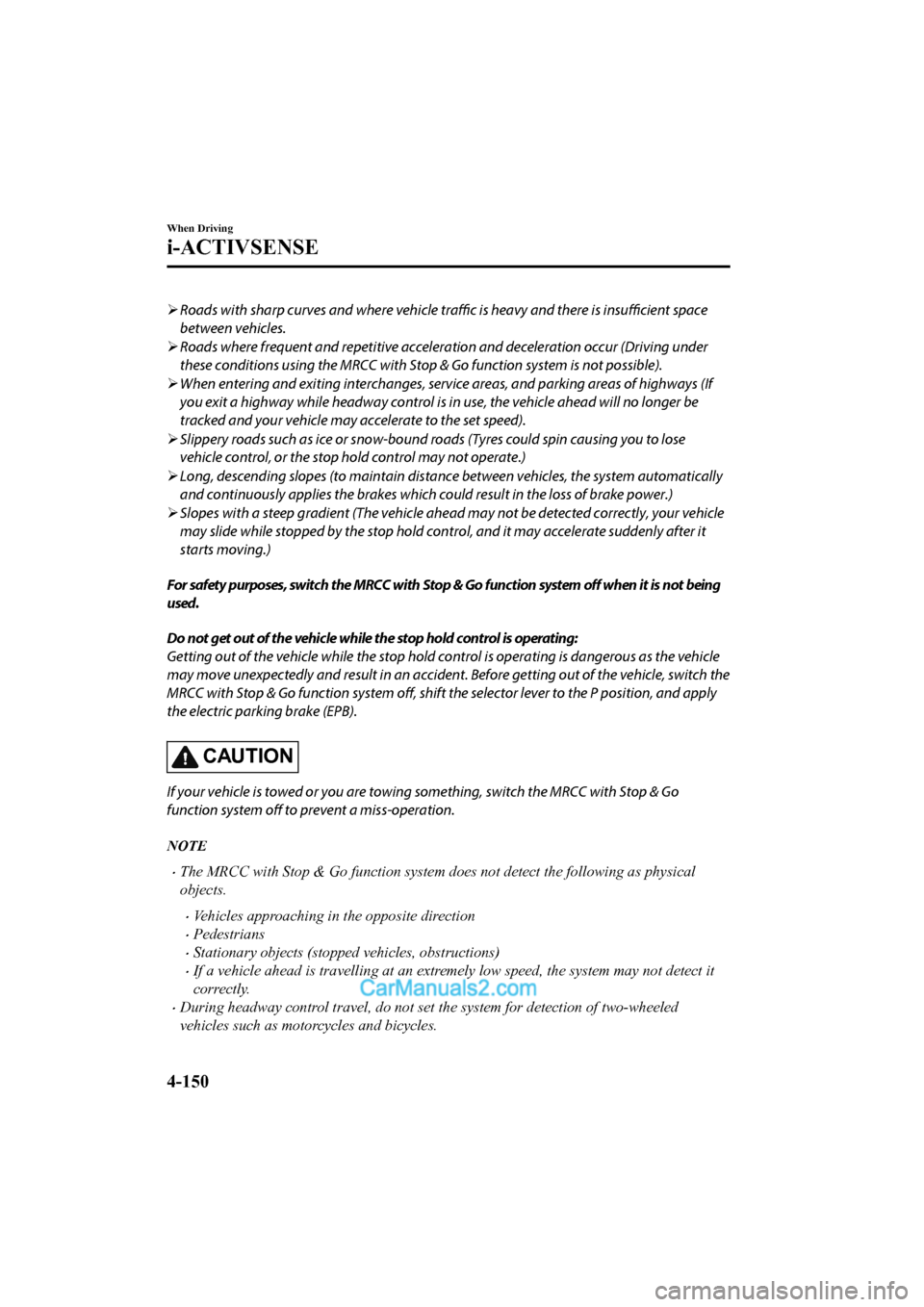

Roads with sharp curves and where vehicle
traffic is heavy and there is
insufficient space
between vehicles.
 Roads where frequent and repetitive accelerati on and deceleration occur (Driving under
these conditions using the MRCC with Stop & Go function system is not possible).
 When entering and exiting interchanges, servic e areas, and parking areas of highways (If
you exit a highway while headway control is in use, the vehicle ahead will no longer be
tracked and your vehicle may accelerate to the set speed).
 Slippery roads such as ice or snow-bound roads (Tyres could spin causing you to lose
vehicle control, or the stop hold control may not operate.)
 Long, descending slopes (to maintain distance between vehicles, the system automatically
and continuously applies the brakes which could result in the loss of brake power.)
 Slopes with a steep gradient (The vehicle ahea d may not be detected correctly, your vehicle
may slide while stopped by the stop hold control, and it may accelerate suddenly after it
starts moving.)
For safety purposes, switch the MRCC with Stop & Go function system off when it is not being
used.
Do not get out of the vehicle while the stop hold control is operating:
Getting out of the vehicle while the stop hold co ntrol is operating is dangerous as the vehicle
may move unexpectedly and result in an accident. Before getting out of the vehicle, switch the
MRCC with Stop & Go function system off, shift the selector lever to the P position, and apply
the electric parking brake (EPB).
CAUTION
If your vehicle is towed or you are towing something, switch the MRCC with Stop & Go
function system off to prevent a miss-operation.
NOTE
•The MRCC with Stop & Go function system does not detect the following as physical
objects.
•Vehicles approaching in the opposite direction
•Pedestrians
•Stationary objects (stopped vehicles, obstructions)
•If a vehicle ahead is travelling at an extre mely low speed, the system may not detect it
correctly.
•During headway control travel, do not set the system for detection of two-wheeled
vehicles such as motorcycles and bicycles.
When Driving
i-ACTIVSENSE
4-150
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

If there is a problem with the MRCC with Stop & Go function sys tem, a message is
displayed on the multi-information display. Check the centre di splay to verify the problem
and then have your vehicle inspected by an expert repairer, we recommend an Authorised
Mazda Repairer.
Refer to Message Indicated on Display on page 7-61.
▼ Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead because
the vehicle ahead applies the
brakes suddenly while you are travelling in headway control, th e warning sound activates
and the brake warning is indicat ed in the display. Always verify the safety of the
surrounding area and depress the brake pedal while keeping a sa fer distance from the
vehicle ahead. Additionally, keep a safer distance from the veh icles behind you.
Multi-information Display
Active Driving Display
NOTE
In the following cases, the warnings and brakes may not operate even if your vehicle starts
closing in on the vehicle ahead.
•You are driving your vehicle at the same speed as the vehicle ahead.
•Directly after the MRCC with Stop & Go function system has been set.
•Directly after the accelerator pedal is released.
•Another vehicle cuts into the driving lane.
▼ Setting the System
The MRCC with Stop & Go function
system operates when all of the following conditions
are met.
•The vehicle speed is as follows:
•(European models)
About 0 km/h (0 mph) to 200 km/h (124 mph)
•(Except European models)
About 0 km/h (0 mph) to 145 km/h (90 mph)
•The MRCC with Stop & Go function is turned on.
•The brake pedal is not depressed.
When Driving
i-ACTIVSENSE
4-153
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•The electric parking brake (EPB) is released (electric parking brake (EPB) indicator light
is turned off).
•There is no problem with the DSC.
•All the doors are closed.
•The driver's seat belt is fastened.
•The selector lever is in the driv e (D) position or manual (M) position (manual mode).
NOTE
•In the following cases, the MRCC with Stop & Go function system is cancelled when the
vehicle is travelling at 30 km/h (19 mph) or less and “Mazda Radar Cruise Control
disabled under 30 km/h” is displayed in the multi-in formation display.
•The Forward Sensing Camera (FSC) cannot detect target objects (There is problem
with the Forward Sensing Camera (FSC) or windscreen is dirty).
•There is a problem with the stop hold control function.
•There is a problem with the electric parking brake (EPB).
•It may not be possible to set the MRCC with Stop & Go function system directly after
starting the engine, while the DSC operation is being checked.
CANCEL switchRES switch
OFF switch
switch switch
MODE switch
SET- switch
SET+ switch
Turning on the system
When the MODE switch is pressed once, the MRCC with Stop & Go f
unction system turns
on, and the MRCC with Stop & Go function main indication (white ) turns on and the
vehicle speed and the distance between the vehicles while in he adway control can be set.
In addition, the MRCC with Stop & Go function system display indication is displayed on
the multi-information display and the active driving display at the same time.
When Driving
i-ACTIVSENSE
4-154
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Distance-between-vehicles guide-line
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play
*1
Extremely short (about 25 m (82 ft))
*1 Displays a pop-up image in the a ctive driving display only when the driver operates the switch.
NOTE
•The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
•When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.
How to change the set vehicle speed
To accelerate/decelerate using the SET
switch
When you press the SET
switch, the
vehicle accelerates and when you press the
SET
switch, it decelerates.
European
models Except Euro-
pean models
Short press 1 km/h (1 mph) 5 km/h (5 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is
changed by pressing the SET switch four
times as follows:
(European models)
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
(Except European models)
The vehicle speed accelerates or
decelerates by 20 km/h (20 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press
and release the SET
switch or SET
switch at the desired sp eed. If the switch is
not operated, the syste m returns to the set
speed after you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
NOTE
•The setting speed can be changed by
operating the SET
switch or SET
switch during stop hold control.
When Driving
i-ACTIVSENSE
4-157
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
