2017 MAZDA MODEL CX-5 display

NOTE
•If a vehicle ahead is detected while travelling at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed. Additionally, when a vehicle
ahead is no longer detected, the vehicle-ahead indication turns off and the system
switches back to travel at constant speed.
•The lowest possible speed which can be set on the MRCC with Stop & Go function system
is 30 km/h (19 mph).
•Headway control is not possible if the vehicle ahead is driving faster than your vehicle's
set speed. Adjust the system to the desired vehicle speed using the accelerator pedal.

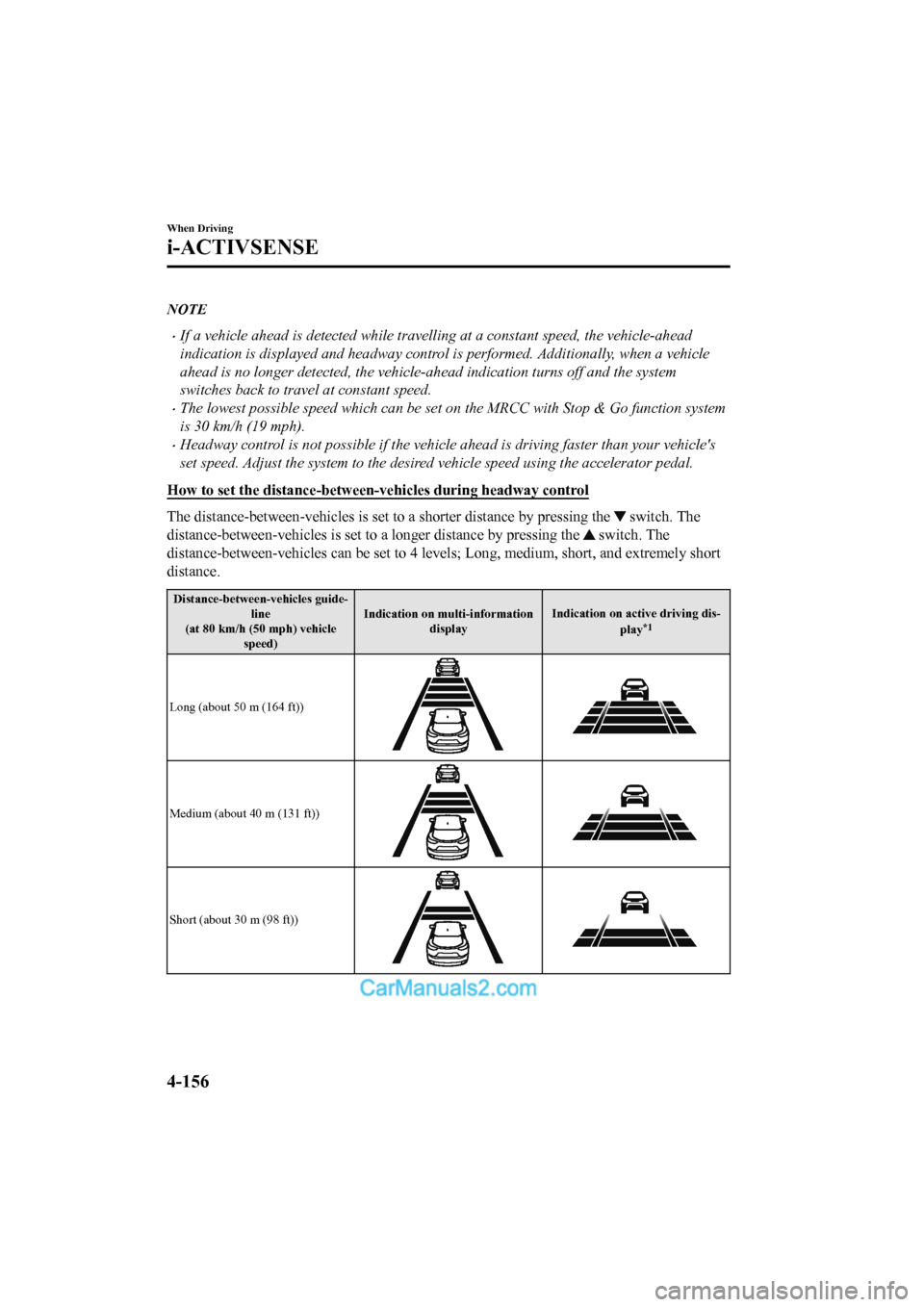

How to set the distanc e-between-vehicles during headway control
The distance-between-vehicles is set to a shorter distance by p ressing the switch. The
distance-between-vehicles is set to a longer distance by pressi ng the
switch. The
distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely short
distance.
Distance-between-vehicles guide- line
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play
*1
Long (about 50 m (164 ft))
Medium (about 40 m (131 ft))
Short (about 30 m (98 ft))
When Driving
i-ACTIVSENSE
4-156
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Distance-between-vehicles guide-line
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play
*1
Extremely short (about 25 m (82 ft))
*1 Displays a pop-up image in the a ctive driving display only when the driver operates the switch.
NOTE
•The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
•When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.
How to change the set vehicle speed
To accelerate/decelerate using the SET
switch
When you press the SET
switch, the
vehicle accelerates and when you press the
SET
switch, it decelerates.
European
models Except Euro-
pean models
Short press 1 km/h (1 mph) 5 km/h (5 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is
changed by pressing the SET switch four
times as follows:
(European models)
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
(Except European models)
The vehicle speed accelerates or
decelerates by 20 km/h (20 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press
and release the SET
switch or SET
switch at the desired sp eed. If the switch is
not operated, the syste m returns to the set
speed after you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
NOTE
•The setting speed can be changed by
operating the SET
switch or SET
switch during stop hold control.
When Driving
i-ACTIVSENSE
4-157
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•When accelerating using the SET
switch while in headway control, the set
vehicle speed can be adjusted but
acceleration is not possible. If there is
no longer a vehicle ahead, acceleration
continues until reaching the set vehicle
speed. For the set vehicle speed, check
the set vehicle speed indication in the
display.
•When depressing the accelerator pedal,
the inter-vehicle distance indication in
the display changes to the white-line
indication.
•(European models)
When switching to a passing lane and
operating the direction indicator, the
system provides more acceleration
automatically if it determines that more
acceleration is required. Drive while
being careful of the road ahead because
you could approach the vehicle ahead
too closely.
Cancelling the system
When the following operations are
performed, the MRCC with Stop & Go
function system is cancelled, and the
MRCC with Stop & Go function set
indication (green) sw itches to the MRCC
with Stop & Go function main indication
(white) at the same time.
•The OFF/CAN switch is pressed.
•The brake pedal is depressed.
•The electric parking brake (EPB) is
applied.
•The selector lever is in the P (Park), N
(Neutral), or R (Reverse) position.
•Any of the doors is opened.
•The driver's seat belt is unfastened.

Under the following conditions, the
MRCC with Stop & Go function cancel
indication is displayed in the
multi-information display and a single
beep sound is heard.
•The DSC has operated.
•The Smart Brake Support (SBS) has
operated.
•The Smart City Brake Support
[Forward] (SCBS F) or Advanced Smart
City Brake Support (Advanced SCBS)
has operated.
•When travelling on a downslope for a
long period of time.
•There is a problem with the system.
•The engine has stalled.
•The electric parkin g brake (EPB) is
automatically applie d during stop hold
control.
•The radar sensor (front) cannot detect
target objects (during rain, fog, snow or
other inclement weather conditions, or
when the radiator grille is dirty).
Resuming control
If the MRCC with St op & Go function
system is cancelled, you can resume
control at the previously set speed by
pressing the RES switch and after all of
the operation conditions have been met.
NOTE
If the set speed is not indicated in the
display, the control does not resume even
if the RES switch is pressed.
Turning off the system
Press the OFF/CAN switch two times
while the MRCC with Stop & Go function
system is operating to switch off the
system.
When Driving
i-ACTIVSENSE
4-158
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Resume driving information
If you do not resume driving within a few seconds after the vehicle ahead starts moving, the
multi-information display vehicl e-ahead indication flashes to urge the driver to resume
driving.
▼ Cruise Control Function
While this function is operating, the
headway control operation is cancelled
and only the cruise control function
operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise c
ontrol function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WA R N I N G
Do not use the cruise control function in
the following locations:
Otherwise, it could lead to an accident.
 Roads with sharp curves and where
vehicle
traffic is heavy and there is
insufficient space between vehicles.
(Driving under these conditions using the
cruise control function is not possible)
 Steep down slopes (Set speed may be
exceeded because sufficient engine
braking cannot be applied)
 Slippery roads such as ice or snow-bound
roads (Tyres could spin causing you to
lose vehicle control)
Always drive carefully:
The warnings and brake control will not
operate after the headway control function
is cancelled and the system is switched to
only the cruise control function. Depress
the brake pedal to decelerate according to
the surrounding conditions while keeping a
safer distance from the vehicle ahead and
always driving carefully.
Switching to cruise control function
When the MODE switc h is pressed until
the system switches to the cruise main
indication (white) wh ile the MRCC with
Stop & Go function system is turned on,
the system switches to the cruise control
function.
When the system switches to the cruise
control function, the indicator and
multi-information disp lay notify the driver
as follows:
•The MRCC with Stop & Go function set
indication (green) or the MRCC with
Stop & Go function main indication
(white) is turned off, and the cruise main
indication (white) is turned on.
•A message is displayed in the
multi-information display.
When Driving
i-ACTIVSENSE
4-160
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•There are various road markings or lane markings of various shapes near an
intersection.
▼System Operation
Make sure that the LAS&LDWS OFF
indicator light in the
instrument cluster is
turned off. When the LAS&LDWS OFF
indicator light is turned on, press the
switch and make sure that the indicator
light turns off.
The LAS&LDWS indic ation (white) is
displayed in the multi-information display,
and the system goes on stand-by.
(White)
Drive the vehicle in the centre of the
vehicle lane while the system is on
standby. When all of the following
conditions are met, the LAS&LDWS
indication (green) is displayed in the
multi-information display, and the system
becomes operational.
(Green)
•The engine is running.
•The vehicle speed is about 60 km/h (37
mph) or faster.
•The system detects w hite (yellow) lane
lines on both the right and left sides.
•The driver is operating the steering
wheel.
•The driving lane is neither narrow nor
wide.

NOTE
The LAS&LDWS indication is white when
the system detects only a white (yellow)
line on either the left or right, and the
indication changes to green when the
system detects white (yellow) lines on both
the left and right sides.
Detection only on either left or right Detects on both
left and right sides
(White) (Green)
The LAS&LDWS goes on stand-by status
in the following cases:
•The system cannot detect white (yellow)
lane lines.
•The vehicle speed is less than about 60
km/h (37 mph).
•The ABS/TCS is operating.
•The TCS is turned off.
(If the TCS is turned off while the
system is operational, a warning beep is
heard and the system goes on standby.)
•The vehicle is making a sharp curve.
•The brake pedal is depressed.
•The steering wheel is operated abruptly.
When Driving
i-ACTIVSENSE
4-166
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•The width of a lane is excessively
narrow or wide.
NOTE
•(When the timing of the steering assist
is set to “Late”)
•The LAS&LDWS does not operate
until the system detects white (yellow)
lane lines on either the left or right.
•When the system detects a white
(yellow) lane line on one side only, the
system will not operate the steering
wheel operation assist and the
warning for the lane line on the side
that is not being detected. The
steering wheel operation assist and
the warning is only for a lane
deviation on the side that is being
detected.
•(When the timing of the steering assist
is set to “Early”)
•When the steering assist timing is set
to “Early”, the LAS&LDWS does not
operate until the system detects white
(yellow) lane lines on the left and
right. When the system only detects
white (yellow) lane lines on either the
left or right, the system only operates
for a lane deviation on the side being
detected.
•The steering wheel operation assist is
performed so that the vehicle remains
near the centre of the driving lane,
however, depending on conditions
such as the road curvature, road slope
and undulations, and vehicle speed,
the system may not be able to keep the
vehicle near the centre of the driving
lane.
•If the driver takes his or her hands off
the steering wheel (not holding the
steering wheel), the warning sound is
activated and an alert is indicated in the
multi-information display or the active
driving display.

Active Driving Display Multi-information Display
(Windscreen Type)
(Auto Flip-up Type)
If the steering wheel is held lightly, or
depending on the road conditions, the
system may detect that you have
released the steering wheel (not holding
the steering wheel) even if you are
holding it, and display a message in the
multi-information di splay or the active
driving display.
•The timing at which the lane departure
warning is activated and the steering
wheel operation assist is performed
varies.
When Driving
i-ACTIVSENSE
4-167
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•The following settings for the
LAS&LDWS can be changed. Refer to
Personalisation Features on page 9-
12.
•Steering operation assist operational/
non-operational
•Cancel sensitivity (likelihood of
steering assist)
Vehicle lane line display
When the LAS&LDWS becomes
operational while on standby, the vehicle
lane lines are displayed in the
multi-information di splay and the active
driving display. In the vehicle lane lines
display indicating the operation status, the
colour of the vehicle lane lines being
detected changes to white.
(Stand-by status)
Multi-information Display
Active Driving Display
(Operational status)
Multi-information Display
Active Driving Display
Auto cancel
In the following cases, the LAS&LDWS is
automatically cancelled, the LAS&LDWS
warning indication (amber) turns on, and
an alert is displayed. When the
LAS&LDWS become operational, the
system turns back on automatically.
•The temperature inside the camera is
high or low.
•The windscreen around the camera is
foggy.
•The windscreen around the camera is
blocked by an obstruction, causing poor
forward visibility.
Auto cancel of warning/steering assist
When the following operations are
performed, the LAS& LDWS operation is
cancelled automatically. The LAS&LDWS
resumes automatically after the operation.
•The steering wheel is operated abruptly.
•The brake pedal is operated.
•The accelerator pedal is operated.
(To cancel the automatic sensitivity
cancel function, deselect “Cancel
sensitivity” in the personalisation
features setting.)
•The direction indicator lever is operated.
•The vehicle crosses a lane line.
NOTE
•After the operation, the LAS&LDWS
operation may not operate for a period
of 5 seconds at the most until the lane
lines are detected.
•Under the following conditions, the
LAS&LDWS cancels the warning/
steering assist automatically.
When Driving
i-ACTIVSENSE
4-168
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•The driver takes his/her hands off the
steering wheel.
(The LAS&LDWS is designed to assist
the driver's steering operation and it
will resume operation automatically
when the driver holds the steering
wheel.)
•The TCS OFF switch is pressed to
cancel the TCS.
Steering operation assist OFF
(non-operational)
The steering operation assist for the
LAS&LDWS can be changed to
non-operational (OFF).
Refer to Setting Cha nge (Personalisation
Features) on page 9-12.
When the steering operation assist has
been changed to non-operational (OFF),
the operation conditions and the display of
the LAS&LDWS differ. Operate the
system as follows:
System operation
Make sure that the LAS&LDWS OFF
indicator light in the instrument cluster is
turned off. When t he LAS&LDWS OFF
indicator light turns on, press the switch
and make sure that the indicator light turns
off.
Drive the vehicle in the centre of the
driving lane while the LAS&LDWS OFF
indicator light in the instrument cluster is
turned off.
The system becomes operational when all
of the following conditions are met.
•The system detects white (yellow) lane
lines on both the right and left sides or
on either side.
•The vehicle speed is about 60 km/h (37
mph) or faster.
•The vehicle is driven on a straight road
or road with gentle curves.
•The engine is running.
The LAS&LDWS goes on stand-by status
in the following cases:
•The system cannot detect white (yellow)
lane lines.
•The vehicle speed is less than about 60
km/h (37 mph).
•The vehicle is making a sharp curve.
•The vehicle is making a curve at an
inappropriate speed.
NOTE
•The LAS&LDWS remains on stand-by
until it detects white (yellow) lines on
both the left and right sides, or on either
side.
•When the system detects a white
(yellow) lane line on one side only, the
system will not activ ate warnings for the
lane line on the side that is not being
detected.
When Driving
i-ACTIVSENSE
4-169
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
