2017 MAZDA MODEL 3 4-DOOR Owners Manual

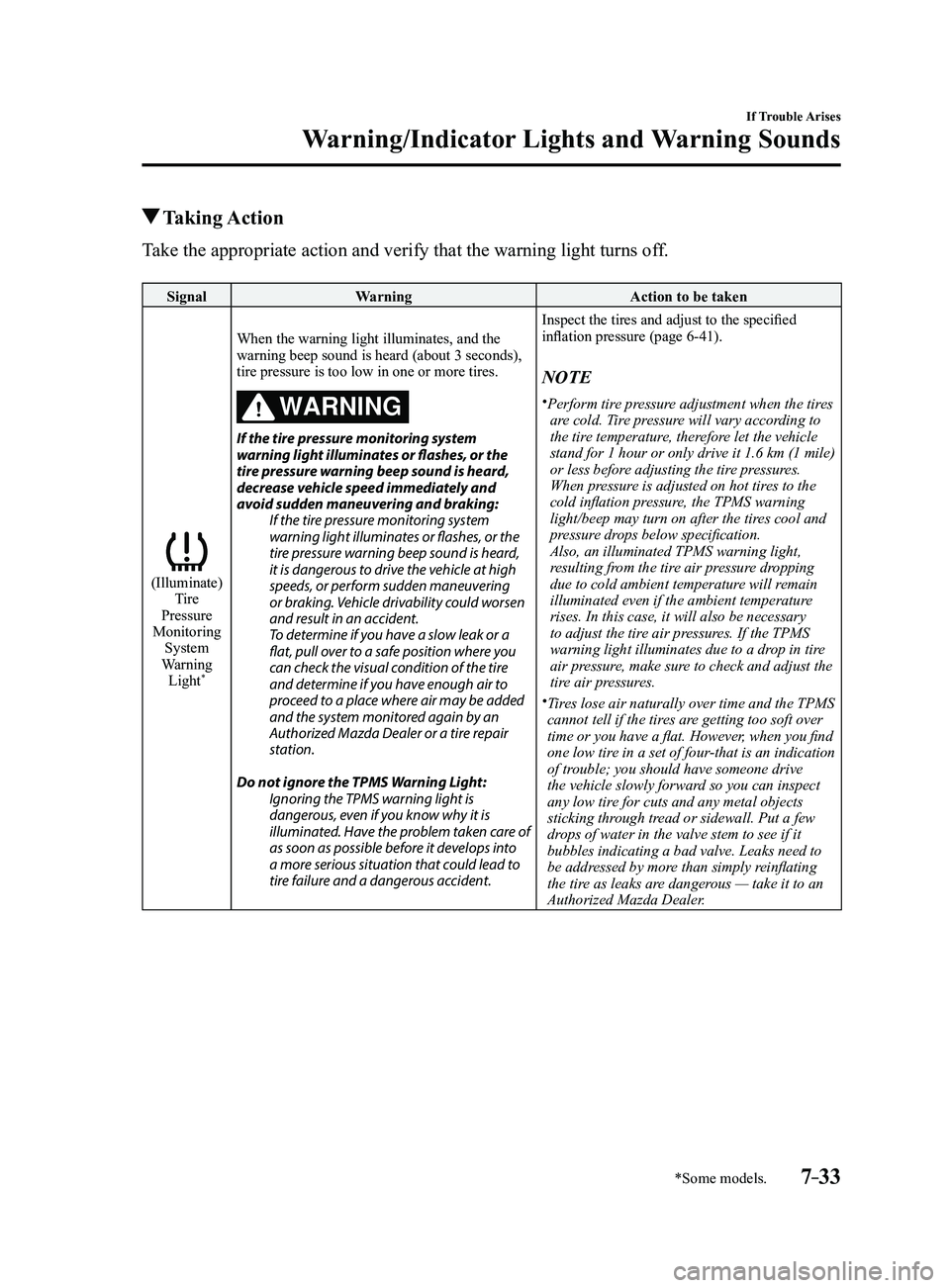

7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Taking Action
Take the appropriate action and verify that the warning light turns off.
SignalWarning Action to be taken
(Illuminate)Tire
Pressure
Monitoring System
Warning Light
*
When the warning light illuminates, and the
warning beep sound is heard (about 3 seconds),
tire pressure is too low in one or more tires.
WARNING
If the tire pressure monitoring system warning light illuminates or flashes, or the
tire pressure warning beep sound is heard,
decrease vehicle speed immediately and
avoid sudden maneuvering and braking: If the tire pressure monitoring system
warning light illuminates or flashes, or the
tire pressure warning beep sound is heard,
it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering
or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a
flat, pull over to a safe position where you
can check the visual condition of the tire
and determine if you have enough air to
proceed to a place where air may be added
and the system monitored again by an
Authorized Mazda Dealer or a tire repair
station.
Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken care of
as soon as possible before it develops into
a more serious situation that could lead to
tire failure and a dangerous accident. Inspect the tires and adjust to the specified
inflation pressure (page
6-41).
NOTE
Perform tire pressure adjustment when the tires
are cold. Tire pressure will vary according to
the tire temperature, therefore let the vehicle
stand for 1 hour or only drive it 1.6 km (1 mile)
or less before adjusting the tire pressures.
When pressure is adjusted on hot tires to the
cold inflation pressure, the TPMS warning
light/beep may turn on after the tires cool and
pressure drops below specification.
Also, an illuminated TPMS warning light,
resulting from the tire air pressure dropping
due to cold ambient temperature will remain
illuminated even if the ambient temperature
rises. In this case, it will also be necessary
to adjust the tire air pressures. If the TPMS
warning light illuminates due to a drop in tire
air pressure, make sure to check and adjust the
tire air pressures.
 Tires lose air naturally over time and the TPMS cannot tell if the tires are getting too soft over
time or you have a flat. However, when you find
one low tire in a set of four-that is an indication
of trouble; you should have someone drive
the vehicle slowly forward so you can inspect
any low tire for cuts and any metal objects
sticking through tread or sidewall. Put a few
drops of water in the valve stem to see if it
bubbles indicating a bad valve. Leaks need to
be addressed by more than simply reinflating
the tire as leaks are dangerous — take it to an
Authorized Mazda Dealer.
Mazda3_8FL6-EA-16F_Edition2.indb 332016/08/10 17:39:29

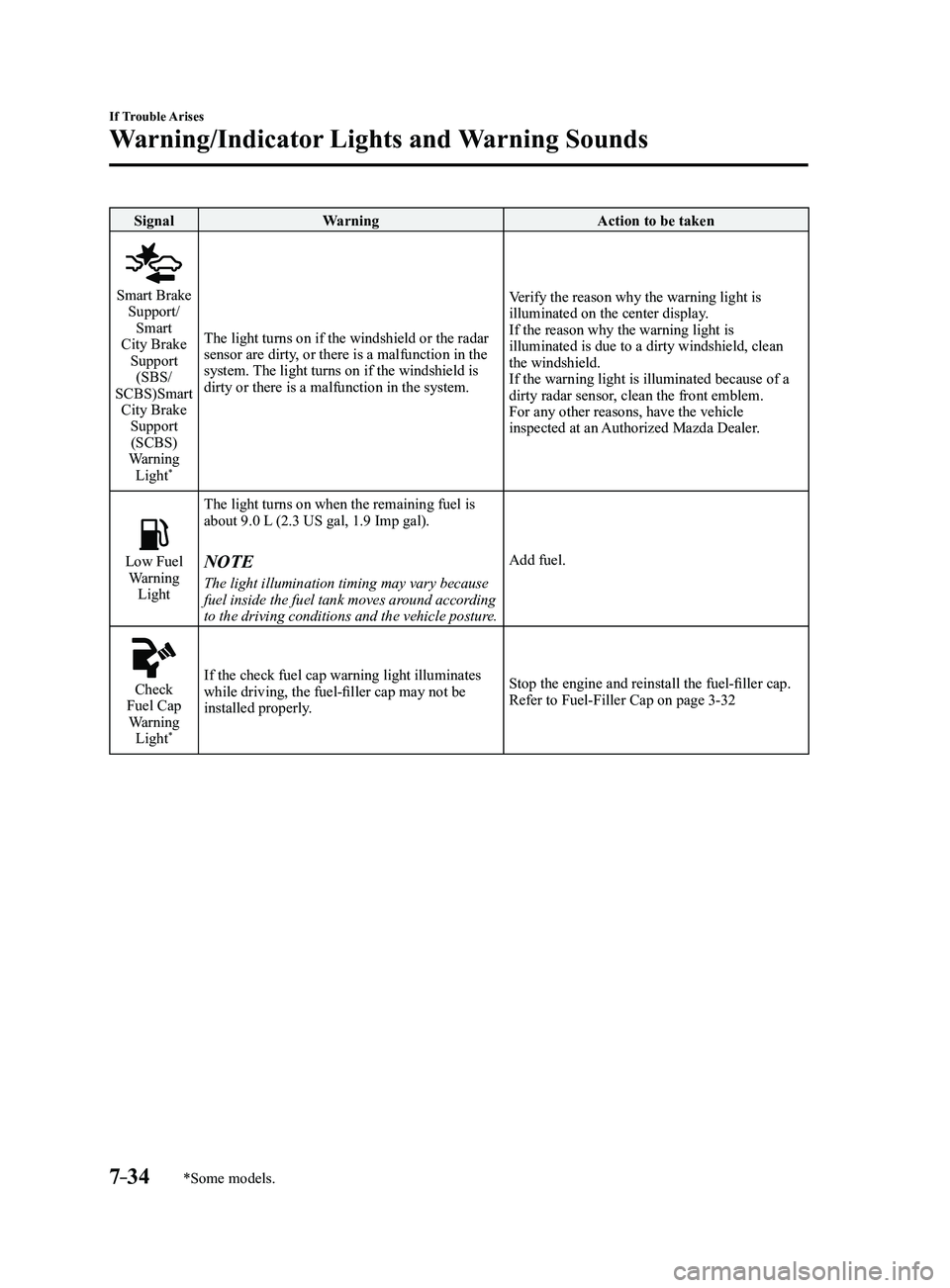

7–34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning Action to be taken
Smart Brake Support/
Smart
City Brake Support (SBS/
SCBS)Smart City Brake Support (SCBS)
Warning Light
*
The light turns on if the windshield or the radar
sensor are dirty, or there is a malfunction in the
system. The light turns on if the windshield is
dirty or there is a malfunction in the system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is
illuminated is due to a dirty windshield, clean
the windshield.
If the warning light is illuminated because of a
dirty radar sensor, clean the front emblem.
For any other reasons, have the vehicle
inspected at an Authorized Mazda Dealer.
Low Fuel Warning
Light The light turns on when the remaining fuel is
about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary because
fuel inside the fuel tank moves around according
to the driving conditions and the vehicle posture.
Add fuel.
Check Fuel Cap
Warning Light
*
If the check fuel cap warning light illuminates
while driving, the fuel-filler cap may not be
installed properly. Stop the engine and reinstall the fuel-filler cap.
Refer to Fuel-Filler Cap on page
3-32
Mazda3_8FL6-EA-16F_Edition2.indb 342016/08/10 17:39:30

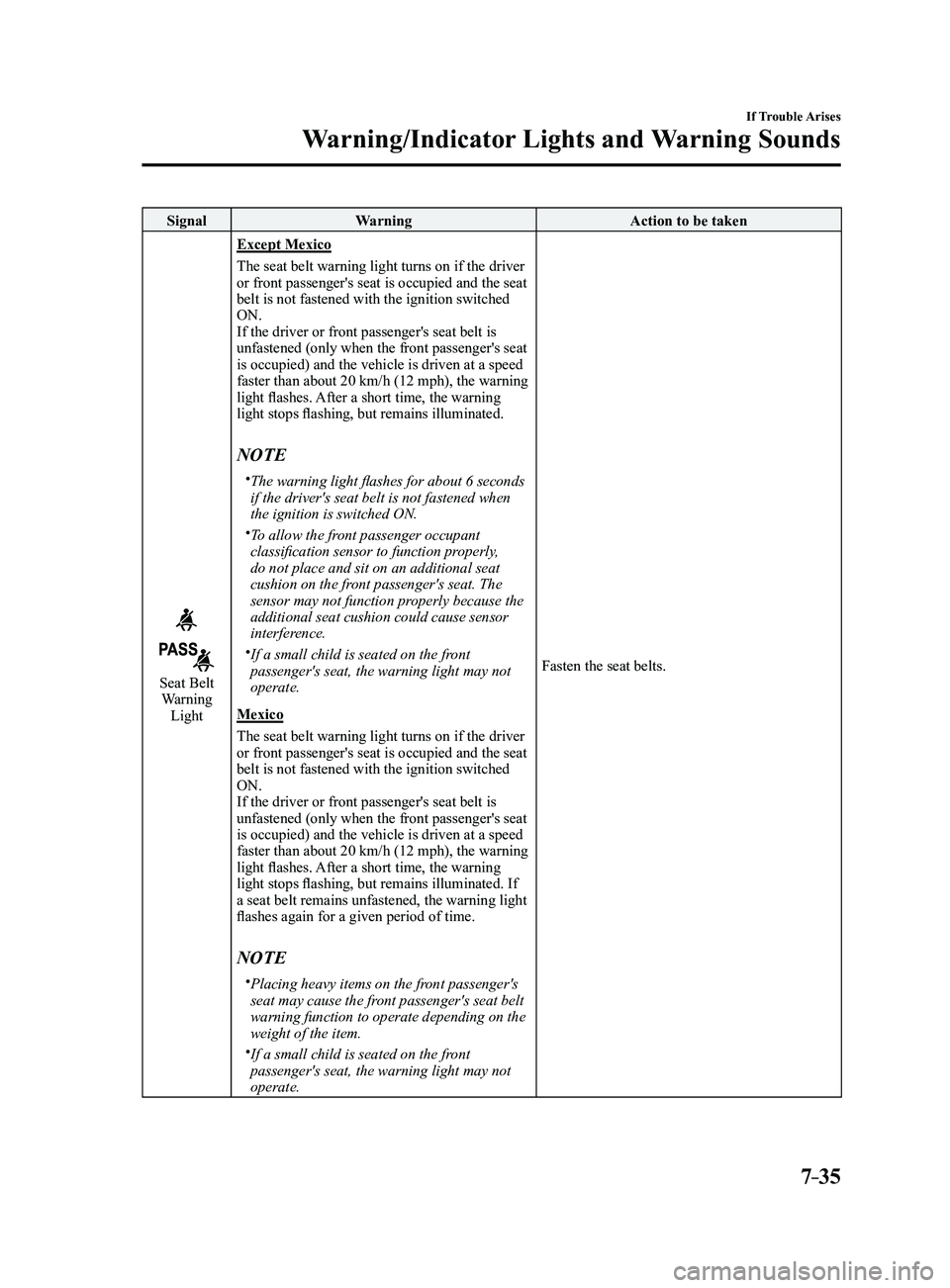

7–35
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
SignalWarning Action to be taken
Seat Belt Warning
Light
Except Mexico
The seat belt warning light turns on if the driver
or front passenger's seat is occupied and the seat
belt is not fastened with the ignition switched
ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's seat
is occupied) and the vehicle is driven at a speed
faster than about 20 km/h (12 mph), the warning
light flashes. After a short time, the warning
light stops flashing, but remains illuminated.
NOTE
 The warning light flashes for about 6 seconds if the driver's seat belt is not fastened when
the ignition is switched ON.
 To allow the front passenger occupant
classification sensor to function properly,
do not place and sit on an additional seat
cushion on the front passenger's seat. The
sensor may not function properly because the
additional seat cushion could cause sensor
interference.
 If a small child is seated on the front
passenger's seat, the warning light may not
operate.
Mexico
The seat belt warning light turns on if the driver
or front passenger's seat is occupied and the seat
belt is not fastened with the ignition switched
ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's seat
is occupied) and the vehicle is driven at a speed
faster than about 20 km/h (12 mph), the warning
light flashes. After a short time, the warning
light stops flashing, but remains illuminated. If
a seat belt remains unfastened, the warning light
flashes again for a given period of time.
NOTE
 Placing heavy items on the front passenger's
seat may cause the front passenger's seat belt
warning function to operate depending on the
weight of the item.
 If a small child is seated on the front
passenger's seat, the warning light may not
operate. Fasten the seat belts.
Mazda3_8FL6-EA-16F_Edition2.indb 352016/08/10 17:39:30

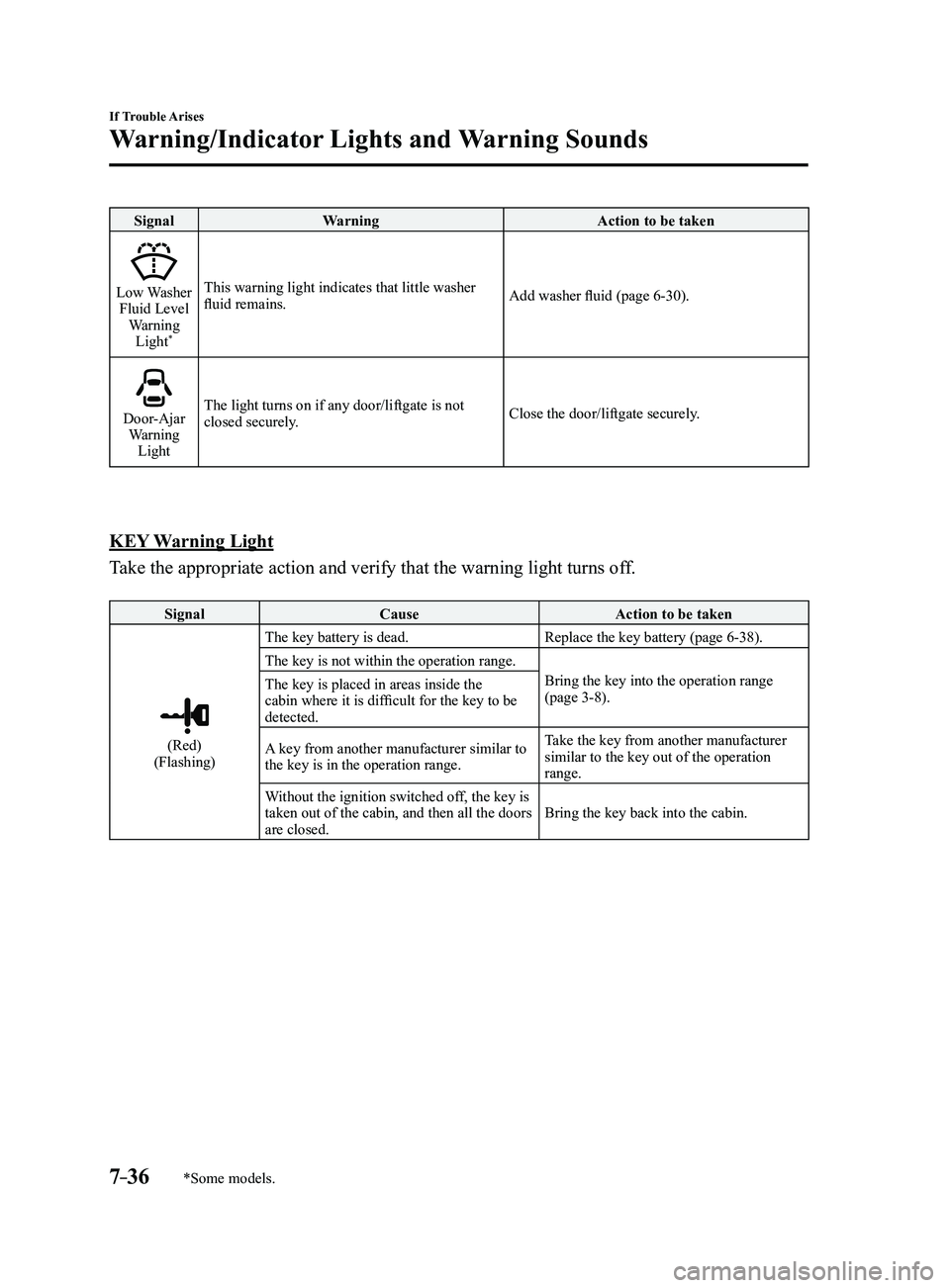

7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning Action to be taken
Low Washer Fluid Level
Warning Light
*
This warning light indicates that little washer
fluid remains. Add washer fluid (page 6-30).
Door-Ajar Warning
Light The light turns on if any door/liftgate is not
closed securely.
Close the door/liftgate securely.
KEY Warning Light
Take the appropriate action and verify that the warning light turns off.
Signal
Cause Action to be taken
(Red)(Flashing)The key battery is dead.
Replace the key battery (page
6-38).
The key is not within the operation range. Bring the key into the operation range
(page
3-8).
The key is placed in areas inside the
cabin where it is difficult for the key to be
detected.
A key from another manufacturer similar to
the key is in the operation range. Take the key from another manufacturer
similar to the key out of the operation
range.
Without the ignition switched off, the key is
taken out of the cabin, and then all the doors
are closed. Bring the key back into the cabin.
Mazda3_8FL6-EA-16F_Edition2.indb 362016/08/10 17:39:31

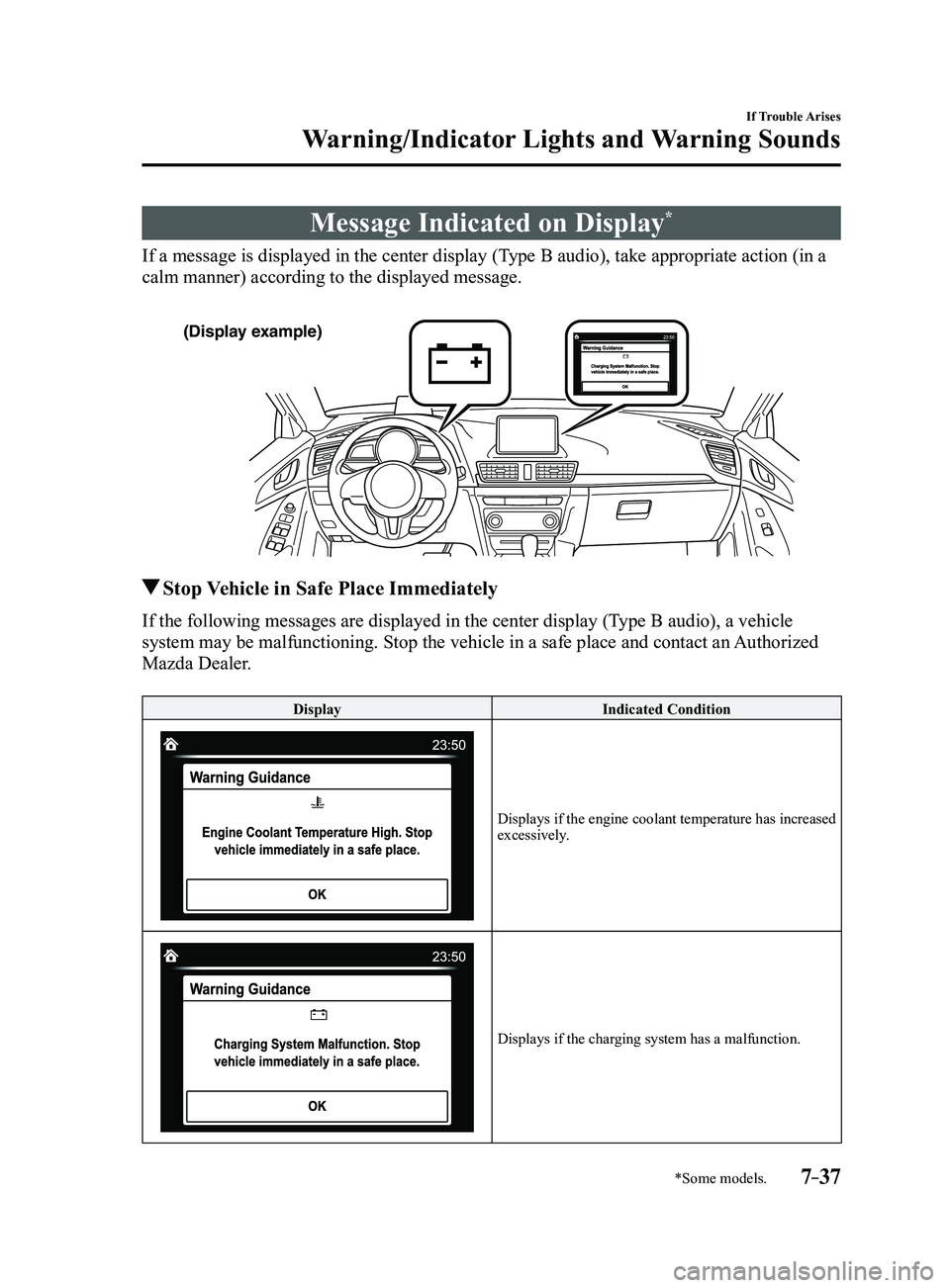

7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Message Indicated on Display*
If a message is displayed in the center display (Type B audio), take appropriate action (in a
calm manner) according to the displayed message.
(Display example)
Stop Vehicle in Safe Place Immediately
If the following messages are displayed in the center display (Type B audio), a vehicle
system may be malfunctioning. Stop the vehicle in a safe place and conta\
ct an Authorized
Mazda Dealer.
DisplayIndicated Condition
Displays if the engine coolant temperature has increased excessively.
Displays if the charging system has a malfunction.
Mazda3_8FL6-EA-16F_Edition2.indb 372016/08/10 17:39:32

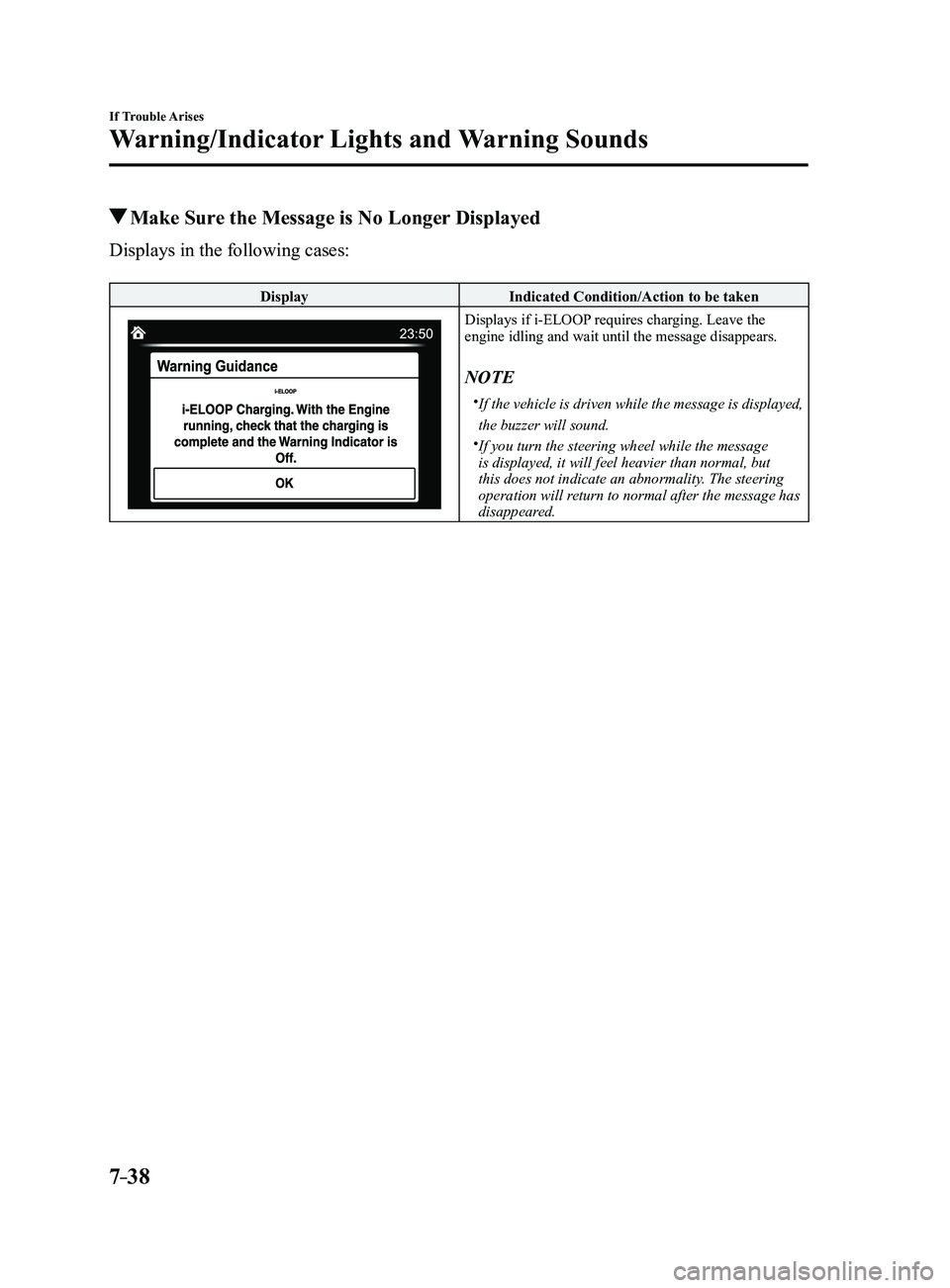

7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Make Sure the Message is No Longer Displayed
Displays in the following cases:
DisplayIndicated Condition/Action to be taken
Displays if i-ELOOP requires charging. Leave the engine idling and wait until the message disappears.
NOTE
 If the vehicle is driven while the message is displayed,
the buzzer will sound.
 If you turn the steering wheel while the message
is displayed, it will feel heavier than normal, but
this does not indicate an abnormality. The steering
operation will return to normal after the message has
disappeared.
Mazda3_8FL6-EA-16F_Edition2.indb 382016/08/10 17:39:32

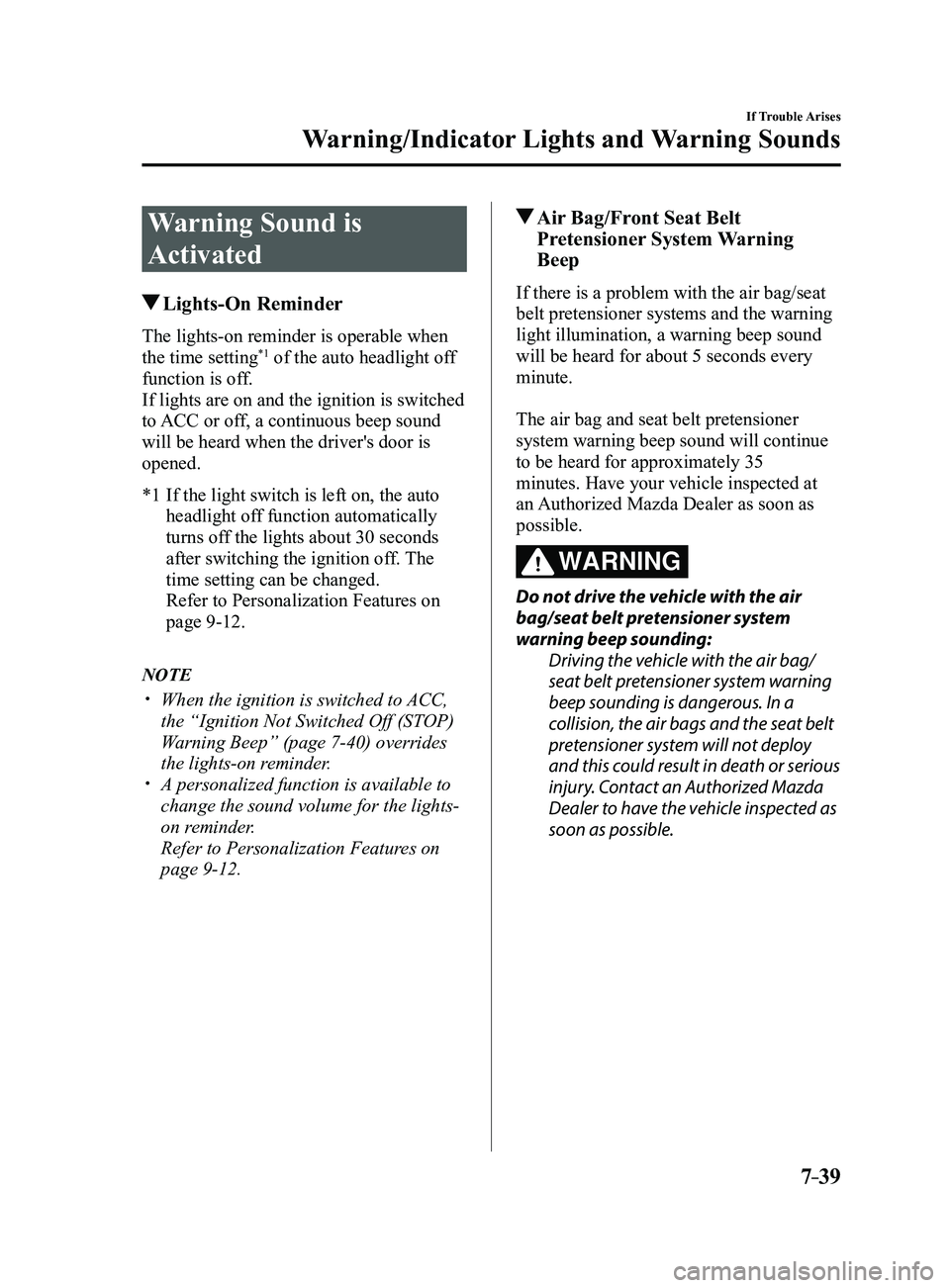

7–39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Warning Sound is
Activated
Lights-On Reminder
The lights-on reminder is operable when
the time setting*1 of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or off, a continuous beep sound
will be heard when the driver's door is
opened.
*1 If the light switch is left on, the auto
headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-12.
NOTE
 When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page
7-40) overrides
the lights-on reminder.
 A personalized function is available to
change the sound volume for the lights-
on reminder.
Refer to Personalization Featur es on
page 9-12.
Air Bag/Front Seat Belt
Pretensioner System Warning
Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35
minutes. Have your vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
seat belt pretensioner system warning
beep sounding is dangerous. In a
collision, the air bags and the seat belt
pretensioner system will not deploy
and this could result in death or serious
injury. Contact an Authorized Mazda
Dealer to have the vehicle inspected as
soon as possible.
Mazda3_8FL6-EA-16F_Edition2.indb 392016/08/10 17:39:33

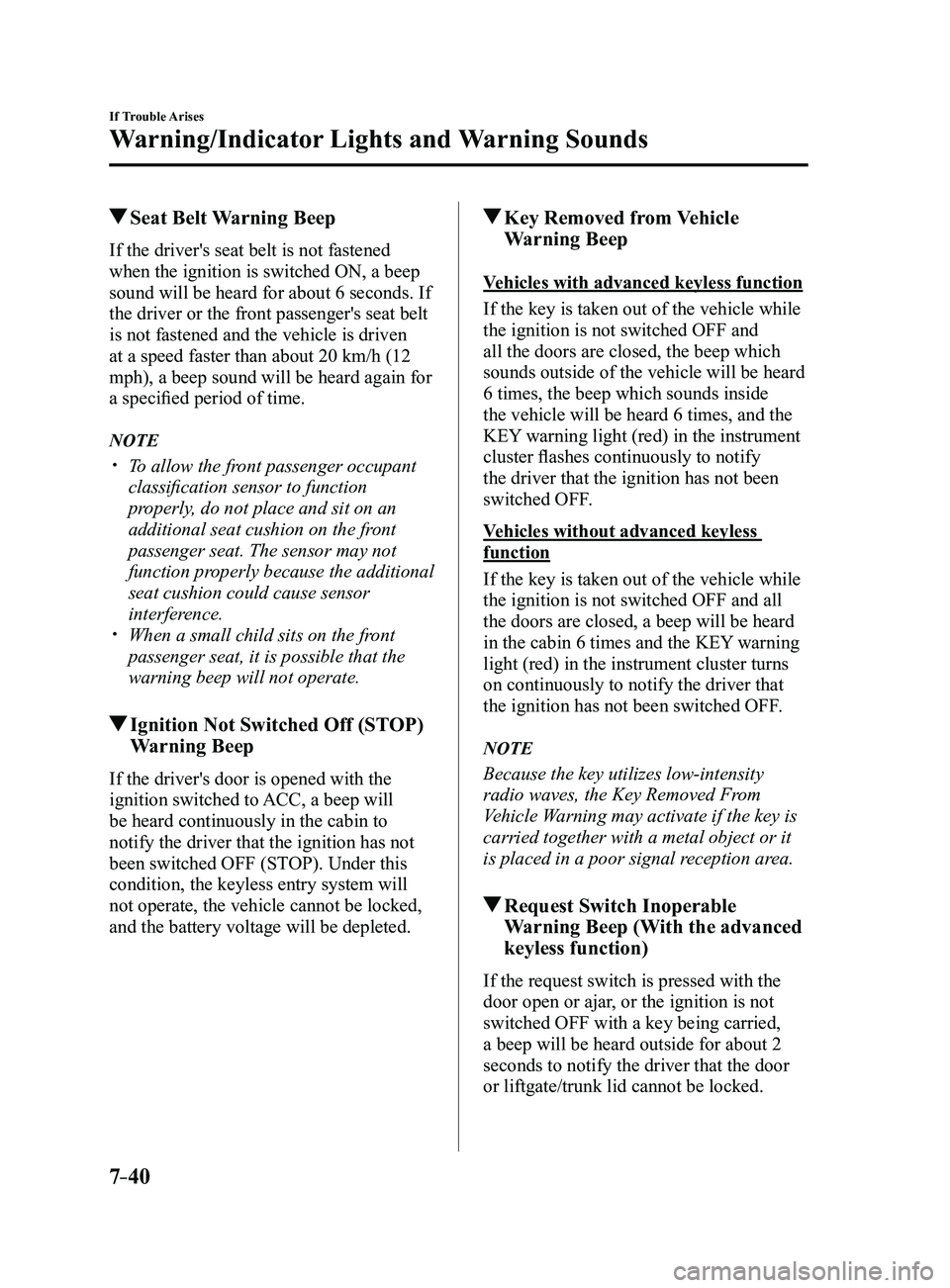

7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the front passenger's seat belt
is not fastened and the vehicle is driven
at a speed faster than about 20 km/h (12
mph), a beep sound will be heard again for
a specified period of time.
NOTE
 To allow the front passenger occupant
classification sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
 When a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and
all the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside
the vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster flashes continuously to notify
the driver that the ignition has not been
switched OFF.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried,
a beep will be heard outside for about 2
seconds to notify the driver that the door
or liftgate/trunk lid cannot be locked.
Mazda3_8FL6-EA-16F_Edition2.indb 402016/08/10 17:39:33
