5–1*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.

Air-Conditioning System .................... 5-4
Operating Tips ................................ 5-4
Vent Operation ............................... 5-5
Manual Type .................................. 5-7
Fully Automatic Type ................... 5-14

Before Using the Audio System ........ 5-18
Audio Control Switch
* ................. 5-18
AUX/USB mode .......................... 5-20
Aerial ............................................ 5-23

Audio Set
[Type A (non-touchscreen)] .............. 5-26
Power/Volume/Sound Controls .... 5-26
Clock ............................................ 5-28
Operating the Radio ..................... 5-30
Operating the Compact Disc (CD)
Player
* .......................................... 5-34
How to use AUX mode ................ 5-37
How to use USB mode ................. 5-38
How to use iPod mode ................. 5-42
Error Indications .......................... 5-45
Bluetooth
® * ................................... 5-46
Bluetooth® Preparation * ............... 5-49
Available Language * .................... 5-60
Security Setting * ........................... 5-61
Bluetooth® Audio * ........................ 5-62
Bluetooth® Hands-Free * ............... 5-65
Voice Recognition * ....................... 5-72
Voice Recognition Learning Function
(Speaker Enrolment)
* ................... 5-73
Troubleshooting * .......................... 5-76
Audio Set [Type B (touchscreen)] .... 5-80
Basic Operation Method .............. 5-80
Home screen ................................. 5-85
Volume/Display/Sound
Controls ........................................ 5-86
Operating the Radio ..................... 5-88
Operating the Digital Audio
Broadcasting (DAB) Radio
* ......... 5-91
Operating the Compact Disc
(CD) Player .................................. 5-94
Operating the Digital Versatile Disc
(DVD) Player
* .............................. 5-97
How to use AUX mode .............. 5-100
How to use USB mode ............... 5-101
Bluetooth
® .................................. 5-107
Bluetooth® Preparation ............... 5-111
Available Language * .................. 5-113
Bluetooth® Audio ....................... 5-114
How to Use Aha™ ....................... 5-118
How to Use Stitcher™ Radio ...... 5-122
Bluetooth® Hands-Free .............. 5-124
Voice Recognition ...................... 5-134
Settings ....................................... 5-137
Applications ............................... 5-139
Troubleshooting ......................... 5-140

Appendix .......................................... 5-144
Things You Need to Know ......... 5-144

5–26
Interior Features
Audio Set [Type A (non-touchscreen)]
Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.
Audio sound adjustment
1. Press the menu button ( ) to select
the function. The selected function will
be indicated.
2. Turn the audio control dial to adjust the
selected functions as follows:

Indication Setting value
Tu r n
Anticlockwise Tu r n
Clockwise
AF
*1
(Setting Alternative
Frequency (AF)) Off On
R E G
*1
(Setting Regional
Programme (REG)) Off On
A L C
(Automatic volume
adjustment) Level decrease Level
increase
Indication Setting value
Tu r n
Anticlockwise Tu r n
Clockwise
BASS
(Low pitch sound) Decrease bass Increase
bass
T R E B
(Treble sound) Decrease treble Increase
treble
FADE
(Front/back volume
balance) Shift the sound
to the front Shift the
sound to
the rear
B A L
(Left/right volume
balance) Shift the sound
to the left Shift the
sound to
the right
BEEP
(Audio operation
sound) OFF ON
BT SETUP
*2 Select mode
12HR
24HR
(12 HR/24 HR time
adjustment) 12HR
(Flashing) 24HR
(Flashing)
*1 With Radio Data System (RDS)
*2 Depending on the model, this function may not be
available.
NOTE
If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (
) for
2 seconds. The unit will beep and
“ CLEAR ” will be displayed.

5–27
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
AF (Setting Alternative Frequency
(AF)) *
The AF function of the Radio Data System
(RDS) can be set on or off.
Refer to Radio Data System (RDS) on
page 5-32 .
REG (Setting Regional Programme
(REG))
*
The REG function of the Radio Data
System (RDS) can be set on or off.
Refer to Radio Data System (RDS) on
page 5-32 .
ALC (Automatic volume adjustment)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BEEP (Audio operation sound)
The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound.
BT SETUP mode
*
Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth
®
transmission function can be listened to
via wireless transmission over the vehicle's
speakers. Using the BT SETUP mode,
these devices can be programmed to the
Bluetooth
® unit or changed (page 5-49 ). 1 2 H R
24HR (12 HR/24 HR time
adjustment)
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-28 ).

5–28
Interior Features
Audio Set [Type A (non-touchscreen)]
Clock

Audio display Audio control dial
Hour/Minute set switch:00 button
Menu button Clock button

Setting the time
The clock can be set at any time when the
ignition is switched to ACC or ON.

1. To adjust the time, press the clock
button (
) for about 2 seconds until
a beep is heard.
2. The clock's current time will À ash.
Time adjustment




 To adjust the time, press the hour/
minute set button (
, ) while the
clock's current time is À ashing.




 The hours advance while the hour set
button (
) is pressed. The minutes
advance while the minute set button
(
) is pressed.
3. Press the clock button ( ) again to
start the clock.

Time resetting
1. Press the clock button ( ) for about
2 seconds until a beep is heard.
2. Press the :00 button ( 1 ).
3. When the button is pressed, the time
will be reset as follows:
(Example)
12:01—12:29
:12:00
12:30—12:59
:1:00

NOTE

 When the :00 button ( 1 ) is pressed,
the seconds will start at “ 00 ”.

 Switching between 12 and 24-hour
clock time:
 Press the menu button ( )
several times until 12 and 24-hour
clock time are displayed. Turn the
audio control dial in either direction,
select the desired clock setting while
the preferred clock time is À ashing.

5–86
Interior Features
Audio Set [Type B (touchscreen)]
Volume/Display/Sound Controls

Volume dial Commander switchAudio control switch
Volume switch

Volume adjustment
Turn the commander switch volume dial.
The volume switch on the steering switch
can also be pressed.
Display setting
Select the icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Display OFF/Clock
The centre display can be turned off.
Select
to turn the display off.
When
is
selected the centre display turns off and
the clock is displayed.
The centre display can be turned back on
as follows:



 Touch the centre display.



 Operate the commander switch.
Daytime/nighttime (Mode) screen
setting
The daytime or nighttime screen can be
selected.

: Switches screen automatically
according to headlight illumination
condition
*1

: Daytime screen setting

: Nighttime screen setting
*1 The display is constantly on daytime
screen when the illumination dimmer is
cancelled.

Brightness adjustment
Adjust the centre display brightness using
the slider.
Contrast adjustment
Adjust the centre display contrast using
the slider.
Display setting reset
All of the screen setting values can be
reset to their initial settings.

1. Select .
2. Select
.

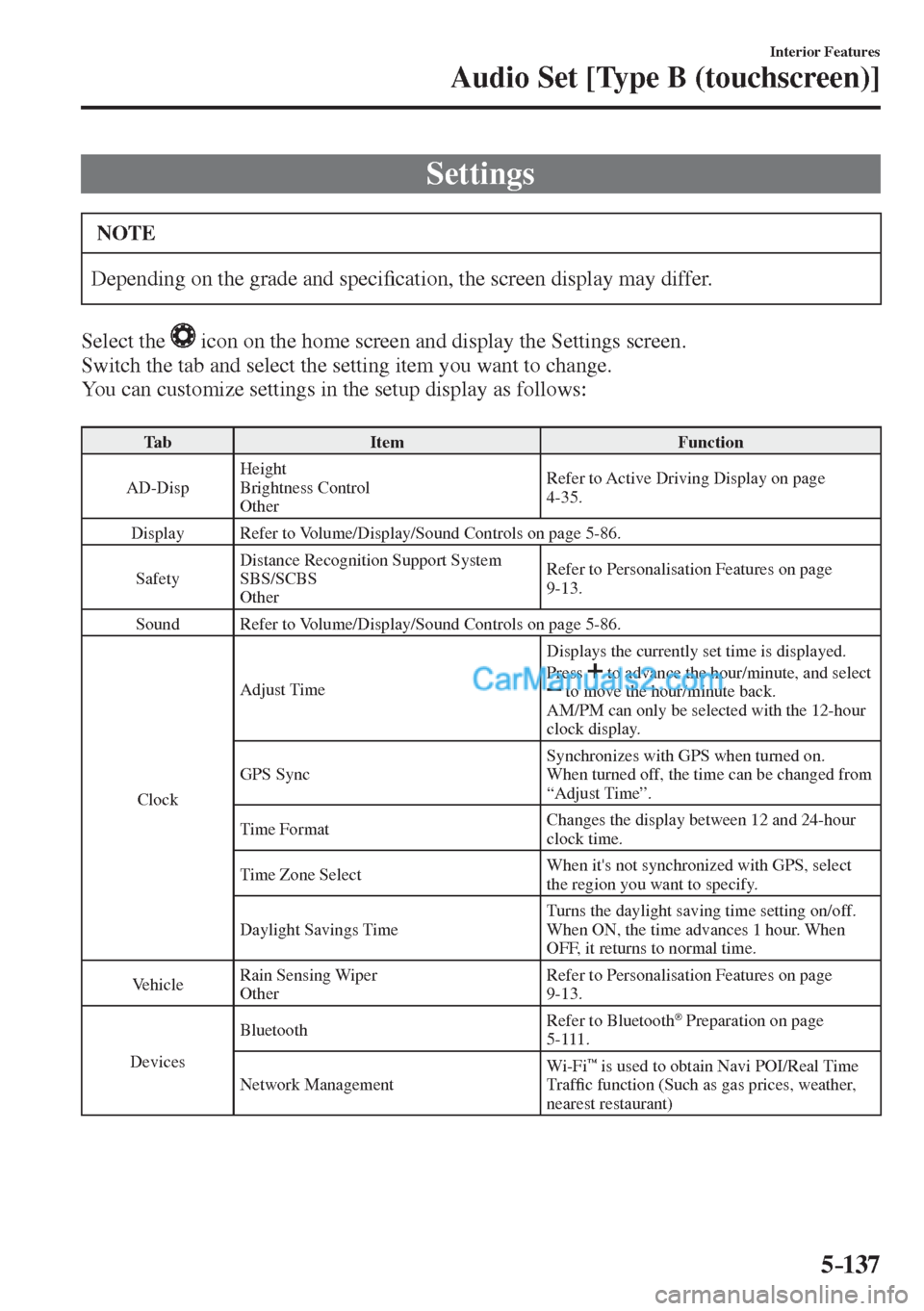

5–137
Interior Features
Audio Set [Type B (touchscreen)]
Settings
NOTE
Depending on the grade and speci¿ cation, the screen display may differ.
Select the
icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:

Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page
4-35 .
Display Refer to Volume/Display/Sound Controls on page 5-86 .
Safety Distance Recognition Support System
SBS/SCBS
Other Refer to Personalisation Features on page
9-13 .
Sound Refer to Volume/Display/Sound Controls on page 5-86 .
Clock Adjust Time Displays the currently set time is displayed.
Press
to advance the hour/minute, and select
to move the hour/minute back.
AM/PM can only be selected with the 12-hour
clock display.
GPS Sync Synchronizes with GPS when turned on.
When turned off, the time can be changed from
“Adjust Time”.
Time Format Changes the display between 12 and 24-hour
clock time.
Time Zone Select When it's not synchronized with GPS, select
the region you want to specify.
Daylight Savings Time Turns the daylight saving time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.
Vehicle Rain Sensing Wiper
Other Refer to Personalisation Features on page
9-13 .
Devices Bluetooth Refer to Bluetooth
® Preparation on page
5-111 .
Network Management Wi-Fi
™ is used to obtain Navi POI/Real Time
Traf¿ c function (Such as gas prices, weather,
nearest restaurant)

10–2
Index
1
120 km/h warning beep ....................... 7-52
A
Accessory Socket .............................. 5-159
Active Driving Display ....................... 4-35
Adaptive LED Headlights (ALH) ..... 4-108
Add-On Non-Genuine Parts and
Accessories ........................................... 8-3
Adjustable Speed Limiter ........ 4-32, 4-148
Activation/deactivation ............... 4-152
Adjustable speed limiter set indication
(green) ......................................... 4-150
Adjustable speed limiter set indication
(white)/indicator light (green) ..... 4-150
Adjustable Speed Limiter Display ...... 4-32
Advanced Key
Advanced keyless entry system ...... 3-9
Operational range .......................... 3-10
Air Bag/Seat Belt Pretensioner System
Warning Beep ...................................... 7-50
Air Bag Systems ................................. 2-41
Air-Conditioning System ...................... 5-4
Fully Automatic Type .................... 5-14
Manual Type .................................... 5-7
Operating Tips ................................. 5-4
Vent Operation ................................ 5-5
Ambient Temperature Display ............ 4-31
Antilock Brake System (ABS) ............ 4-86
Audio Control Switch
Adjusting the Volume .................... 5-18
Mute Switch .................................. 5-18
Seek Switch ................................... 5-19 Audio Set [Type A (non-touchscreen)]
AUX .............................................. 5-37
Bluetooth
® ..................................... 5-46
CD Player ...................................... 5-34
Clock ............................................. 5-28
Error Indications............................ 5-45
iPod mode...................................... 5-42
Power/Volume/Sound Controls ..... 5-26
Radio ............................................. 5-30
Radio (RDS) .................................. 5-30
Troubleshooting ............................ 5-76
USB ............................................... 5-38
Voice Recognition ......................... 5-72
Audio Set [Type B (touchscreen)]
Applications ................................ 5-139
AUX ............................................ 5-100
Bluetooth
® ................................... 5-107
CD Player ...................................... 5-94
DVD Player ................................... 5-97
Digital Audio Broadcasting (DAB)
Radio ............................................. 5-91
Radio ............................................. 5-88
Radio (RDS) .................................. 5-88
Settings ........................................ 5-137
Troubleshooting .......................... 5-140
USB ............................................. 5-101
Voice Recognition ....................... 5-134
Volume/Display/Sound Controls ... 5-86
Audio System
Aerial ............................................. 5-23
Appendix ..................................... 5-144
Audio Control Switch ................... 5-18
Audio Set
[Type A (non-touchscreen)] ........... 5-26
Audio Set
[Type B (touchscreen)] .................. 5-80
AUX/USB mode ........................... 5-20
Before Using the Audio System .... 5-18
