2017 LINCOLN MKZ Owners Manual

Protected components
Fuse amp rating
Fuse or relay number
Non-emissions components.
Not used.
-
13
Not used.
-
14
Run-start relay.
-
15
Power point 2 - console.
20A 3
16
Not used.
-
17
Right hand side headlamp ballast.
20A 1
18
Run-start electronic power assist steering.
10A 1
19
Run-start lighting.
10A 1
20
Adaptive cruise control.
Run-start transmission control.
15A 1
21
Transmission oil pump start-stop.
Air conditioner clutch solenoid.
10A 1
22
Run-start: Blind spot information system, Rear view camera,
All-wheel drive (3.0L engine), Heads-up display, shifter.
15A 1
23
Voltage stability module.
278
MKZ (CC9) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
24
Run-start anti-lock brake system.
10A 2
25
Run-start powertrain control module.
10A 2
26
Not used.
-
27
Not used.
-
28
Not used.
-
29
Not used.
-
30
Not used.
-
31
Electric fan #1 relay.
-
32
Air conditioner clutch relay.
-
33
Not used.
-
34
Not used.
-
35
Not used.
-
36
Not used.
-
37
Electric fan 2 relay.
-
38
279
MKZ (CC9) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Electric fan coil 2 and 3 relay.
-
39
Horn relay.
-
40
Not used.
-
41
Fuel pump relay coil.
-
42
Not used.
-
43
Left hand side headlamp ballast.
20A 1
44
USB smart charger.
5A 1
45
Not used.
–
46
Not used.
–
47
Not used.
–
48
Not used.
–
49
Horn.
20A 1
50
Not used.
-
51
Not used.
-
52
280
MKZ (CC9) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Multi-contour seats.
10A 1
53
Brake on-off switch.
10A 2
54
Alt sensor.
10A 2
55
1 Micro fuse.
2 Dual micro fuse.
3 M-type fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:
281
MKZ (CC9) Canada/United States of America, enUSA, First Printing Fuses

1.
Release the two latches, located on both
sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
282
MKZ (CC9) Canada/United States of America, enUSA, First Printing FusesE145983

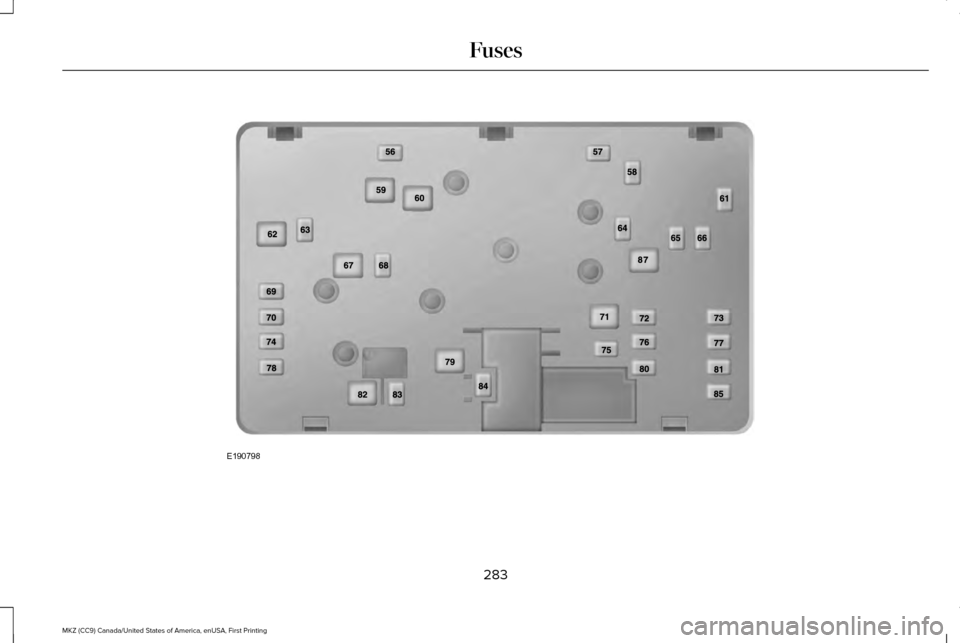

283
MKZ (CC9) Canada/United States of America, enUSA, First Printing FusesE190798

Protected components
Fuse amp rating
Fuse or relay number
Not used.
–
56
Not used.
-
57
Fuel pump feed.
30A 1
58
Electric fan 3 (2.0L engine).
30A 2
59
Electric fan 3 (3.0L engine).
40A 2
Electric fan 1 (2.0L engine).
30A 2
60
Electric fan 1 (3.0L engine).
40A 2
Not used.
-
61
Body control module 1.
50A 2
62
Electric fan 2 (2.0L engine).
25A 1
63
Electric fan 2 (3.0L engine).
30A 1
All-wheel drive (torque vectoring).
30A 1
64
284
MKZ (CC9) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Front heated seat.
20A 1
65
Heated wiper park.
15A 1
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used.
-
71
Transmission oil pump.
20A 1
72
Rear climate controlled seats.
20A 1
73
Driver seat module.
30A 1
74
Wiper motor 1.
25A 1
75
Power decklid module.
30A 1
76
285
MKZ (CC9) Canada/United States of America, enUSA, First Printing Fuses
