2017 LEXUS RC200T fuse box

5227-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
RC200t
For right-hand drive vehicles: The battery and the fuse box in front of the battery are located on the opposite side of the
engine compartment.

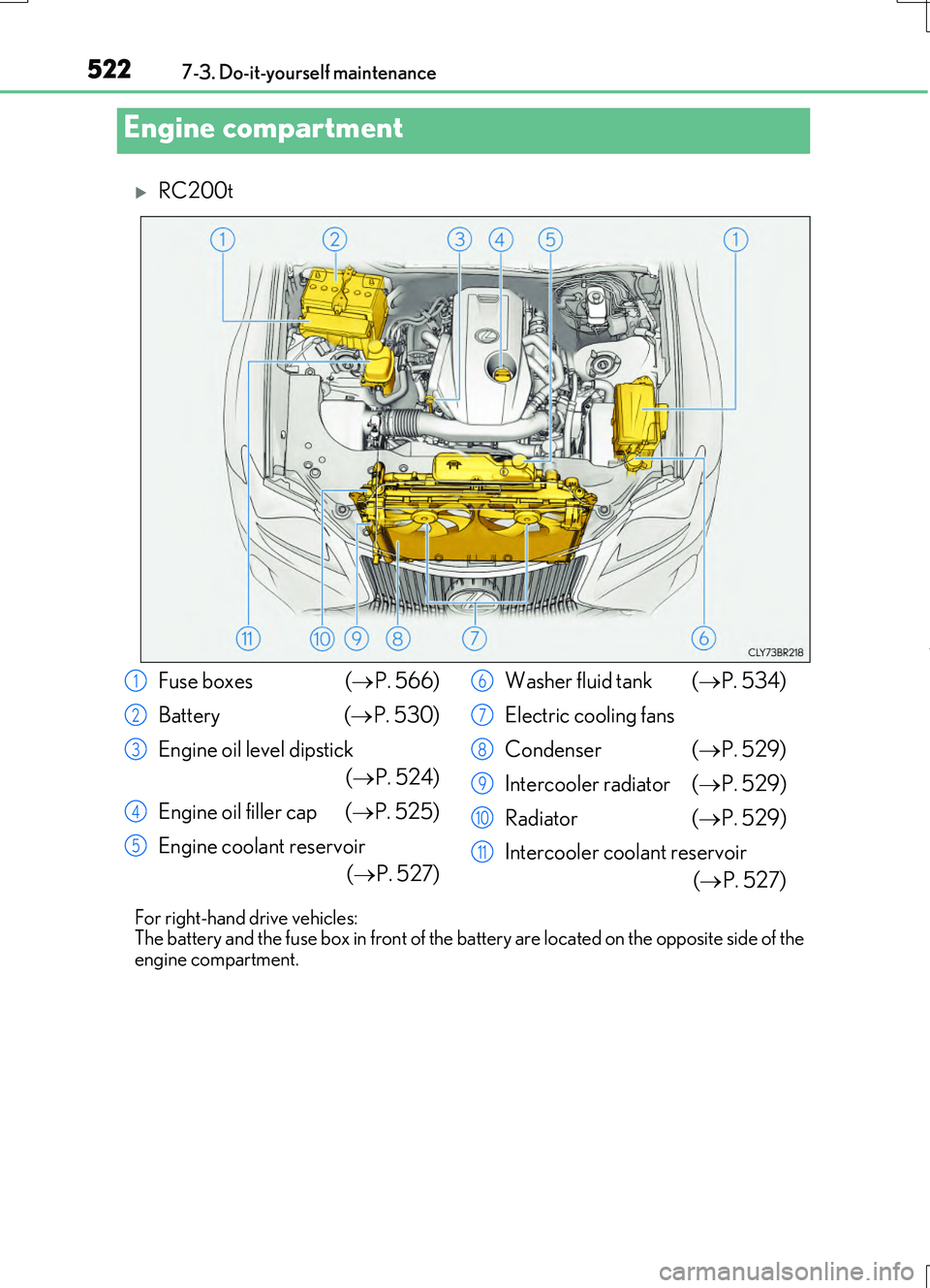

Engine compartment
Fuse boxes ( P. 566)
Battery ( P. 530)
Engine oil level dipstick
( P. 524)
Engine oil filler cap ( P. 525)
Engine coolant reservoir
( P. 527)
Washer fluid tank ( P. 534)
Electric cooling fans
Condenser ( P. 529)
Intercooler radiator ( P. 529)
Radiator ( P. 529)
Intercooler coolant reservoir
( P. 527)
1
2
3
4
5
6
7
8
9
10
11

5237-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
RC F
For right-hand drive vehicles: The battery and the fuse box in front of the battery are located on the opposite side of theengine compartment.
Fuse boxes ( P. 566)
Battery ( P. 530)
Engine oil level dipstick
( P. 524)
Engine coolant reservoir
( P. 527)
Engine oil filler cap ( P. 525)
Washer fluid tank ( P. 534)
Electric cooling fans
Condenser ( P. 529)
Radiator ( P. 529)
1
2
3
4
5
6
7
8
9

5667-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
Turn the engine switch off.
Open the fuse box cover.
Engine compartment: type A fuse box (left-hand drive vehicles)
Push the tab in and lift the lid off.
Engine compartment: type A fuse box (right-hand drive vehicles)
Push the tab in and lift the lid off.
Engine compartment: type B fuse box
Push the tab in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2

5687-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid.
Type C and D:
Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Type AType B
Type CType D
4
1
2

5697-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. ( P. 570)
●If the replaced fuse blows again, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you us e genuine Lexus products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any otherobject in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
