2017 Lexus IS300h Owner's Manual

1693-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53D89E)

1703-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53D89E)

1713-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53D89E)

1723-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53D89E)

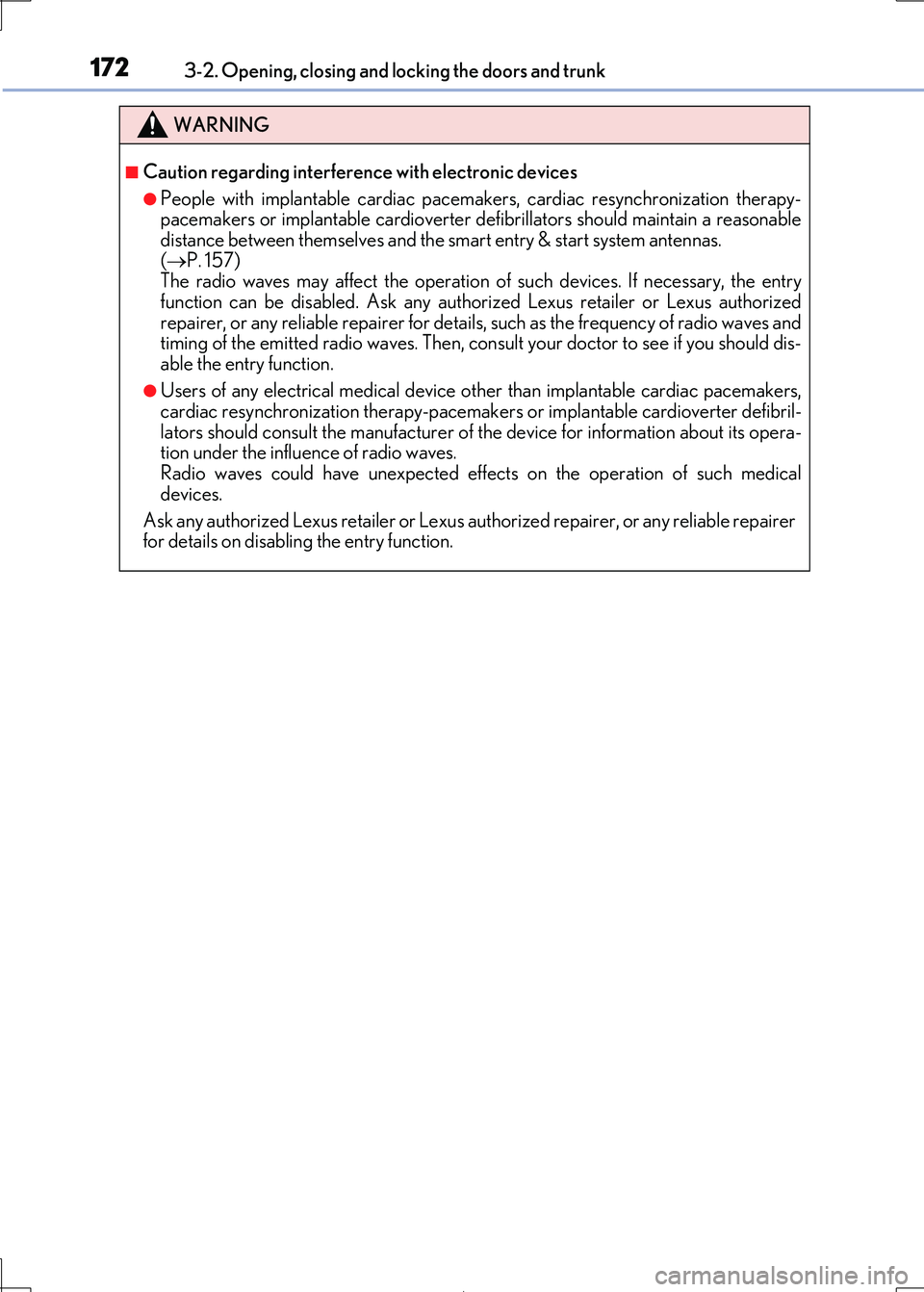

WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter de fibrillators should maintain a reasonable
distance between themselves and the smart entry & start system antennas. ( P. 157)
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask any authorized Lexus retailer or Lexus authorized repairer, or any reliable repair er for details, such as the frequency of radio waves and
timing of the emitted radio waves. Then, consult your doctor to see if you should dis-
able the entry function.
●Users of any electrical medical device ot her than implantable cardiac pacemakers,
cardiac resynchronization th erapy-pacemakers or implantable cardioverter defibril-
lators should consult the manufacturer of the device for information about its opera- tion under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer
for details on disabling the entry function.

173
3
Operation of each component
IS300h_EE(OM53D89E)
3-3. Adjusting the seats
Power seat
Manual seat
Front seats
Adjustment procedure
Seat position adjustment
Seatback angle adjustment
Seat cushion (front) angle adjust-
ment
Seat cushion (rear) angle adjust-
ment
Lumbar support adjustment (if
equipped)
Vertical height adjustment
1
2
3
4
5
6

1743-3. Adjusting the seats
IS300h_EE(OM53D89E)
■Power easy access system (if equipped)
The driver’s seat and steering wheel move in accordance with power switch mode and
the driver’s seat belt condition. ( P. 177)
■When adjusting the seat
●Take care when adjusting the seat so that the head restraint does not touch the ceiling.
●Vehicles with folding type rear seats: When folding down a rear seatback, if it interferes with a front seatback, adjust the front seat po sition so that the seats no longer interfere
with each other. However, if adjusting the fr ont seat position causes the correct driving
posture to not be maintained, return the rear seatback to its original position. ( P. 175)
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not
injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space around the feet so they do not get stuck.
■Seat adjustment
To reduce the risk of sliding under the lap be lt during a collision, do not recline the seat
more than necessary. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk
of death or serious injury in the event of an accident. Adjustments should not be made while drivin g as the seat may unexpectedly move and
cause the driver to lose control of the vehicle.

1753-3. Adjusting the seats
3
Operation of each component
IS300h_EE(OM53D89E)
Check that the luggage security sys-
tem lever in the trunk is in the unlock
position.
Pull the seatback lock release lever
and fold the seatback down.
To return the rear seatbacks to their
original position, lift them up until they lock.
 P. 153
Rear seats (folding type)
: If equipped
The rear seatbacks can be folded down.
Folding down the rear seatbacks
1
2
Luggage security system

1763-3. Adjusting the seats
IS300h_EE(OM53D89E)
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift lever to P.
●Do not allow anyone to sit on a folded seatback or in the trunk while driving.
●Do not allow children to enter the trunk.
■After returning the rear seatback to the upright position
●Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it back
and forth. If the seatback is not securely locked, the red
marking will be visible on the seatback lock
release knob. Make sure that the red marking is not visible.
