2017 Lexus GS300h display

81
1-2. Hybrid system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
There are air intake vents on the both
sides of the rear seatback for the pur-
pose of cooling the hybrid battery
(traction battery). If the vents become
blocked, the hybrid battery may over-
heat, leading to a reduction in hybrid
battery output.
When a certain level of impact is detected by the impact sensor, the emergency
shut off system blocks the high voltage current and stops the fuel pump to mini-
mize the risk of electrocution and fuel leakage. If the emergency shut off system
activates, your vehicle will not restart. To restart the hybrid system, contact any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repa irer.
A message is automatically displayed when a malfunction occurs in the hybrid
system or an improper operation is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions. (  P. 466)
Hybrid battery (traction battery) air intake vents
Emergency shut off system
Hybrid warning message

821-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY”
indicator does not come on, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light ( P. 462)
go off. If there is only a small amount of fuel, the hybrid sys tem may not be able to start.
(The standard amount of fuel is about 9.9 L [2 .6 gal., 2.2 Imp.gal.], when the vehicle is on
a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when
the vehicle is inclined.)
■Electromagnetic waves
●High voltage parts and cables on hybrid ve hicles incorporate electromagnetic shield-
ing, and therefore emit approximately the same amount of electromagnetic waves as
conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a lim ited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi-
tions.
■Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100 (Battery
electric vehicle safety).
WARNING
■High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and
AC high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables or their
connectors.
●The hybrid system will become hot after starting as the system uses high voltage. Be
careful of both the high voltage and the hi gh temperature, and always obey the warn-
ing labels attached to the vehicle.
●Never try to open the service plug access
hole located behind the rear seats. The ser-
vice plug is used only when the vehicle is ser-
viced and is subject to high voltage.

941-3. Theft deterrent system
GS450h_300h_OM_OM30F92E_(EE) ●
The intrusion sensor detects intruders or movement in the vehicle.
● The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and pr event vehicle theft but does not guarantee
absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. ( P. 91)
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehi cle, make sure to
stop the intrusion sensor and tilt sensor before setting the alarm, as th ey will
respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Intrusion sensor (if equipped) and tilt sensor (if equipped)
1
2

97
2Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) 2. Instrument cluster
Warning lights and indicators .............................. 98
Gauges and meters ................... 104
Multi-information display ........... 111
Head-up display ............................ 119
Energy monitor/ consumption screen ................126

982. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

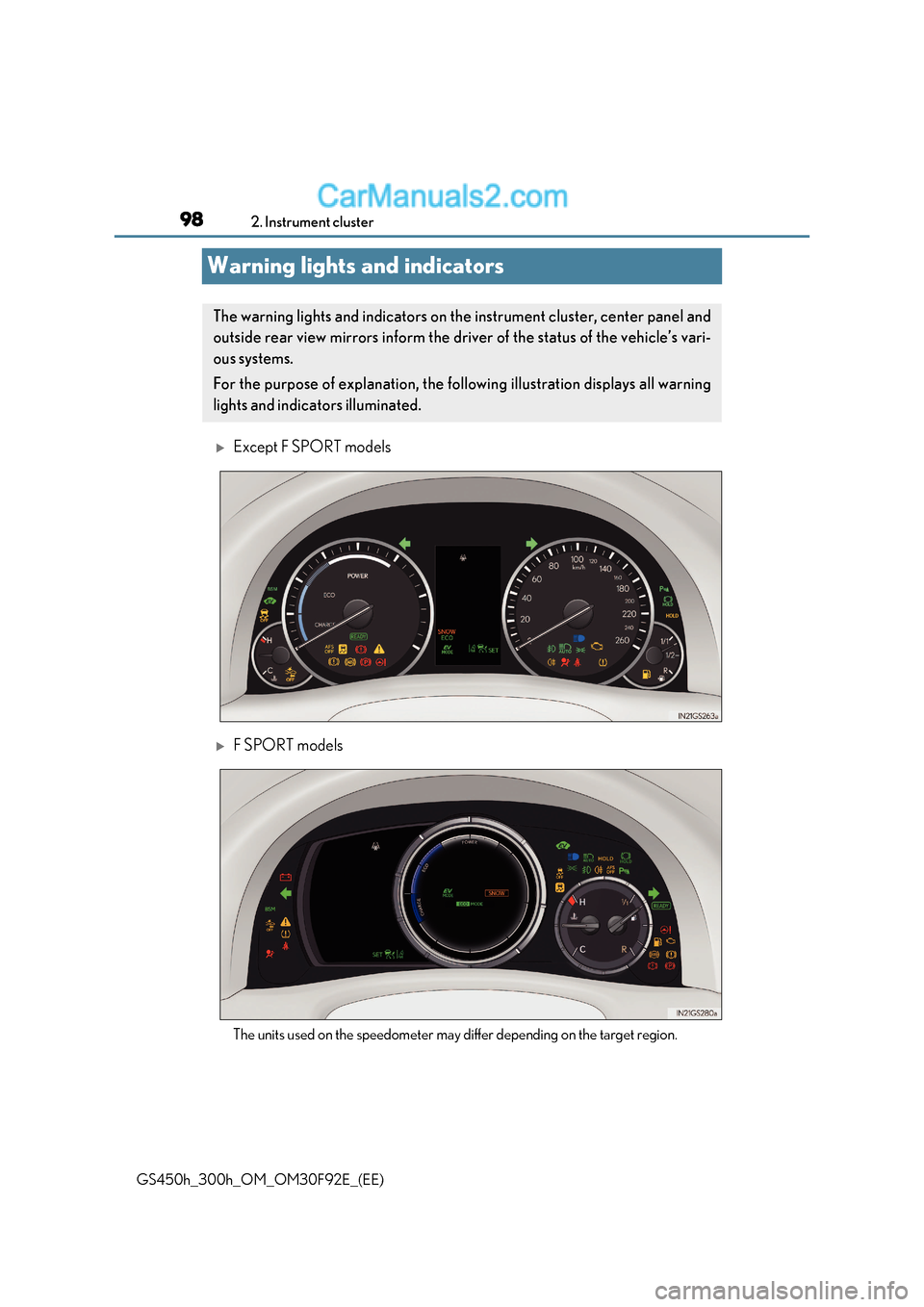

Warning lights and indicators
Except F SPORT models
F SPORT models
The units used on the speedometer may differ depending on the target region.
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the foll owing illustration displays all warning
lights and indicators illuminated.

105
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer/Hybrid System Indicator
Tachometer:
Displays the engine speed
in revolutions per minute.
Hybrid System Indicator:
Displays hybrid system outp ut or regeneration level (P. 108)
Outside temperature
Displays the outside temperature within the range of -40 C (-40 F) to 50 C
(122 F). Low outside temperature indicator comes on when the ambient temperature
is 3 C (37 F) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 378)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( P. 111)
Displays warning messages in case of a malfunction (P. 466)
Odometer, trip meter, maintenance required information and speed warning
display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:

1062. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■Rev indicator (F SPORT models)
When the engine reaches a set
speed while the tachometer is dis-
played, a ring-shaped indicator is
displayed on the tachometer.
■Rev peak (F SPORT models)
When the engine speed reaches or
exceeds 5000 r/min while the
tachometer is displayed, an afterim-
age of the tachometer needle is dis-
played at the highest engine speed
for approximately 1 seconds.

107
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Changing the display
Instrument panel light control
1
2
