1242. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Display of the following screens can be switched on or off. ●
Audio display
● Route guidance display (vehicles with navigation system)
■Changing the settings
Continue holding the “DISP” but-
ton until the screen changes, and
repeat the process until the set-
ting you want to change is dis-
played.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than
8 km/h (5 mph).
Press the “DISP” button to switch between on and off.
On and off will be switched between each time the button is pressed.
If the button is left alone without being operated for a short time, setting will be fin-
ished automatically.
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the power switch is
turned to ON mode after the power switch has been turned off.
●The startup image will be displayed on the head-up display after the power switch has
been turned to ON mode while the head-up display switch is set to on.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
■Head-up display automatic position adjustment
If the display position is recorded into me mory, the head-up display will be automatically
adjusted to the desired position. ( P. 178)
Display customization
1
2

125
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere
with safe driving. Incorrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an accident, resulting in death or serious injury.
NOTICE
■To prevent damage to components
●Do not touch the inside of the head-up display projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunctions.
●Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result.
●Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications.

1262. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Meter control switches
“MENU” button
Remote Touch knob
“ENTER” buttons
■Remote Touch screen
Press the “MENU” button on the Remote Touch, and then select on the
“Menu” screen. If the “Trip information” or “Past record” screen is displaye d, select “Energy”.
You can view the status of your hybrid system on the multi-information display
and the Remote Touch screen.
Vehicles with 12.3-inch display: The energy monitor or consumption screen
can be displayed on the side display.
1
2
3
4
5
6
Energy monitor

127
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

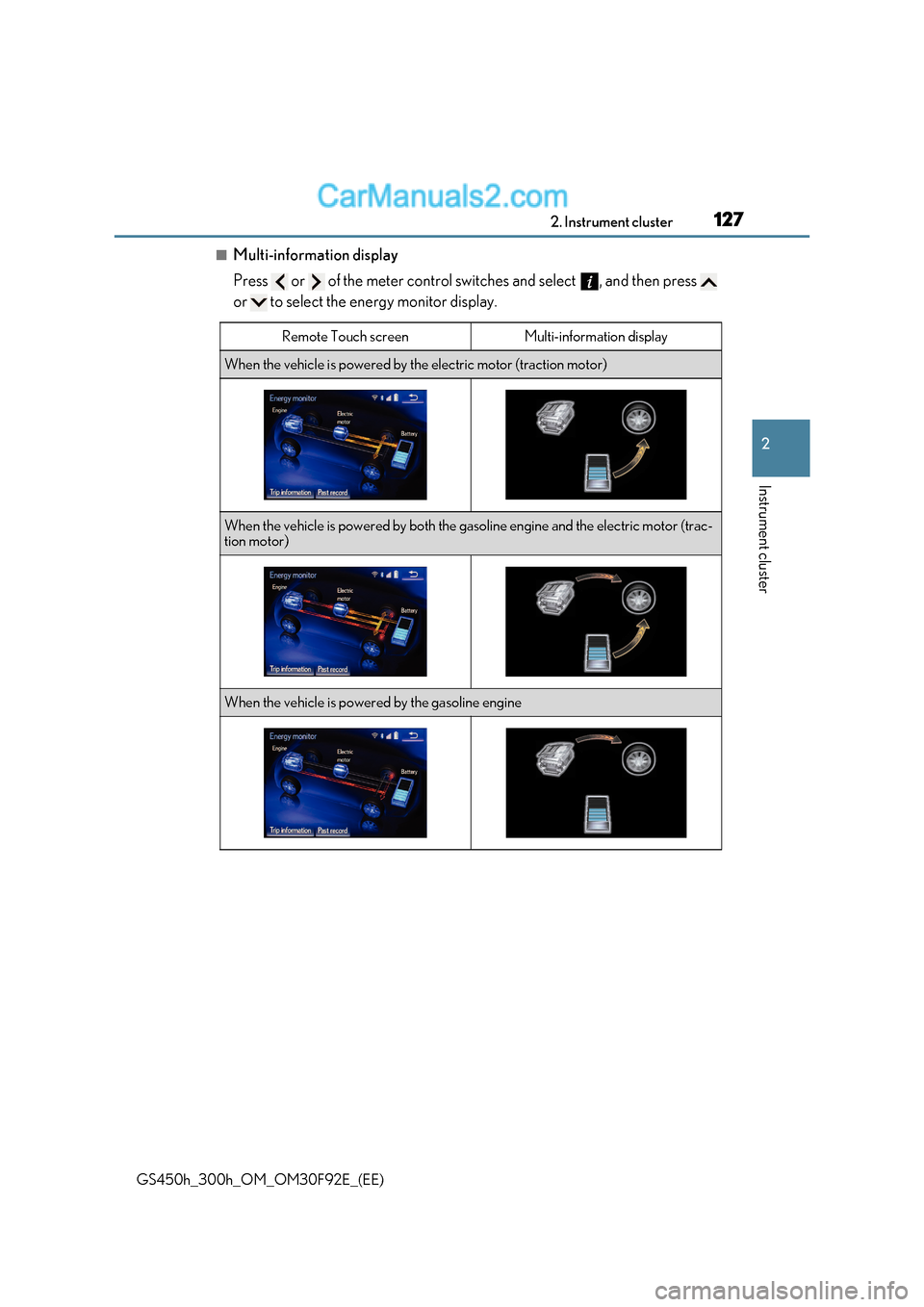

■Multi-information display
Press or of the meter control switches and select , and then press
or to select the energy monitor display.
Remote Touch screenMulti-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric motor (trac-
tion motor)
When the vehicle is powered by the gasoline engine

1282. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) These images are examples only, and may
vary slightly from actual conditions.
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
LowFullLowFull
Remote Touch screenMulti-information display

129
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Press the “MENU” button on the Remote Touch, then select on the “Menu”
screen.
■Trip information
If the “Energy monitor” or “Past record” screen is displayed, select “Trip
infor-
mation”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( P. 130)
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
Consumption
1
2
3
4
5
6
7

1302. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■Past record
If the “Energy monitor” or “Trip informat ion” screen is displayed, select “Past
record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last updated. Use
the displayed average fuel consump-
tion as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5

131
2. Instrument cluster
2
Instrument cluster

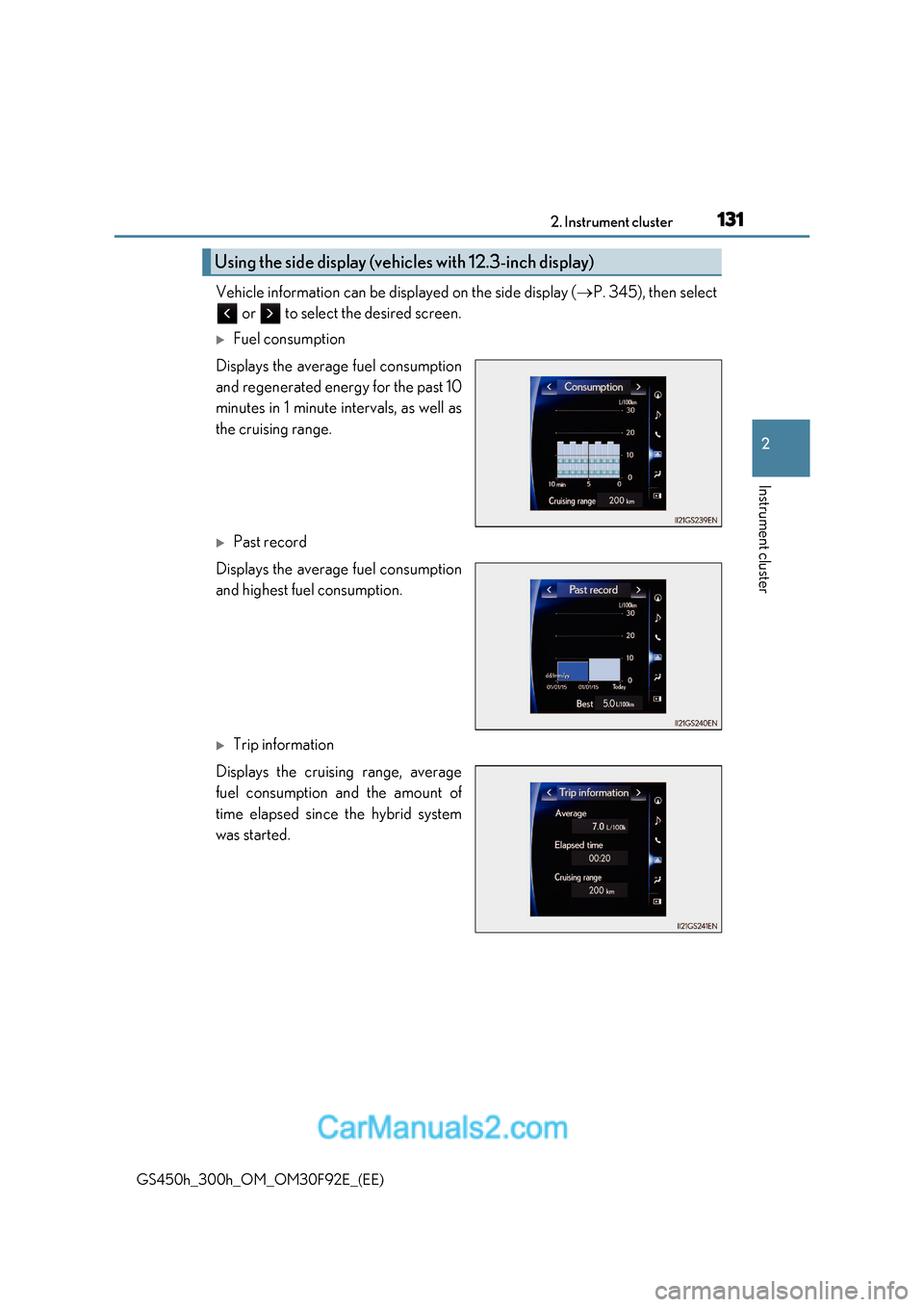

GS450h_300h_OM_OM30F92E_(EE) Vehicle information can be displayed on the side display (
P. 345), then select
or to select the desired screen.
Fuel consumption
Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range.
Past record
Displays the average fuel consumption
and highest fuel consumption.
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the hybrid system
was started.
Using the side display (vehic les with 12.3-inch display)
