1162. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■
●Language
Select to change the language on the display.
● Units
Select to change the unit of measure.
● EV indicator
Select to activate/deactivate the EV indicator.
● switch
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by pressing .
● Drive information 1/2/3
Select to select up to 2 items that will be displayed on a Drive information screen,
up to 3 Drive information screens can be set.
● Pop-up display
Select to set the following pop-up displa ys, which may appear in some situations,
on/off.

117
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■G-force display
●The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a 12-volt battery terminal is disconnected and reconnected, the steering amount dis-
play may be disabled temporarily. After driv ing the vehicle for a while, the display will
be enabled.
●Depending on the condition of the vehicle, the brake fluid pressure display may change
even when the brake pedal is not depressed.
■System check display
After turning the power switch to ON mode , opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the power switch is
turned to ON mode. It may also take a few minutes to display the tire inflation pressure
after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display P. 109

1182. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

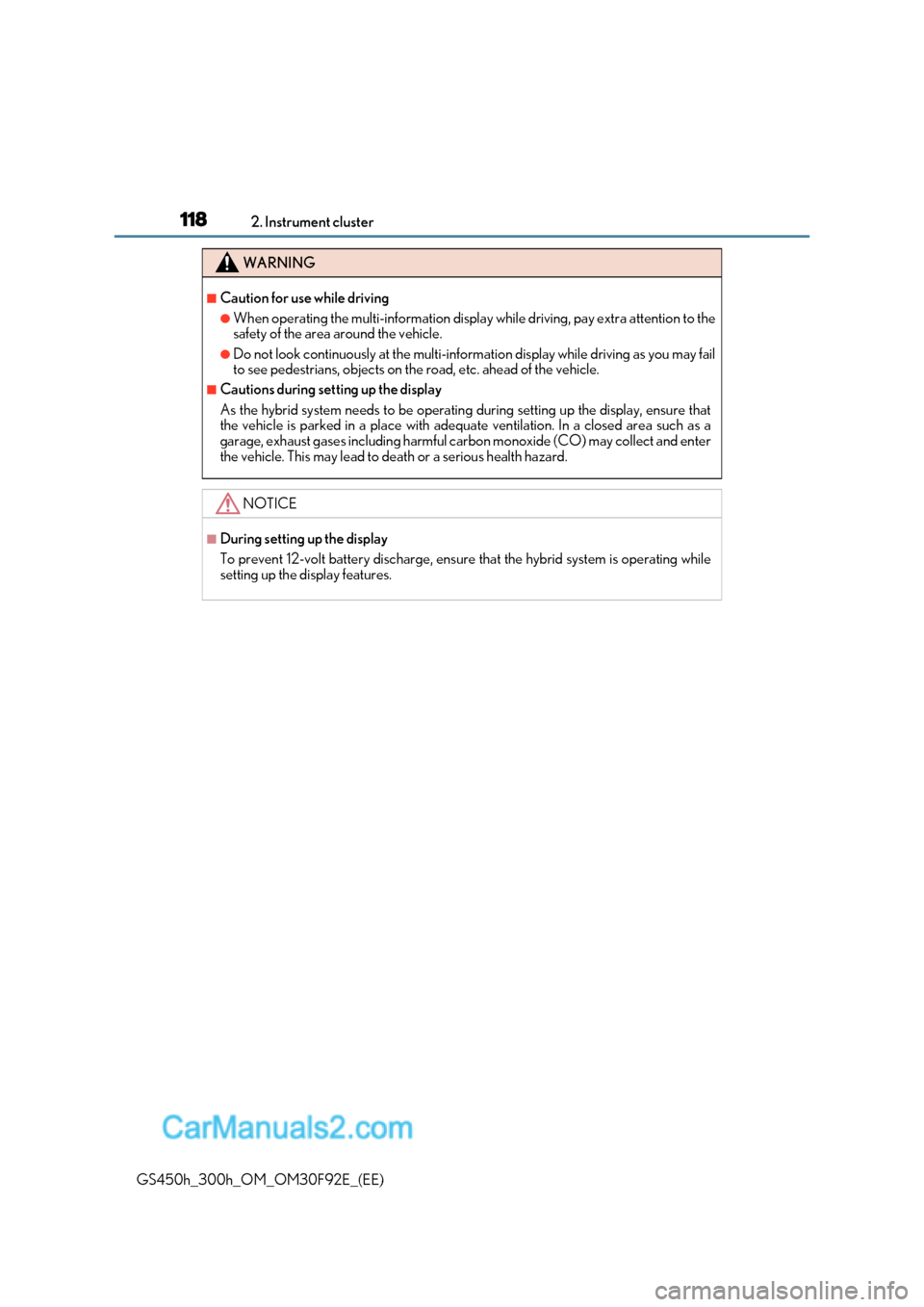

WARNING
■Caution for use while driving
●When operating the multi-info rmation display while driving, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-info rmation display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to de ath or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

119
2
2. Instrument cluster
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Head-up display
The head-up display can be used to project vehicle speed and other information
onto the windshield.
Head-up display
Display brightness will change automat-
ically according to the brightness of the
surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
Display position adjustment switch
“DISP” button
: If equipped
Summary of functions
1
2
3
4
5

1202. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) ●
Vehicle speed
● Hybrid System Indicator ( P. 123)
● Tachometer
● Shift position and shift range
Displays the selected shift position or selected shift range ( P. 224)
● Road signs recognized by the RS A (Road Sign Assist) (if equipped)
( P. 291)
● Audio display *
Displays audio information for approximat ely 3 seconds when the audio system is
operated
● Route guidance display (vehicles with navigation system) ( P. 123)
When approaching an intersection while the navigation system is giving route guid-
ance, an arrow will automatically be displa yed to indicate the direction of travel.
● Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) ( P. 467)
● Approach warning display (dynamic radar cruise control with full-speed
range) (if equipped) ( P. 467)
● Pre-crash warning message (PCS [Pre-Crash Safety system])
(if equipped) ( P. 466)
* : The default setting is off
Head-up display contents

121
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

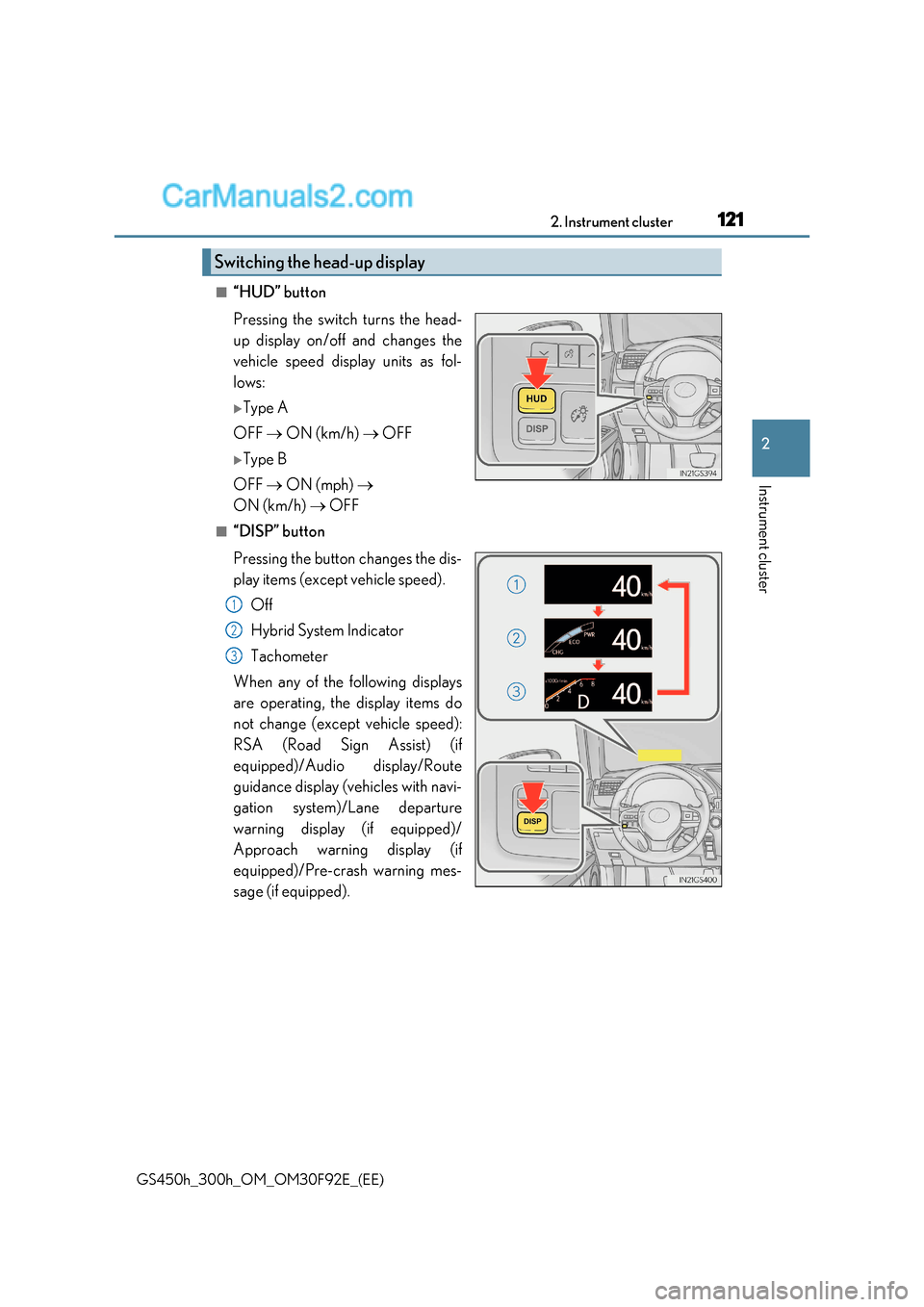

■“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
Type A
OFF  ON (km/h)  OFF
Type B
OFF  ON (mph) 
ON (km/h)  OFF
■“DISP” button
Pressing the button changes the dis-
play items (except vehicle speed).
Off
Hybrid System Indicator
Tachometer
When any of the following displays
are operating, the display items do
not change (except vehicle speed):
RSA (Road Sign Assist) (if
equipped)/Audio display/Route
guidance display (vehicles with navi-
gation system)/Lane departure
warning display (if equipped)/
Approach warning display (if
equipped)/Pre-crash warning mes-
sage (if equipped).
Switching the head-up display
1
2
3

1222. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■Adjusting the display position
Higher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance with the
brightness of the surrounding environment. However, the brightness can also
be manually adjusted in 9 stages.Brighter
Darker
Making the display easier to see
1
2
1
2

123
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being dr
iven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full power driving
etc.)
When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance *
to the intersection
will also be displayed.
* : The distance decrea ses in increments of
50 m (164 ft.) and the distance indication
will disappear when the vehicle passes
through the intersection.
Hybrid System Indicator
1
2
3
Route guidance display (vehic les with navigation system)
