2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer/Hybrid System Indicator
Tachometer:
Displays the engine speed
in revolutions per minute.
Hybrid System Indicator:
Displays hybrid system outp ut or regeneration level (P. 108)
Outside temperature
Displays the outside temperature within the range of -40 C (-40 F) to 50 C
(122 F). Low outside temperature indicator comes on when the ambient temperature
is 3 C (37 F) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 378)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( P. 111)
Displays warning messages in case of a malfunction (P. 466)
Odometer, trip meter, maintenance required information and speed warning
display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Page 110 of 600
1102. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cau se the driver to downshift again, causing
rapid and excessive engine braking and po ssibly an accident resulting in death or
injury.
NOTICE
■To prevent damage to the hybrid system and its components
●While the tachometer is displayed, do not let the indicator needle of the tachometer
enter the red zone, which indicates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 535)
Page 215 of 600
215
4-1. Before driving
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
■Passing other vehicles
Consider the total combined length of your vehicle and trailer and ensure that
the vehicle-to-vehicle distance is sufficient before executing lane change s.
■Transmission information
To maintain engine braking efficiency, when using engine braking, when driv-
ing on a long steep downgrade, do not use the transmission in D. (P. 227)
■If the engine overheats
Towing a loaded trailer up a long, steep incline in temperatures exceeding 30 C (85 F) may result in the engine overheating. If the engine coolant tem-
perature gauge indicates that the engine is overheating, turn the air condition-
ing off immediately, leave the road and stop the vehicle in a safe place. ( P. 535)
■When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle and trailer.
Firmly set the parking brake and shift the shift lever to P.
WARNING
Follow all the instructions described in this se ction. Failure to do so could cause an acci-
dent resulting in death or serious injury.
■Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded. ( P. 211)
■To avoid accident or injury
●Do not tow a trailer when the compact spare tire is installed on your vehicle.
●Do not tow a trailer when the tire installed is repaired with the emergency tire punc-
ture repair kit.
●Do not use cruise control (if equipped) or dynamic radar cruise control with full-
speed range (if equipped) when trailer towing.
■Vehicle speed in towing
Observe the legal maximum speeds for trailer towing.
■Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while descending
steep or long downhill grades.
■Operation of the brake pedal
Do not hold the brake pedal depressed often or for long periods of time.
Doing so may result in the brake ov erheating or reduce braking effects.
Page 398 of 600
3986-2. Maintenance
GS450h_300h_OM_OM30F92E_(EE)
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indicate
service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning sys-
tem after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive
with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire sque al when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the floor,
vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 105)
If you notice any of these clues, take your vehicle to any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer as soon as possible. Your vehicle may
need adjustment or repair.
WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possible
death or serious injury.
■Handling of the 12-volt battery
12-volt battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after handling. ( P. 412)
Page 400 of 600
4006-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)
WARNING
The engine compartment contains many mech anisms and fluids that may move suddenly,
become hot, or become electrically energize d. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Make sure that the “POWER ON” on the multi-information display and the
“READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power co ntrol unit, radiator, exhaust manifold, etc.
right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flamma-
ble.
●Take care because brake fluid can harm your hands or eyes and damage painted sur-
faces. If fluid gets on your hands or in your eyes, flush t he affected area with clean
water immediately. If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically start to
run if the air conditioning is on and/or the coolant temperature is high. ( P. 411)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or when
the fluid level in the accumulator is high.
If the reservoir needs frequent refillin g, it may indicate a serious problem.
Page 403 of 600
403
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
Engine compartment
GS450h
■12-volt battery P. 412
Engine oil level dipstick
( P. 406)
Engine coolant reservoir ( P. 409)
Engine oil filler cap ( P. 407)
Power control unit coolant
reservoir ( P. 409) Fuse box (
P. 437)
Washer fluid tank ( P. 411)
Electric cooling fans
Condenser ( P. 411)
Radiator ( P. 411)1
2
3
4
5
6
7
8
9
Page 404 of 600
4046-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)

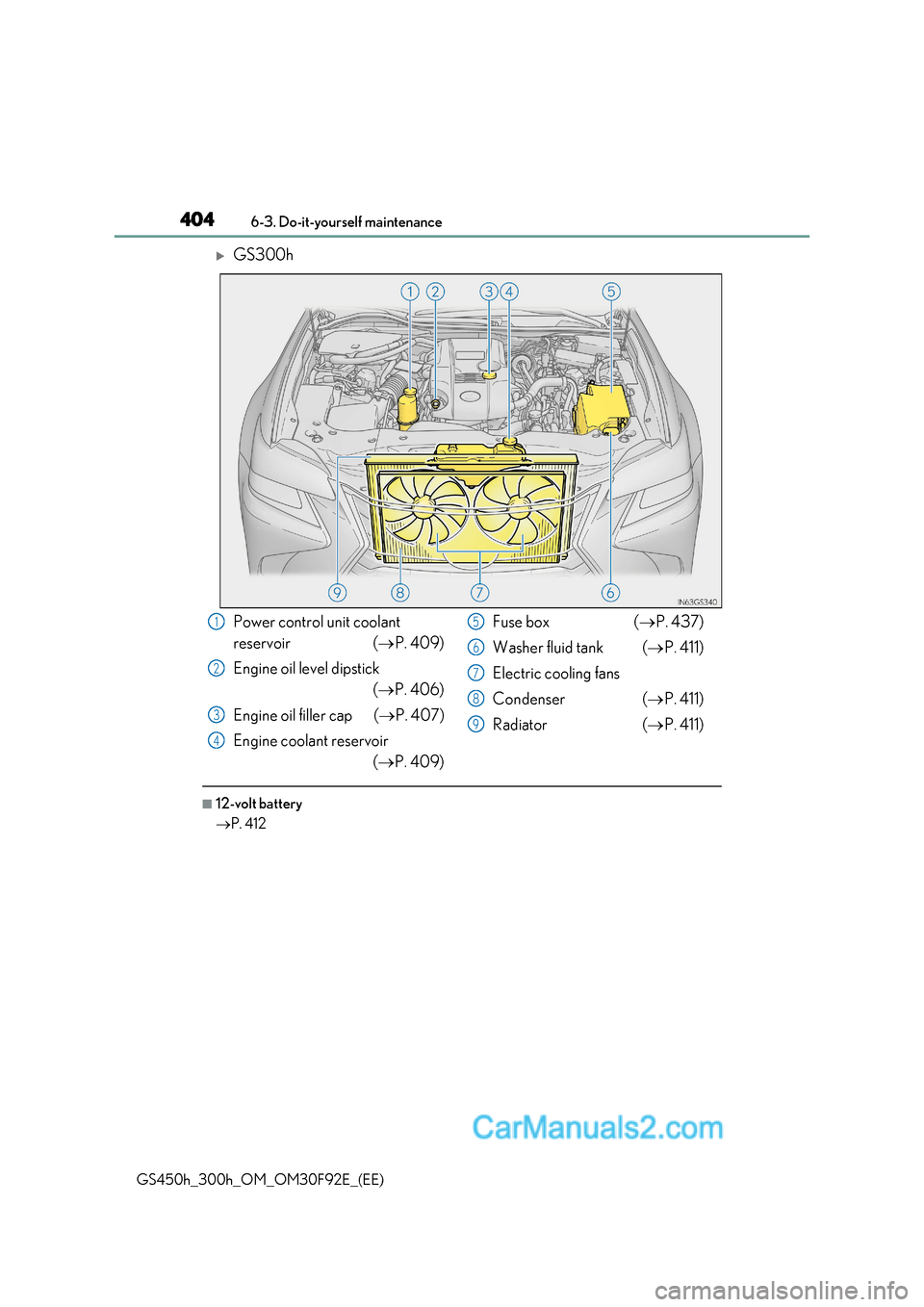

GS300h
■12-volt battery P. 412
Power control unit coolant
reservoir ( P. 409)
Engine oil level dipstick ( P. 406)
Engine oil filler cap ( P. 407)
Engine coolant reservoir ( P. 409) Fuse box (
P. 437)
Washer fluid tank ( P. 411)
Electric cooling fans
Condenser ( P. 411)
Radiator ( P. 411)1
2
3
4
5
6
7
8
9
Page 409 of 600
409
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE) The coolant level is satisfactory if it is between the “FULL”/“F” and “LOW”/“L”
lines on the reservoir when the hybrid system is cold.
■Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” lin e, add coolant up to the “FULL” line.
( P. 535)
■Power control unit coolant reservoir
Coolant
1
2
3
GS450hGS300h
GS450hGS300h
Reservoir cap
“FULL” line
“LOW” line Reservoir cap
“F” line
“L” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”line. ( P. 535) If the level is on
or below the “L” line,
add coolant up to the “F” line. ( P. 535)
1
2
3
1
2
