2017 Lexus GS F Owner's Manual

585
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Turn the compressor switch on to infl ate the tire until the recommended tire
inflation pressure is reached. Drive for about 5 km (3 miles) and then per form
step .
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may
get dirty.
Store the bottle in the trunk while it is connected to the compressor.
Taking precautions to avoid sudden braking, sudden acceleration and sharp
turns, drive carefully at under 80 km /h (50 mph) to any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer that is less than
100 km (62 miles) away for tire repair or replacement.20
18
21
22
23

5867-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
■Emergency tire puncture repair kit
●The sealant has a limited lifespa n. The expiry date is shown on the bottle. The sealant
should be replaced before the expiry date. Contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer for replacement.
●The sealant stored in the emergency tire puncture repair kit can be used only once to
temporarily repair a single tire. If the sealant has been used and need to be purchased,
contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
●The sealant can be used when the outside temperature is from -40 C (-40 F) to
60 C (140 F).
●The repair kit is exclusively designed for size and type of tires originally installed on your
vehicle. Do not use it for tires that a different size than the original ones, or for any other
purposes.
●If the sealant gets on your clothes, it may stain.
●If the sealant adheres to a wheel or the surface of the vehicle body, the stain may not be
removable if it is not cleaned at once. Immediately wipe away the sealant with a wet
cloth.
●During operation of the repair kit, a loud operation noise is produced. This does not
indicate a malfunction.
●Do not use the emergency tire puncture repair kit to check or to adjust the tire pres-
sure.
■If the tire is inflated to mo re than the recommended level
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the hose and then
reconnect the hose.
Turn the compressor switch on and wait for se veral seconds, and then turn it off. Check
that the air pressure indicator shows the recommended level. ( P. 629)
If the air pressure is lower than the reco mmended level, turn the compressor switch on
again and repeat the inflation procedure un til the recommended pressure is reached.
Install the air release cap to the end of the
hose and push the protrusion on the air
release cap into the tire valve to let some air
out.
1
2
3
4

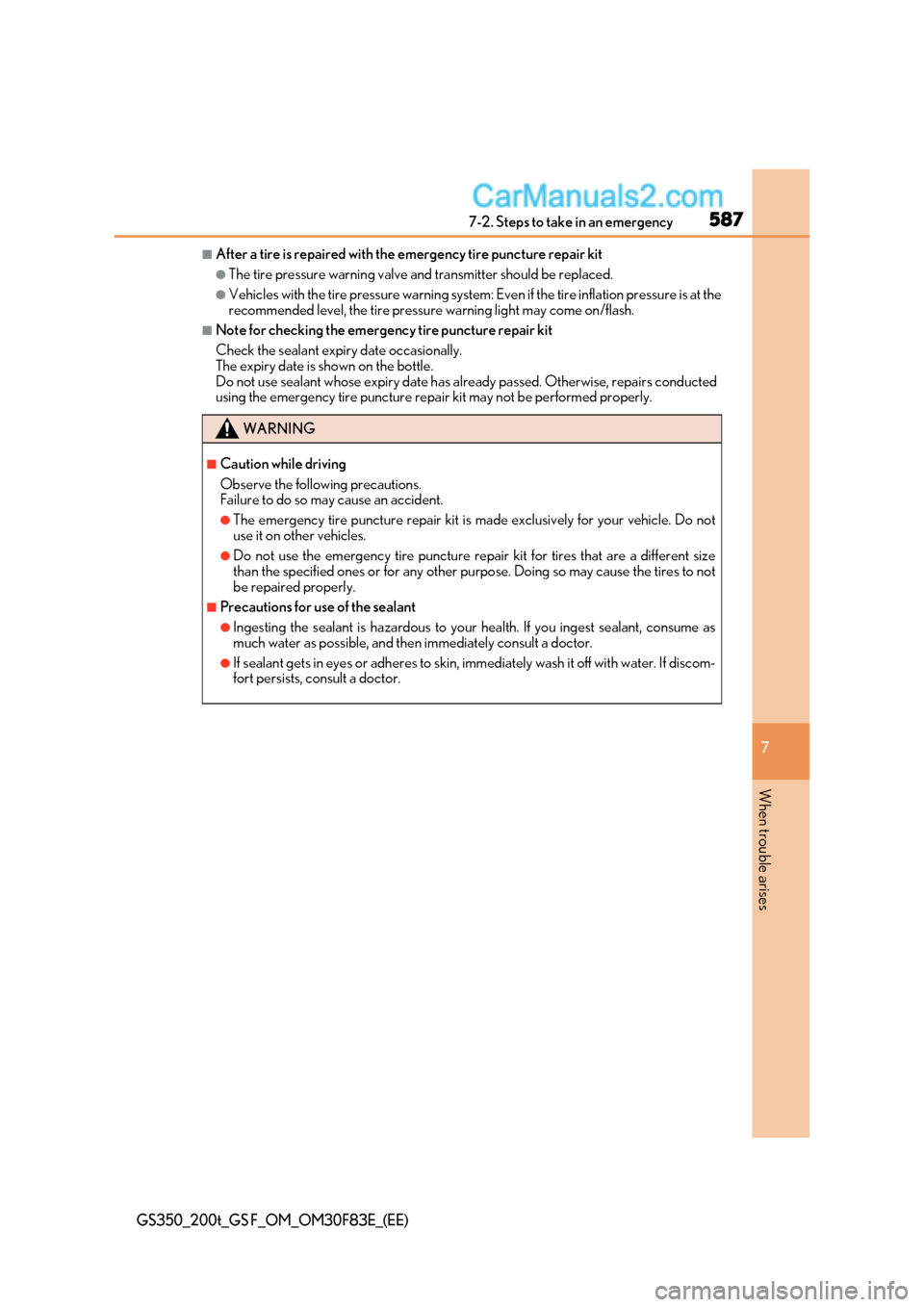

587
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
■After a tire is repaired with the emergency tire puncture repair kit
●The tire pressure warning valve an d transmitter should be replaced.
●Vehicles with the tire pressure warning system: Even if the tire inflation pressure is at the
recommended level, the tire pressure warning light may come on/flash.
■Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle.
Do not use sealant whose expiry date has already passed. Otherwise, repairs conducted
using the emergency tire puncture repair kit may not be performed properly.
WARNING
■Caution while driving
Observe the following precautions.
Failure to do so may cause an accident.
●The emergency tire puncture repair kit is made exclusively for your vehicle. Do not
use it on other vehicles.
●Do not use the emergency tire puncture repair kit for tires that are a different size
than the specified ones or fo r any other purpose. Doing so may cause the tires to not
be repaired properly.
■Precautions for use of the sealant
●Ingesting the sealant is hazardous to your health. If you ingest sealant, consume as
much water as possible, and then immediately consult a doctor.
●If sealant gets in eyes or adheres to skin, i mmediately wash it off with water. If discom-
fort persists, consult a doctor.

5887-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■When fixing the flat tire
●Stop your vehicle in a safe and flat area.
●Do not touch the wheels or the area around the brakes immediately after the vehicle
has been driven.
After the vehicle has been driven, the wheels and the area around the brakes may be
extremely hot. Touching these areas with hands, feet or other bo dy parts may result in
burns.
●Connect the valve and hose securely with the tire installed on the vehicle.
●If the hose is not properly connected to the valve, air leakage may occur or sealant
may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that the hose will
move abruptly due to air pressure.
●After inflation of the tire has completed, the sealant may splatter when the hose is dis-
connected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedures not followed, the
sealant may spray out.
●Keep back from the tire while it is being repaired, as there is a chance of it bursting
while the repair operation is being performe d. If you notice any cracks or deforma-
tion of the tire, turn off the compressor switch and stop the repair operation immedi-
ately.
●The repair kit may overheat if operated for a long period of ti me. Do not operate the
repair kit continuously for more than 35 minutes.
●Parts of the repair kit become hot during op eration. Be careful handling the repair kit
during and after operation. Do not touch the metal part connecting the bottle and the
compressor. It will be extremely hot.
●Do not attach the vehicle speed warning sticker to an area other than the one indi-
cated. If the sticker is attached to an area where an SRS airbag is located, such as the
pad of the steering wheel, it may prevent the SRS air bag from operating properly.
■Driving to spread the liquid sealant evenly
●Drive the vehicle carefully at a low speed. Be especially careful when turning and cor-
nering.
●If the vehicle does not drive straight or you feel a pull through the steering wheel, stop
the vehicle and check the following:

589
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
NOTICE
■When performing an emergency repair
●Perform the emergency repair without removing the nail or screw that has punctured
the tread of the tire. If the object that has punctured the tire is r emoved, repair by the
emergency tire puncture repair kit may not be possible.
●The repair kit is not waterproof. Make sure that the repair kit is not exposed to water,
such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the side of the
road. If the repair kit vacuums up dust etc., a malfunction may occur.
■Handling the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do not con-
nect the repair kit to any other source.
●If gasoline splatters on the repair kit, the repair kit may deteriorate. Take care not to
allow gasoline to contact it.
●Store the emergency tire puncture repair kit in the trunk.
The kit may be thrown around during sudden braking and so forth, damaging the kit.
●Store the repair kit in the trunk out of reach of children.
●Do not disassemble or modify the repair kit. Do not subject parts such as the air pres-
sure indicator to impacts. This may cause a malfunction.
■To avoid damage to the tire pressure warning valves and transmitters (vehicles with
the tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans-
mitter may not operate properly. If a liquid sealant is used, contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer or other qualified
service shop as soon as possible. Make sure to replace the tire pressure warning valve
and transmitter when repairin g or replacing the tire. (P. 473)

5907-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
If the engine will not start
One of the following may be the cause of the problem: ●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures. ( P. 240)
● There may be a malfunction in the engine immobilizer system. ( P. 86)
One of the following may be the cause of the problem: ● The battery may be discharged. ( P. 597)
● The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical problem
such as electronic key battery depletion or a blown fuse. However, an interim
measure is available to start the engine. ( P. 591)
One of the following may be the cause of the problem: ● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 597)
● There may be a malfunction in the steering lock system.
Contact any authorized Lexus retailer or Le xus authorized repairer, or any reliable
repairer if the problem cannot be repaired , or if repair procedures are unknown.
If the engine will not start even though correct starting procedures are being
followed ( P. 240), consider each of the following points:
The engine will not start even thou gh the starter motor operates nor-
mally.
The starter motor turns over slowly , the interior lights and headlights
are dim, or the horn does not so und or sounds at a low volume.
The starter motor does not turn over
The starter motor does not turn over , the interior lights and headlights
do not turn on, or the horn does not sound.

591
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
When the engine does not start, the foll owing steps can be used as an interim
measure to start the engine if the engine switch is functioning normally:
Press the parking brake switch to ch eck that the parking brake is set.
(  P. 256)
Parking brake indicator will come on.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal -
functioning. Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
Emergency start function
1
2
3
4

5927-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
If the parking brake cannot be released
●Shift the shift lever to P.
● Turn the engine switch off.
● Check that the parking brake indicator is off.
● Chock the tires.
Take out the parking brake release
tool and the screwdriver from the
trunk. ( P. 558, 575)
Fit the parking brake release tool into
the screwdriver handle.
Vehicles with spare tire: Take out the spare tire. ( P. 563)
Vehicles without spare tire: Remove the center auxiliary box. ( P. 578)
In the event that the battery is disc harged or switch operation does not
release the parking brake, the parking brake can be released manually using
the procedure below. This procedure should be performed only if necessary,
such as in an emergency.
If the switch cannot be operated even when the battery is normal, the parking
brake system may be malfunctioning. Have the vehicle inspected by any
authorized Lexus retailer or Lexus au thorized repairer, or any reliable
repairer immediately.
Before releasing the parking brake manually
Releasing the parking brake manually
1
2
