2017 Lexus GS F Owner's Manual

417
5-3. Using the interior lights
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Turns the lights on/off
The rear interior light is also turned on/
off.
Turns the door position on/off
■Front
Turns the light on/off
■Rear
Turns the light on/off
Interior lights
1
2
Personal lights

4185-3. Using the interior lights
GS350_200t_GS F_OM_OM30F83E_(EE)
●Illuminated entry system: The lights automatically turn on/off according to engine
switch mode, the presence of the electronic key, whether the doors are locked/
unlocked, and whether the doors are opened/closed.
●If the interior lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 634)
NOTICE
To prevent battery discharge, do not leave the lights on longer than necessary when the
engine is not running.

419
5
5-4. Using the storage features
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
List of storage features
Cup holders (P. 421)
Glove box ( P. 420)
Auxiliary boxes (if equipped) ( P. 4 2 3 )
Ashtrays (if equipped) ( P. 4 2 9 ) Auxiliary boxes (
P. 423)
Console box ( P. 420)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:

4205-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (P. 168)
●The insert inside the glove box can be removed.
●An SRS knee airbag for the front passenger’s seat is built into the glove box door.
(  P. 51)
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
Glove box
1
2
3
Console box
1
2

421
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
●The console box light turns on when the tail lights are on.
■Front
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.
●The tray slides forward/backward and can be removed.
WARNING
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.
Cup holders

4225-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)
●Rear cup holder: When stowing the cup holder, stow the cup holder with the armrest
down. The cup holder cannot be stowed if the armrest is not down.
●Front cup holder: The cup holder insert may
be removed for cleaning.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holder s in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.

423
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Auxiliary boxes
Type AType B
Press in the button. Pull up the lever to release the lock and lift the lid.
Type C (if equipped)
Open the lid.
WARNING
Type C: Do not use the auxiliary box as an ashtray.
Doing so may cause a fire.

4245-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)

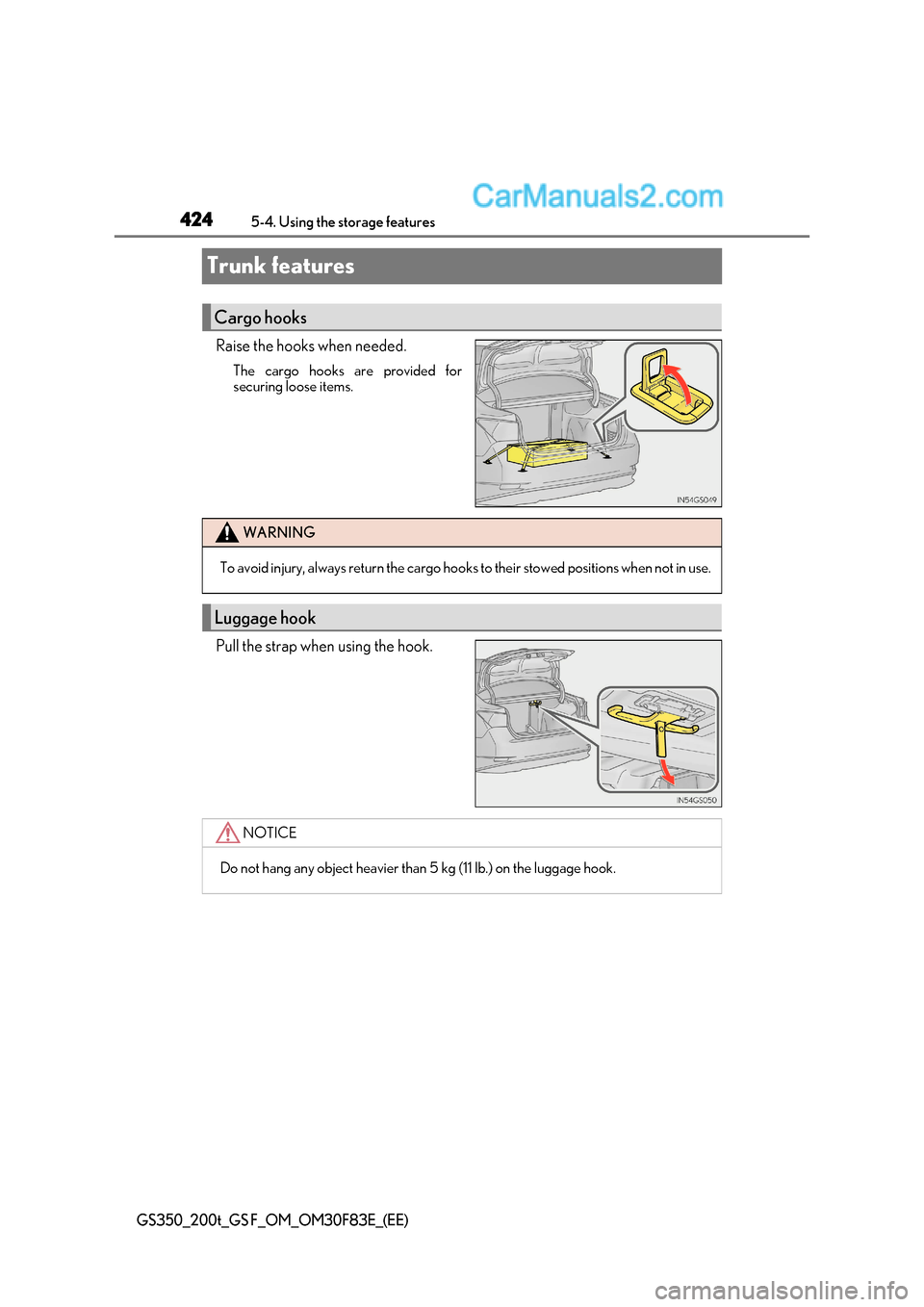

Trunk features
Raise the hooks when needed.The cargo hooks are provided for
securing loose items.
Pull the strap when using the hook.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Luggage hook
NOTICE
Do not hang any object heavier than 5 kg (11 lb.) on the luggage hook.
