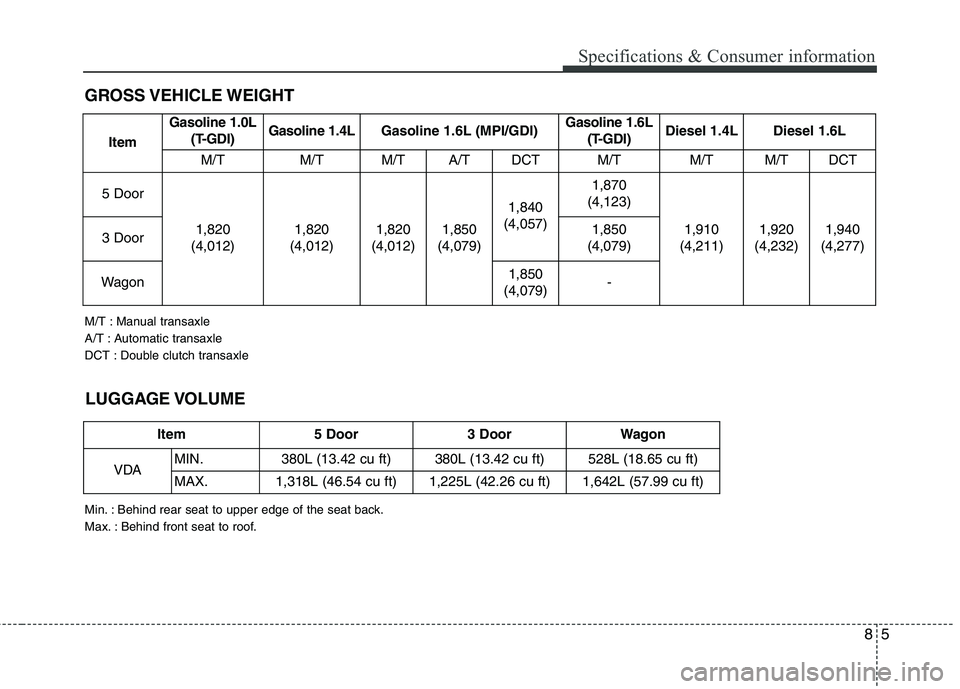

Specifications & Consumer information
Item 5 Door 3 Door Wagon
VDA MIN. 380L (13.42 cu ft) 380L (13.42 cu ft) 528L (18.65 cu ft)
MAX. 1,318L (46.54 cu ft) 1,225L (42.26 cu ft) 1,642L (57.99 cu ft)
GROSS VEHICLE WEIGHT
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Double clutch transaxle
Min. : Behind rear seat to upper edge of the seat back.
Max. : Behind front seat to roof.Item
Gasoline 1.0L
(T-GDI) Gasoline 1.4L
Gasoline 1.6L (MPI/GDI) Gasoline 1.6L
(T-GDI) Diesel 1.4L Diesel 1.6L
M/T M/T M/T A/T DCT M/T M/T M/T DCT
5 Door
1,820
(4,012) 1,820
(4,012) 1,820
(4,012) 1,850
(4,079) 1,840
(4,057) 1,870
(4,123)
1,910
(4,211) 1,920
(4,232) 1,940
(4,277)
3 Door1,850
(4,079)
Wagon 1,850
(4,079) -
LUGGAGE VOLUME

Specifications & Consumer information
6
8
BULB WATTAGE
Light Bulb5 Door3 DoorWagon
Wattage (W)Bulb typeWattage (W)Bulb typeWattage (W)Bulb type
Front
HeadlightsLow55 or 35
(AFLS with HID)H7LL or D1S*55 or 35
(AFLS with HID)H7LL or D1S*55 or 35
(AFLS with HID)H7LL or D1S*
High55H7LL55H7LL55H7LL
Static bending light*55H7LL55H7LL55H7LL
Daytime running light at
bumper (GTI)21 (LED)P21/5WXL
(LED)21 (LED)P21/5WXL (LED)21(LED)P21/5WXL(LED)
Daytime running light +
Position lights* at h/lampLEDLEDLEDLEDLEDLED
Front turn signal lights21PY21WLL21PY21WLL21PY21WLL
Position lights5/LEDW5WLL/LED5/LEDW5WLL/LED5/LEDW5WLL/LED
Side repeater lights55W55W55W
Puddle lamps*LEDLEDLEDLEDLEDLED
Front fog lights(GTI)51W(35W)9006(H8L)51W(35W)9006(H8L)51W(35W)9006(H8L)
Rear
Rear fog light21P21WL21P21WL21P21WL
Stop and tail lights 21P21/5WL21/5 or LEDP21/5WL or LED21P21/5WL
Rear turn signal lights 21P21WL21P21WL21P21WL
Tail light 5 or LEDP21/5WL or LED5 or LEDP21/5WL or
LED5 or LEDP21WL orLED
Back-up lights 16W16W16W16W16W16W
High mounted stop lightLEDLEDLEDLEDLEDLED
License plate lights5W5W5W5W5W5W

87
Specifications & Consumer information
Light Bulb5 Door3 DoorWagon
Wattage (W)Bulb typeWattage (W)Bulb typeWattage (W)Bulb type
Interior
Map lamps8FESTOON8FESTOON8FESTOON
Room lamps8FESTOON8FESTOON8FESTOON
Luggage lamp8FESTOON8FESTOON8FESTOON
Glove box lamp5FESTOON5FESTOON5FESTOON
Vanity mirror lamps5FESTOON5FESTOON5FESTOON
HID : High Intensity Discharge
AFLS : Adaptive Front-Lighting System
* : if equipped

Specifications & Consumer information
8
8
TIRES AND WHEELS * 1
: Load Index
* 2
: Speed Symbol
* 3
: For 1.0 T-GDI Low Power Engine
ItemTire sizeWheel
sizeLoad CapacitySpeed capacityInflation pressure bar(psi, kPa)Wheel lug nuttorque Kgf·m (lbf·ft, N·m)
Normal loadMaximum load
LI * 1KgSS * 2Km/hFrontRear FrontRear
Full size
tire
195/65R15 * 36.0J×15 91615H2102.5
(36,250)2.5
(36,250)2.5
(36,250)2.5
(36,250)
9~11
(65~79, 88~107)
195/65R156.0J×1591615H2102.5
(36,250)2.5
(36,250)2.5
(36,250)2.5
(36,250)
205/55R166.5J×16 91615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/45R177.0J×1791615V2402.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/45R17
(Sports pack)7.0J×1791615V2402.35
(34,235)2.35
(34,235)2.35
(34,235)2.35
(34,235)
225/40ZR187.5J×1892630Y3002.35
(34,235)2.35
(34,235)2.35
(34,235)2.35
(34,235)
Compact
spare tireT125/80D154.0T×1595690M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
T125/80D164.0T×1697730M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
✽✽ NOTICE
 We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.
 When driving in high altitude grades, it is natural for the atmospheric pressure to dec rease. Therefore, please check the tire
pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km

89
Specifications & Consumer information
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant Volume Classification
Engine oil * 1
*2
(drain and refill) Recommends
(or equivalent)
GasolineEngine *4Kappa 1.0 T-GDI 3.6 L (3.8 US qt.) ACEA A5 or above / 5W-30
Kappa 1.4 MPI 3.6 L (3.8 US qt.) For Europe, MIDDLE EAST, North AFRICA :
5W-30 ACEA A5/B5
Except Europe, MIDDLE EAST, North AFRICA :
5W-20 ILSAC GF-4(or above), API SM, ACEA A5/B5
Gamma 1.6 MPI 3.6 L (3.8 US qt.) For Europe, Egypt : ACEA A5 or above / 5W-30
Except Europe, Egypt : ILSAC GF-4 & API SM,
ACEA A5 or above / 5W-20
Gamma 1.6 GDI 3.6 L (3.8 US qt.) ACEA A5 or above / 5W-30
Gamma 1.6 T-GDI 4.5 L (4.75 US qt.) For Europe : ACEA A5 / 5W-30
Except Europe : ACEA A5 / 5W-40
Diesel Engine U II 1.4 WGT
5.3 L (5.60 US qt.) With DPF*
3
: ACEA C2 / 0W-30
Without DPF* 3
: ACEA B4 / 5W-30
U II 1.6 VGT

Specifications & Consumer information
10
8
Lubricant Volume Classification
Manual transaxle fluid
Gasoline Engine
Kappa 1.0 T-GDI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
SAE 70W, API GL-4
(Recommended SK HK MTF 70W, SHELL SPIRAX S6
GHME 70W, GS CALTEX GS MTF HD 70W)
Kappa 1.4 MPI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
Gamma 1.6 MPI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
Gamma 1.6 GDI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
Gamma 1.6 T-GDI1.7 ~ 1.8 L
(1.80 ~ 1.90 US qt.)
Diesel EngineU II 1.4 WGT1.7 ~ 1.8 L
(1.80 ~ 1.90 US qt.)
U II 1.6 VGT1.7 ~ 1.8 L
(1.80 ~ 1.90 US qt.)
Automatic transaxle fluidGasoline Engine Gamma 1.6 MPI7.3 L (7.71 US qt.)ATF SP-IV
Dual clutch
transmission fluid
Gasoline Engine Gamma 1.6 GDI1.9 ~ 2.0 L
(2.01 ~ 2.11 US qt.)SAE 70W, API GL-4
(Recommended SK HK MTF 70W, SHELL SPIRAX S6
GHME 70W, GS CALTEX GS MTF HD 70W)
Diesel EngineU II 1.6 VGT1.9 ~ 2.0 L
(2.01 ~ 2.11 US qt.)

811
Specifications & Consumer information
Recommends Engine oil (For Europe)
*
1
Refer to the recommended SAE viscosity numbers on next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
Diesel Particulate Filter
* 4
: If the API service SM, ILSAC GF-4, ACEA A5 engine oil is not available in your country, you are able to use API service SL, IL SAC GF-3, ACEA A3.
Supplier Product
Gasoline Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
Lubricant Volume Classification
Coolant
Gasoline Engine
Kappa 1.0 T-GDI6.0 L (6.3 US qt.)
Mixture of antifreeze and distilled water
(Ethylene-glycol with phosphate based coolant for
cooling device)
Kappa 1.4 MPI5.8 L (6.1 US qt.)
Gamma 1.6 MPI5.7 ~ 5.8 L
(6.0 ~ 6.1 US qt.)
Gamma 1.6 GDI5.7 ~ 5.8 L
(6.0 ~ 6.1 US qt.)
Gamma 1.6 T-GDI6.1 L (6.4 US qt.)
Diesel EngineU II 1.4 WGT6.7 ~ 6.9 l
(7.1 ~ 7.3 US qt.)
U II 1.6 VGT
Brake/clutch fluid0.7 ~ 0.8 l
(0.7 ~ 0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel53L (14.0 US gal.)Refer to “Fuel requirements” in section 1

Specifications & Consumer information
12
8
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engine
and other mechanisms that couldbe damaged.
* 1
: If you use the engine oil of a viscosity grade SAE 5W-20, replace engine oil and filter after
driving 15,000 km or 12 month with MPI engine (10,000 km or 6 month with GDI engine) in
normal condition and replace engine oil and engine oil filter after driving 7,500 km or 6 month
with MPI engine (5,000 km or 6 month with GDI engine) in severe condition.
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SM / ILSAC GF 4 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-30 (ACEA A5 or above).
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline Engine Oil
(MPI/GDI - For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
0W-40, 5W-20 * 1
,5W-30, 5W-40
Gasoline
Engine Oil * 2
(MPI/GDI -
Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
Diesel Engine Oil5W-30
15W-40
10W-30
0W-30
Gasoline Engine Oil * 4
(T-GDI)5W-30, 5W-40
