2017 KIA CEED Owners Manual

Safety features of your vehicle
64
3
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
“ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this "under-ride" situation
because deceleration forces that are
detected by sensors may be signifi-
cantly replaced by such “under-ride”
collisions. Air bags may not inflate in rollover acci-
dents because the vehicle can not
detect rollover accident.
However, side and/or curtain air bags
may inflate when the vehicle is rolled
over following (or after) side impact col-lision. Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated to one area and
the full force of the impact is not deliv-
ered to the sensors.
OED036103OED036104OJD035050
JD PE eng 3.QXP 03.01.2017 16:42 Page 64

365
Safety features of your vehicle
SRS Care
The SRS is virtually maintenance-free
and so there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate, or con-
tinuously remains on, we recommend
that the system be inspected by an
authorized Kia dealer.
WARNING
Modification to SRS components or wiring, including the addition
of any kind of badges to the pad
covers or modifications to the
body structure, can adversely
affect SRS performance and lead
to possible injury.
For cleaning the air bag pad cov- ers, use only a soft, dry cloth or
one which has been moistened
with plain water. Solvents or
cleaners could adversely affect
the air bag covers and proper
deployment of the system.
No objects should be placed over or near the air bag modules on
the steering wheel, instrument
panel, and the front passenger's
panel above the glove box,
because any such object could
cause harm if the vehicle is in a
crash severe enough to cause
the air bags to inflate.
(Continued)(Continued)
If the air bags inflate, we recom-mend that the system be replaced
by an authorized Kia dealer.
Do not tamper with or disconnect SRS wiring, or other components
of the SRS system. Doing so
could result in injury, due to acci-
dental inflation of the air bags or
by rendering the SRS inopera-
tive.
If components of the air bag sys- tem must be discarded, or if the
vehicle must be scrapped, certain
safety precautions must be
observed. An authorized Kia
dealer knows these precautions
and can give you the necessary
information. Failure to follow
these precautions and proce-dures could increase the risk of
personal injury.
If your car was flooded and has soaked carpeting or water on floor-
ing, you shouldn't try to start the
engine; we recommend that you
contact an authorized Kia dealer.
JD PE eng 3.QXP 03.01.2017 16:42 Page 65

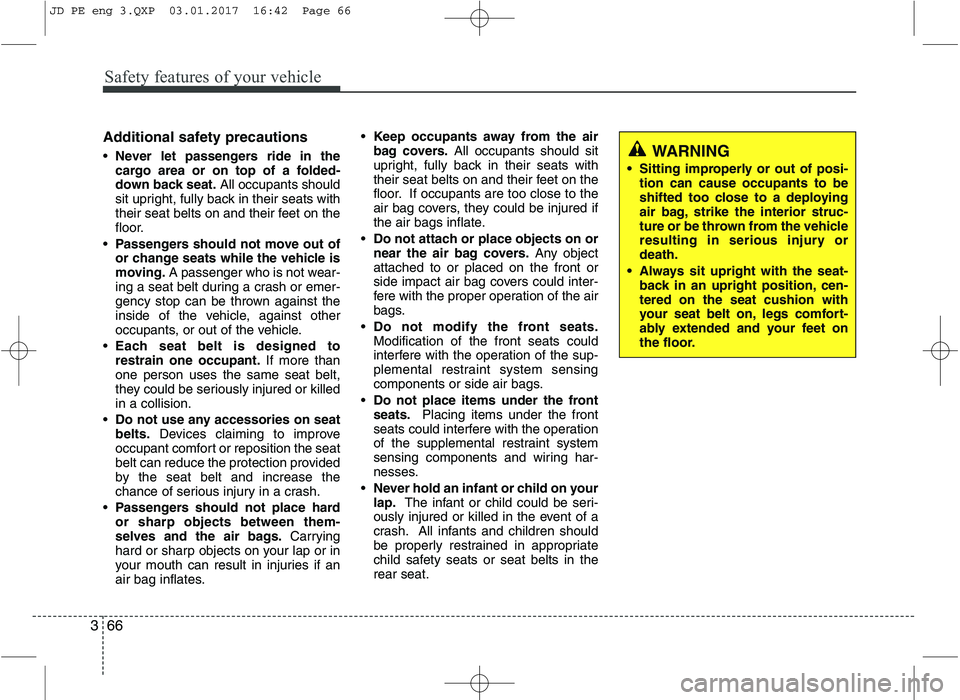

Safety features of your vehicle
66
3
Additional safety precautions Never let passengers ride in the
cargo area or on top of a folded-
down back seat. All occupants should
sit upright, fully back in their seats with
their seat belts on and their feet on the
floor.
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wear-
ing a seat belt during a crash or emer-
gency stop can be thrown against the
inside of the vehicle, against other
occupants, or out of the vehicle.
Each seat belt is designed torestrain one occupant. If more than
one person uses the same seat belt,
they could be seriously injured or killedin a collision.
Do not use any accessories on seatbelts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the
chance of serious injury in a crash.
Passengers should not place hardor sharp objects between them-
selves and the air bags. Carrying
hard or sharp objects on your lap or in
your mouth can result in injuries if an
air bag inflates.
Keep occupants away from the air
bag covers. All occupants should sit
upright, fully back in their seats with
their seat belts on and their feet on the
floor. If occupants are too close to the
air bag covers, they could be injured if
the air bags inflate.
Do not attach or place objects on or
near the air bag covers. Any object
attached to or placed on the front or
side impact air bag covers could inter-
fere with the proper operation of the air
bags.
Do not modify the front seats.Modification of the front seats could
interfere with the operation of the sup-
plemental restraint system sensing
components or side air bags.
Do not place items under the frontseats. Placing items under the front
seats could interfere with the operation
of the supplemental restraint system
sensing components and wiring har-
nesses.
Never hold an infant or child on yourlap. The infant or child could be seri-
ously injured or killed in the event of a
crash. All infants and children should
be properly restrained in appropriate
child safety seats or seat belts in therear seat.
WARNING
Sitting improperly or out of posi- tion can cause occupants to be
shifted too close to a deploying
air bag, strike the interior struc-
ture or be thrown from the vehicle
resulting in serious injury ordeath.
Always sit upright with the seat- back in an upright position, cen-tered on the seat cushion with
your seat belt on, legs comfort-
ably extended and your feet on
the floor.
JD PE eng 3.QXP 03.01.2017 16:42 Page 66

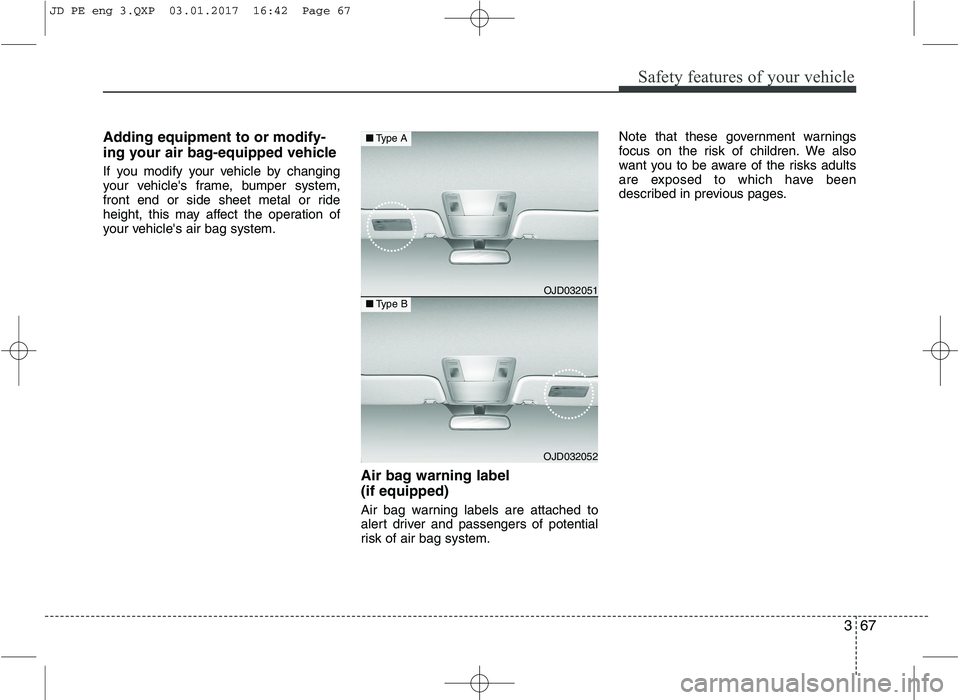

367
Safety features of your vehicle
Adding equipment to or modify-
ing your air bag-equipped vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle's air bag system.Air bag warning label (if equipped)
Air bag warning labels are attached to
alert driver and passengers of potential
risk of air bag system.Note that these government warnings
focus on the risk of children. We also
want you to be aware of the risks adults
are exposed to which have been
described in previous pages.
■
Type B OJD032051
■
Type A
OJD032052
JD PE eng 3.QXP 03.01.2017 16:42 Page 67

Features of your vehicle
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . 4-6  Remote keyless entry system operations . . . . . . . . . . . 4-6
 Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-8
 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11  Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
 Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-13
 Door lock/unlock in an emergency situation . . . . . . 4-13
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-14  Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
 Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
 Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17  From outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
 From inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
 Deadlocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
 Door lock/unlock features. . . . . . . . . . . . . . . . . . . . . . 4-20
 Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-21
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22  Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
 Closing the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
 Emergency tailgate safety release . . . . . . . . . . . . . . . 4-23
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24  Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25  Manual windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29  Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
 Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31  Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-31
 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-31
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-34  Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-35
 Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
 Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
 Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
 Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39  Electronic power steering . . . . . . . . . . . . . . . . . . . . . . 4-39
 Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . 4-40
 Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
 Flex steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44  Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-44
 Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-45
Instrument cluster (Normal vision) . . . . . . . . . . . 4-48  Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-49
 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
 Manual transaxle shift indicator . . . . . . . . . . . . . . . . 4-51
 Automatic transaxle shift position indicator . . . . . . 4-51
4

 Dual clutch transmission shift indicator . . . . . . . . . . 4-52
 Speed limiter indicator . . . . . . . . . . . . . . . . . . . . . . . . 4-53
 Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
 Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Instrument cluster (Super vision) . . . . . . . . . . . . . 4-61  Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-63
 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
 Manual transaxle shift indicator . . . . . . . . . . . . . . . . 4-66
 Automatic transaxle shift position indicator . . . . . . 4-67
 Dual clutch transmission shift indicator . . . . . . . . . . 4-67
 Speed limiter indicator . . . . . . . . . . . . . . . . . . . . . . . 4-68
 Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
 Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
 LCD display information . . . . . . . . . . . . . . . . . . . . . . 4-76
 Warnings and indicators. . . . . . . . . . . . . . . . . . . . . . . 4-82
LCD display warnings and indicators (instrument panel display) . . . . . . . . . . . . . . . . . 4-93
Rear parking assist system . . . . . . . . . . . . . . . . . . 4-95  Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
 Non-operational conditions . . . . . . . . . . . . . . . . . . . . 4-97
 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
 Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Parking assist system . . . . . . . . . . . . . . . . . . . . . . . 4-99  Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
 Non-operational conditions . . . . . . . . . . . . . . . . . . . 4-102
 Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
Smart Parking Assist System (SPAS) . . . . . . . . . 4-104  Operating condition . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
 Non-operating condition . . . . . . . . . . . . . . . . . . . . . . 4-106  How the system works (Parking mode) . . . . . . . . . 4-109
 How the system works (Exit mode) . . . . . . . . . . . . . 4-115
 Additional instructions (messages). . . . . . . . . . . . . . 4-118
 System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . 4-120
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121  Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-121
 Headlamp delay function . . . . . . . . . . . . . . . . . . . . . 4-121
 Headlight (Headlamp) welcome function . . . . . . . . 4-121
 Static bending light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
 Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
 High - beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-124
 High beam assist (HBA) . . . . . . . . . . . . . . . . . . . . . . 4-125
 Turn signals and lane change signals . . . . . . . . . . . 4-126
 Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
 Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
 Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-128
 Headlight leveling device . . . . . . . . . . . . . . . . . . . . . 4-128
 Adaptive Front Lighting System (AFLS) . . . . . . . . 4-129
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-131  Windshield wipers (front) . . . . . . . . . . . . . . . . . . . . . 4-131
 Windshield washers (front) . . . . . . . . . . . . . . . . . . . 4-133
 Rear window wiper and washer switch. . . . . . . . . . 4-134
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135  Interior lamp AUTO cut . . . . . . . . . . . . . . . . . . . . . . 4-135
 Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
 Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
 Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
4

 Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
 Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138  Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
 Interior light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
 Puddle lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139  Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-139
Manual climate control system . . . . . . . . . . . . . . 4-140  Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-141
 System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
 Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-147
 Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . 4-148
Automatic climate control system . . . . . . . . . . . 4-149  Automatic heating and air conditioning . . . . . . . . . 4-150
 Manual heating and air conditioning . . . . . . . . . . . 4-152
 System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
 Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-157
 Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . 4-160
Windshield defrosting and defogging . . . . . . . . . 4-161  Manual climate control system . . . . . . . . . . . . . . . . 4-161
 Automatic climate control system . . . . . . . . . . . . . . 4-162
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-163
Storage compartment . . . . . . . . . . . . . . . . . . . . . . 4-164  Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-164
 Sliding armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164  Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
 Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
 Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-166
 Luggage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-166
 Luggage side tray . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-167
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168  Cigarette lighter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
 Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-169
 Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
 Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
 Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-172
 Aux, USB and iPod . . . . . . . . . . . . . . . . . . . . . . . . . . 4-173
 Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-173
 Floor mat anchor(s). . . . . . . . . . . . . . . . . . . . . . . . . . 4-174
 Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-175
 Cargo area cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-175
 Barrier net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-176
 Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . . 4-178
 Luggage rail system. . . . . . . . . . . . . . . . . . . . . . . . . . 4-180
 Shopping bag holder . . . . . . . . . . . . . . . . . . . . . . . . . 4-181
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-182  Mounting bracket for roof carrier . . . . . . . . . . . . . 4-182
 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-183
Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-185  Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-185
 Steering wheel audio controls. . . . . . . . . . . . . . . . . . 4-186
 AUX, USB and iPod ®
port . . . . . . . . . . . . . . . . . . . . 4-187
4

Features of your vehicle
4
4
Record your key number
The key code number is
stamped on the keycode tag attached to the
key set. Should you lose
your keys, we recom-
mend that you contact an authorized Kia
dealer. Remove the key code tag and
store it in a safe place. Also, record the
code number and keep it in a safe and
handy place, but not in the vehicle.
Key operations
• Used to start the engine.
Used to lock and unlock the doors. Immobilizer system
Your vehicle may be equipped with an
electronic engine immobilizer system to
reduce the risk of unauthorized vehicle
use.
Your immobilizer system is comprised of
a small transponder in the key and elec-
tronic devices inside the vehicle.
Vehicles without smart key system
With the immobilizer system, whenever
you insert your ignition key into the igni-
tion switch and turn it to ON, it checks
and determines and verifies if the ignition
key is valid or not.
If the key is valid, the engine will start.
If the key is invalid, the engine will not
start.
To deactivate the immobilizer system:
Insert the ignition key into the key cylin-
der and turn it to the ON position.
To activate the immobilizer system:
Turn the ignition key to the OFF position.
The immobilizer system activates auto-
matically. Without a valid ignition key for
your vehicle, the engine will not start.
KEYS
WARNING
- Ignition key
(Smart key)
Leaving children unattended in a
vehicle with the ignition key (Smart
key) is dangerous even if the key is
not in the ignition or start button is
ACC or ON position. Children copy
adults and they could place the key
in the ignition or press the start but-
ton. The ignition key (Smart key)
would enable children to operate
power windows or other controls, or
even make the vehicle move, which
could result in serious bodily injury
or even death. Never leave the keys
in your vehicle with unsupervised
children, when the engine is running.
WARNING
We recommend that you use parts
for replacement from an authorized
Kia dealer. If an aftermarket key is
used, the ignition switch may not
return to ON after START. If this
happens, the starter will continue
to operate causing damage to the
starter motor and possible fire due
to excessive current in the wiring.
