2017 KIA CARENS RHD key

5113
Audio system

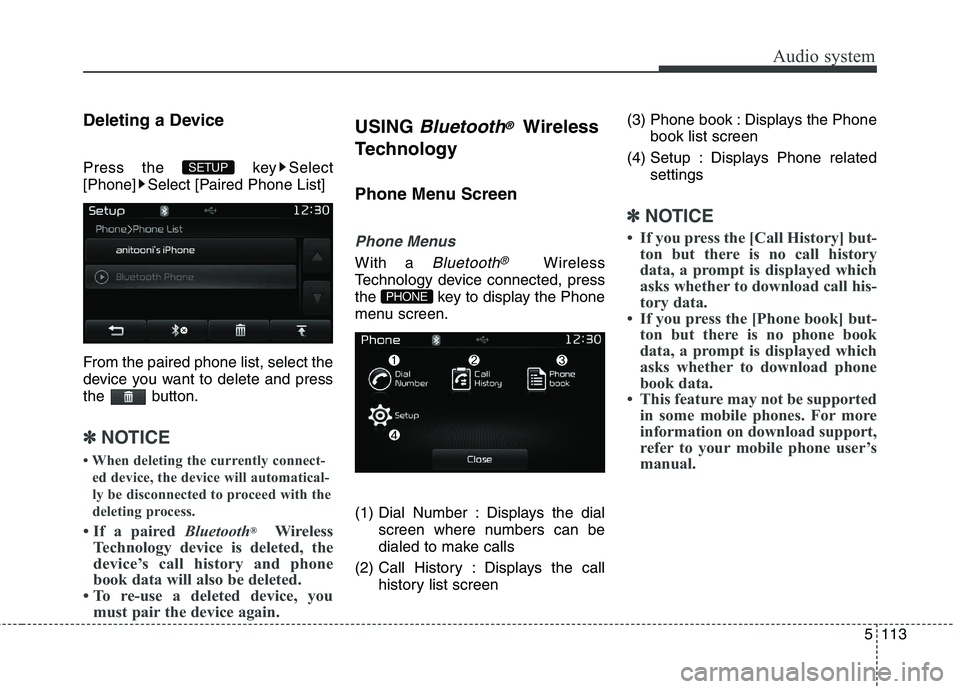

Deleting a Device
Press the key Select
[Phone] Select [Paired Phone List]
From the paired phone list, select the
device you want to delete and press
the button.
✽✽NOTICE
 When deleting the currently connect- ed device, the device will automatical-
ly be disconnected to proceed with the
deleting process.
 If a paired Bluetooth®
Wireless
Technology device is deleted, the
device’s call history and phone
book data will also be deleted.
 To re-use a deleted device, you must pair the device again.
USING Bluetooth®Wireless
Technology
Phone Menu Screen
Phone Menus
With a Bluetooth®Wireless
Technology device connected, press
the key to display the Phone
menu screen.
(1) Dial Number : Displays the dial screen where numbers can be
dialed to make calls
(2) Call History : Displays the call history list screen (3) Phone book : Displays the Phone
book list screen
(4) Setup : Displays Phone related settings
✽✽NOTICE
 If you press the [Call History] but- ton but there is no call history
data, a prompt is displayed which
asks whether to download call his-
tory data.
 If you press the [Phone book] but- ton but there is no phone book
data, a prompt is displayed which
asks whether to download phone
book data.
 This feature may not be supported in some mobile phones. For more
information on download support,
refer to your mobile phone user’s
manual.
PHONE
SETUP

Audio system
114
5

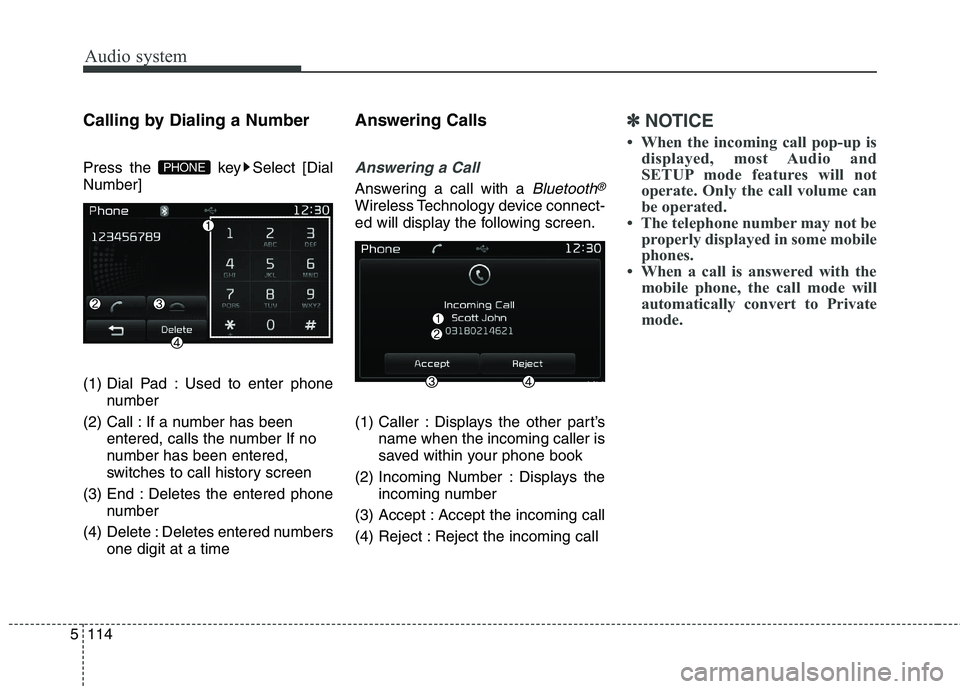

Calling by Dialing a Number
Press the key Select [Dial Number]
(1) Dial Pad : Used to enter phone
number
(2) Call : If a number has been entered, calls the number If no
number has been entered,
switches to call history screen
(3) End : Deletes the entered phone number
(4) Delete : Deletes entered numbers one digit at a time Answering Calls
Answering a Call
Answering a call with a Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
(1) Caller : Displays the other part’s
name when the incoming caller is
saved within your phone book
(2) Incoming Number : Displays the incoming number
(3) Accept : Accept the incoming call
(4) Reject : Reject the incoming call
✽✽ NOTICE
 When the incoming call pop-up is displayed, most Audio and
SETUP mode features will not
operate. Only the call volume can
be operated.
 The telephone number may not be properly displayed in some mobile
phones.
 When a call is answered with the mobile phone, the call mode will
automatically convert to Private
mode.
PHONE

5115
Audio system

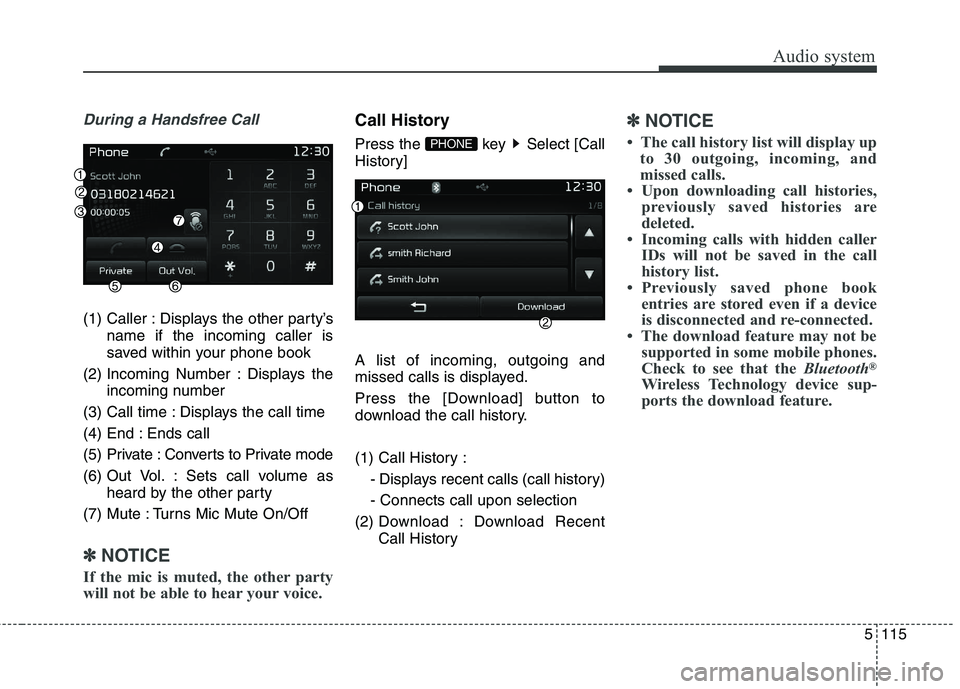

During a Handsfree Call
(1) Caller : Displays the other party’sname if the incoming caller is
saved within your phone book
(2) Incoming Number : Displays the incoming number
(3) Call time : Displays the call time
(4) End : Ends call
(5) Priv ate : Converts to Private mode
(6) Out Vol. : Sets call volume as heard by the other party
(7) Mute : Turns Mic Mute On/Off
✽✽ NOTICE
If the mic is muted, the other party
will not be able to hear your voice.
Call History
Press the key Select [Call
History] A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] button to
download the call history.
(1) Call History :
- Displays recent calls (call history) - Connects call upon selection
(2) Downl oad : Download Recent
Call History✽✽ NOTICE
 The call history list will display up to 30 outgoing, incoming, and
missed calls.
 Upon downloading call histories, previously saved histories are
deleted.
 Incoming calls with hidden caller IDs will not be saved in the call
history list.
 Previously saved phone book entries are stored even if a device
is disconnected and re-connected.
 The download feature may not be supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup-
ports the download feature.
PHONE

Audio system
116
5

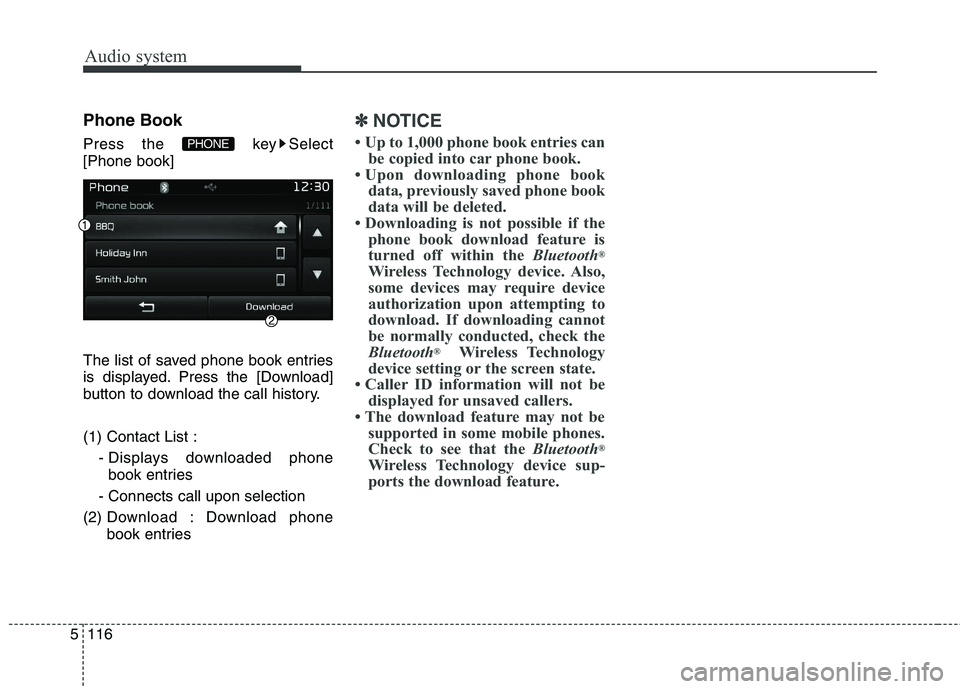

Phone Book
Press the key Select [Phone book]
The list of saved phone book entries
is displayed. Press the [Download]
button to download the call history. (1) Contact List :
- Displays downloaded phonebook entries
- Connects call upon selection
(2) Do wnload : Download phone
book entries✽✽ NOTICE
 Up to 1,000 phone book entries can be copied into car phone book.
 Upon downloading phone book data, previously saved phone book
data will be deleted.
 Downloading is not possible if the phone book download feature is
turned off within the Bluetooth®
Wireless Technology device. Also,
some devices may require device
authorization upon attempting to
download. If downloading cannot
be normally conducted, check the
Bluetooth ®
Wireless Technology
device setting or the screen state.
 Caller ID information will not be displayed for unsaved callers.
 The download feature may not be supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup-
ports the download feature.
PHONE

5117
Audio system

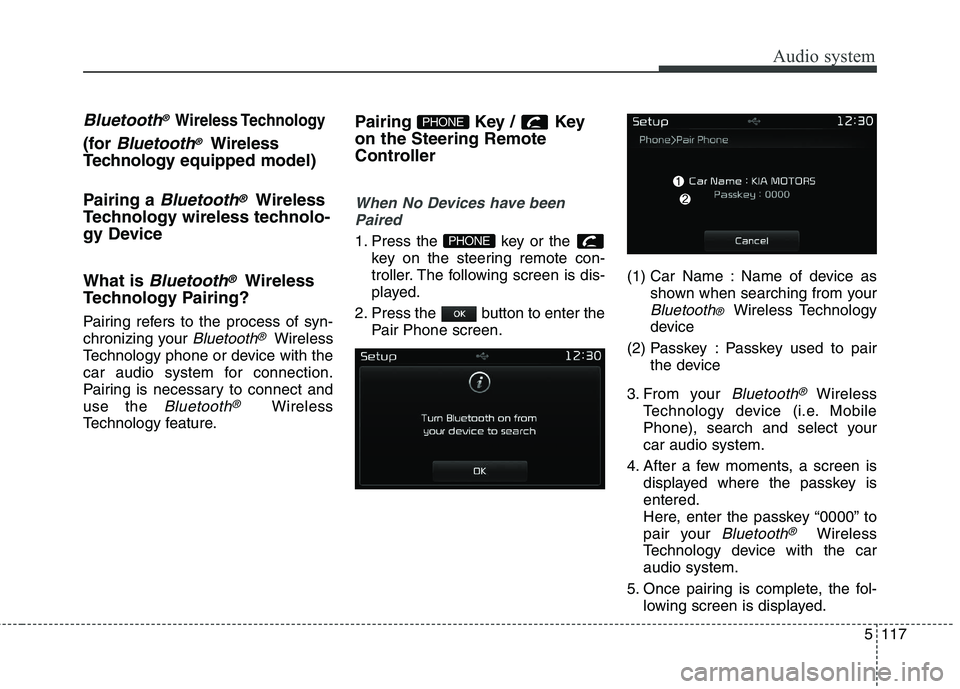

Bluetooth® Wireless Technology
(for Bluetooth®Wireless
Technology equipped model)
Pairing a
Bluetooth®Wireless
Technology wireless technolo-
gy Device What is
Bluetooth®Wireless
Technology Pairing?
Pairing refers to the process of syn-
chronizing your
Bluetooth®Wireless
Technology phone or device with the
car audio system for connection.
Pairing is necessary to connect anduse the
Bluetooth®Wireless
Technology feature. Pairing Key
/ Key
on the Steering Remote
Controller
When No Devices have been
Paired
1. Press the key or the key on the steering remote con-
troller. The following screen is dis-
played.
2. Press the button to enter the Pair Phone screen. (1) Car Name : Name of device as
shown when searching from your
Bluetooth® Wireless Technology
device
(2) Passkey : Passkey used to pair the device
3. From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select yourcar audio system.
4. After a few moments, a screen is displayed where the passkey isentered.
Here, enter the passkey “0000” to
pair your
Bluetooth®Wireless
Technology device with the caraudio system.
5. Once pairing is complete, the fol- lowing screen is displayed.
PHONE
PHONE

Audio system
118
5
✽✽
NOTICE
If Bluetooth ®
Wireless Technology
devices are paired but none are cur-
rently connected, pressing the key or the key on the
steering remote controller displays
the following screen. Press the [Pair]
button to pair a new device or press
the [Connect] to connect a previous-
ly pair device.Pairing through [PHONE] Setup
Press the key Select
[Phone] Select [Pair Phone]
Select TUNE knob
The following steps are the same as
the steps described in the “When No
Devices have been Paired” section.✽✽ NOTICE
 The waiting period during phone pairing will last for one minute.
The pairing process will fail if the
device is not paired within the
given time. If the pairing process
fails, you must start the process
from the beginning.
 Generally, most Bluetooth®
Wireless Technology devices will
automatically connect once pairing
is complete. However, some devices
may require a separate verification
process to connect. Check to see
whether Bluetooth®
Wireless
Technology has been properly con-
nected within your mobile phone.
 List of paired Bluetooth®
Wireless
Technology devices can be viewed
at [Phone] [Paired Phone
List].
SETUP
SETUP
PHONE

5119
Audio system

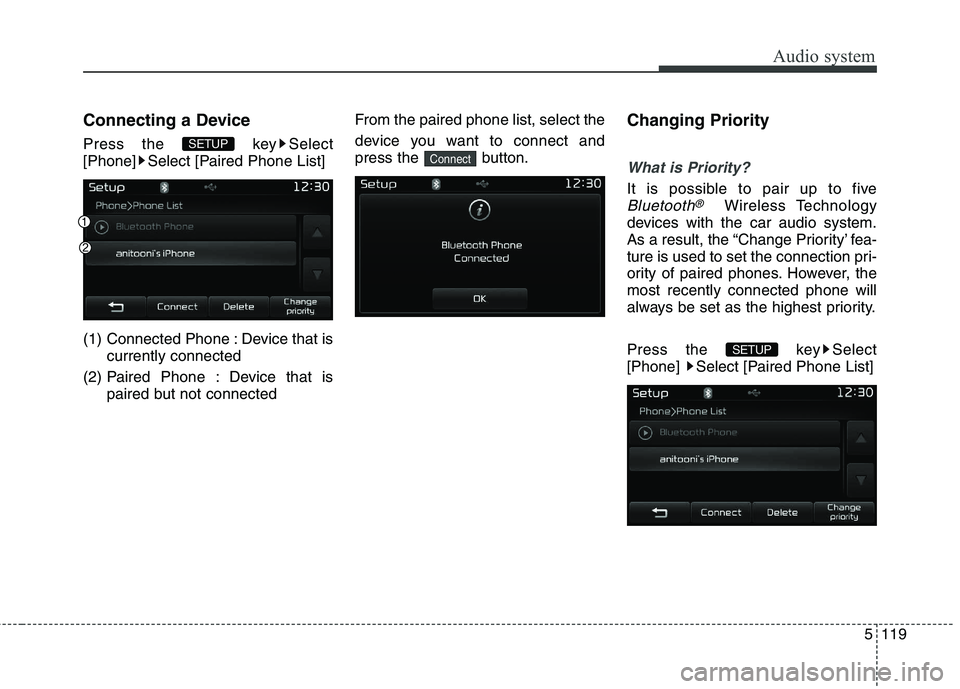

Connecting a Device
Press the key Select
[Phone] Select [Paired Phone List]
(1) Connected Phone : Device that iscurrently connected
(2) Paired Phone : Device that is paired but not connected From the paired phone list, select the
device you want to connect and
press the button.
Changing Priority
What is Priority?
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
As a result, the “Change Priority’ fea-
ture is used to set the connection pri-
ority of paired phones. However, themost recently connected phone will
always be set as the highest priority.
Press the key Select
[Phone] Select [Paired Phone List]
SETUP
ConnectSETUP

Audio system
120
5

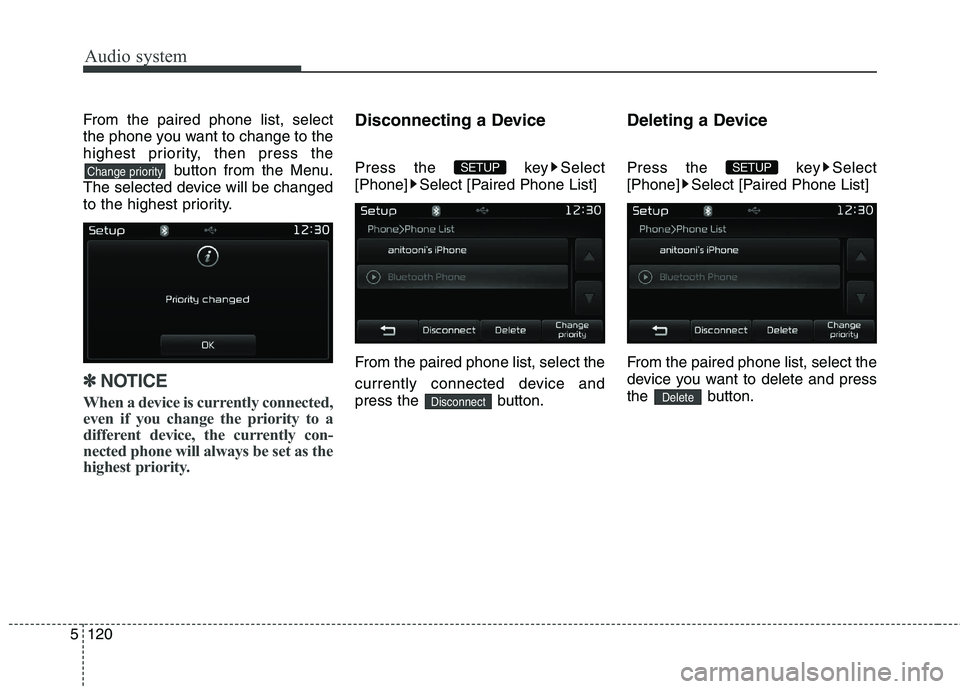

From the paired phone list, select
the phone you want to change to the
highest priority, then press the
button from the Menu.
The selected device will be changed
to the highest priority.
✽✽ NOTICE
When a device is currently connected,
even if you change the priority to a
different device, the currently con-
nected phone will always be set as the
highest priority.
Disconnecting a Device
Press the key Select
[Phone] Select [Paired Phone List]
From the paired phone list, select the
currently connected device and
press the button. Deleting a Device
Press the key Select
[Phone] Select [Paired Phone List]
From the paired phone list, select the
device you want to delete and press
the button.
Delete
SETUP
Disconnect
SETUP Change priority
