2017 KIA CARENS RHD steering

825
Maintenance
Normal Maintenance Schedule - Except Europe (Including Russia) (Continue)
MAINTENANCE INTERVALS
MAINTENANCE ITEMNumber of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Steering gear rack, linkage and bootsIIIIIIII
Suspension ball jointsIIIIIIII
Tire (pressure & tread wear)IIIIIIII
Battery conditionIIIIIIII
All electrical systemIIII
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

827
Maintenance
Severe driving conditions
A : Repeatedly driving short distance of less than 8 km (5miles) in normal temperature or less than 16 km (10 miles)
in freezing temperature.
B : Extensive engine idling or low speed driving for long dis- tances.
C : Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads.
D : Driving in areas using salt or other corrosive materials or in very cold weather. E : Driving in heavy dust condition.
F : Driving in heavy traffic area.
G : Driving on uphill, downhill, or mountain roads repeatedly.
H : Towing a trailer or using a camper on roof rack.
I : Driving for patrol car, taxi, commercial car or vehicle towing.
J : Driving over 170 km/h (106 mile/h).
K : Frequently driving in stop-and-go conditions.
Maintenance itemMaintenance
operationMaintenance intervalsDriving condition
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Front suspension ball jointsIInspect more frequently
depending on the conditionC, D, E, F, G
Disc brakes and pads, calipers and rotorsIInspect more frequently
depending on the conditionC, D, E, G, H
Parking brake (Hand type)IInspect more frequently
depending on the conditionC, D, G, H
Driveshaft and bootsIInspect more frequently
depending on the conditionC, D, E, F, G, H, I, J
Climate control air filterRReplace more frequently
depending on the conditionC, E, G
Spark plugsRReplace more frequently
depending on the conditionB, H, I, K

831
Maintenance
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and
any leakage. Replace any deteriorat-
ed or damaged parts immediately. Brake fluid
Check brake fluid level in the brake
fluid reservoir. The level should be
between “MIN” and “MAX” marks on
the side of the reservoir. Use only
hydraulic brake fluid conforming to
DOT 3 or DOT 4 specification.
Brake pads, calipers and rotors
Check the pads for excessive wear,
discs for run out and wear, and
calipers for fluid leakage.
For more information on checking
the pads or lining wear limit, refer to
the Kia web site. (https://www
.kia-hotline.com)
Suspension mounting bolts
Check the suspension connections
for looseness or damage. Retighten
to the specified torque.
Parking brake
Inspect the parking brake system
including the EPB actuator, wiring
and connectors.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine
off, check for excessive free-play in
the steering wheel.
Check the linkage for bends or dam-
age. Check the dust boots and ball
joints for deterioration, cracks, or
damage. Replace any damaged
parts.Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged
parts and, if necessary, repack the
grease.
Air conditioning refrigerant/ compressor (if equipped)
Check the air conditioning lines and
connections for leakage and dam-
age.

Maintenance
56
8
Tyre replacement
If the tyre is worn evenly, a tread
wear indicator will appear as a solid
band across the tread. This showsthere is less than 1.6 mm (1/16 in.) of
tread left on the tyre. Replace the
tyre when this happens.
Do not wait for the band to appear
across the entire tread before replac-
ing the tyre.
✽✽
NOTICE
We recommend that when replacing
tyres, use the same originally sup-
plied with the vehicles.
If not, that affects driving perform-
ance.
OEN076053
Tread wear indicator
WARNING - Replacing
tyres
Driving on worn-out tyres is very hazardous and will reduce
braking effectiveness, steering
accuracy, and traction.
Your vehicle is equipped with tyres designed to provide for
safe ride and handling capa-
bility. Do not use a size andtype of tyre and wheel that is
different from the one that is
originally installed on your
vehicle. It can affect the safety
and performance of your vehi-
cle, which could lead to han-
dling failure or rollover and
serious injury. When replacing
the tyres, be sure to equip all
four tyres with the tyre and
wheel of the same size, type,
tread, brand and load-carrying
capacity.
(Continued)(Continued)
The use of any other tyre sizeor type may seriously affect
ride, handling, ground clear-
ance, stopping distance, body
to tyre clearance, snow tyre
clearance, and speedometer
reliability.
It is best to replace all four tyres at the same time. If that
is not possible, or necessary,
then replace the two front or
two rear tyres as a pair.Replacing just one tyre can
seriously affect your vehicle’shandling.
The ABS works by comparing the speed of the wheels. Tyre
size can affect wheel speed.
When replacing tyres, all 4
tyres must use the same size
originally supplied with the
vehicle. Using tyres of a dif-
ferent size can cause the ABS
(Anti-lock Brake System) and
ESC (Electronic Stability
Control) to work irregularly.

871
Maintenance
No.Fuse ratingSymbolFuse NameProtected component
117.5AA/CON1Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay
127.5AMODULE
5MODULE 5ICM Relay Box (Head Lamp Washer Relay), Portable Lamp,
Passenger Seat Warmer Module, Driver Seat Warmer Module
1310AHTD MIRRDriver/Passenger Outside Mirror, ECU, A/C Control Module
1410AINTERIOR
LAMPGlove Box Lamp, Luggage Lamp, Vanity Lamp LH/RH, Room Lamp,
Overhead Console Lamp, Door Warning Sw, Foot Lamp LH/RH, Portable Lamp,
Door Warning Sw, Foot Lamp LH/RH, Portable Lamp
1510ASMARTKEY
2SMART KEY 2Immobiliser Module, Start Stop Button Switch
1620ASUNROOFPanorama Sunroof
177.5AMODULE1MODULE 1Electronic Parking Brake Module, Rear Parking Assist Sensor,
Smart Parking Assist
Control Module, Crash Pad Lower Switch,
Rear Parking Assist Sensor Buzzer, Tyre Pressure Monitoring System
1815AHTD STRGSteering Wheel Heater
1910AECUImmobiliser Module, Smart Key Control Module, ECU, Speed Sensor
2015AWIPERFront Washer Motor, Rear Wiper Motor, Rear Wiper Relay

Maintenance
72
8
No.Fuse ratingSymbolFuse NameProtected component
217.5AMEMORY2MEMORY 2Rf Receiver
2210AMEMORY
1MEMORY 1Instrument Cluster, T
yre Pressure Monitoring Module, BCM, A/C Control Module,
ICM Relay Box (Outside Mirror Folding/Unfolding Relay),
Ignition Key ILL. & Door Warning Switch, Digital Clock, Data Link Connector, Buzzer
237.5ACLUSTERCLUSTERInstrument Cluster, DC-DC Converter (With ISG)
247.5A1POWER
STEERINGEPS Unit
2530ASPARE 2-
267.5ASTARTStart Relay, ECU, Ignition Lock Switch, Transaxle Range Switch, TCU,
Smart Key Control Module
2715AMULTI
MEDIAMULTI MEDIAA/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG),
DC-DC Converter (With ISG), Digital Clock
2820ASMART KEY
1SMART KEY 1Smart Key Control Module
2915AA/BAGSRS Control Module

8107
Maintenance

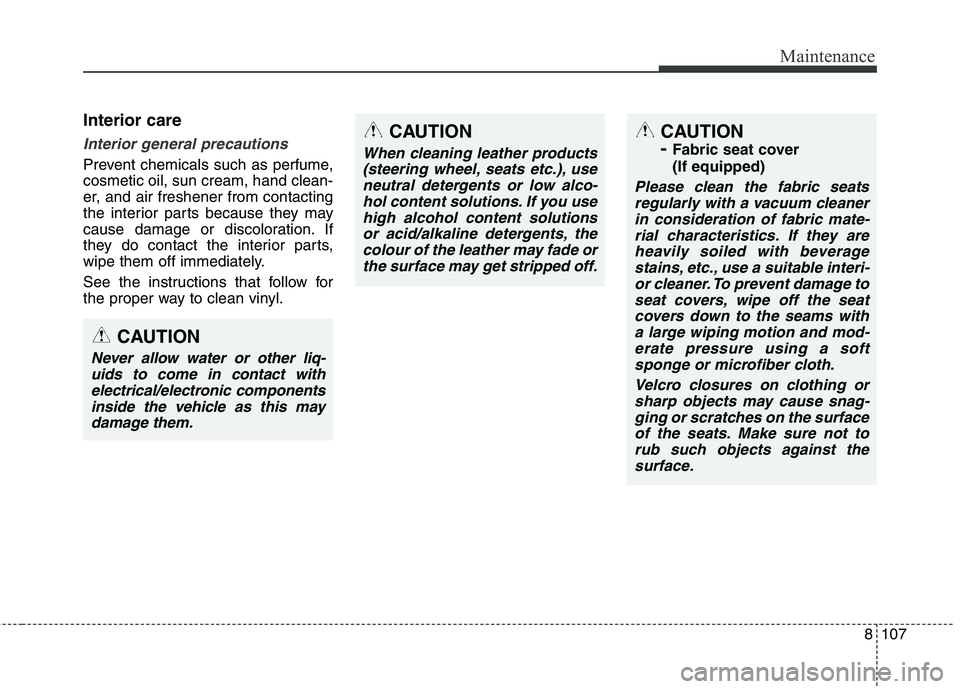

Interior care
Interior general precautions
Prevent chemicals such as perfume, cosmetic oil, sun cream, hand clean-
er, and air freshener from contacting
the interior parts because they may
cause damage or discoloration. If
they do contact the interior parts,
wipe them off immediately.
See the instructions that follow for
the proper way to clean vinyl.
CAUTION
Never allow water or other liq-uids to come in contact withelectrical/electronic components inside the vehicle as this maydamage them.
CAUTION
When cleaning leather products(steering wheel, seats etc.), useneutral detergents or low alco- hol content solutions. If you usehigh alcohol content solutionsor acid/alkaline detergents, the colour of the leather may fade orthe surface may get stripped off.
CAUTION - Fabric seat cover (If equipped)
Please clean the fabric seats
regularly with a vacuum cleanerin consideration of fabric mate- rial characteristics. If they areheavily soiled with beveragestains, etc., use a suitable interi-or cleaner. To prevent damage to seat covers, wipe off the seatcovers down to the seams witha large wiping motion and mod- erate pressure using a softsponge or microfiber cloth.
Velcro closures on clothing orsharp objects may cause snag-ging or scratches on the surface of the seats. Make sure not torub such objects against thesurface.

I9
Index
Highway driving ........................................................6-95
Rocking the vehicle ..................................................6-92
Smooth cornering ........................................................6-93
Speed limit control system ............................................6-69 Speed limit control switch ..........................................6-69
To set speed limit ........................................................6-69
To turn off the speed limit control ..............................6-71
Speed Limit Information Function (SLIF) ....................6-72 Display ........................................................................6-74
DRIVER'S ATTENTION............................................6-77
Operation ....................................................................6-73
SLIF activation / Deactivation ....................................6-73
Steering wheel ..............................................................4-48 Electronic power steering (EPS) ................................4-48
FLEX STEER ............................................................4-51
Heated steering wheel ................................................4-49
Horn ............................................................................4-50
Tilt & telescopic steering ..........................................4-49
Storage compartment ..................................................4-168 Centre console storage ..............................................4-168
Cool box....................................................................4-169
Floor under tray ........................................................4-171
Glove box ................................................................4-168
Luggage tray ............................................................4-170
Sunglass holder ........................................................4-170 Tailgate ..........................................................................4-30
Closing the tailgate ....................................................4-31
Emergency tailgate safety release ..............................4-32
Opening the tailgate ....................................................4-30
Theft-alarm system ........................................................4-16 Armed stage ................................................................4-16
Disarmed stage ............................................................4-18
Theft-alarm stage ........................................................4-18
Theft-alarm system (intrusion protection system, UK only) ......................4-19Armed stage ................................................................4-19
Disarmed stage ............................................................4-22
Self-diagnosis..............................................................4-22
Theft-alarm stage ........................................................4-21
Towing ..........................................................................7-32 Emergency towing ......................................................7-34
Removable towing hook ............................................7-33
Towing service ............................................................7-32
Trailer Towing..............................................................6-100
Trip computer ................................................................4-77 Fuel Economy ............................................................4-79
Overview ....................................................................4-77
Trip A/B (for Type A cluster) ....................................4-78
Tyre Pressure Monitoring System (TPMS) ....................7-9 Changing a tyre with TPMS ......................................7-12
Low tyre pressure telltale............................................7-10T
