Page 1 of 92
CAR MULTIMEDIA SYSTEM
QUICK REFERENCE GUIDE
F6EUG08
(미국/영어-English)
, @ : ( @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E , @ : ( @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E
Page 2 of 92
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
• Set the volume to a level which allows the driver to be aware of external conditions.
• Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Harman/kardon is a trademark of Harman International Industries, Inc.
• At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone®
is a registered trademark of Apple Inc. Apple iOS6 compatibility expected early 2013.
Additional compatible devices expected late 2013.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.
All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without HYUNDAI MnSoft, Inc's prior written consent.
, @ : ( @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E , @ : ( @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E
Page 3 of 92
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
• Set the volume to a level which allows the driver to be aware of external conditions.
• Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Harman/kardon is a trademark of Harman International Industries, Inc.
• At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone®
is a registered trademark of Apple Inc. Apple iOS6 compatibility expected early 2013.
Additional compatible devices expected late 2013.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.
All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without HYUNDAI MnSoft, Inc's prior written consent.
, @ : ( @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E , @ : ( @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E
Page 4 of 92
1
0037
Table of Contents ........................................................1
Controls and Functions .............................................2
On-Screen Touch Controls ......................................6
Setup .......................................................................\
.........8

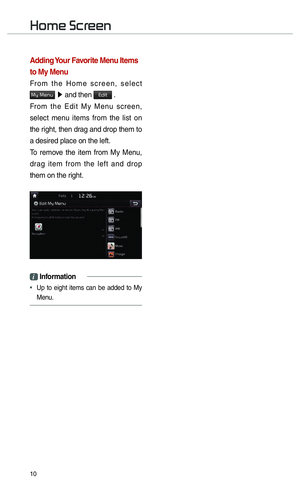

Home Screen ................................................................9
FM/AM .......................................................................\
......11
HD Radio™ Technology ...........................................14
SiriusXM™ .....................................................................15
Disc CD .......................................................................\
....18
Disc MP3 .......................................................................\
.20
USB .......................................................................\
...........22
iPod® ........................................................................\
.........25
AUX .......................................................................\
...........27
Bluetooth® Audio ..........................................................28

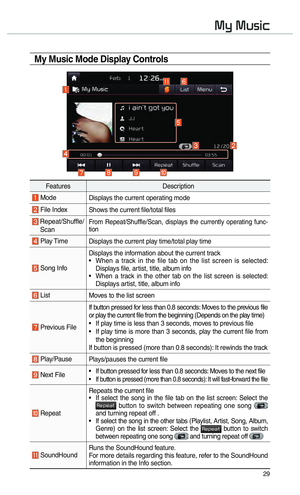

My Music........................................................................\
.29
Bluetooth® .......................................................................31
Voice Recognition .......................................................36
Pandora Radio..............................................................48
SoundHound .................................................................49
Download Center .........................................................50
SiriusXMTM Data ..........................................................52
FAQ .......................................................................\
...........58
Navigation .....................................................................61
Page 5 of 92
2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
Head Unit
NameDescription
0003000300330032003A002800350012
000300390032002F • When power is off, press to turn power on
• When power is on, press and hold (more than 0.8 seconds)
to turn power off
• When power is on, press shortly (less than 0.8 seconds) to
turn Audio off
• Turn left/right to control volume
Press to insert or eject disc
0027002C00360033Turns the screen on/off
0037003800310028 • FM/AM mode: changes the frequency
• SiriusXM™ mode: changes the channel
• MEDIA (Disc/USB/iPod/My Music) mode: changes the track,
file or title (except USB Image, Bluetooth Audio and AUX)
003500240027002C0032Selects to FM/AM/SiriusXM™ mode
• Each time this is pressed, the mode is changed in order of
FM 0003044F0003
AM 0003044F0003
SiriusXM™ 0003044F0003
FM
003000280027002C0024Selects to MEDIA mode
• If the media is not connected or the CD player is not available
for Model, MEDIA mode will not be activated.
Page 6 of 92
3
NameDescription
003600280028002E
0037003500240026002E
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: plays the previous/next frequency.
• SiriusXM™ mode: plays the previous/next channel.
• MEDIA (Disc/USB/iPod/My Music) mode: changes the track, file
or title (except for USB Image and AUX).
When pressed and held down (more than 0.8 seconds),
• FM/AM mode: continuously changes the frequency until the key is released.
• SiriusXM™ mode: continuously changes the channel until the key is released and plays the current channel.
• MEDIA (Disc/USB/iPod/My Music) mode: rewinds or fast for- wards the track or file (except for USB Image, Bluetooth Audio,
and AUX).
SD card insert slot
003000240033
00390032002C00260028Displays the map for the current position
0033002B003200310028Takes user to phone screen
003800390032Displays the UVO screen
00360028003700380033Displays the Setup screen
00350028003600280037 Resets the system settings. (Preset radio channels and other data
will not be deleted.)
0424
The actual feature in the vehicle may differ from the illustration.
Page 7 of 92
4
Steering Wheel Controls
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
NameDescription
When pressed quickly (less than 0.8 seconds),
• Activates voice recognition
When pressed and held (more than 0.8 seconds),
• Ends voice recognition
• If iOS device is connected through Bluetooth, activates or ends
Siri Eyes Free
0030003200270028
• Each time this is pressed, the mode is changed in the order of FM 044F
AM 044F
SiriusXM™ 044F
Disc 044F0003
USB Music or iPod 044F
AUX
044F Bluetooth Audio 044F
My Music
• If the media is not connected, corresponding modes will be dis- abled
• Press and hold (more than 0.8 seconds) to turn the Audio sys- tem on/off
• When power is off, press to turn power back on
000E, 0010Controls the volume
0003
0003
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: searches broadcast frequencies saved to Presets
• SiriusXM™ mode: searches broadcast channels saved to Presets
• Media (Disc/USB/iPod/My Music) mode: changes the track, file or title (except USB Image, AUX)
When pressed and held (more than 0.8 seconds),
• FM/AM mode: automatically searches broadcast frequencies
• SiriusXM™ mode: automatically searches broadcast channels
• Media (Disc/USB/iPod/My Music) mode: quickly looks up songs (excluding USB images, AUX and Bluetooth audio files)
Page 8 of 92
5
NameDescription
When pressed quickly (less than 1.2 seconds),
• When pressed in the dial screen, makes a call
• When pressed in the incoming call screen, answers the call
• When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held (more than 1.2 seconds),
• When pressed in Bluetooth
® Hands-free, redials the last dialed
call
• When pressed during a Bluetooth
® Hands-free call, switches
call back to mobile phone (Private)
• When pressed while calling on the mobile phone, switches call back to Bluetooth
® Hands-free (operates only when Bluetooth®
Hands-free is connected)
• When pressed during a call, ends the phone call
• When pressed in the incoming call screen, rejects the call
0424 The actual feature in the vehicle may differ from the illustration.
